Summary of Contents for Eahora X7
- Page 1 o r a e a h www.eahoraebike.com...
- Page 2 Dear customer: We hope you thoroughly enjoy eAhora X7. Please read the manual throughout before assembling or using your new e-bike. If you find any abnormality or defective parts, please contact us for a repair or a replace- ment. If you need any assistance in the future, we are always here to...
- Page 3 Contents Specification Performance Assembly Components Instruction E-BIKE Safety and Maintenance Maintenance 10-11 Warranty Return Policy...

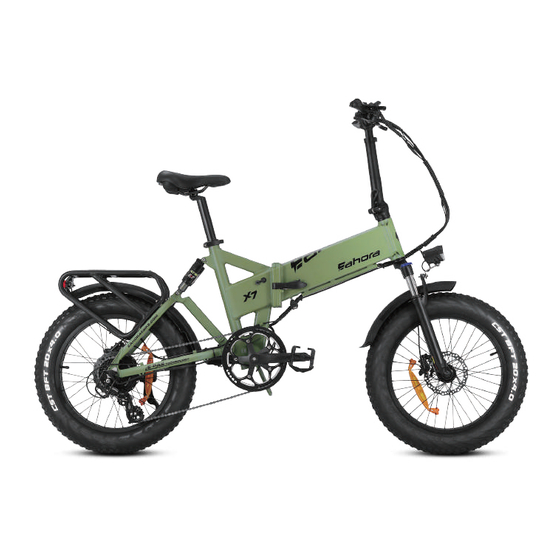

- Page 4 Specification Electronic Components Battery 48V 17.5Ah lithium battery Motor 1000W high-speed brushless motor Controller 23.5 Amp controller Charger US standard 2.0 A pulse charger; 6-8 hours Display 80C multi-function digital color display...
- Page 5 COMPONENTS Frame 17.5 inch rust-proof aluminum alloy frame, foldable Brakes: 180mm Front and rear hydraulic disc brakes Tires 20*4 inch CST tires Suspension Lockable front fork, rear shock absorber Freewheel Shimano 8 speed + Shimano thumb shifter Saddle Memory cotton comfort leather saddle Performance Max Speed: 30-35mph Max Range: 30-40 miles (under pure electricity mode)
- Page 6 Assembled video: https://youtu.be/O4lPLxIg_-k Search the YouTube channel: ''Eahora E-Bikes'' for more videos. accessories List NOTE: Please check the accessories after you received the e-bike. If there are any missing parts, please contact us within 48 hours after receiving the item. Or the missing parts request will be denied.
- Page 7 When charging the battery, first connect the charger and the battery end, and then plug the charger into power. Do not charge the battery with chargers other than the charger provided by eAhora. Only charge the battery indoors in dry spaces which are not excessively hot or cold.
- Page 8 Only grab the charger by the plug and not the cable when plugging and unplugging from the wall. If the battery has trouble charging, discontinue charging and contact eAhora immediately. Note: Lithium-Ion batteries can be dangerous. Take care when using and charging your battery.
- Page 9 Headlight eAhora X7 comes with an integrated headlight and an taillight. It’s strongly recommend- ed to use the lights when riding at night or in low visibility situations. Switch it on or off by pressing th light button on the display dashboard after turning on the display.
- Page 10 e-bike Maintenance 1.Store your e-bike in a clean dry place to avoid rust. 2.The e-bike is not waterproof. It is recommended to store and ride the e-bike in a dry environment. Furthermore, water damage is not covered under warranty. 3.Monthly Maintenance Inflate tires to pressure within recommended range: psl25 in summer, psl30 in winter.
- Page 11 Please record the serial number of the e-bike once you receive the e-bike, in case it will be lost or stolen. The serial number is located on the head tube of the e-bike. X7 comes with an anti-theft device: when you are not using the bike, take out the key and use the remote fob to lock the battery.
- Page 12 Warranty eAhora guarantees a 1-year limited warranty to the original owner of eAhora e-bike. If it’s a gift from others, the customers will need to offer the orignal order number to fulfill the warranty. Parts covered by the warranty: frame, forks, stem, handlebars, headset, seat post,...
- Page 13 Ordinary wear and tear do not result from defects in workmanship or materials. Wear and tear can be assessed by eAhora. Items including the chain, sprocket, freewheel, cranks, pedals, tires, wheels, tubes, spokes, battery handle, battery hous ing, brake pads/rotors, cables and housing, and grips are considered wear items.
- Page 14 Warranty Coverage Part Warranty Period Warranty Scope desoldering/material fracture Frame 36 Months under normal use desoldering/material fracture/ Fork 12 Months performance failure under normal use quality/break down/ Motor 12 Months performance failure under normal use performance failure under normal Battery 12 Months use/power capacity is tested lower than 50% of the ratedcapacity.
- Page 15 NOT be damaged. Accessories and parts should NOT be missing. 8.Please provide eAhora with photos of all the returned items and the outer package before shipment. eAhora will have to check the status of the returned e-bike.
- Page 16 www.eahoraebike.com...
