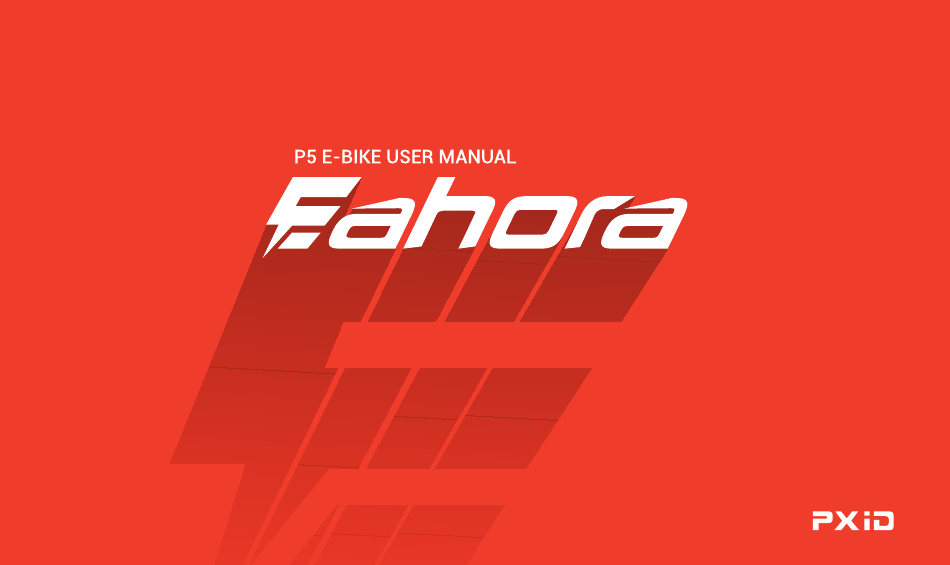

Eahora PXiD P5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXiD P5 and is the answer not in the manual?

Questions and answers

Related Manuals for Eahora PXiD P5

Summary of Contents for Eahora PXiD P5

  • Page 3: Table Of Contents

    Content Must read before assembling and riding ......................1 Unboxing and checklist ............................3 Installation instructions ............................5 Operating instructions ............................7 Moving and storage instructions ........................12 Ebike maintenance instructions ......................... 18 Frame code & motor code ........................... 22 Warranty service ..............................

  • Page 5: Must Read Before Assembling And Riding

    1. Must read before assembling and riding 1. Please read this manual throughout before assembling this e-bike or the rider’s first time riding it. 2. Before unboxing, please check the shipping damages on the box and take the photo(s) to record it. 3.
  • Page 6 E-bike specifications Model Battery 48V 20Ah Removable battery Charger 54.6V DC American charger Motor 750W 32 ~ 38 miles with throttle only, Range 38 ~ 44 miles with pedal assist ( load is about 198lb) Top speed 28 Mph Tire 24*4.0 Inch Brakes Front and rear hydraulic disc brakes, 180mm rotors...

  • Page 7: Unboxing And Checklist

    2. Unboxing and checklist 1. Take the bike and all items on the Checklist out of the box. 2. Remove all wrapping materials and put them back into the box. 3. Recycle the box and wrapping materials after 15 days or when you decide to keep the bike.
  • Page 8 Accessories Handlebar * 1 Headlight * 1 Pedal * 2 Saddle * 1 Charger * 1 13-15 wrench * 2 Hexagon wrench * 3 User manual Front wheel * 1 P5 Bike frame * 1 User manual * 1 If there are missing parts or shipping damages to be found, please contact us within 15 days from receipt of the bike.

  • Page 9: Installation Instructions

    3. Installation instructions 1. Fix the front, unscrew the screws on the 2. Secure the horizontal kit, tighten it with 3. Install the saddle, open the lock and insert slot first, and correspond the horizontal kit to a hexagon screwdriver, and finish the the saddle first.
  • Page 10 � 7. Place the wheel brake disc at the front clip 8. Put the wheels right and check the gap 9. Install the pedal, to left and right sides of the ① , and point the wheel snap release lever at between the brake disc and the clamp, after foot, and twist the left one counterclockwise.

  • Page 11: Operating Instructions

    4. Operating instructions Keyboard Display Bell Shifter Reflector Battery housing Charge port Reflector Motor Freewheel Derailleur...
  • Page 12 Brake lever Headlight Saddle Shock absorber Front fork Front tire Rear tire Front brake rotor Rear disc brake Pedal Kick stand...
  • Page 13 Display Error code Headlight Battery Total milage Trip mileage Max speed Mode Average speed Speed km/h Current speed Walk...
  • Page 14 Head combination switch Plus button Info-switch button Bell Headlight button Minus button Power button Shifter Throttle Long press to start working and power the controller. In the boot state, long press the button to turn Power button off the power supply. Short press key to switch the electric vehicle power gear to change the output power of the motor.
  • Page 15 Error code meaning sheet Error number Failure type Error number Failure type E001 Controller error E004 Throttle error E002 Communication error E005 Brake lever error E003 Motor hall error E006 Motor error...

  • Page 16: Moving And Storage Instructions

    5. Moving and storage instructions Check before riding To reduce the occurrence of accidental injuries, the following items should be checked before each ride: 1. Check bike status, tire and brake effect, etc. Ensure that no parts including the handlebars, risers, tires, brake lines, brake handles, fenders, and screws show any signs of loosening or damage.
  • Page 17 Max weight The e-bike can safely carry a total weight of 330 lbs. The recommended loading is 300lbs.Heavier loading than 330lbs will affect the e-bike performance. Failure to adhere to these weight limits may result in damage to the e-bike, the rack, or cause serious injury to the rider. Note range and top speed will be affected by the total weight being carried by the e-bike.
  • Page 18 1. Preparation:There is a risk of falling and injury, so wear a helmet and 2. Operating: Press on/off to unlock and power on; and protective gear all the time. check battery status, if the charge is too low, please charge it immediately.
  • Page 19 6. Turning: When turning, lean your center of 7. Get off: After cycling, please park the bike on the flat road and long press gravity slightly and slowly turn your handle. on to turn off the power; drop the foot support to avoid slipping or falling. Important safety instructions 1.
  • Page 20 Due to battery self consumption during transportation and storage, it is normal for the battery to be low or no battery when used for the first ti me. Please charge according to the following charging steps. You can choose two ways for charging: outside charging and whole scooter char ging. Do not allow minors to use the charging equipment. Whole vehicle charging Find the charging port above the rear shock absorber, open the rubber plug of the charging port, connect the output end of the charger, then connect the power supply, and fasten the rubber plug after charging.
  • Page 21 External charging  Take out the battery, open the rubber plug of the charging port, first connect the output end of the charger to the charging port of the body, then turn on the power supply, and fasten the rubber plug after charging. Warning 1.

  • Page 22: Ebike Maintenance Instructions

    6. Ebike maintenance instructions Users should obey the following tips to maintain electric bicycles: Clean Wipe the main frame clean with a soft damp cloth. For hard-to-clean stains, use a professional cleaner to scrub repeatedly, then clean with a soft damp cloth. Note: Do not use alcohol, gasoline, kerosene or other corrosive and volatile solvents to clean.
  • Page 23 Move Before moving, make sure that the electric bicycle is turned off. During the handling process, please handle with care, do not throw, heavy pressure, rain, moisture and violent collision are strictly prohibited. Battery Maintenance and Recycling A well-maintained battery will keep running well even after many miles of driving. Generally speaking, a fully charged battery will use up its stored power in120-180 days after it is turned off.
  • Page 24 • During the charging process, if the indicator light is abnormal, there is a strange smell or the charger case is overheated, the charging should be cut off immediately. • After the battery is fully charged,cut off the power supply of charger first, then unplug the charger. •...
  • Page 25 Specific maintenance rules and items and requirements Maintenance time (month) Maintenance project Maintenance 1000 3000 5000 7000 9000 9000 mileage (km) Adjust or replace front and rear brakes Check handlebar steering Check the tire pressure Check the disc brake system Tighten main component Lubrication of main parts Front and rear...

  • Page 26: Frame Code & Motor Code

    7. Frame code & motor code Motor numbering rules The number is engraved on the end cover of the motor, as shown in the figure below: Details of serial number: 26 4 11E 48 750 1904 - 00001 the wheel diameter of the motor (26 means the wheel diameter of the motor is 26 inches); 11E: Chuanke motor model (11E means RW11E motor);...

  • Page 27: Warranty Service

    8. Warranty service Part Warranty Period Warranty Scope Motor Quality fault/break down/performance failure 12 Months Battery Quality fault/power capacityis tested lower than 50% ofthe rated capacity. Controller 6Months Performance failure Electronic control unit Charger Performance failure Sensor 3Months Performance failure Display/Dashboard Performance failure Frame...
  • Page 28 Non-warranty provision 1. Unauthorized maintenance, misuse, collision, negligence, abuse, liquid entry, accident, change, incorrect use of accessories other than this product, or tear, change or anti-counterfeit labels; 2. The warranty period has expired; 3. Damage caused by force majeure; 4. It does not meet the conditions of performance failure listed in the following "Electric Bike Performance Error Sheet"; 5.

  • Page 29: Safety Instructions

    9. Safety instructions 1. Electric bikes are a recreational product. In order to ensure the safety of cyclists, please read this manual carefully before using this product, practice and master the riding skills through the correct guidance. If the rider is inexperienced or does not use in accordance with this manual, the company will not bear any responsibility for any damage.
  • Page 30 3. Please do not ride in bad weather or poor visibility (e.g. at night). Riding precautions 1. Only one person is allowed to ride the electric bike. Overloading is strictly prohibited! 2. Please wear helmets and knee and elbow pads when riding. Please use a good quality bicycle helmet. 3.
  • Page 31 2. Do not drive the electric bike when the ambient temperature exceeds the operating temperature of the product (please refer to the "Product specifications"), because low/high temperature will lead to the limitation of the maximum power and the degradation of the product performance.

  • Page 32: Legal Statements

    10. Legal statements Product legal Statement The more familiar you are with this product, the safer you will be when riding. Please pay more attention on the followings: 1. Read the product instructions carefully. If you cannot ride the product according to the instructions, please do not attempt to ride the product.
  • Page 33 allowed during riding. 11. Do not park the product in the safety exit, evacuation passage and other prohibited parking areas. Do not throw or drop the product. Do not place the product on open flame or under high temperature. 12. Use the original battery pack and charge the battery with the original charger. Otherwise, the charger or battery may be damaged or safety risks may occur.
  • Page 34 damage and loss caused by this will be borne by you. 23. If the product does not belong to the scope of warranty services, you need to pay for maintenance and related services. 24. If this product and its parts need to be repaired or replaced during use, please keep the relevant after-sales service information after repair or replacement.
  • Page 36 Contact Information Email: service@eahoraebike.com (for all customers) amazon@eahoraebike.com (for Amazon customers) www.eahoraebike.com...
