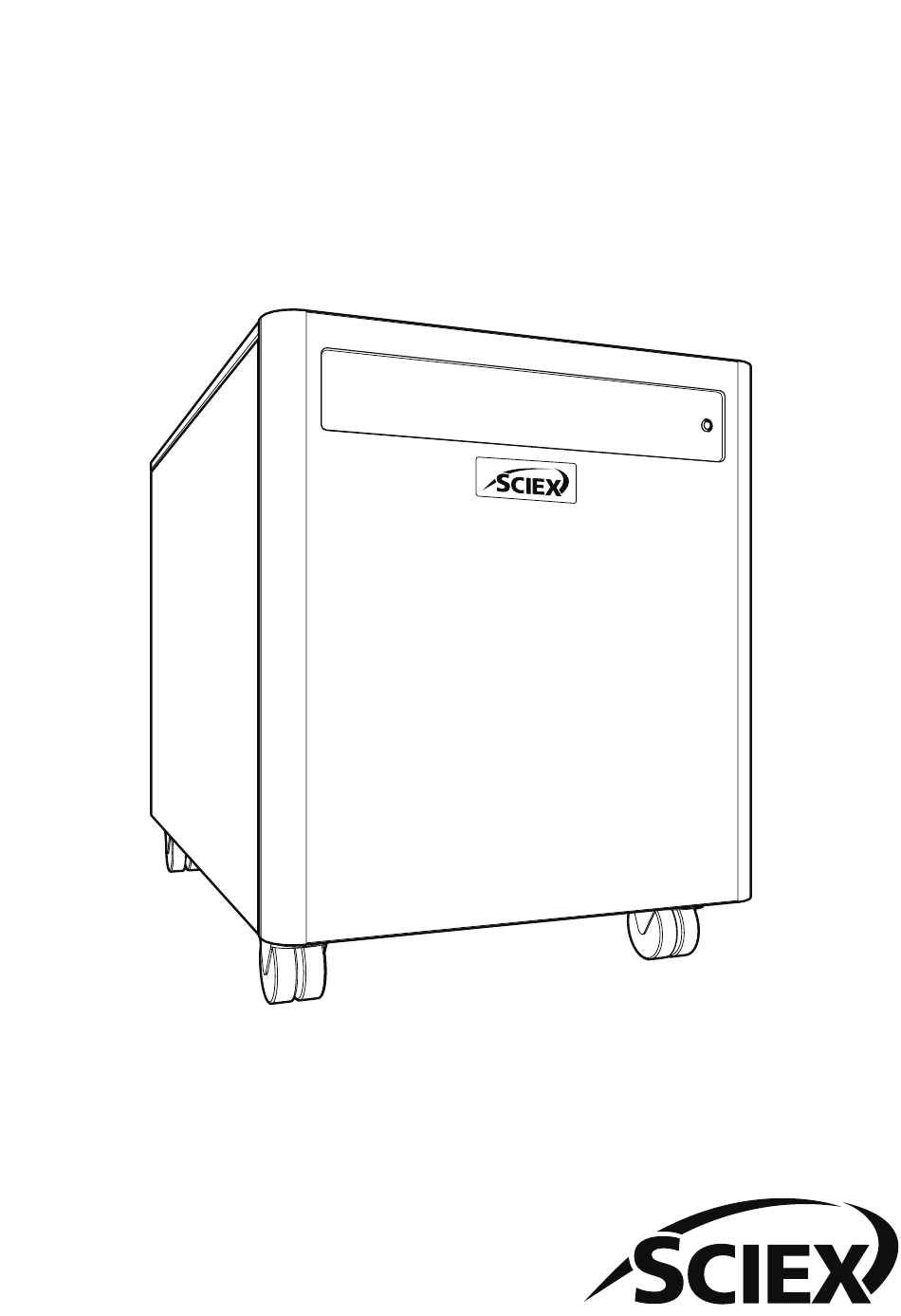

- Page 1 SCIEX Gas Generator N26A26 Installation Guide SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B December 2022...
-
Page 2: Change History
Users can refer to the contents page to find the relevant information. Review each of the following sections carefully. Thank you for selecting SCIEX to meet your gas generation needs, and should you require any further assistance or support do not hesitate to contact SCIEX. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by SCIEX, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
UK Mains Cable C19 04-1025 ¼” PTFE Tubing 00-1266 4mm Hex Key 3300407 ×1 ×1 8mm Hex Key 00-0007 ×3m EU Mains Cable C19 04-1026 6mm OD x 4mm ID PE 00-1282 Page 4 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B... - Page 5 Starting with the top panel, use the 4mm Hex Key 3300407 to loosen the two cap screws fixing the top plate to the rear of the generator, then tilt up and slide backwards to release the top plate from the generator. Page 5 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 6 With the right-hand side plate removed, use the 4mm Hex Key 3300407 to remove the hex bolts holding the compressor door in place, taking care to retain the spring washers. Page 6 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 7 There are three brackets in total. Retain the brackets and bolts for future transportation. 3300407 3300407 Replace the compressor doors, again using the 4mm Hex Key 3300407. Page 7 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 8 Select the 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear of the generator. Attach the Flow Control Silencer 02-1096 to the Curtain, Source and Exhaust ports. Page 8 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 9 04-1024/04-1025/04-1026/04-1035 04-1024/04-1025/04-1026/04-1035 Select the appropriate power cable from the fittings kit and plug the IEC 60320/C19 cable into the power input at the rear of the generator. Page 9 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 10 CAUTION: Ensure the correct cable has been selected for your electrical supply. Consult the Electrical Requirements section if you are unsure of the requirements of your generator. Switch the generator ON using the switch on the rear panel Page 10 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 11 Leave the generator switched on for a period of 45 minutes to purge the system. After 45 minutes of running, the generator can be turned OFF. Allow the stored gas in the internal tanks to dissipate. Page 11 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 12 1/4” PTFE tubing 00-1266 to the fittings attached to the SOURCE & EXHAUST. Connect the other end of the tubing to the corresponding gas inlets of your instrument. Page 12 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
- Page 13 Switch the generator ON using the switch on the rear panel CONGRATULATIONS Your SCIEX gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 13 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B...
-
Page 14: General Notes
Operator Guide. Familiarise yourself with the full Operator Guide available at: sciex.com/customer-documents. This includes all other technical specifications, operating instructions, service requirements, contact details and trouble shooting. Page 14 / 16 SCIEX Gas Generator N26A26 Installation Guide RUO-IDV-05-14028-B... - Page 15 SCIEX and its representatives maintain a staff of fully-trained service and technical specialists located throughout the world. They can answer questions about the system or any technical issues that might arise. For more information, visit the SCIEX website at sciex.com or contact us in one of the following ways: •...
- Page 16 SCIEX warranties are limited to those express warranties provided at the time of sale or license of its products and are the sole and exclusive representations, warranties, and obligations of SCIEX. SCIEX...
