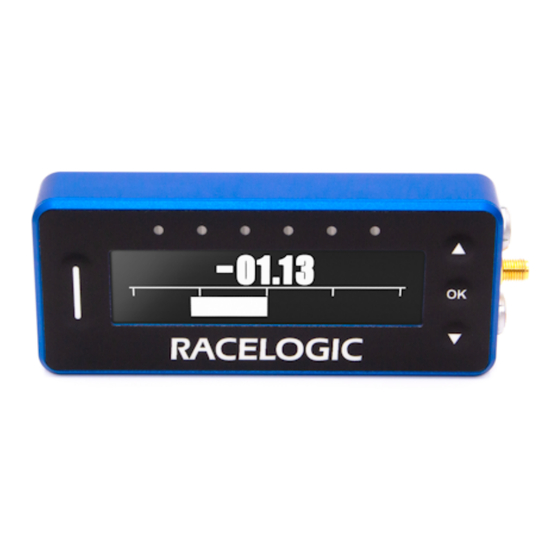

VBOX Pit Lane Timer (RLVBPIT-S) - Quick Start Guide
Getting Started
This page contains important and useful information about the VBOX Pit Lane Timer with Side Connectors (RLVBPIT-
S).
Registration
Please register your VBOX unit so that Racelogic can
continue to provide you with notifications about the latest
software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a VBOX Pit Lane Timer with Side Connectors (RLVBPIT-S), you will find the following items when
you open the box:
Product Code
VBPIT02-S-V1
RLACS262
RLCAB014LE
RLACS313
RLACS287
https://en.racelogic.support//Product_Info/Pit_Timing/VBOX_Pit_Lane_Timer_(RLVBPIT-S)/VBOX_Pit_Lane_Timer_(RLVBPIT-S)_-
Quantity
1
1
1
1
1
Description
Pit Lane Timer unit with side
connectors
GNSS Antenna
Unterminated Power Cable
8 GB SD Card
Lightweight suction mount with
thumb nut
_Quick_Start_Guide
1
