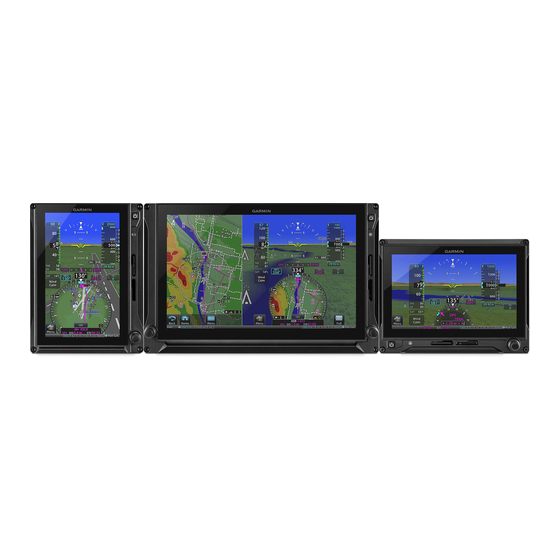

G500H TXi
Part 27 AML STC
Maintenance Manual
Contains Instructions for Continued Airworthiness
for STC SR02622SE
Aircraft make, model, registration number, serial number, and
applicable STC configuration information must be completed in
Appendix A and saved with aircraft permanent records.
190-02401-01
February 2023
Revision 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G500H TXi and is the answer not in the manual?

Questions and answers

Related Manuals for Garmin G500H TXi

Summary of Contents for Garmin G500H TXi

  • Page 1 G500H TXi Part 27 AML STC Maintenance Manual Contains Instructions for Continued Airworthiness for STC SR02622SE Aircraft make, model, registration number, serial number, and applicable STC configuration information must be completed in Appendix A and saved with aircraft permanent records.
  • Page 2 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Other trademarks and trade names are those of their respective owners. ChartView™ is a trademark of Jeppesen, Inc.
  • Page 3 The AES file encryption software is provided “as is” with no explicit or implied warranties in respect of its properties, including, but not limited to, correctness and/or fitness for purpose. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page ii...
  • Page 4 Software License Agreement (hereinafter the “Agreement”) and is subject to the following terms and conditions which are agreed to by End User (“Licensee”, “you” or “your”), on the one hand, and Garmin and its licensors and affiliated companies of Garmin and its licensors, on the other hand. The Licensed Software is licensed, not sold, to you. Garmin and Licensee may be referred to individually as a “Party”...
  • Page 5 General. No Devices or Services. Licensee acknowledges and agrees that nothing in this Agreement shall be construed as requiring Garmin to: (a) provide or supply the Devices or any other devices or hardware to Licensee; (b) grant any 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev.
  • Page 6 Assignment. Licensee may not assign this Agreement or any of its rights, interests or obligations hereunder without the prior written consent of Garmin. Any purported assignment in violation of this Section 6.3 shall be null and void. Subject to the foregoing, this Agreement shall be binding upon and shall inure to the benefit of the Parties and their respective successors and permitted assigns and transferees.
  • Page 7 The aim of this installation manual is to provide clear and concise guidance in a layout designed to follow the logical order of a typical TXi system installation. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page vi...
  • Page 8 THE ANTI-REFLECTIVE COATING. Clean the display with a clean, lint-free cloth and a cleaner that is safe for anti-reflective coatings. CAUTION Do not store any G500H TXi component in or near water. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev.

  • Page 9: Table Of Contents

    APPENDIX A INSTALLATION-SPECIFIC INFORMATION ........A-1 A.1 GENERAL INSTALLATION INFORMATION ..............A-1 A.2 LRU INFORMATION......................A-2 A.3 EQUIPMENT LOCATION ......................A-3 A.4 WIRE ROUTING........................A-4 A.5 GDU 700/1060 CONFIGURATION FILES................A-6 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page viii...
  • Page 10 Figure 5-7 GMU 44 Installation ......................5-13 Figure 5-8 GTP 59 Installation......................5-15 Figure 5-9 Backup GPS Antenna Installation (Non-Removable Example)........5-16 Figure 5-10 Backup GPS Antenna Installation (Removable Example) ..........5-17 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page ix...
  • Page 11 Table 4-5 J442/P442 Connector ......................4-9 Table 5-1 LRU Status Indicators ......................5-19 Table 5-2 Airspeed Test Points......................5-21 Table 5-3 Typical Airspeed Arc Ranges.....................5-21 Table 5-4 Typical Airspeed Markings ....................5-21 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page x...
  • Page 12 1 INTRODUCTION Purpose..............................1-2 Scope..............................1-2 Applicability .............................1-2 Publications............................1-2 Revision and Distribution .........................1-2 Terminology and Acronyms ......................1-3 1.6.1 Terminology ..........................1-3 1.6.2 Acronyms ...........................1-3 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 1-1...

  • Page 13: Purpose

    1.1 Purpose This document is designed for use by the agency maintaining the Garmin G500H TXi system as a Maintenance Manual and ICA compliant with FAR Part 27.1529, and Part 27 Appendix A. This manual includes a description of the G500H TXi system and maintenance information required by the operator to adequately maintain the Garmin G500H TXi system installed under AML STC SR02622SE.

  • Page 14: Terminology And Acronyms

    TXi” will apply to an installed system with one or more GDU 1060 or GDU 700 and all LRUs interfaced to the GDU. Except where specifically noted, references made to Garmin products with a “( )” designation after the model number refer to all sub-models in that series. (i.e., a reference to GDU 700( ) refers to both the GDU 700P and the GDU 700L variants).
  • Page 15 Garmin Sensor Unit Technical Standard Order Garmin Touch Navigator Volts of Direct Current Garmin Temperature Probe WAAS Wide Area Augmentation System Horizontal Situation Indicator XM Satellite Radio Indicated Airspeed 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 1-4...

  • Page 16: System Description

    GCU 485 Control Unit .......................2-7 2.2.5 Backup GPS Antenna.........................2-7 2.2.6 GSU 75H ADAHRS........................2-7 2.2.7 GMU 44( ) Magnetometer......................2-8 2.2.8 GTP 59 OAT Probe........................2-8 2.2.9 Flight Stream 510 ........................2-9 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 2-1...

  • Page 17: System Overview

    The Configuration mode of the GDU 700/1060 can be accessed by holding down the inner knob located at the bottom right of the unit upon initial power up. The knob must be pressed until the Garmin startup screen has disappeared and the configuration menu is presented.

  • Page 18: Table 2-1 G500H Txi Lru Electrical Load

    2.1.5 Electrical Load Information Electrical load information for the G500H TXi system LRUs is provided below. Appendix A contains details specific to the load changes for the specific aircraft installation. Table 2-1 G500H TXi LRU Electrical Load 14 Volt Current Draw...

  • Page 19: Lru Description, Control, And Operation

    The outer knob is used to scroll through available screens on the PFD or MFD. Pressing the knob acts as an enter or selection of the currently highlighted information. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 2-4...

  • Page 20: Figure 2-2 Gdu 700L Pfd

    Dual Concentric Knobs - Control knobs that can be used to scroll and select through various options on the display. Pressing the knob acts as an enter or selection of the currently highlighted information. Figure 2-2 GDU 700L PFD 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 2-5...

  • Page 21: Figure 2-3 Gdu 1060 Pfd/Mfd

    2.1.4 for more information on SD card options. • Dual Concentric Knobs - Control knobs that can be used to scroll and select through various options on the display. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 2-6...

  • Page 22: Figure 2-5 Garmin Backup Gps Antenna

    The GCU 485 is an optional panel mount remote control unit that provides an alternate method of controlling the G500H TXi PFD display parameters. The GCU 485 Control Unit is available in variations containing different numbers of buttons. All variations contain three knobs in the same configuration as shown below.

  • Page 23: Figure 2-7 Gmu 44 (Left) And Gmu 44B (Right) Magnetometers

    The GTP 59 is mounted externally on the aircraft, usually near or inside air inlet ducts, the underside of wing access panels, or on the empennage below the horizontal stabilizer. Figure 2-8 GTP 59 OAT Probe 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 2-8...

  • Page 24: Figure 2-9 Flight Stream 510

    2.2.9 Flight Stream 510 The Flight Stream 510 is optionally installed in the G500H TXi display if the aircraft is equipped with only GNS navigators. The card provides wireless connection to a portable electronic device to support database uploading and some control of the GDL 69( ). If a GTN 6XX/7XX is installed, the Flight Stream 510 must be installed in the GTN.

  • Page 25: Instructions For Continued Airworthiness

    Overhaul Period ..........................3-6 Special Inspection Requirements......................3-6 3.7.1 GTP 59 OAT ..........................3-6 3.7.2 GMU 44( )..........................3-6 Application of Protective Treatments ....................3-6 Data Relative to Structural Fasteners....................3-6 3.10 Additional Instructions ........................3-6 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 3-1...

  • Page 27: Servicing Information

    3.2 Servicing Information There are no servicing requirements for the G500H TXi system. In the event of a system or LRU failure, troubleshoot the G500H TXi system in accordance with Section 4. 3.2.1 Periodic Maintenance Instructions G500H TXi system LRUs are designed to detect internal failures. A thorough self-test is executed automatically upon application of power to the units, and built-in tests are continuously executed while the LRUs are operating.

  • Page 28: Maintenance Intervals

    Dealer Resource Center or by contacting Garmin. Every 2000 Flight Hours or 10 years Electrical Bonding Perform an electrical bonding check of the G500H TXi (12 years for Check system LRUs in accordance with Section 3.5. EC120B models),...

  • Page 29: Visual Inspection

    3.4 Visual Inspection Operation of the G500H TXi system is not permitted unless an inspection, as described in this section, has been completed within the preceding 12 calendar months. Conduct the following visual inspection of the G500H TXi system LRUs and associated wiring harnesses to ensure installation integrity: 1.

  • Page 30: Overhaul Period

    The system does not require overhaul at a specific time period. Power on self-test and continuous BIT will monitor the health of the G500H TXi system. If any LRU indicates an internal failure, the unit may be removed and replaced.

  • Page 31: Troubleshooting

    G500H TXi system, refer to wire routing diagrams, plug and pin descriptions, communication port settings saved in the configuration data and equipment locations retained in Appendix A of this document. General interconnect data for the G500H TXi system is available in G500H TXi Part 27 AML STC Installation Manual.

  • Page 32: General System Troubleshooting

    Garmin dealer using an installer unlock card and the configuration instructions provided in Section 5 of G500H TXi Part 27 AML STC Installation Manual. Basic troubleshooting of the G500H TXi system can be accomplished using the instructions provided in Table 4-1.
  • Page 33 1. Insert an SD card into the Top/Left slot of any GDU 700/1060 in the system. 2. Power on all GDUs in the G500H TXi system in Configuration mode. 3. Ensure you have set the GDU IDs, SYS ID Source, and feature enablements before continuing.
  • Page 34 3. Press the right inner knob located at the bottom right and the power button simultaneously. a. The GDU 700/1060 will automatically create a “print” folder containing .bmp files that can be viewed with common operating systems. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-4...

  • Page 35: Connector Information

    This section contains connector information and description of pin functions for all LRUs that can be installed as part of G500H TXi STC. Refer to the LRU TSO installation manuals for more detailed signal information on each LRU. All D-sub connectors follow a similar pin numbering scheme as shown below.

  • Page 36: Figure 4-3 Gsu 75H Connector

    Ref. Des. Description CONN P/N Kit P/N Conn. HD D-Sub. Male Str. Mil Crp. Sealed, w/GND P751 330-00776-78 011-03109-00 indents, 78 Pin Figure 4-3 GSU 75H Connector 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-6...

  • Page 37: Table 4-3 J751/P751 Connector

    RS-232 GND (AHRS) 2 RESERVED CONFIG MODULE GND AIRCARFT GND 2 SYS ID 1* RS-232 GND (ADC) 2 DISCRETE IN 3* RESERVED DISCRETE IN 4 RESERVED DISCRETE IN 2* 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-7...

  • Page 38: Figure 4-4 Gmu 44 Connector

    Figure 4-4 GMU 44 Connector Table 4-4 J441/P441 Connector Function SIGNAL GROUND RS-485 OUT B SIGNAL GROUND RS-485 OUT A SPARE POWER GROUND SPARE RS-232 IN +12 VDC POWER 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-8...

  • Page 39: Figure 4-5 Gmu 44B

    The GTP 59 has a 3-conductor shielded cable that extend from the probe. Conductor Color Name WHITE PROBE POWER LEAD BLUE RESISTIVE ELEMENT HI ORANGE RESISTIVE ELEMENT LO 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-9...

  • Page 40: Troubleshooting Flow Charts

    This section provides troubleshooting flow charts for most system failures and alert messages. It is recommended that system troubleshooting and repair only be completed by a Garmin dealer. If a specific alert or fault condition is not listed, or the fault still exists after completing the given corrective action, contact Garmin Aviation Technical Support at the number listed for your specific region on the “Support”...

  • Page 41: Figure 4-7 Audio Troubleshooting

    Verify audio device is online Inspect audio device connections and wiring Troubleshoot in accordance with audio device maintenance manual If fault still exists, contact Garmin. Figure 4-7 Audio Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-11...

  • Page 42: Figure 4-8 External Lru Failure Troubleshooting

    Manual Ensure all LRUs in Inspect GCU 485 the system are wiring and online. connections If fault still exists, contact Garmin. Figure 4-8 External LRU Failure Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-12...

  • Page 43: Figure 4-9 External Lru Service Troubleshooting

    ADC/AHRS Replace External Verify GDU LRU config configuration module matches installation wiring/ port configuration If fault still exists, contact Garmin. Figure 4-9 External LRU Service Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-13...

  • Page 44: Figure 4-10 Gdu Troubleshooting

    Garmin for service system software with Section 5.1.2 Demo Mode installed Select Pin If fault still exists, contact Garmin. Figure 4-10 GDU Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-14...

  • Page 45: Figure 4-11 Pfd Troubleshooting

    G500H TXi AML Inspect NAV Installation Manual wiring, for more connections, and information) configuration settings If fault still exists, contact Garmin. Figure 4-11 PFD Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-15...

  • Page 46: Figure 4-12 Terrain Alert Troubleshooting

    TAWS and GDU instructions instructions have the same aircraft type configured Verify Terrain database coverage If fault still exists, contact Garmin. Figure 4-12 Terrain Alert Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-16...

  • Page 47: Figure 4-13 Traffic Troubleshooting

    UAT LRU ADS-B LRU ADS-B LRU maintenance maintenance maintenance maintenance manual maintenance maintenance manual manual manual manual manual If fault still exists, contact Garmin. Figure 4-13 Traffic Troubleshooting 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 4-17...

  • Page 48: Equipment, Maintenance, And Checkout Procedures

    5.7.2 Analog NAV Calibration ......................5-18 Uploading Software ........................5-18 System Checks..........................5-19 5.9.1 Configuration Ground Check ....................5-19 5.9.2 LRU Status check........................5-19 5.9.3 Pitot-Static, Airspeed Setting, and Altimeter Checks ..............5-20 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-1...
  • Page 49 This section provides the procedures to remove, replace, or install required and optional LRUs that are part of the G500H TXi system. Before performing any maintenance on the G500H TXi system all information in Appendix A must be filled out. It is highly recommended to save the system configuration to an SD card and print the configuration log before replacing any system LRUs.

  • Page 50: Gdu 700/1060

    MIL-STD-403 PREPARATION FOR AND INSTALLATION OF RIVETS AND SCREWS, ROCKET MISSILE, AND AIRFRAME STRUCTURES . TORQUE .1380-32 UNC-3A SCREWS 8.0 1.0 LBF-IN. Figure 5-1 GDU 1060 Installation 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-3...

  • Page 51: Figure 5-2 Gdu 700P Installation

    TORQUE .1380-32 UNC-3A SCREWS 8.0 1.0 LBF-IN. Figure 5-2 GDU 700P Installation NOTE The GDU 700L uses the same fastener and torque specifications as the GDU 700P in Figure 5-2. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-4...
  • Page 52 Cooling Fan Replacement NOTE The GDU cooling fan replacement kit (P/N K00-01080-00) must be obtained from an authorized Garmin dealer. In order for the GDU warranty to remain valid, this procedure must be accomplished by an authorized Garmin dealer. NOTE Resetting the fan operation hours requires the use of an Installer Unlock Card.
  • Page 53 Power on the GDU 700/1060 in Configuration mode. b. Navigate to Diagnostics Temp & Power Stats. → c. Touch Reset Fan Hours. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-6...

  • Page 54: Figure 5-3 Configuration Module Installation

    8. Re-Install GDU 700/1060. Figure 5-3 Configuration Module Installation NOTE The GDU will automatically copy the system configuration to the new configuration module upon the first power-up. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-7...
  • Page 55 6. Ensure that Master is selected on the GDU that has been chosen to act as the master configuration module. 7. At this point the G500H TXi system will have a new System ID. System features will need to be unlocked and the system databases will need to be re-installed. The System ID must be updated on FlyGarmin.com...

  • Page 56: Gcu 485

    3. Tighten the pawl latches with a 3/32" hex drive tool inserted through holes in GCU 485 face plate. 4. Torque the latches to 20 ± 2 in-lbf. 5. Restore power to the unit. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-9...

  • Page 57: Gsu 75H

    Loosening of the unit mounting rack and/or the shelf to which the mounting plate is attached requires re-calibration of the AHRS, which requires an installer unlock card. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-10...
  • Page 58 Perform a static and pitot system leak test in accordance with the aircraft manufacturers specification and/ or applicable regulations. In accordance with 14 CFR Part 43 Appendix E, paragraph (b)(2), Garmin specifies a test procedure equivalent to Part 43 Appendix E, paragraph (b)(1) with two exceptions. The tests of sub-paragraphs (iv) (Friction) and (vi) (Barometric Scale Error) are not applicable because the digital outputs of the GSU 75H are not susceptible to these types of errors.

  • Page 59: Gmu 44( )

    GMU 44( ). Do not use magnetic tipped tools for servicing the magnetometer. Actual installations may differ from the examples shown below. Figure 5-6 GMU 44B Installation 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-12...

  • Page 60: Figure 5-7 Gmu 44 Installation

    Figure 5-7 GMU 44 Installation 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-13...
  • Page 61 5. Perform the Checkout procedure in Section 5.9.3. 5.4.3 GMU 44( ) Checkout Perform the following calibration procedures and checks found in Section 6 of G500H TXi Part 27 AML STC Installation Manual to return the aircraft to service: 1. Magnetometer Calibration 2.

  • Page 62: Gtp 59

    1. Restore power to the GDU 700/1060 and AHRS unit. 2. Verify the correct units (Celsius or Fahrenheit) and temperature reference (SAT, TAT, ISA) are displayed on the PFD. 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-15...

  • Page 63: Backup Gps Antenna

    The selected location must offer good visibility of the sky through the windshield. The optimal antenna position is horizontal, or as close to horizontal as practical given the shape of the glare shield. Figure 5-9 Backup GPS Antenna Installation (Non-Removable Example) 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page 5-16...

  • Page 64: Figure 5-10 Backup Gps Antenna Installation (Removable Example)

    FROM OIL OR OTHER CONTAMINANTS. LOOP FASTENER IS BONDED TO GLARE SHIELD AND HOOK FASTENER IS BONDED TO ANTENNA. TAPE FASTENER MUST BE 2.0 INCHES OR LONGER. GPS ANTENNA KIT, GARMIN PART NO. 010-12444-00 INCLUDES DUAL LOCK FASTENER, GARMIN PART NO. 252-00433-00 WHICH CAN BE USED INSTEAD OF A-A-55126 FASTENER TAPE.

  • Page 65: Calibration

    Analog NAV Calibration Analog NAV calibration requires the use of an Installer Unlock card. If it becomes necessary to re-calibrate the Analog NAV, refer to the calibration procedure contained in Section 5.6.2 of G500H TXi Part 27 AML STC Installation Manual.

  • Page 66: System Checks

    5.9 System Checks Periodic system checks that do not require a Garmin dealer to perform are contained in this section. For complete system checkout procedures, refer to Section 6 of G500H TXi Part 27 AML STC Installation Manual. 5.9.1 Configuration Ground Check The configuration ground check procedures are intended to verify each LRU and interface in the G500H TXi system has been properly configured.
  • Page 67 4. Using a Pitot-Static test set, increase the airspeed until the PFD airspeed tape pointer is at the bottom of the first airspeed arc limit or marking. If an ESI-500 standby indicator is installed, refer Section 5.5.1.2 of G500H TXi Part 27 AML STC Installation Manual for acceptable yellow markings.

  • Page 68: Table 5-2 Airspeed Test Points

    Arc Color Description RFM Section Note If an ESI-500 standby indicator is installed, 2-Limitations, refer to Section 5.5.1.2 G500H TXi Part 27 YELLOW Cautionary range see note. AML STC Installation Manual for the acceptable yellow arc below the green arc.

  • Page 69: Appendix Ainstallation-Specific Information

    Aircraft Reg. #:___________________________________ Installed System  GDU1  1060  700P  700L  MFD  PFD  GDU2  1060  700P  700L  MFD  PFD 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page A-1...

  • Page 70: Lru Information

    GMU 44B #1 011-04201-_____ GMU 44 #2 or 011-00870-_____ GMU 44B #2 011-04201-_____ GTP 59 #1 011-00978-_____ GTP 59 #2 011-00978-_____ GCU 485 011-03582-_____ Flight Stream 510 011-03595-_____ 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page A-2...

  • Page 71: Equipment Location

    Unit Description of Location (CG) GDU #1 GDU #2 GSU 75H #1 GSU 75H #2 GMU 44 #1 GMU 44 #2 GTP 59 #1 GTP 59 #2 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page A-3...

  • Page 72: Wire Routing

    GMU 44( ), GTP 59, and interfaces throughout the aircraft structure. Medium Body Rotorcraft Additional wire routing notes (e.g. bulkhead or interposing connector locations): _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page A-4...
  • Page 73 Small Body Rotorcraft Additional wire routing notes (e.g. bulkhead or interposing connector locations): _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ 190-02401-01 G500H TXi Part 27 AML STC Maintenance Manual Rev. 3 Page A-5...

  • Page 74: Gdu 700/1060 Configuration Files

    A.5 GDU 700/1060 CONFIGURATION FILES The affixed memory card includes a record of the G500H TXi configuration. The data was created in accordance with Section 4.1.1. Saved with GDU 700/1060 System Software Version: _________________ Aircraft Configuration Card (Affix here) NOTE The GDU 700/1060 software version used to create the card should be the same version, or an earlier compatible version, that is currently installed on the GDU 700/1060.
