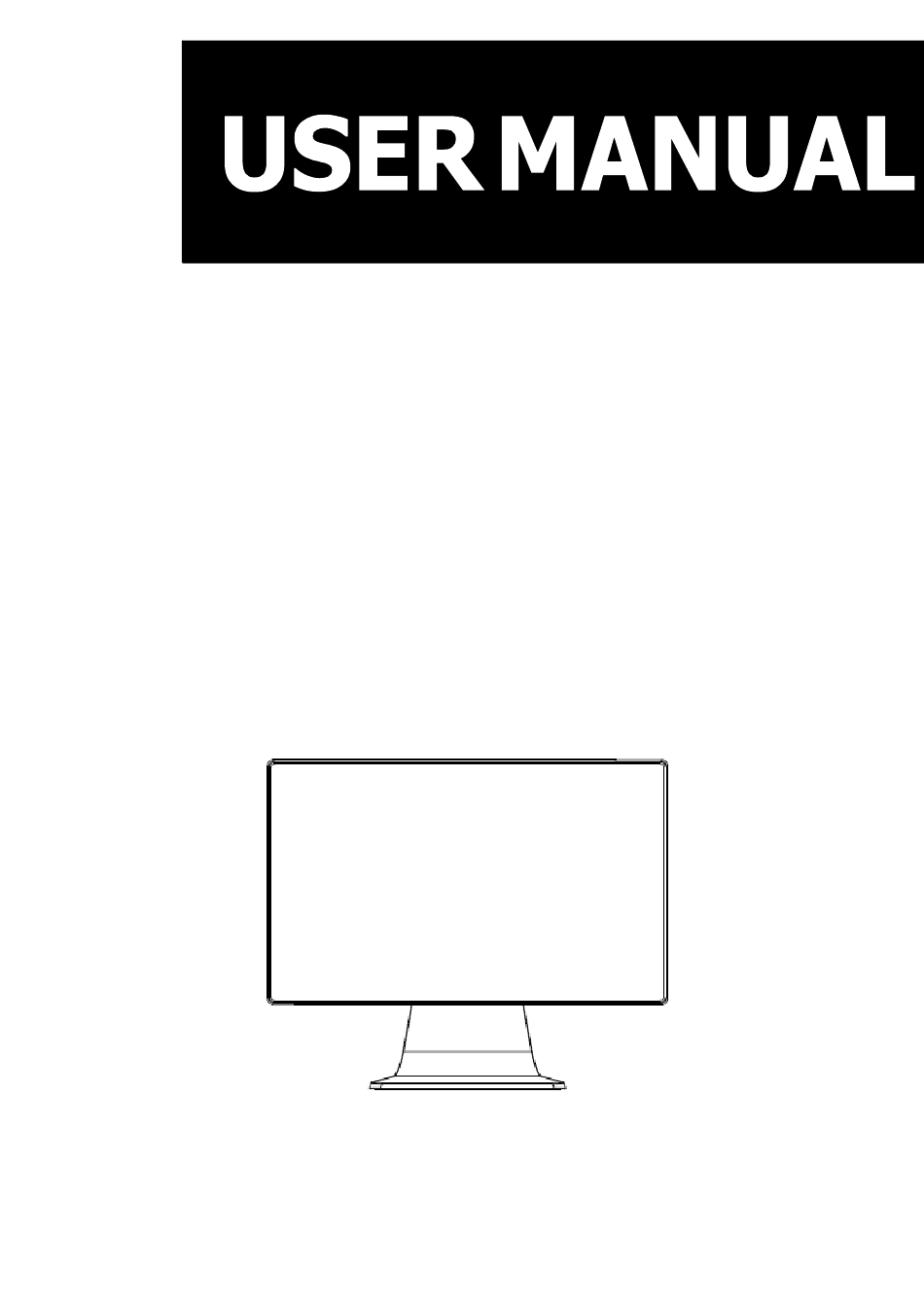

- Page 1 VERSION 1.0 PT58 Hardware System...
- Page 2 Copyright 2019 All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 WARNING CAUTION - Risk of explosion if the battery is replaced by an incorrect type. Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). ...
-
Page 4: Table Of Contents
Table of Contents Packing list --------------------------------------------------- 1 Package contents --------------------------------------------------------------------------- 1 Option Accessory --------------------------------------------------------------------------- 2 --------------------------------- 3 Getting to know your PT58 PT58 --------------------------------------------------------------------------------- 3 I/O interface --------------------------------------------------------------------------------- 4 ----------------------------------------- 5 PT-58 Specification Peripherals Installation ------------------------------------ 7 Install the 2nd display -------------------------------------------------------------------- 7... -
Page 5: Packing List
Packing List Package contents 【 PT58】 PT58 System Power adapter Power cord RJ48 to DB9*2 Note: Power cord will be supplied differently according to various region or country. -
Page 6: Option Accessory
Optional Accessory MSR Module I-Button Module Customer Display (LCM Module) Second Display Fingerprint Barcode Scanner RFID... -
Page 7: Getting To Know Your Pt58
Getting to know your PT58 *all peripherals are depends on customer’s demand Front view (PT58) True flat PCAP touch panel Side View... -
Page 8: I/O Interface
*all peripherals are depends on customer’s demand Rear view Cover for LCM/2 Display (USB interface) mounting Reader Cover (L) Reader Cover (R) for USB Peripherals for USB Peripherals Cover for M.2 SSD Cable management slot Power button *all peripherals are depends on customer’s demand I/O interface... -
Page 9: Specification
PT58 Specification Motherboard PE24 Processor Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz) Graphic Chipset integrated System memory 1 x 4GB DDR4 SO-DIMM memory (Max. support up to16GB) Storage device 1x M.2 Gen 3 x 4 storage LCD size 15.6"... - Page 10 Model Name PT58 Motherboard PE26 Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz Processor Intel® Core™ i3-1215U Processor 10M Cache, up to 4.40 GHz Graphic Chipset integrated 1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to...
-
Page 11: Peripherals Installation
Peripheral Installation (Technicians are required to perform this work) Install the 2 display** 1. Place the system face down, make sure not to scratch the touch screen 2. Pull the cover upwards to release it from the system 3. Connect the display cable to USB 4. -
Page 12: Install The Msr Reader Module
Install the MSR reader module* 1. Place the system face down, make sure not to scratch the touch screen 2. Slide out the side cover and rubber first to release the reader installation position from the system 3. Insert the MSR module in place and connect the cable from system 4. -
Page 13: Install The I-Button Reader Module
Install the I-Button reader module* 1. Place the system face down, make sure not to scratch the touch screen 2. Slide out the side cover and rubber first to release the reader installation position from the system 3. Insert the I-Button module in place and connect the cable from system 4. -
Page 14: Install Wall Mount Kit
Install the Wall Mount Kit... -
Page 15: Install Pole Mount Kit
Install the Pole Mount Kit Warning: Never exceed the maximum load capacities of 30Kgs (66lbs). If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Failure to secure Wall-Mount Brackets with the thumb screw may cause display to fall off if hit accidentally. -
Page 16: M.2 Ssd Module Replacement
M.2 SSD Module Replacement (Technicians are required to perform this work) M.2 SSD Module Replacement 1. Place the system face down, make sure not to scratch the touch screen 2. Pull the cover upwards to release it from the system 3. -
Page 17: Install A Cash Drawer (Pe24)
Install a Cash Drawer (PE24) You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation. Cash Drawer Pin Assignment Signal DOUT bit1 12V/19V DIN bit0 DOUT bit0 Register Location: A05h Attribute: Read / Write Size: 8bit Bit0 (Read) : Cash Drawer “DIN0”... -
Page 18: Install A Cash Drawer (Pe26)
Install a Cash Drawer (PE26) You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation. Cash Drawer Pin Assignment Signal DOUT bit1 12V/19V DIN bit0 DOUT bit0 Cash Drawer Controller I/O Address Register Location: 482h Attribute: Read / Write Size: 8bit... - Page 19 Cash drawer bit define should be follow DIN0/DOUT0 for cash drawer 1 DIN1/DOUT1 for cash drawer 2: Bit 0: Reserved Bit 1: Reserved Bit 2: Reserved Bit 3: Cash Drawer “DIN0” pin output control. = 1: the Cash drawer closed or no Cash Drawer = 0: the Cash Drawer opened Bit 4: Cash Drawer “DOUT0”...
-
Page 20: Motherboard Information
Motherboard information Motherboard Layout (PE24) -
Page 21: Connectors & Jumper Settings
Connectors & Jumper Setting... -
Page 22: Power Configuration For Com Ports
Power configuration for COM and VGA ports... -
Page 23: Motherboard Layout (Pe26)
Motherboard information Motherboard Layout (PE26) Connectors & Jumper Settings... -
Page 24: Connectors & Functions
DC1 / 2 : Power connector PIN1 GND PIN2 PIN3 +19V PIN4 +19V CD1 : RJ11 for Cash Drawer Port PIN1 DIN1 PIN2 DOUT0 PIN3 DIN0 PIN4 +12V_CD PIN5 DOUT1 PIN6 COM1 / 2 : RJ48 for COM1/2 Port PIN1 PIN2 PIN3 PIN4...
