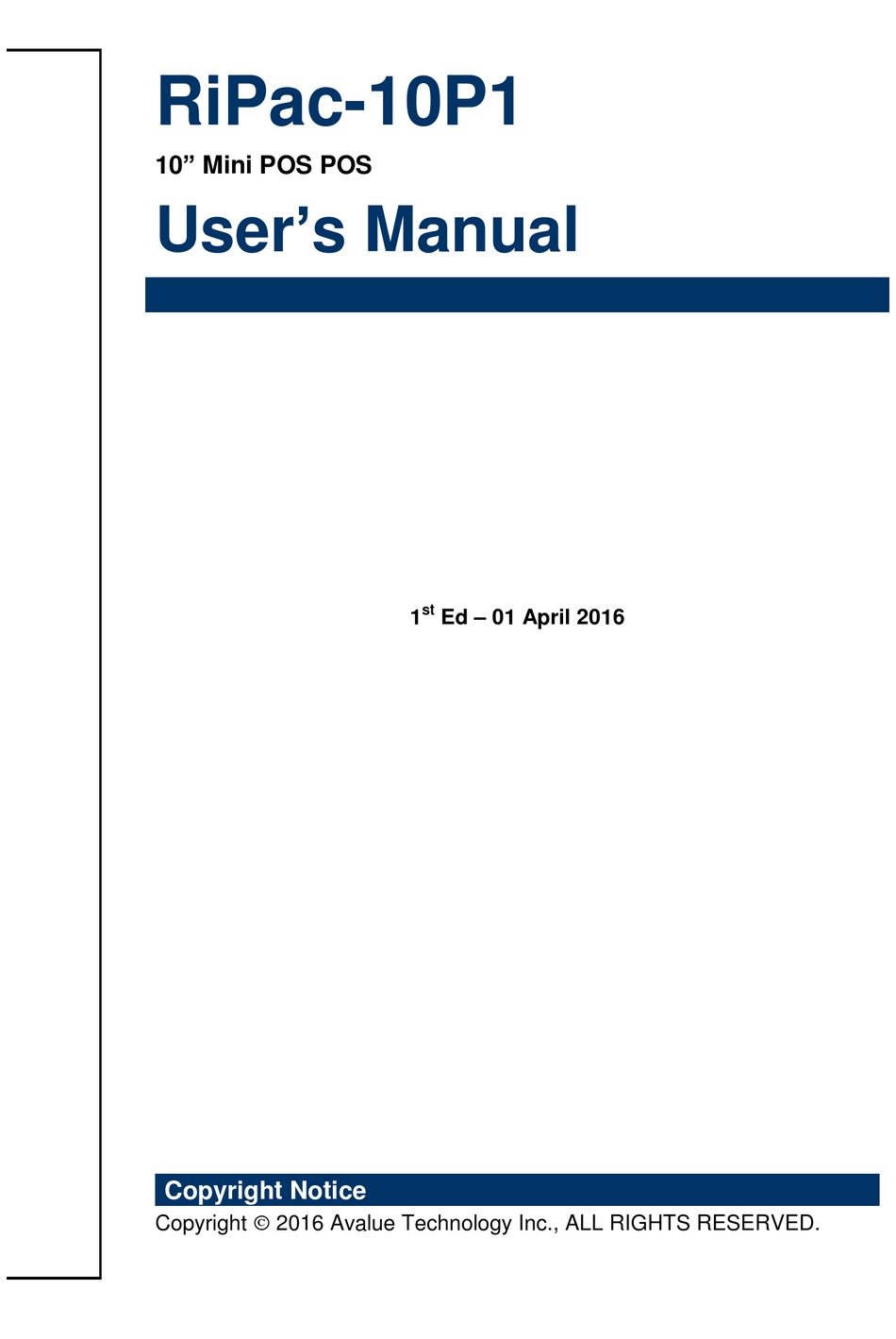

RiPac-10P1
10" Mini POS POS
User's Manual
st
Ed – 01 April 2016
1
Copyright Notice
Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.

Advertisement

loading

  Also See for Avalue Technology RiPac-10P1

  Related Manuals for Avalue Technology RiPac-10P1

  Summary of Contents for Avalue Technology RiPac-10P1

  • Page 1 RiPac-10P1 10” Mini POS POS User’s Manual Ed – 01 April 2016 Copyright Notice Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
  • Page 4 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 4 RiPac-10P1 User Manual...
  • Page 5: Table Of Contents

    1.4.5 I/O Interface ........................... 10 1.5 System Dimensions ....................11 1.5.1 RiPac-10P1 ..........................11 Hardware Configuration ..................12 2.1 RiPac-10P1 Connector Mapping ................13 2.1.1 Serial Port Connector (COM) ....................13 2.1.2 RJ11 Connector ........................13 2.1.3 RJ45 ............................14 2.1.4...
  • Page 6: Getting Started

    1.2 Packing List 1 x RiPac-10P1  1 x 19.5V Adapter  1 x Power Cord  2 x Paper Holder  6 RiPac-10P1 User Manual...
  • Page 7: System Specifications

    Power Type 19.5V/6.15A 120W Lockable Adapter Power Connection Type Lockable DC Jack Dimension (L)299 x (W)316.2 x (H)148.9 Weight 3KG±10% Color Black & Gray Fanless Reliability Certifications CE/FCC Operating Temperature 5°C ~ 40°C Operating Humidity 0~95% Non-Condensing RiPac-10P1 User Manual 7...
  • Page 8 RiPac-10P1 Storage Temperature -10°C~60°C Note: Specifications are subject to change without notice. 8 RiPac-10P1 User Manual...
  • Page 9: System Overview

    User Manual 1.4 System Overview 1.4.1 Top View 1.4.2 Left Side Printer Door Switch RiPac-10P1 User Manual 9...
  • Page 10: Right Side

    RiPac-10P1 1.4.3 Right Side 1.4.4 Bottom Power Button 1.4.5 I/O Interface Connectors Function Note Serial port connector (RS232) DB-9 male connector RJ11 Cash drawer connector 10 RiPac-10P1 User Manual...
  • Page 11: System Dimensions

    User Manual 1x RJ45 connectors 4 x USB2.0 connectors Kensington Kensington Security Slot Lock DC-in DC Power-In connector 1.5 System Dimensions 1.5.1 RiPac-10P1 RiPac-10P1 User Manual 11...
  • Page 12: Hardware Configuration

    RiPac-10P1 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 RiPac-10P1 User Manual...
  • Page 13: Ripac-10P1 Connector Mapping

    User Manual 2.1 RiPac-10P1 Connector Mapping 2.1.1 Serial Port Connector (COM) Signal PIN PIN Signal DCD#_1 DSR#_1 RXD_1 RTS#_1 TXD_1 CTS#_1 DTR#_1 RING/5V/12V 2.1.2 RJ11 Connector Signal KICKOUT1 CASH_SENSE +12VA_+24VA_CASH KICKOUT2 RiPac-10P1 User Manual 13...
  • Page 14: Rj45

    RiPac-10P1 2.1.3 RJ45 Signal Signal LAN0_MDIP0 N.C. LAN0_MDIN0 Yellow_LED0- LAN0_MDIP1 Yellow_LED0+ N.C. Green_LED0- N.C. Green_LED0+ LAN0_MDIN1 N.C. N.C. 2.1.4 Signal VBUS1 USB20_N1 USB20_P1 14 RiPac-10P1 User Manual...
  • Page 15: Dc Jack

    User Manual 2.1.5 DC Jack RiPac-10P1 User Manual 15...
  • Page 16: Peripherals

    RiPac-10P1 3. Peripherals Note: If you need more information, please visit our website: http://www.avalue.com.tw 16 RiPac-10P1 User Manual...
  • Page 17: Thermal Printer

    Step 1 Push down the switch to open the paper roll door. Step 2 80mm Paper Roll If you are using an 80mm paper roll, load the paper roll into the printer, in the direction indicated in below picture and close up the printer door after loading. RiPac-10P1 User Manual 17...
  • Page 18 The methods for loading the paper roll are as below. 58mm Paper Roll on the Right Side. Insert the paper holder into the second hole from the left. Load the paper roll to the right side and close the printer door. 18 RiPac-10P1 User Manual...
  • Page 19 Insert the paper holder into the second hole from the right. Load the paper roll to the left and close the printer door. 58mm Paper Roll at the Middle. Insert holders into the holes at the far left and the far right. RiPac-10P1 User Manual 19...
  • Page 20: Second Display

    RiPac-10P1 Load the paper roll in between the two holders then close the printer door. 3.2 Second Display 20 RiPac-10P1 User Manual...
  • Page 21: Hardware Maintenance

    User Manual 4. Hardware Maintenance Note: If you need more information, please visit our website: http://www.avalue.com.tw RiPac-10P1 User Manual 21...
  • Page 22: Replacement Of Thermal Printer Module

    Step 2 Unscrew the three screws that connects the printer doo to the device in order to take down the printer door. Step 3 Unscrew the two screws on the printer door to remove printer wheel. 22 RiPac-10P1 User Manual...
  • Page 23 Step 4 Unscrew the two screws and the hex bolt to remove the printer assembly. Step 5 Unscrew two screws on the printer assembly to take down the printer module. Step 6 Disconnect the two FPCs from the PCB. RiPac-10P1 User Manual 23...
  • Page 24 Step 8 Use the screws to tie the printer module. Step 9 Install the printer assembly back into the device with the screws and insert the hex bolt back into place. NOTE: Always install the hex bolt back before closing up the printer door. 24 RiPac-10P1 User Manual...
  • Page 25 User Manual Step 10 Install the new printer wheel back onto the printer door. Step 11 Fix the printer door back onto RiPac-10P1 and close up the door. RiPac-10P1 User Manual 25...
