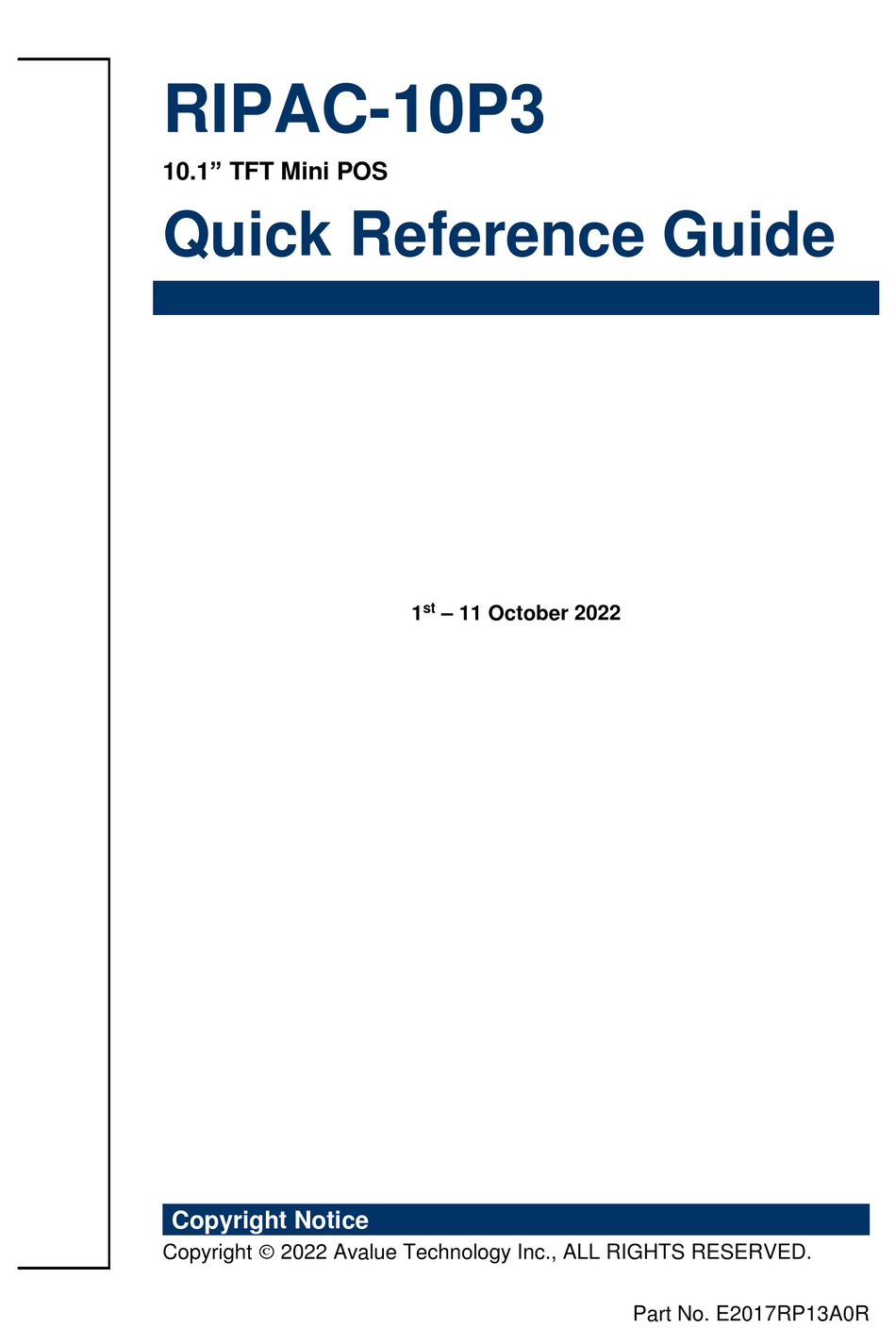

- Page 1 RIPAC-10P3 10.1” TFT Mini POS Quick Reference Guide – 11 October 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017RP13A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Quick Reference Guide purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification. Life Support Policy Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL OF Avalue Technology Inc.
-
Page 4: Table Of Contents
1.4.5 I/O Interface ........................... 10 1.5 System Dimensions ....................11 1.5.1 RIPAC-10P3 .......................... 11 Hardware Configuration ..................12 2.1 RIPAC-10P3 Connector Mapping ................13 2.1.1 Serial Port Connector 1/2 (COM1/2) ..................13 2.1.2 Cash drawer connector (RJ11) ....................13 2.1.3 RJ45 connector (LAN) ...................... -
Page 5: Getting Started
1.2 Packing List 1 x RIPAC-10P3 1 x Power Adapter 1 x Power Cord 2 x Paper Holder RIPAC-10P3 Quick Reference Guide 5... -
Page 6: System Specifications
1 x RJ11(12V / 24V for cash drawer) Others 1 x Thermal Printer support 58/80mm printing paper (Optional) Mechanical Power Type ATX Mode, +24V DC-In Power Connector DC-Jack Type Dimension (L)299.1 x (W)273.2 x (H)128.8 mm Weight 6 RIPAC-10P3 Quick Reference Guide... - Page 7 5 Test Axis : Z axis 6 operation mode 7 Reference IEC 60068-2-27 testing procedures Test Eb : Shock Test Package drop test Drop Test Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea : Drop Test RIPAC-10P3 Quick Reference Guide 7...
- Page 8 2 Test high : 96.5cm 3 Package weight : 5Kg 4 Test drawing Operating 0°C~40°C Temperature Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage -10°C~60°C Temperature Note: Specifications are subject to change without notice. 8 RIPAC-10P3 Quick Reference Guide...
-
Page 9: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Top View Thermal 5” LCD Printer 10.1” LCD 1.4.2 Left Side Printer Door Switch 1.4.3 Right Side Speaker RIPAC-10P3 Quick Reference Guide 9... -
Page 10: Bottom
Serial port connector 1/2 (RS232) DB-9 male connector COM1/2 RJ11 Cash drawer connector RJ45 connector USB3.0 4 x USB3.0 connectors SD card slot SD card Kensington Lock Kensington Security Slot DC Power-In connector 5.5 x 2.5mm DC Jack DC-IN 10 RIPAC-10P3 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions 1.5.1 RIPAC-10P3 (Unit: mm) RIPAC-10P3 Quick Reference Guide 11... -
Page 12: Hardware Configuration
RIPAC-10P3 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 RIPAC-10P3 Quick Reference Guide... -
Page 13: Ripac-10P3 Connector Mapping
Quick Reference Guide 2.1 RIPAC-10P3 Connector Mapping 2.1.1 Serial Port Connector 1/2 (COM1/2) Signal PIN PIN Signal DCD#_1 DSR#_1 RXD_1 RTS#_1 TXD_1 CTS#_1 DTR#_1 RING/5V/12V 2.1.2 Cash drawer connector (RJ11) Signal KICKOUT1 CASH_SENSE +12VA_+24VA_CASH KICKOUT2 RIPAC-10P3 Quick Reference Guide 13... -
Page 14: Rj45 Connector (Lan)
RIPAC-10P3 2.1.3 RJ45 connector (LAN) Signal LAN1_TX0+ LAN1_TX0- LAN1_TX1+ LAN1_TX2- LAN1_TX2- LAN1_TX1- LAN1_TX3+ LAN1_TX3- 14 RIPAC-10P3 Quick Reference Guide... -
Page 15: Installing Sd Card
Quick Reference Guide Installing SD Card Step 1. Unfasten screw from the cover and take it off. Step 2. Insert SD Card slot into designated locations (SD Card can be pushed back and forth). RIPAC-10P3 Quick Reference Guide 15... -
Page 16: Peripherals
RIPAC-10P3 3. Peripherals Note: If you need more information, please visit our website: http://www.avalue.com.tw 16 RIPAC-10P3 Quick Reference Guide... -
Page 17: Wi-Fi, Bluetooth
DSSS with DPSK and DQPSK, CCK modulation with long and short preamble. OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM modulation. Support infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication. RIPAC-10P3 Quick Reference Guide 17... -
Page 18: Nfc
80mm: 79.5 ± 0.5 (W) x 80mm diameter (3.13" ± 0.02” x 3.15") Media Dimensions: 58mm: 57.5 ± 0.5 (W) x 80mm diameter (2.26" ± 0.02” x 3.15") 3.4 Second Display 3.4.1 Second Display 5” LCD 18 RIPAC-10P3 Quick Reference Guide... -
Page 19: Second Display Specifications
Quick Reference Guide 3.4.2 Second Display Specifications 5” Second Display LCD Type TFT/Transmissive Viewing Angle Full Viewing Angle Pixel Pitch (W x H) 0.08625x0.08625 mm² Resolution 1280 x 720 Backlight Type RIPAC-10P3 Quick Reference Guide 19... -
Page 20: Hardware Maintenance
RIPAC-10P3 4. Hardware Maintenance Note: If you need more information, please visit our website: http://www.avalue.com.tw 20 RIPAC-10P3 Quick Reference Guide... -
Page 21: Paper Roll Loading
Step 2 80mm Paper Roll If you are using an 80mm paper roll, load the paper roll into the printer, in the direction indicated in below picture and close up the printer door after loading. RIPAC-10P3 Quick Reference Guide 21... - Page 22 The methods for loading the paper roll are as below. 58mm Paper Roll on the Right Side. Insert the paper holder into the second hole from the left. Load the paper roll to the right side and close the printer door. 22 RIPAC-10P3 Quick Reference Guide...
- Page 23 Insert the paper holder into the second hole from the right. Load the paper roll to the left and close the printer door. 58mm Paper Roll at the Middle. Insert holders into the holes at the far left and the far right. RIPAC-10P3 Quick Reference Guide 23...
-
Page 24: Replacement Of Thermal Printer Module
RIPAC-10P3 Load the paper roll in between the two holders then close the printer door. 4.2 Replacement of Thermal Printer Module Step 1 Push down the switch to open the paper roll door. 24 RIPAC-10P3 Quick Reference Guide... - Page 25 Step 2 Unscrew the three screws that connects the printer doo to the device in order to take down the printer door. Step 3 Unscrew the two screws on the printer door to remove printer wheel. Step 4 Unscrew the two screws and the hex bolt to remove the printer assembly. RIPAC-10P3 Quick Reference Guide 25...
- Page 26 RIPAC-10P3 Step 5 Unscrew two screws on the printer assembly to take down the printer module. Step 6 Disconnect the two FPCs from the PCB. 26 RIPAC-10P3 Quick Reference Guide...
- Page 27 Step 8 Use the screws to tie the printer module. Step 9 Install the printer assembly back into the device with the screws and insert the hex bolt back into place. NOTE: Always install the hex bolt back before closing up the printer door. RIPAC-10P3 Quick Reference Guide 27...
- Page 28 RIPAC-10P3 Step 10 Install the new printer wheel back onto the printer door. Step 11 Fix the printer door back onto RiPac-10P1 and close up the door. 28 RIPAC-10P3 Quick Reference Guide...
