7) Install the HDD and CDROM (optional) into the metal bracket and connect to the
motherboard using the IDE cable.
8) Install the motherboard I/O shield at the back of the VoomPC-2 enclosures

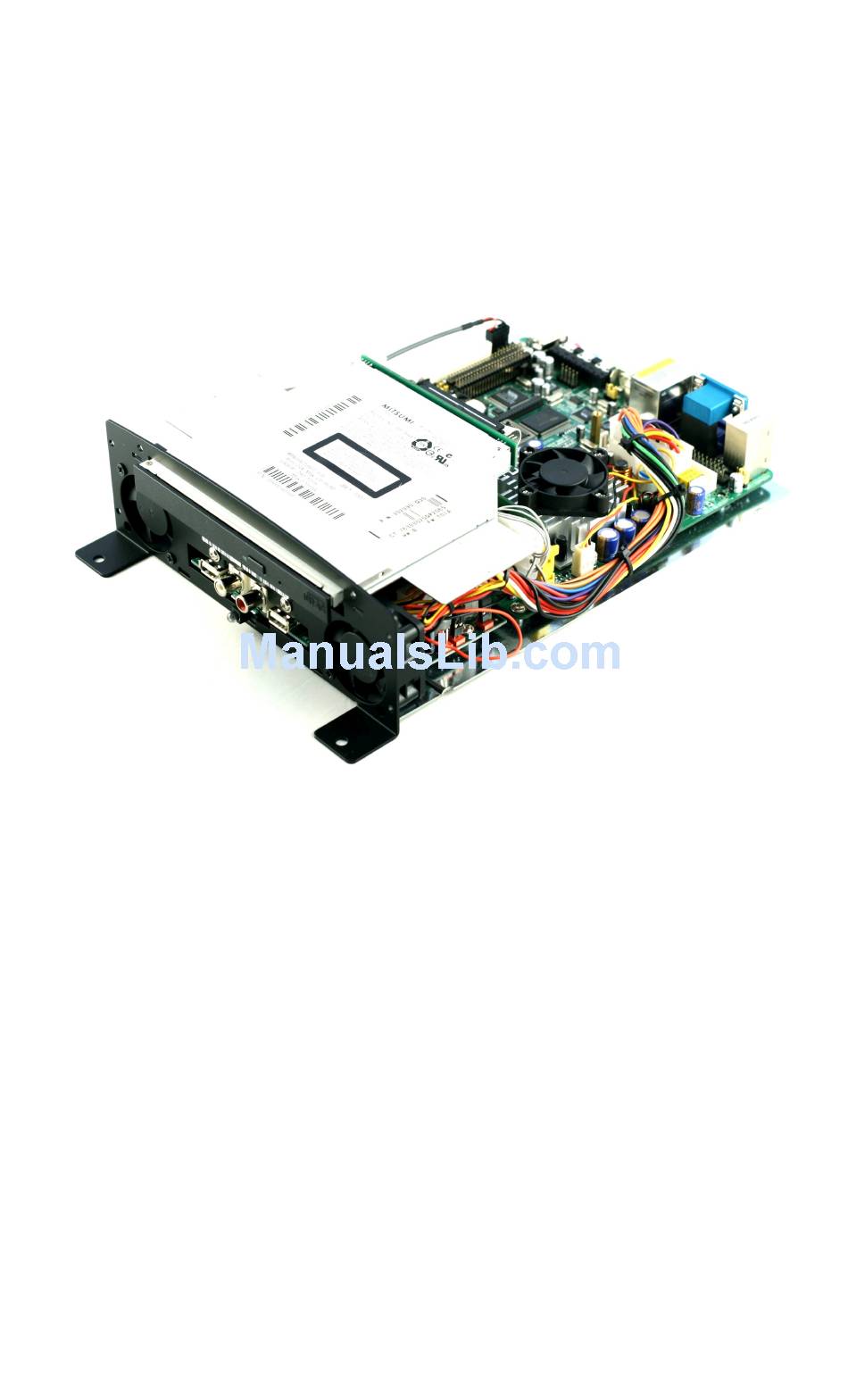

Figure 1.1, bottom mounting plate
9) Your final assembly should look similar to Figure 1.1. Slide the bottom plate into the
extrusion and stop half way into the slide. Connect the power input faston wires to the
Power Supply unit. (In case you are using a Power Amplifier, connect the AMP RMT
wires to the Power Supply Anti-Thump header.
10) Hook up Monitor, Keyboard, etc and test your system by turning ignition ON.
11) Secure the VoomPC-2 using the 4 front/back mounting screws. If you don't want to
drill holes into your car chassis, stick large Velcro pads to the bottom plate of the
VoomPC-2 (the hook side) and attach to your car's carpet and a strong adhesion will be
formed.
