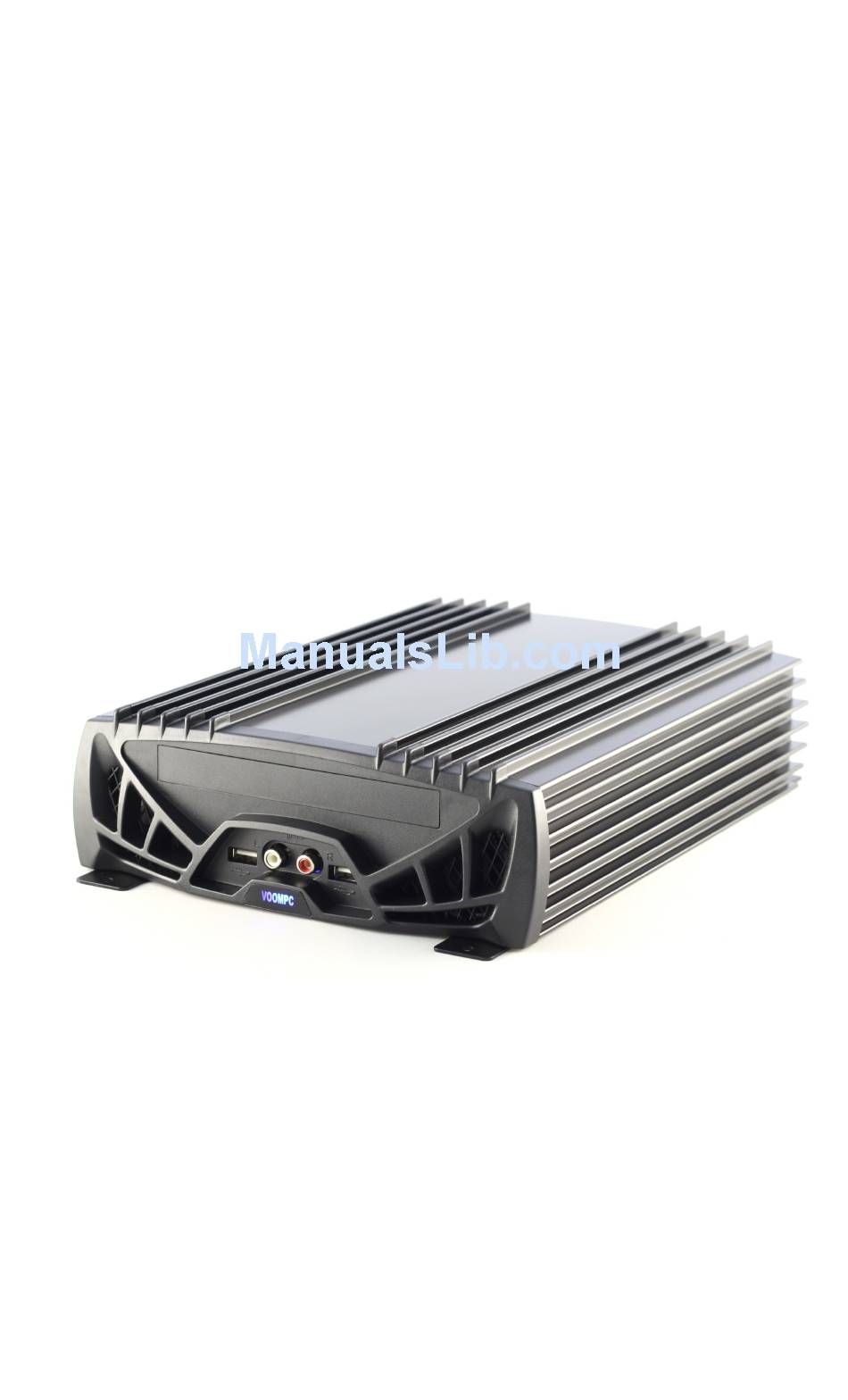

VoomPC-2™ Automotive PC Enclosure
Mini-ITX Car PC Enclosure

Installation Guide

Version 1.0
P/N VOOM-PC-2-ENC
Before you start...

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Automotive PC Enclosure VoomPC-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Curtis Computer Automotive PC Enclosure VoomPC-2

  • Page 1: Installation Guide

    VoomPC-2™ Automotive PC Enclosure Mini-ITX Car PC Enclosure Installation Guide Version 1.0 P/N VOOM-PC-2-ENC Before you start…...
  • Page 2 http://www.cartft.com, Cool Embedded PCs Please take a moment and read this manual before you install the VoomPC-2™ in your vehicle. Often times, rushing into unit installation can result in serious damage to your motherboard, power supply and probably your car’s electrical system. The VoomPC-2 has a wire harness that needs to be connected to the car’s electrical system.
  • Page 3 http://www.cartft.com, Cool Embedded PCs 1.0 Introduction Thank you for purchasing the VoomPC-2 mini-ITX vehicle enclosure! The VoomPC-2 was designed to work with a wide variety of main boards such as the VIA mini-ITX boards as well as low power Pentium-M OR Core 2 Duo. Please note that powering full power P4 or AMD systems is not recommended due to excessive heat dissipation.
  • Page 4 http://www.cartft.com, Cool Embedded PCs Figure 1.0, bottom mounting plate 3.0 VoomPC-2 installation steps 1) Install the motherboard, Front Audio / USB board and Power Supply on the base plate using M3 screws. (See figure 1.0) 2) Connect the ATX cable harness provided with your power supply to the motherboard. NOTE: Use small tie-wraps on the ATX cable harness in order to improve air flow.
  • Page 5 http://www.cartft.com, Cool Embedded PCs 7) Install the HDD and CDROM (optional) into the metal bracket and connect to the motherboard using the IDE cable. 8) Install the motherboard I/O shield at the back of the VoomPC-2 enclosures Figure 1.1, bottom mounting plate 9) Your final assembly should look similar to Figure 1.1.
  • Page 6 http://www.cartft.com, Cool Embedded PCs 4.0 Power Connector Wiring Diagram Figure 1.3, power connector diagram Connector type is Molex “mini-fit JR” series, 2 x 4 configuration. Consult www.molex.com for additional information on housings and mating pins (male/female). All “mini-fit JR” parts can be purchased on-line from www.digi-key.com. NOTE: The Black and Green wire harness labeled “not connected”...
