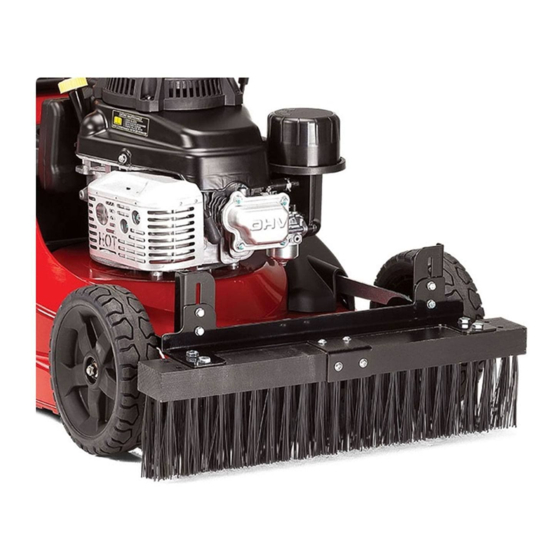

Groomer Brush Kit
ProStripe
Model No. 134-3722
Note:
The ProStripe 560 mower is shown in the graphics for these Installation Instructions. The eProStripe 560
60V mower has a different visual appearance, but the installation process for this kit is the same for both mowers.
Safety

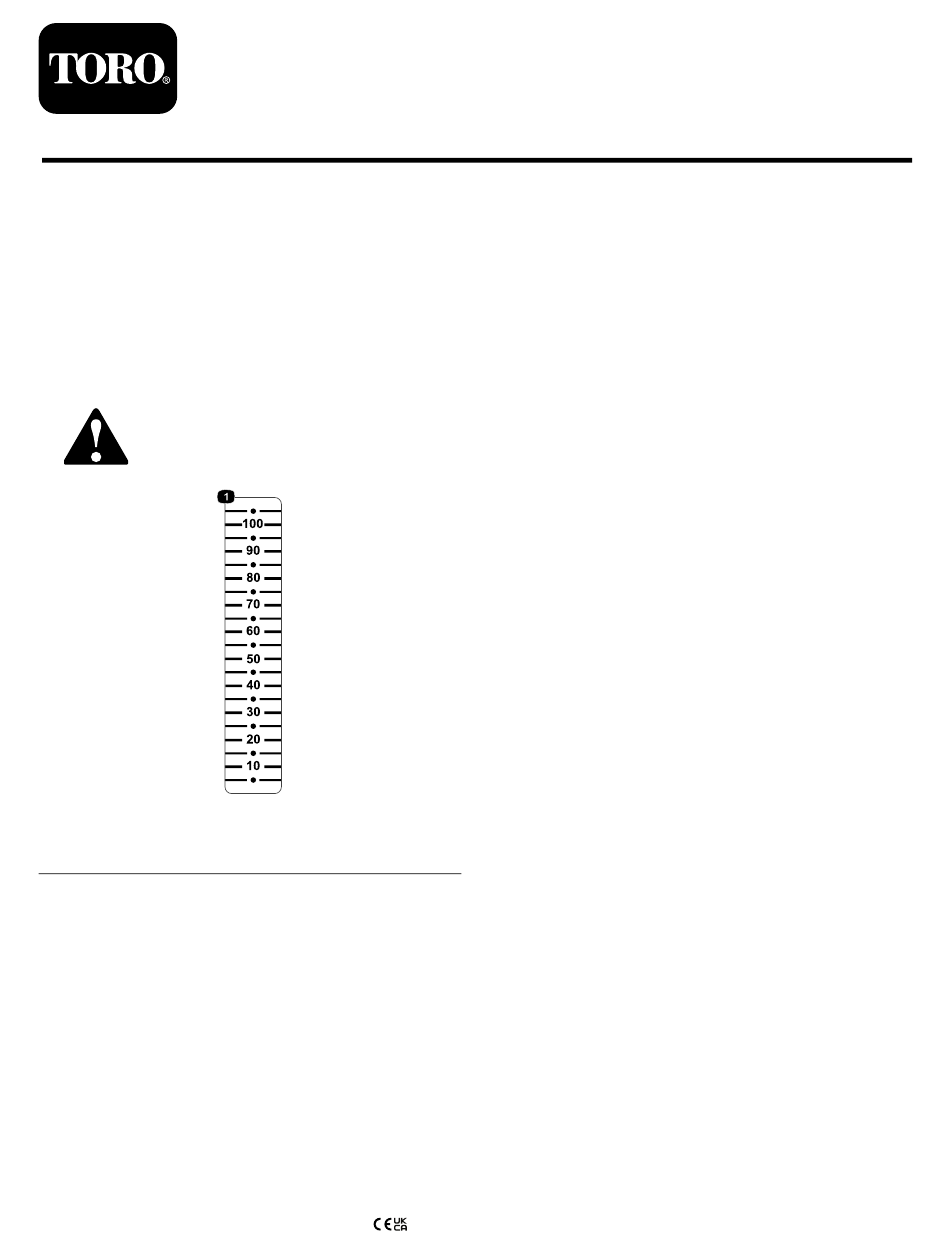

Safety and Instructional
Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
134-3990
1. Brush height (mm)
© 2024—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
and eProStripe
®
decal134-3990
Register at www.Toro.com.
560 Mower
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Form No. 3468-560 Rev A
Installation Instructions
*3468-560*
Advertisement
Table of Contents
Related Manuals for Toro eProStripe 560
Summary of Contents for Toro eProStripe 560
- Page 1 Installation Instructions Note: The ProStripe 560 mower is shown in the graphics for these Installation Instructions. The eProStripe 560 60V mower has a different visual appearance, but the installation process for this kit is the same for both mowers. Safety...
-
Page 2: Installation
Installation Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Prepare the machine. Brush-adjustment bracket Groomer brush Capscrew (8 x 60 mm) Washer (8 mm) Locknut (8 mm) Brush-height plate Assemble the brush mount. - Page 3 Disconnect the spark-plug wire from the spark plug; refer to the Operator’s Manual for your machine. For the eProStripe 560 60V mower: Move the machine to a level surface, shut off the machine, and wait for all moving parts to stop.
- Page 4 the brush mount, and the lower hole in the brush-height plate (Figure Thread a knob onto the carriage bolt, and tighten the knob (Figure Repeat steps through at the other end of the brush mount. Assembling the Struts to the Brush Mount Align the hole in the brush strut with the hole on the tab of the brush mount as shown in...
-
Page 5: Removing The Wheels
Assembling the Brush Kit to the Machine Parts needed for this procedure: Lower brush bracket Self-tapping, flange-head screw (6 x 20 mm) g283871 Capscrew (6 x 20 mm) Figure 6 Washer (6 mm) Locknut (6 mm) Remove the 7 self-tapping, flange-head screws (6 x 20 mm) that secure the front fins to the supports of the mower deck, and remove the Removing the Wheels... - Page 6 Assembling the Lower Brush Assembling the Groomer Brush to Brackets to the Machine the Lower Brush Brackets Assemble a capscrew (6 x 20 mm) and washer Align the holes in the lower brush bracket with (6 mm) through the hole in the brush mount the holes in the groomer brush support of the (Figure 10).
- Page 7 Tighten the capscrews and locknuts. Mark the hole location of the brush strut onto the deck (Figure 12). Move the strut up and centerpunch the midpoint of the mark that you made in step 2. Drill the centerpunch mark with a drill bit (6.5 mm) as shown in Figure Installing the Brush Struts...
- Page 8 Drilling the Deck for the Left Brush Assembling the Left Brush Strut Strut to the Machine At the left side of the mower deck, align the Align the hole in the brush strut with the hole in brush strut 90° to the to the brush mount (Figure the deck (Figure...
- Page 9 Finishing the Kit Installation No Parts Required Procedure Add fuel to the fuel tank or battery packs to the battery g285247 compartment; refer to the Operator’s Manual for your Figure 16 machine. 1. Support (front fin—mower 3. Self-tapping, flange-head deck) screw (6 x 20 mm) 2.
-
Page 10: Operation
Adjusting the Brush Height Operation Loosen the knobs at the sides of the brush mount (Figure 19). Adjusting the Brush Angle Loosen the knobs at the sides of the brush mount (Figure 18). g284762 Figure 18 1. Knob Use the handle of the brush-adjustment bracket to adjust the angle of the groomer brush (Figure g284761... -
Page 11: Maintenance
Maintenance Replacing the Brush Remove the 4 capscrews (8 x 60 mm), 8 washers (8 mm), and 4 locknuts (8 mm) that secure the groomer brush to the brush-adjustment bracket, and remove the brush (Figure 20). g284816 Figure 20 1. Capscrew (8 x 60 mm) 4.
