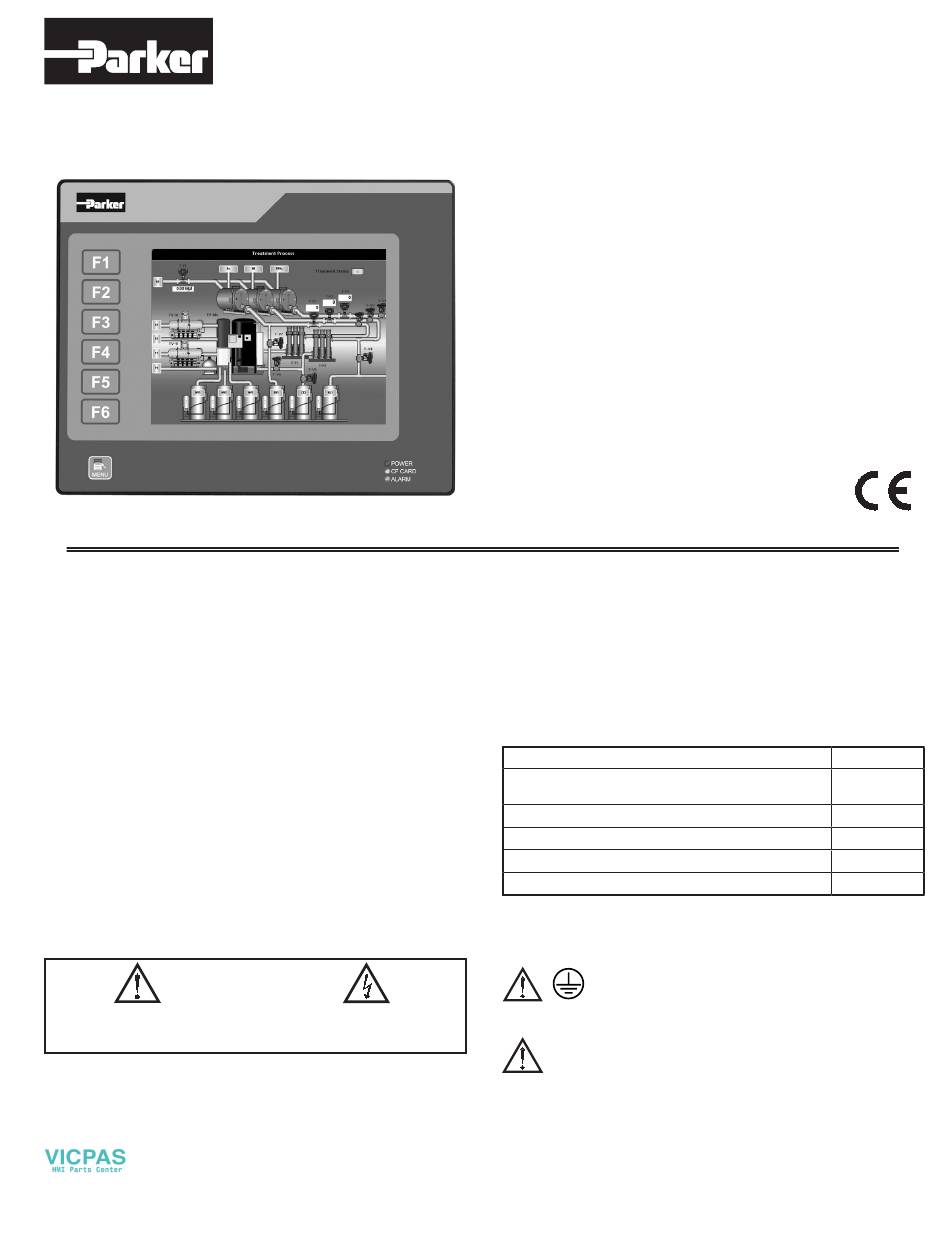

MODEL TS8008 - 8" COLOR TOUCHSCREEN
GENERAL DESCRIPTION
The TS8008 Operator Interface Terminal combines unique capabilities
normally expected from high-end units with a very affordable price. It is built
around a high performance core with integrated functionality.
The TS8008 is able to communicate with many different types of hardware
using high-speed RS232/422/485 communications ports and Ethernet 10 Base
T/100 Base-TX communications. In addition, the TS8008 features USB for fast
downloads of configuration files and access to trending and data logging. A
CompactFlash socket is provided so that Flash cards can be used to collect your
trending and data logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the TS8008
allows a user to easily view and enter information. Users can enter data through
the touchscreen or front panel 7-button keypad.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
CONFIGURED USING DSI8000 SOFTWARE

UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS

(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS-422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK

UNITS AND HOST WEB PAGES
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION

FROM A PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE

MEMORY (32MBYTE FLASH)
®
COMPACTFLASH SOCKET TO INCREASE MEMORY CAPACITY

7.5" TFT 32K VGA 640X480 PIXEL LCD

7-BUTTON KEYPAD FOR ON-SCREEN MENUS

THREE FRONT PANEL LEDS

POWER UNIT FROM 24VDC ±20% SUPPLY

RESISTIVE ANALOG TOUCHSCREEN

CONTENTS OF PACKAGE
- TS8008 Operator Interface.
- Panel Gasket.
- This hardware bulletin.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
ORDERING INFORMATION
DESCRIPTION
7.5" TFT Display Operator Interface (indoor), No USB Host,
Non-isolated Comms
CANopen Option Card
Profibus DP Option Card
DeviceNet Option Card
FireWire Option Card
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
CompactFlash is a registered trademark of CompactFlash Association.
1
Bulletin HP471055U008
Issue 1.0
Drawing No. LP0876X
Effective 10/11
PART NUMBER
TS8008/00/02
8000/CB/00/00
8000/PB/00/00
8000/DN/00/00
8000/FA/00/00
