Wyrestorm APO-VX20-MNT Quick Start Manual

Display Mount for APO-VX20-UC
APO-VX20-MNT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features
prior to starting the installation process. For other language versions of this document, check wyrestorm.com.
Before You Begin
• The weight of your Videobar SHOULD NOT EXCEED 26.5 LBS (12 KG). • The weight of your Videobar SHOULD NOT EXCEED 26.5 LBS (12 KG).
• You must verify that the total weight of your TV, Videobar, Videobar Mount and any • You must verify that the total weight of your TV, Videobar, Videobar Mount and any
accessories must be lower than the maximum weight rating of your TV mount. accessories must be lower than the maximum weight rating of your TV mount.
• You have read through the user manuals of your TV, Videobar and TV mount for • You have read through the user manuals of your TV, Videobar and TV mount for
additional guidance. additional guidance.
• You have the tools needed for installation. • You have the tools needed for installation.
IMPORTANT! Please read instructions carefully before installation IMPORTANT! Please read instructions carefully before installation
• For wall mounted cases, the wall must be capable of supporting five times the • For wall mounted cases, the wall must be capable of supporting five times the
weight of the TV, mount and sound bar combined. weight of the TV, mount and sound bar combined.
• Incorrect installation may result in product damage or body injury. WyreStorm • Incorrect installation may result in product damage or body injury. WyreStorm
bears no responsibility for any damage or injury resulted from incorrect bears no responsibility for any damage or injury resulted from incorrect
installation, incorrect assembly or misuse. installation, incorrect assembly or misuse.
• Do not apply this product to any purpose not indicated by its use outlined in this • Do not apply this product to any purpose not indicated by its use outlined in this
document. document.
Measure Tape Bubble Level
WARNING:This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged.

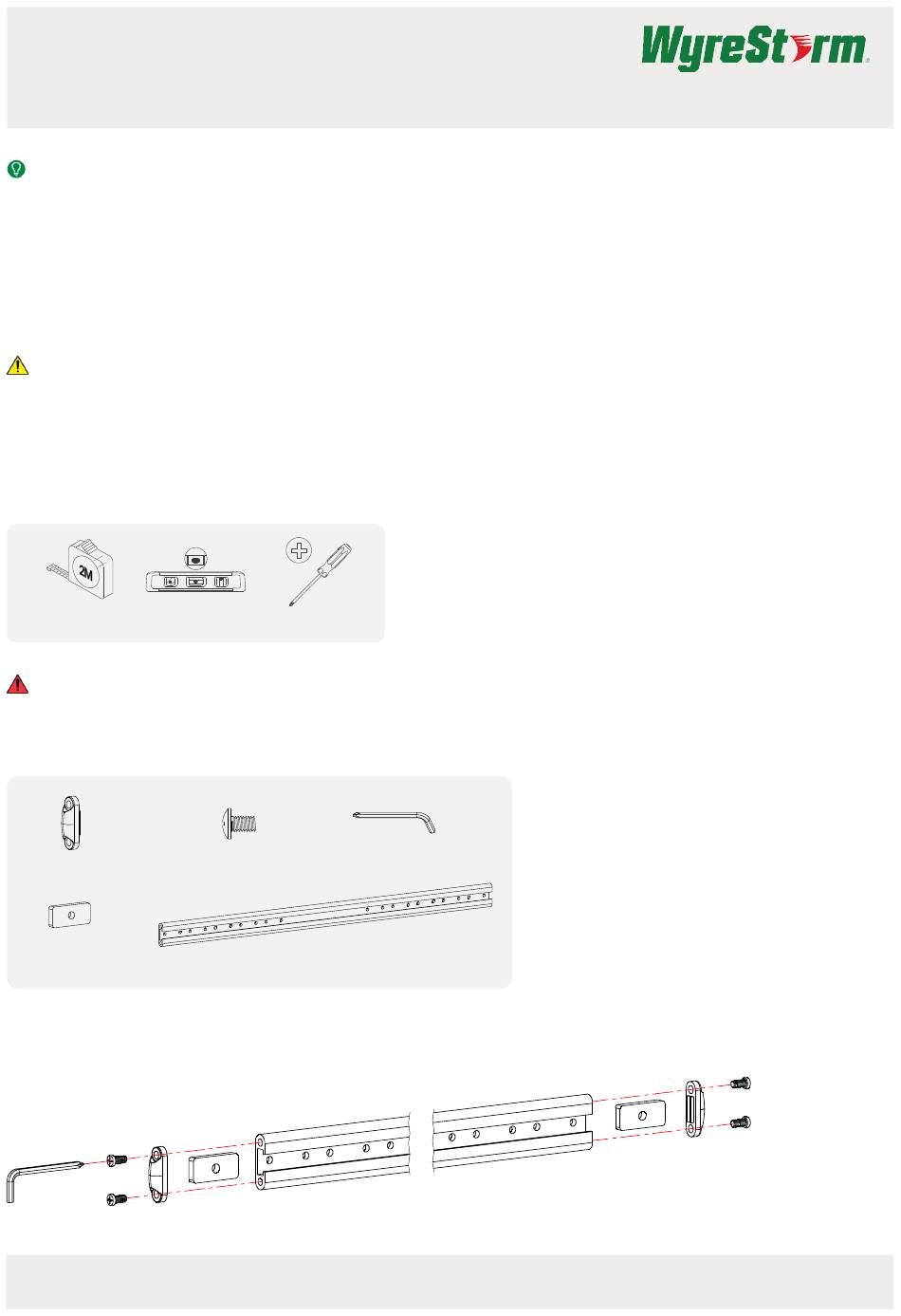

Assemble Horizontal Bar
2x Plastic Cover
2x Sliding Block
1. Insert both of the Sliding Blocks into the
Horizontal Bar at each end.
Copyright © 2023 WyreStorm Technologies |
APO-VX20-MNT Quickstart Guide | 230907
Screwdriver
4x M5x10mm Bolt
1x Horizontal Bar
2. Use the Plastic Covers to cap off each end and
secure tightly with the provided M5x10mm
Bolts and Allen Key.
wyrestorm.com
In the Box
2x Plastic Cover
2x Sliding Block
1x Allen Key
1x Horizontal Bar
2x Brackets
2x Adjustment Tablets
2x Hooks
4x M5x10mm Bolt
4x M5x8mm TV Screws
2x M6x8mm TV Screws
2x M6x30mm TV Screws
4x M6x16mm TV Screws
4x M6x25mm TV Screws
4x M8x25mm TV Screws
4x M8x45mm TV Screws
2x M4x16mm Videobar Screws
2x M6x16mm Videobar Screws
2x M5x16mm Videobar Screws
4x M8x10mm Spacer
4x M8x4mm Spacer
4x M8x2.5mm Spacer
6x M6 Washers
1x Allen Key
1 of 4
Quickstart Guide
3. The sliding block position can be appropriately
moved according to the length of your
Videobar.
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
support@wyrestorm.com
