- Page 1 Operation Manual of Wind Speed Transmitter (Model 485) RS-FSA-N01 Aluminum shell wind speed transmitter an instruction manual (Type 485) www.renkeer.com Shandong Renke Control Technology Co., Ltd...
- Page 2 Operation Manual of Wind Speed Transmitter (Model 485) www.renkeer.com Shandong Renke Control Technology Co., Ltd...
- Page 3 2. Equipment installation instructions ..................6 3. Installation and use of configuration software ............... 7 4. communication protocol ......................8 5. Common problems and solutions ..................10 6. contact information .......................10 7. Document History .........................11 www.renkeer.com Shandong Renke Control Technology Co., Ltd...
-
Page 4: Product Introduction

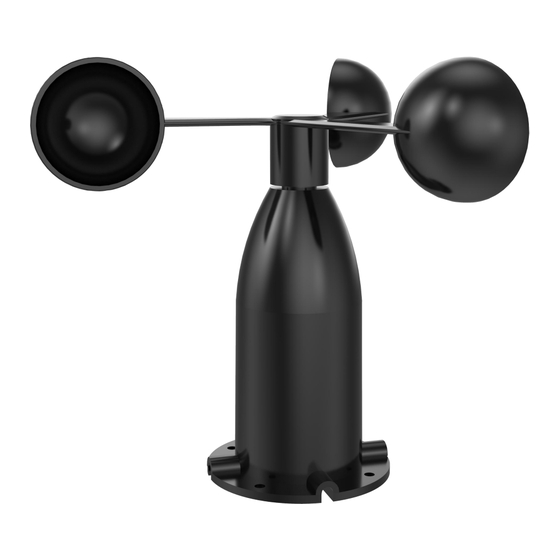

1. Product introduction 1.1Product Overview The RS-FSA-N01 wind speed transmitter is small and light in shape, easy to carry and assemble. The three-cup design concept can effectively obtain wind speed information. The shell is made of high-quality aluminum alloy profiles, and the exterior is electroplated and sprayed with plastic. It has good anti-corrosion, anti-corrosion and other characteristics, which can ensure the long-term use of the transmitter without rust. -
Page 5: Product Selection
485 interface resolution ratio 0.1m/s measuring range 0~60m/s Dynamic response time ≤2s precision ± (0.2+0.03V) m/s V represents wind speed 1.4Product selection Company code FSA- Aluminum shell wind speed transmitter N01- RS485（ModBus-rtu） 1.5Equipment size www.renkeer.com Shandong Renke Control Technology Co., Ltd... -
Page 6: Interface Description
Equipment list: 1 transmitter Four mounting screws Certificates, warranty cards, wiring instructions, etc USB to 485 (optional) 485 terminal resistance (optional) Install 1 trailer 2.2 Interface description www.renkeer.com Shandong Renke Control Technology Co., Ltd... -
Page 7: Electrical Wiring
3. Installation and use of configuration software 3.1 Software selection Open the data package and select "Debugging software" - "485 parameter configuration www.renkeer.com Shandong Renke Control Technology Co., Ltd... -
Page 8: Parameter Setting
③ . Modify the address and baud rate as needed, and query the current function status of the device. ④ . If the test is not successful, please recheck the equipment wiring and 485 drive installation. 4. communication protocol 4.1Basic communication parameters code 8-bit binary Data bits 8bit www.renkeer.com Shandong Renke Control Technology Co., Ltd... -
Page 9: Register Address
Number of Data Zone Second data Nth data area Check code code code valid bytes area 1byte 2byte 2byte 1byte 1byte 2byte 2byte 4.3 Register address Register address PLC or configuration content operate address www.renkeer.com Shandong Renke Control Technology Co., Ltd... -
Page 10: Common Problems And Solutions
120 Ω terminal resistance shall be added at the same time. 7) USB to 485 drive is not installed or damaged. 8) Equipment damage. 6. contact information Shandong Renke Control Technology Co., Ltd www.renkeer.com Shandong Renke Control Technology Co., Ltd... -
Page 11: Document History
Marketing center: the whole floor of the 10th floor of the East Block, Building 8, Shuntai Square, High-tech Zone, Jinan, Shandong Province Post code: 250101 Fax: (86) 0531-67805165 Website: www.rkckth.com Cloud platform address: en.0531yun.com 7. Document History www.renkeer.com Shandong Renke Control Technology Co., Ltd...
