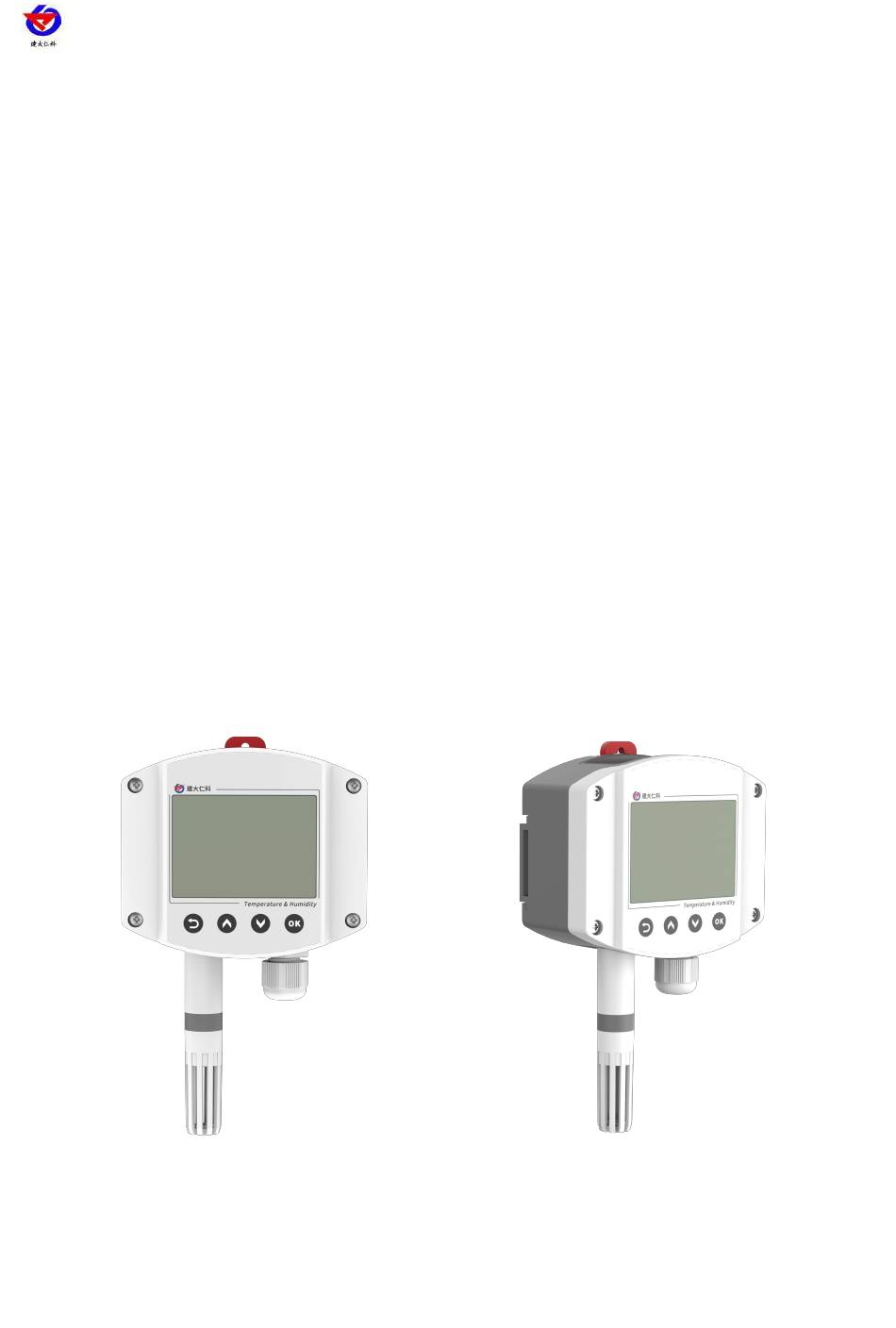

- Page 1 Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0 RS-WS-N01-2D-LCD Industrial wall-mounted LCD Temperature and Humidity Transmitter User Manual (Type 485) Shandong Renke Control Technology Co., Ltd. www.rkckth.com...
-
Page 2: Table Of Contents
4.2 Data frame format definition........................10 4.3 Register address............................11 4.4 Communication protocol example and explanation................11 5.Key operation instructions..........................12 6. Common problems and solutions........................14 7. Contact information............................15 8. Document history..............................15 Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 3: Product Description
(default) -20℃~+60℃，0%RH~95%RH（Non-condensing） -40℃~+120℃ default：-40℃~+80℃ Transmitter circuit operating 0%RH-100%RH temperature and humidity Probe working temperature Modbus-RTU letter of agreement Probe working humidity 485 Signal letter of agreement 0.1℃ output signal 0.1%RH Temperature display resolution Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 4: Equipment Size
≤1%RH/y refresh time temperature ≤0.1℃/y Response time humidity ≤8s(1m/s Wind speed) temperature ≤25s(1m/s Wind speed) parameter settings Direct modification through software settings or buttons 1.4Equipment size 1.5system framework System scheme block diagram Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 5: Product Model
5mm and a depth of ≥30mm on the wall (the opening spacing is 70mm). After inserting the expansion plug, fix the slide rail mounting plate to the wall with self-tapping screws, and finally slide the transmitter into it. Shandong Renke Control Technology Co., Ltd. www.rkckth.com... - Page 6 Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0 Slide rail installation The back of the transmitter is equipped with a slide rail mounting plate. Remove the mounting plate first. The transmitter can be slid directly into the standard 35 rail。 Shandong Renke Control Technology Co., Ltd. www.rkckth.com...
- Page 7 1) There are certain specification requirements for 485 line field wiring. For details, please refer to the data package "485 Equipment Field Wiring Manual". 2) When the device is connected to the 485 bus, ensure that the addresses of multiple devices will not be repeated. Shandong Renke Control Technology Co., Ltd. www.rkckth.com...
-
Page 8: Wiring Instructions
100, the hexadecimal address is displayed at the display location of the device address. 3. Configuration software installation and use 3.1 Software selection Open the data package, select "Debugging software" --- "485 parameter configuration software", Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 9: Parameter Settings
③. Modify the address and baud rate according to the needs of use, and at the same time, you can query the current function status of the device. ④. If the test is unsuccessful, please recheck the equipment wiring and 485 driver installation. Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 10: Letter Of Agreement
Function code: The command function instruction issued by the host, this transmitter only uses function code 0x03 (read register Data area: The data area is the specific communication data, pay attention to the high byte of the 16bits data first! CRC code: two-byte check code. Host query frame structure: Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 11: Register Address
Response frame (hexadecimal): (for example, the temperature is -10.1℃ and the humidity is 65.8%RH) address c function cod Returns the n Humidity Temperatur Check code High bit of ode: umber of vali value e value low bit check c Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 12: Key Operation Instructions
，The parameters are automatically saved. 4） During the setting process, press Can abandon this setting， Press again Back to the main interface。 The specific parameter interface is as follows: show interface illustrate Key operation Shandong Renke Control Technology Co., Ltd. www.rkckth.com... - Page 13 +1， calibration value of the long Press +10；short device according -1，long Range: -100.0~100.0 Press -10。short Default value: 0 according key， Save the displayed temperature calibration value as the target temperature calibration value. Shandong Renke Control Technology Co., Ltd. www.rkckth.com...
-
Page 14: Common Problems And Solutions
5) If the number of equipment is too long or the wiring is too long, power supply should be nearby, add 485 booster, and add 120Ω terminal resistance at the same time. 6) USB to 485 driver is not installed or damaged 7) The equipment is damaged. Shandong Renke Control Technology Co., Ltd. www.rkckth.com... -
Page 15: Contact Information
Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0 7. Contact information Shandong Renke Control Technology Co., Ltd. Address: 2nd Floor, East Block, Building 8, Shuntai Plaza, High-tech Zone, Jinan City, Shandong Province Zip code: 250101 Phone: 400-085-5807 Fax: (86)0531-67805165 Website: www.renkeer.com...
