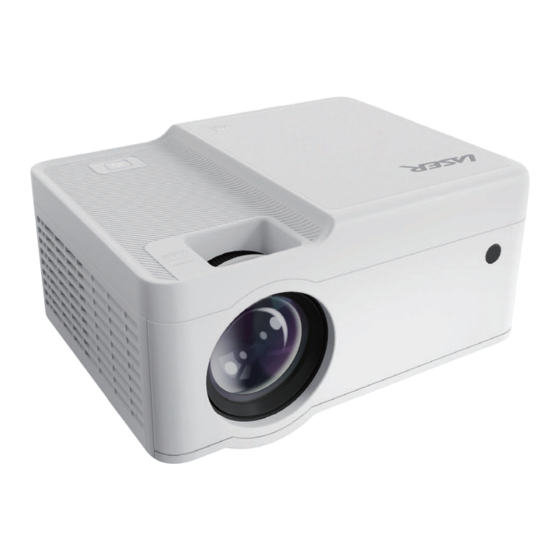

- Page 1 User Manual Combo DVD Wi-Fi Projector PJ-DVDFHD-682...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS • Please read this manual thoroughly before using the projector. • Only qualified personnel should open or repair this device. • Adhering to safety precautions reduces the risk of fire, electric shock or injury. • This device is not intended for use by individuals with reduced physical, sensory, or mental capabilities, unless given proper instructions by someone responsible for their... - Page 4 SAFETY PRECAUTIONS continued... surface of the disc. Hold discs by the edges or the centre hole to prevent fingerprints, dirt, or scratches. Always store discs in their original cases when not in use to prevent damage. • Handle the power adaptor with care and use only the supplied one.
-
Page 5: What's In The Box
WHAT’S IN THE BOX • LED projector • Remote control • AC power adaptor and cord • 120” foldable projector screen • Accessory pack to install the screen • User manual... - Page 6 SETTING UP THE PROJECTOR SCREEN...
-
Page 7: Setting Up The Screen
SETTING UP THE SCREEN continued... SETTING UP THE PROJECTOR The installation distance between the unit and a screen varies depending on the size of the screen. Install this unit so that it fits the size of your screen. -
Page 8: Projection Modes
PROJECTION MODES Your projector can be set up in different ways (see pictures below). NOTE: If mounting on the ceiling, you’ll need a projector mount to install it properly. Go to Home screen > Setting > Option > Projection Mode to adjust how the image is projected according to your setup. -
Page 9: Making Adjustments
MAKING ADJUSTMENTS To reduce image distortion, it is recommended to move the projector as close to centre of screen. If you cannot install the projector squarely facing the screen, correct any resulting keystone distortion using the keystone adjustment control. VERTICAL ADJUSTMENT Please follow the below diagram for vertical adjustment. - Page 10 MAKING ADJUSTMENTS continued... ADJUST FOCUS AND KEYSTONE Adjust the focus by turning the knob while observing the image near the centre of the screen. Optimal focus is obtained when the image is visible and sharp. Depending on the projected screen size, the focus near the screen edges may be less sharper than the screen centre.
- Page 11 OVERVIEW...
- Page 12 OVERVIEW continued...
-
Page 13: Remote Control
REMOTE CONTROL Precautions When Using Batteries: • Always insert the batteries in the correct polarity (+/-) as indicated. • Do not mix old and new batteries or different types of batteries. • Keep batteries away from children and pets. • Keep the remote control away from devices that may cause interference, such as other remote controls, electronic devices, or strong magnetic fields. - Page 14 REMOTE CONTROL continued...
- Page 15 TURN ON/OFF • Connect the power cord to the power adaptor. • Connect the power adaptor to the projector and then to a power outlet. • Press the Power button on the projector or on the remote control to turn on/off. Note: Please turn off the projector before unplugging the power source, so as not to affect the life and operation of the projector.
-
Page 16: Hdmi Connection
HDMI CONNECTION • Turn off the unit before connecting the HDMI cable (not included). • After connecting, turn on the projector. • Press the Source button to switch to HDMI mode and the video of HDMI device will show on the projector screen. If you connect your device to the projector using the HDMI 1 port, select HDMI 1 as the input source and so on. - Page 17 AV CONNECTION • Turn off the unit before connecting the AV cable. • Use AV cable to connect as shown in the below illustration. • After connecting, press the Power button to turn on the projector. • Press the Source button and select AV.
-
Page 18: Dvd Player
DVD PLAYER DVD PLAYER • Open the DVD compartment and insert a DVD. • Press the Source button and select DVD to switch to DVD mode. Alternatively, while on the main interface, press DVD button on the remote control. • To exit the DVD mode, press the SOURCE button and select a different mode. -
Page 19: Usb Connection
USB CONNECTION • Turn off the unit before connecting a USB flash drive. • After connecting, turn on the unit. • Use /// navigation buttons to select File Manager icon; press OK to enter. • Select Movie, Music or Photo; press OK to enter. - Page 20 WIRED AUDIO CONNECTION • Turn off the projector before connecting the cables. • Connect a 3.5mm audio cable (not included) to the Headphones socket in the projector. Connect the other end to an external speaker. • After connecting the cable, turn on both units. If required, switch to correct input source on the external speaker.
-
Page 21: Bluetooth Audio
BLUETOOTH AUDIO This projector allows you to output all sound to a connected Bluetooth speaker or audio device. • Enable Bluetooth mode on the speaker you wish to output the projector audio to. • On the projector’s home page, select Bluetooth Settings. - Page 22 WI-FI • On the projector’s home page, go to Setting > Network > Wi-Fi Settings. • Scan and choose your Wi-Fi network. • Enter Wi-Fi password and connect.
- Page 23 SCREEN MIRRORING - ANDROID & WINDOWS • From projector’s home screen, go to Screen Sync > Miracast. • On your Android or Windows device, ensure Wi-Fi is turned on. Miracast uses Wi-Fi Direct technology to establish a direct connection between your device and the projector. •...
- Page 24 SCREEN MIRRORING - IOS • From projector’s home screen, go to Screen Sync > iOS Cast. • On your iOS device, open Control Centre and tap on Screen Mirroring. • Select the projector from the list and tap to connect.
- Page 25 DLNA (ANDROID, IOS & WINDOWS) • Check if your device (like a laptop, smartphone or tablet) supports DLNA. • Ensure your device is connected to the same Wi-Fi network as the projector. • In your device settings, find “Media sharing” or “Media server.”...
-
Page 26: Digital Zoom
DIGITAL ZOOM Use the digital zoom settings, when you need to magnify the projected image without physically adjusting the projector’s position or lens. Go to Home screen > Setting > Option > Digital zoom. -
Page 27: Troubleshooting
TROUBLESHOOTING NO IMAGE IS PROJECTED OR A “NO SIGNAL” MESSAGE IS DISPLAYED • Check the power light next to the power button is on and green. If it’s red, then press the power button to take the device out of standby. - Page 28 TROUBLESHOOTING continued... THE LAMP (BULB) SWITCHES OFF AFTER A PERIOD OF TIME. IS THE WARNING LIGHT INDICATOR RED? IF SO, THE PROJECTOR IS OVERHEATING WHICH TURNS THE LIGHT OFF AUTOMATICALLY. • Leave the projector to cool for a few minutes. •...
-
Page 29: Specifications
SPECIFICATIONS Display technology Light Source Type Brightness 240±10% lumens Display Native Resolution 1920 x 1080 Aspect ratio 16:9 HDMI Input Supported 1080p, 1080i, 720p, 576i, 480p and 480i CD, DVD, CD-R/RW, DVD-R/+R, Supported discs types DVD+RW/-RW, VCD, SVCD Bluetooth version Bluetooth capabilities Audio out only Built-in speaker... - Page 31 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and...
