CARLY
INSTALLATION MANUAL | MANUEL D'INSTALLATION | MANUAL DE INSTALACIÓN
An installation video guide can be found on our Youtube channel:
Un guide d'installation video est disponible sur notre chaîne Youtube:
Una guía de instalación de vídeo está disponible en nuestro canal de Youtube:
https://tinyurl.com/yc73swpp
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 8 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 8h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 8 am. – 5 pm., HDE, Lunes a Viernes.
P. 1
2024-04-09
www.ovedecors.com | customerservice@ovedecors.com
Advertisement
Related Manuals for OVE CARLY
Summary of Contents for OVE CARLY

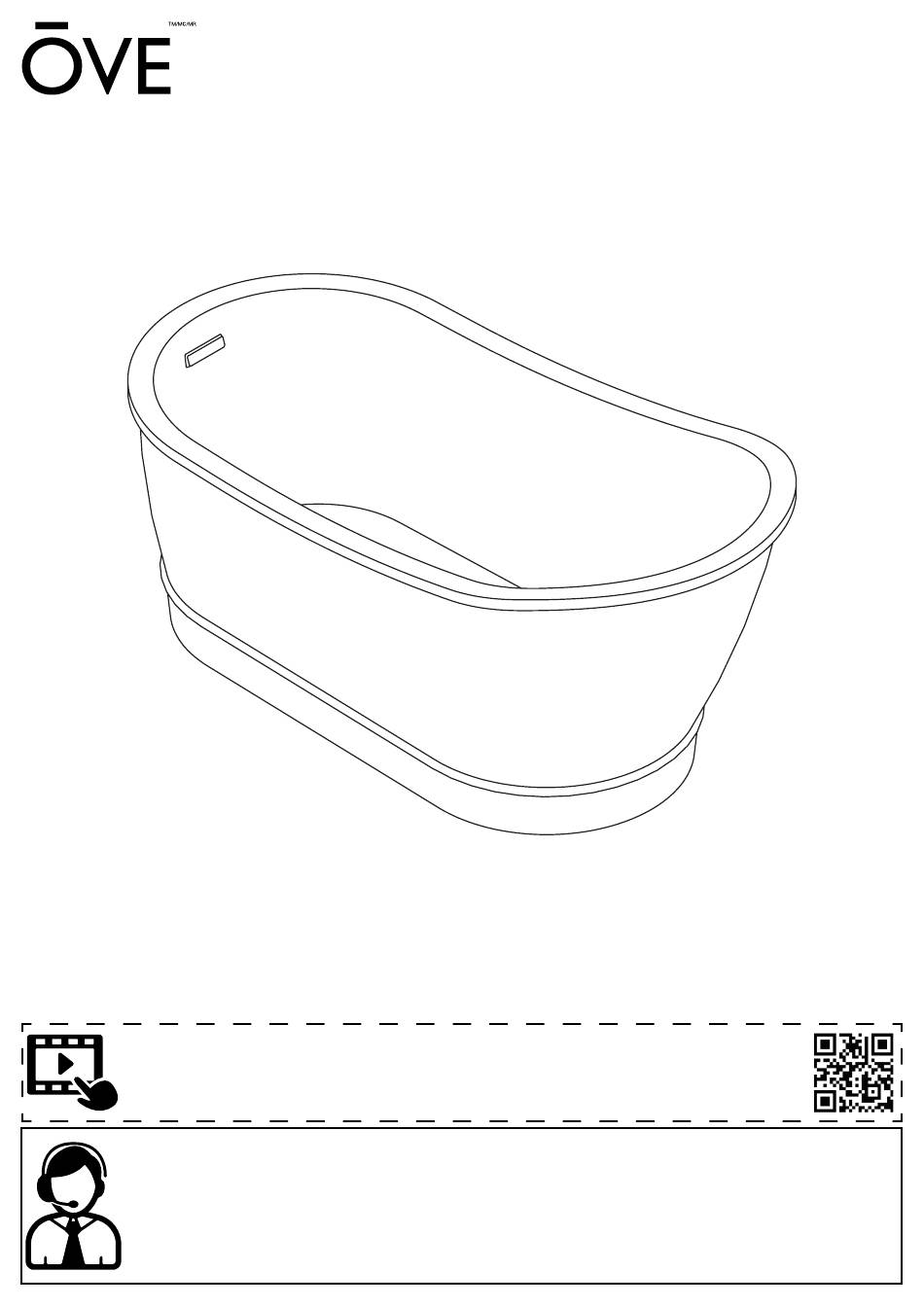

- Page 1 CARLY INSTALLATION MANUAL | MANUEL D’INSTALLATION | MANUAL DE INSTALACIÓN An installation video guide can be found on our Youtube channel: Un guide d’installation video est disponible sur notre chaîne Youtube: Una guía de instalación de vídeo está disponible en nuestro canal de Youtube: https://tinyurl.com/yc73swpp...
- Page 2 SPECIFICATION SPÉCIFICATIONS ESPECIFICACIONES 60 5/8” [1540] 42 1/2” [1080] Drain / Drenaje Drain / Drenaje ø2” [ø50] 10 5/8” [270] Overflow / Trop-plein / Desborde 58.5gal 68.2lbs 0.22m 31kg Measures: inch [millimeter] Mesures: pouce [millimètre] Medidas: pulgadas [milímetros] P. 2...
- Page 3 FLOOR TRACING TEMPLATE GUIDE DE TRAÇAGE GUÍA DE SEGUIMIENTO Drain Floor cut-out for P-trap Rough-in zone for waste pipe Drain Ouverture dans le plancher pour p-trap Zone indiquée pour tuyau d’évacuation Drenaje Abertura en el piso de p-trampa Zona para la tubería de desagüe 22 7/16”...
- Page 4 PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO 1-1/2 NPSM to SCH40 Pipe Adapter Raccord 1-1/2 NPSM à Tuyau SCH40 Adaptador 1-1/2 NPSM à SCH40 Tubo TOOLS REQUIRED OUTILS REQUIS HERRAMIENTAS NECESARIAS...
- Page 5 CAUTION ATTENTION ATENCIÓN You will need at least two people to install this product properly. In order to reduce the risks of personal injuries, do not support or lift the bathtub by the rim. Provide adequate support under the feet. The distributor is not responsible for any damage to the unit or personal property caused by improper installation.
- Page 6 FLOOR TRACING TRAÇAGE SEGUIMIENTO 1.1. Use the floor tracing template supplied in this manual to trace the proper position of your supply pipes, your drain and your P-Trap rough-in. 1.2. Place the bathtub in the desired position on the floor, manually locate the proper position for your plumbing and trace the outline on the floor. 1.3.
- Page 7 INSTALLATION: USING REGULAR PVC PIPING INSTALLATION: UTILISATION DE TUYAU PVC RÉGULIER INSTALACIÓN: USO DE TUBERÍAS DE PVC REGULARES 2.1. Apply Teflon Tape and/or thread sealant to the pre-installed bathtub drain. 2.2. Screw the provided 1-1/2 NPSM to SCH40 Pipe Adapter to the drain. Cut a 1-1/2 PVC Extension Tube to the desired length. Then connect it to the Adapter using PVC pipe sealant to join the parts together.
- Page 8 SEALING SCELLAGE SELLADO BEFORE FIXING YOUR TUB TO THE FLOOR, ENSURE THAT YOU HAVE INSTALLED YOUR FAUCET (if applicable) AND THAT YOU HAVE CHECKED FOR LEAKS. 3.1. Test for leak by filling up the tub and let it drain. Then check all plumbing connections for leaks. 3.2.
-
Page 9: Maintenance
CONSUMER RESPONSIBILITIES The DISTRIBUTOR’s products will remain beautiful for many years if properly cared for. The DISTRIBUTOR does not recommend the use of harsh abrasive cleansers on any of its products. Harsh cleansers will damage the finish of your product. MAINTENANCE ▶...
