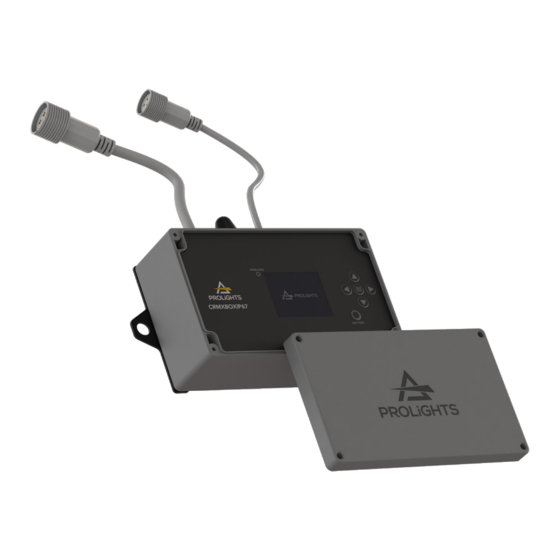

- Page 1 CRMXBOXIP67 IP67 1 Universe CRMX Wireless Transceiver for exterior installation USER MANUAL English version Rev.01 - 01/24 PRELIMINARY...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
- Page 3 CONNECT AND DISCONNECT POWER FROM THE PRODUCT ........06 6 - CONTROL PANEL DISPLAY AND BUTTONS LAYOUT ................. 07 7 - MENU STRUCTURE 8 - MAINTENANCE MAINTENANCE THE PRODUCT ..................09 VISUAL CHECK OF PRODUCT HOUSING ..............09 TROUBLESHOOTING ..................... 09 PROLIGHTS - CRMXBOXIP67...
-
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
-
Page 6: Package Content
1 - PACKAGING PACKAGE CONTENT • 1 x CRMXBOXIP67 • User Manual OPTIONAL ACCESSORIES Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/CRMXBOXIP67#accessories 2 - TECHNICAL DRAWING 240 mm 77 mm [9.4 in] [3.0 in]... -
Page 7: Product Overview
3. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.; 4. ANTENNA of Wireless DMX Receiver. 5. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 6. SIDES HOLES: for fixing to surfaces. Fig 02 PROLIGHTS - CRMXBOXIP67... -
Page 8: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - CRMXBOXIP67... -
Page 9: Control Panel
• LEFT: To move left in the function. • RIGHT: To move right in the function. • MENU/ENTER: Used to confirm the displayed value, or activate the displayed function or to access the menu tree or to return a previous menu window. PROLIGHTS - CRMXBOXIP67... -
Page 10: Menu Structure
METADATA 2. Universe name received from TX TX CRMX Mode: 1.RGB Color code set from R,G,B combo list 2. Universe name by default takes first 16 characters of Model Name. SOFTWARE VERSION To see the Software version. PROLIGHTS - CRMXBOXIP67... -
Page 11: Maintenance The Product
IP grade of the fixture. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. - Page 12 Note...
- Page 13 Note...
- Page 14 Note...
- Page 16 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
