All-in-One Conference Videobar with switcher and BYOD/BYOM
iCam VB80
iCam VB80-Mic
iShare MC
This user manual provides a detailed overview of the INFOBIT iCam VB80 videobar, iCam
VB80-Mic extension microphone and wireless dongle iShare MC. INFOBIT recommends
reading through this document in its entirety before designing or installing a system.
INFOBIT AV

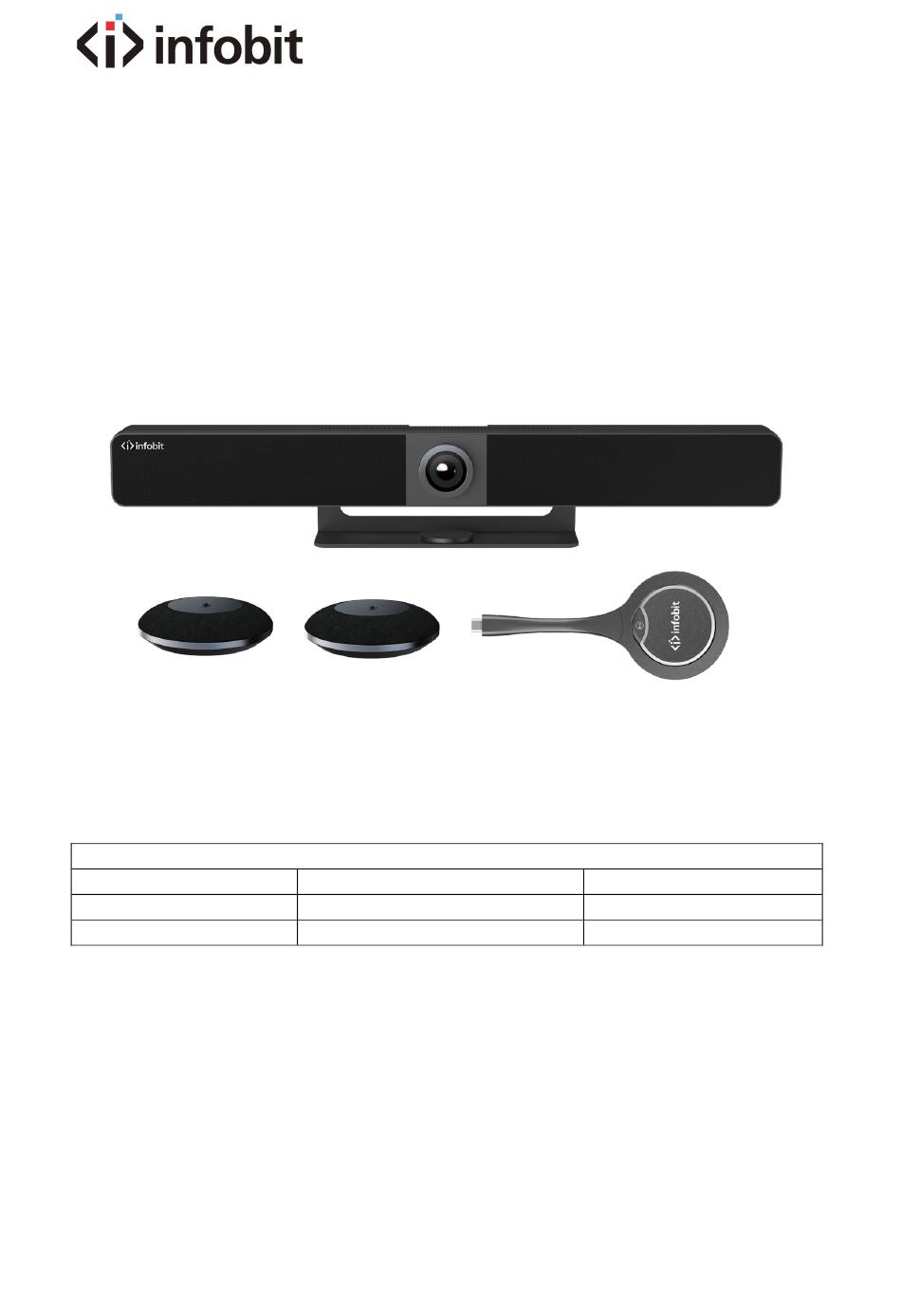

iCam VB80 Kit
User Manual V1.0
iCam VB80 Kit
Videobar
Extension mic
Wireless Dongle
www.infobitav.com
1x
2x
1x
info@infobitav.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for infobit iCam VB80 Kit
Summary of Contents for infobit iCam VB80 Kit
- Page 1 MC Wireless Dongle This user manual provides a detailed overview of the INFOBIT iCam VB80 videobar, iCam VB80-Mic extension microphone and wireless dongle iShare MC. INFOBIT recommends reading through this document in its entirety before designing or installing a system.
-
Page 2: Table Of Contents
6. What’s the maximum resolution the USB-C dongle supports? ............... 35 7. Can the screen mirroring be paused during the presentation? .............. 35 8. What’s the differences among USB-A, USB-B and USB-C? ..............35 H. DIAGRAM ..............................36 WARRANTY ..............................38 INFOBIT AV www.infobitav.com info@infobitav.com... - Page 3 TRADEMARK ............................... 38 TECHNICAL SUPPORT ........................... 38 INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 4: Chapter One: Icam Vb80
• Plug and play with excellent compatibility for OS and UC applications, such as Zoom, Teams, Webex, Skype, BlueJeans, etc. • Provides flexible control options of Web GUI and Remote Controller. • Built-in Wi-Fi. C. PACKAGE CONTENTS INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 5: Specifications
Communication and Control HDMI HDMI 2.0, HDCP 2.2 USB-C: USB 3.0 host (60W max charging) USB-A: USB 3.0 device USB-B: USB 3.0 host USB Protocol UAC, UVC, USB HID Ethernet 1 x RJ-45 WLAN IEEE 802.11 a/b/g/n/ac INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 6: Panel Description
DC 24V 5A Power Consumption (Max) 100W Dimension (Width x Height x 700mm x 126.83 mm x 90mm/27.56” x 4.99” x 3.54” Depth) (with Bracket) Net Weight 2.42kgs/5.324lbs (with Bracket) Gross Weight 6.22kgs/13.68lbs E. PANEL DESCRIPTION INFOBIT AV www.infobitav.com info@infobitav.com... - Page 7 HDMI In Connect to a laptop or PC. Connect to a network device (e.g. network switch, wireless Ethernet router, computer, etc.) for Airplay Mirroring signal input and LAN control (Web GUI & Telnet API). Kensington security slot INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 8: Device Connectivity
VB80 recognizes the new device and can automatically send connection of the speakerphone and USB peripherals to this newly connected source. This capability is great for applications that will have many devices that are ‘hotplugged’ during a meeting. G. INSTALLATION INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 9: Application
In this application the iCam VB80 acts as a unification ‘hub’ which allows connection of personal devices to have access to VB80’s speakerphone, transmit video to a display and by extension have access to any USB cameras that may be connected to VB80’s USB peripheral device port. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 10: Application 2 - Zoom Room + Byom
USB-C HDMI USB-C Laptop One Type-C AOC full function cable (Model: iFiber Y10V) supports DP1.4, USB3.0, USB2.0 and PD (max 60W). Or select INFOBIT iCable USB4 fully featured cables. USB-C HDMI HDMI USB-A to USB-C Laptop USB-A The second connection method is to use the standard HDMI and USB-A cables. -
Page 11: Bluetooth Pairing
2. Press any button on remote controller, the sentence “Remote Control Connected” will appear on the display screen, indicating that Bluetooth paring between the remote controller and the device is successful. Now you can use the remote controller to control the device with ease. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 12: Screen Mirroring
J. SCREEN MIRRORING With screen mirroring support, the device allows users to share multimedia content wirelessly from their mobile devices on any HDMI displays over Airplay Mirroring, Miracast and wireless dongle. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 13 A custom image can be uploaded to replace this default guide screen via the VB80’s Web GUI interface. INFOBIT iCam VB80 default guide screen This iCam VB80 has a built-in wireless access point that can be used to cast content via AirPlay or Miracast.
-
Page 14: (J-1) Using Apple Devices
Note: For Apple device screen mirroring, please use the remote control to adjust the volume of the iCam VB80. (J-2) Using Android Phones Take Samsung Galaxy series for example: Step 1. Enable the Wi-Fi or WLAN feature of your mobile device. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 15: (J-3) Using Windows Pcs
Step 2: Press the button to start casting once the LED stops flashing. K. WEB GUI The Web Ul designed for this device allows for basic settings. It can be accessed through a modern browser, e.g. Chrome, Safari, Firefox, etc. To access the Web Ul page: INFOBIT AV www.infobitav.com info@infobitav.com... - Page 16 3. Input the device's IP address in the browser and press Enter, the following window will pop up. Note: Default IP mode for this device is DHCP. 4. Input the user name and password (default user name & password: admin) and click Login to enter the main page. INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 17 The main page includes Overview, Camera, Settings and Support tabs. • Overview: Offers basic information of the device. • Camera: Offers settings of camera parameters. • Settings: Offers basic settings of Video,Wi-Fi,BYOD,etc. • Support: Offers firmware update function and device information. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 18: (K-1) Overview
Tracking Effect frame. • Immediate: The tracking image switches from one to another immediately in the frame. Tracking speed is available when Auto Framing is enabled. Tracking Speed • Slow (default) /Normal/Fast • Mirror image function Mirror INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 19: (K-3) Settings
• Auto framing: uses motion detection and body recognition to zoom in or out to best frame one or multiple people to the camera. This mode does not track a presenter or use audio detection. (K-3) SETTINGS GENERAL SETTINGS INFOBIT AV www.infobitav.com info@infobitav.com... - Page 20 Click to save and perform above IP settings. (LAN module will Apply reboot automatically once IP settings are changed. IP Conflict When IP Conflict Detection is enabled, an OSD prompt is displayed Detection when an IP address conflict is detected INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 21 By default, it's set as “80 04". Enter the CEC standby command in hex of the controlled display device. For more information about the command, see the user Standby guide of your display device. By default, it's set as “80 36". INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 22 AUDIO SETTINGS ITEMS DESCRIPTION/ FUNCTIONS Expansion Mic only: ON/ OFF Expansion Mic When switch ON, the mic of the iCam VB80 will be disabled to pickup sound. INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 23 Click to save and perform above settings. • 2412MHz~2462MHz for WIFI 2.4G • 5180MHz~5240MHz for WIFI 5G Operation Frequency • 2402-2480MHz for BT-EDR • 2402-2480MHz for BT-BLE • WIFI2.4G 16.30dbm(E.I.R.P) Maximum Power • WIFI 5G 14.81dbm (E.I.R.P) INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 24 Disable means that the screen will never turn off. “0” means the countdown 60s will appear immediately, and the, “x” Delay time means the countdown 60s will appear after, “x” minutes. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 25: (K-4) Support
SYSTEM SETTINGS ITEMS DESCRIPTION/ FUNCTIONS Login Set a new password to login Web Ul. Apply Click to save and perform above settings. • Factory Reset System • Reboot (K-4) SUPPORT INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 26: Chapter Two: Icam Vb80-Mic
ITEMS DESCRIPTION/ FUNCTIONS Device Information Displays device model and firmware information. Firmware Update Select the firmware file and upload it for upgrade. CHAPTER TWO: ICAM VB80-MIC INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 27: Introduction
• Supports cascading of up to five microphones for extending pickup range. • Mic mute button with LED feedback. • Compatible with iCam VB80 for audio signal extension over Ethernet. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 28: Package Contents
-20°C ~ 60°C (-4°F to 140°F) Humidity 10% to 90%, non-condensing Power Supply Powered by Video Bar Power Consumption 1.5W (Max) Installation On the table Dimension (φ x h) 108mm x 26.5mm/4.25” x 1.04” Net Weight 0.14kg/0.31lb E. PANEL DESCRIPTION INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 29: Applications
VB80-Mic microphone. This port supports power input. RJ-45 port, connect to another extensible iCam VB80-Mic NEXT microphone. This port supports power output for charging of the next microphone. USB-C Port For firmware upgrading of the device. F. APPLICATIONS Application Diagram INFOBIT AV www.infobitav.com info@infobitav.com... - Page 30 50 meters. • For cascading of up to five microphones, the total length of all CAT6 cables in use shall not exceed 25 meters. • The mini USB-to-RJ45 adapter is included in the iCam VB80 package. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 31: Chapter Three: Ishare Mc
• Low power consumption and transmitting an enough distance to meet requirements in meeting room scenario. • Compatible with main-stream OS, like Windows 7/10, Android OS, and macOS. C. PACKAGE CONTENTS • 1 x USB Dongle INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 32: Specifications
±4kV (Contact discharge) Input Voltage 5V (Power over USB) Power Consumption (Max) 2.14W 68.98mm x 16.4mm x 165.19mm/2.72” x 0.65” x Product size (φ x h x l) 6.50” Product Weight 60g/0.13lb (net weight) E. PANEL DESCRIPTION INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 33: Applications
VB80, and the iCam VB80 will set its soft AP’s SSID and password for the dongle. The Dongle’s LED will be blinking. b. Once pairing is done, “Pairing succeeded” will appear on the display screen. The Dongle’s LED will be solid on. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 34: Connect The Dongle To A Laptop
Please refer to step 1 in “Application” section to get detail information about pairing. 3. Can users use the USB-C dongle independently? The USB-C dongle can’t be used independently. It needs to work with the iCam VB80. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 35: Does Any Software/Application Need To Be Installed To Use The Usb-C Dongle
USB- B is used for larger devices like printers and external hard drives. USB-C is the newest and most versatile connector, used for charging and data transfer in devices like smartphones, laptops, and tablets. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 36: Diagram
Room PC to run your Teams Rooms or Zoom Rooms solutions. 2- Combine with both Room PC and BYOD PC For rooms without own hardware or with own BYOM laptop, the iCam VB80 Kit can be in combination with both your Room PC and your BYOM PC. - Page 37 For rooms without Room PC, the iCam VB80 Kit can be in combination with user's BYOM PC. 4- Pure Presentation BYOD For rooms without Room PC, the iCam VB80 kit can be in combination with BYOD PCs for a tidy pure presentation application throug wireless-only connection.
-
Page 38: Warranty
Product model and logo are trademarks. All other trademarks mentioned in this manual are acknowledged as the property of the INFOBIT company. No part of this publication may be copied or reproduced without prior written permission of their respetive owners.
