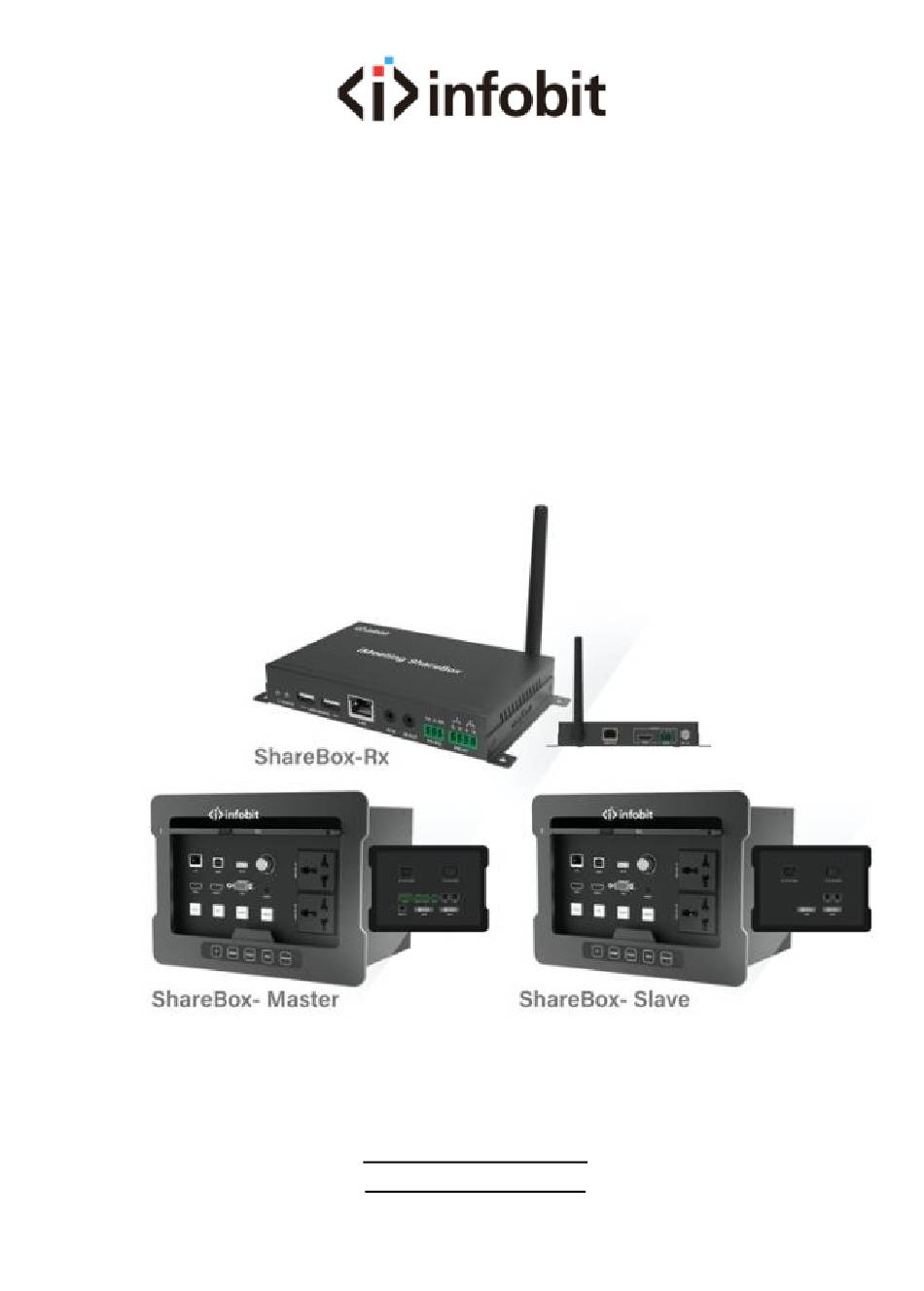

  • Page 1 ShareBox Integrated Conference Desktop Management System www.infobitav.com info@infobitav.com VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction The product is an integrated smart connection system for desktop conference that solves the integrated operation of high-definition audio and video transmission, switching and control in the conference room, which can effectively improve the efficiency of conference office and reduce the difficulty of wiring installation.
  • Page 4: Package Contents

    ☆ Automatic recognition of signal input, seamless switching ☆ Support one-button freezing function for video signals ☆ Support volume adjustment function ☆ Support cascade installation for multiple groups of desktop plates. ☆ Integrated H.264 audio codec processing, support conference room cluster management ☆...
  • Page 5: Specifications

    4. Specifications Technical HDMI Compliance HDMI 1.4b (2 groups) HDCP Compliance HDCP 1.4 Video Bandwidth 10.2 Gbps HDMI Video Resolution 480P60~4K2K@30Hz 4:4:4 Analog Video Input VGA Video Resolution 640x480@60Hz~1920x1200@60Hz Analog Audio Input Stereo Color Space RGB, YCbCr 4:4:4 / 4:2:2 Color Depth 8/10/12-bit LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby...
  • Page 6 Input ports: 2×HDMI [Type A, 19-pin female] 1×VGA [15-pin female] 1×DVI-I [24+5-pin female] ShareBox Slave 1×AUDIO [3.5mm Stereo Mini-jack] 1×USB [Type B] 2×LAN [RJ45] Output ports: 1×DVI-I [24+5-pin female] 1×USB [Type A] 1×LAN [RJ45] Input ports: 1×HDBaseT IN [RJ45] 1×IR IN [3.5mm Stereo Mini-jack] 2×USB [Type A] ShareBox Rx 1×LAN [RJ45]...
  • Page 7: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel Front Panel ( Master and Slave) HDMI 1 HDMI 2 AUDIO BOD Y USER1 USER2 HDMI1 HDMI2 FREEZE Name Function Description LAN 1 Ethernet interface, connect to the computer. USB Type B port Connect to the computer’s USB port. Connect to a USB disk or other device with USB port;...
  • Page 8 Used to switch Wireless Miracast. When the button is pressed, the button light will be on, and the BODY button device will switch to Wireless Miracast output. Used to switch 3 channels of signal source output PIP mode: single-screen, dual-screen, and three- screen displays.
  • Page 9 Rear Panel (ShareBox Master) S G S G S G S G RS-232-1 R S-232-2 IR OUT RELAY AC 100- 240V 50/60HZ DVI OU T DVI IN HD Bas eT OUT AC 100- 240V 50/60HZ Name Function Description 4 groups of Relay output, used to control screen, RELAY port(1-4) light, curtain or other controlled devices.
  • Page 10: Receiver Panel

    Rear Panel (ShareBox Slave) AC 100- 240V 50/60HZ DVI OUT DVI IN AC 100- 240V 50/60HZ Name Function Description Connect to Ethernet router or Switch; LAN 2/3 Used for network cascade connection. Connect to display devices; DVI OUT Used for video cascade output. Connect to signal source devices;...
  • Page 11 Name Function Description Red LED will be on when the unit is powered on. Power LED Used to indicate the status of IR learning: LED is flashing: IR is learning; LED is always on: IR learning is successful; STATUS LED LED is off: IR learning has failed.
  • Page 12: Installation Instructions

    6. Installation Instructions 6.1 Installation Environment Before installing ShareBox Master/ShareBox Slave, confirm the installation environment in the following aspects: Ensure that there is at least 200mm of space under the installation desktop. The thickness of the desktop suitable for installation is 70~110mm. The desktop is suitable for opening hole.
  • Page 13: Installation Steps

    6.2 Installation Steps Step 1: Determine the installation position, draw lines according to the opening size, and make sure the lines are straight and correct. Step 2: Open the hole along the pre-drawn lines. The edge of the hole must be flat and tidy to prevent scratches to the product.
  • Page 14: System Connection And Application

    7. System Connection and Application There are two connection modes according to different applications. Mode 1: Single ShareBox Master + ShareBox Rx application for small conference room with 2-5 people, as shown in the following figure. BYO D Speakers Receiver Audio cable CAT5e/6A HDMI cable...
  • Page 15 Mode 2: Application of ShareBox Master + multiple ShareBox Slave + ShareBox Rx for medium conference room with 6-20 people, as shown in the following figure. BYOD Speakers Receiver Audio cable HDMI HDMI CAT5e/6a RS-232 AUDIO cable cable RELAY HDMI HDMI cable cable cable...
  • Page 16: Wireless Miracast Operation

    8. Wireless Miracast Operation There are three methods for Wireless Miracast. Method 1: Connect via WiFi Step 1. Press the BYOD button on the front panel of the desktop plate to switch Wireless Miracast mode. Step 2. Connect the phone/PC to the WiFi hotspot of the display screen. Step 3.
  • Page 17 Step 3. Click to select “System Settings”. In this interface, you can change the SSID name (only letters and numbers are supported) and the WiFi hotspot password (as shown below). Step 4. Click to select “WiFi Network Settings”. Step 5. Click “Click to scan wifi”, find the hotspot of the wireless router to be connected, and then connect it.
  • Page 18: Web Gui User Guide

    9. Web GUI User Guide The product can be controlled by Web GUI. The specific operation is as below: Step 1: Connect the LAN port of the desktop plate to PC via a CAT cable. Step 2: Long press the PIP button for 5 seconds to check the IP Address of the current desktop plate on the top left corner of the display connected to the DVI OUT interface.
  • Page 19: Device Page

    ■ Device Page Click the “Search” button, the page will display all cascaded devices. This page does not refresh in real time. You need to click the "Search" button to update, when there are new or deleted cascaded devices. • The top left corner shows the IP Address of the cascaded device.
  • Page 20 Note: The login username will be displayed at the top right corner of each Web GUI page. Clicking the “Log out” button will exit the current login; Clicking the “Standby” button will set the desktop terminal device to standby. ■ Status Page This page shows the product status of the device.
  • Page 21 ■ Network Page You can change the settings of Network configuration on the Network page (only available with the “Static IP” mode); also you can change the login password and product model. ■ System Page 19/22...
  • Page 22 The system page can set the EDID of HDMI input source; In “General Setting”, you can set the output screen’s brightness, contrast and color, select output resolution, and enable/disable BEEP or HDBT POC. This page can also be used for firmware upgrade, selecting boot screen, factory reset and reboot operations.
  • Page 23 IR OUT Setting • 3 sets of independent IR OUT control function (2 sets for the transmitter end, 1 set for the receiver end). • Each set of IR OUT has two independent command corresponding to switch actions. • You can name the controlled device in the “Device Name” for each set of IR OUT.
  • Page 24 System Control Configuration • There are 4 sets of system control configuration: startup, shutdown (the power button on the touch Lens of the desktop plate), and two user-defined control configuration definitions (the USER1 and USER2 buttons of the desktop plate). They can be saved independently.
