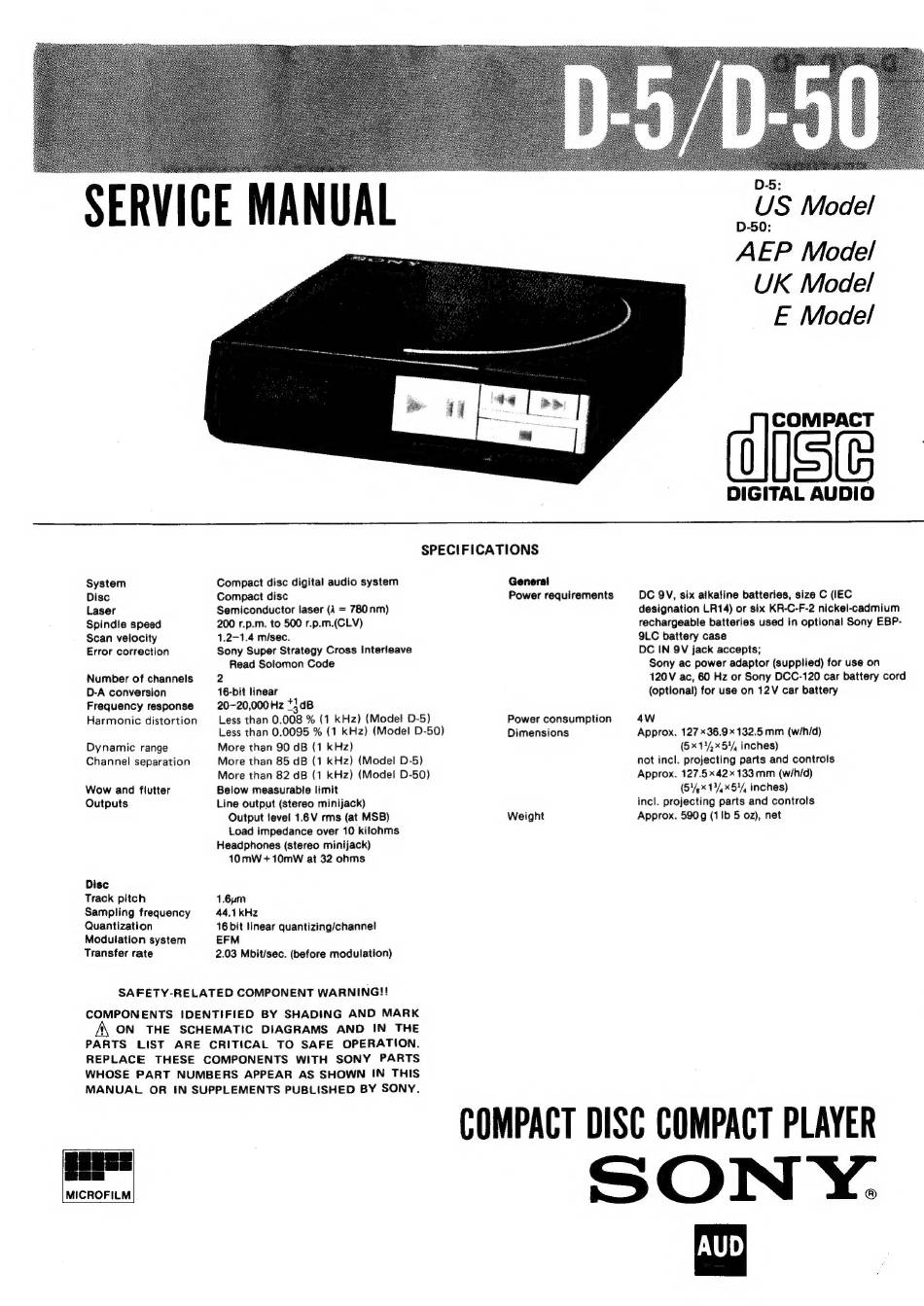

Sony D-5 Service Manual

MICROFILM
System
Disc
Laser
Spindle speed
Scan velocity
Error correction
Number of channels
D-A conversion
Frequency response
Harmonic distortion
Dynamic range
Channel separation
Wow and flutter
Outputs
Disc
Track pitch
Sampling frequency
Quantization
Modulation system
Transfer rate
SPECIFICATIONS
Compact disc digital audio system
Compact disc
Semiconductor laser (A = 780 nm)
200 r.p.m. to 500 r.p.m.(CLV)
1.2-1.4 misec.
Sony Super Strategy Cross Interleave
Read Solomon Code
2
16-bit linear
20-20,000 Hz *3.dB
Less than 0.008 % (1 kHz) (Mode! D-5)
Less than 0.0095 % (1 kHz) (Model D-50)
More than 90 dB (1 kHz)
More than 85 dB (1 kHz) (Model D-5)
More than 82 dB (1 kHz) (Model D-50)
Below measurable limit
Line output (stereo minijack)
Output level 1.6V rms (at MSB)
Load impedance over 10 kilohms
Headphones (stereo minijack)
10 mW +10mW at 32 ohms
1.6un)
44,1kHz
16 bit linear quantizing/channel
EFM
2.03 Mbit/sec. (before modulation)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Generai
Power requirements
Power consumption
Dimensions
Weight
D5:
US Model
D-50:
AEP Model
UK Model
E Model
Ose
DIGITAL AUDIO
DC 9V, six atkatine batteries, size C (IEC
designation LR14) or six KR-C-F-2 nickel-cadmium
rechargeable batteries used in optional Sony EBP-
9LC battery case
DC IN 9V jack accepts;
Sony ac power adaptor (supplied) for use on
120V ac, 60 Hz or Sony DCC-120 car battery cord
(optional) for use on 12V car battery
4wW
Approx. 127 x36.9« 132.5 mm (wih/d)
(5x 14x5¥, inches)
not incl. projecting parts and controls
Approx. 127.542 «133mm (w/h/d)
(5/4 1¥,x5/, inches)
incl. projecting parts and controls
Approx. 590g (1b 5 0z), net

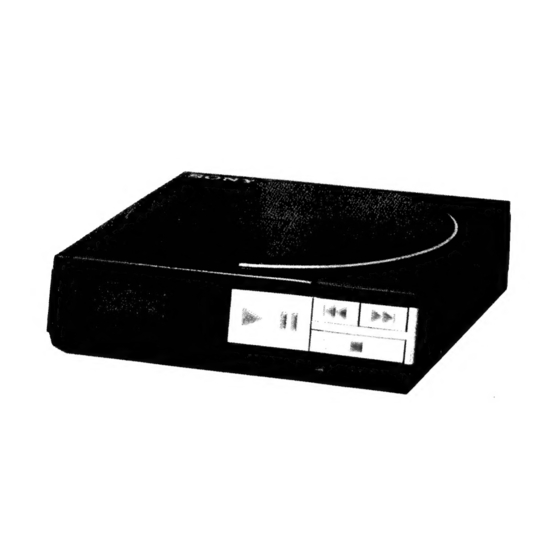

COMPACT DISC COMPACT PLAYER
