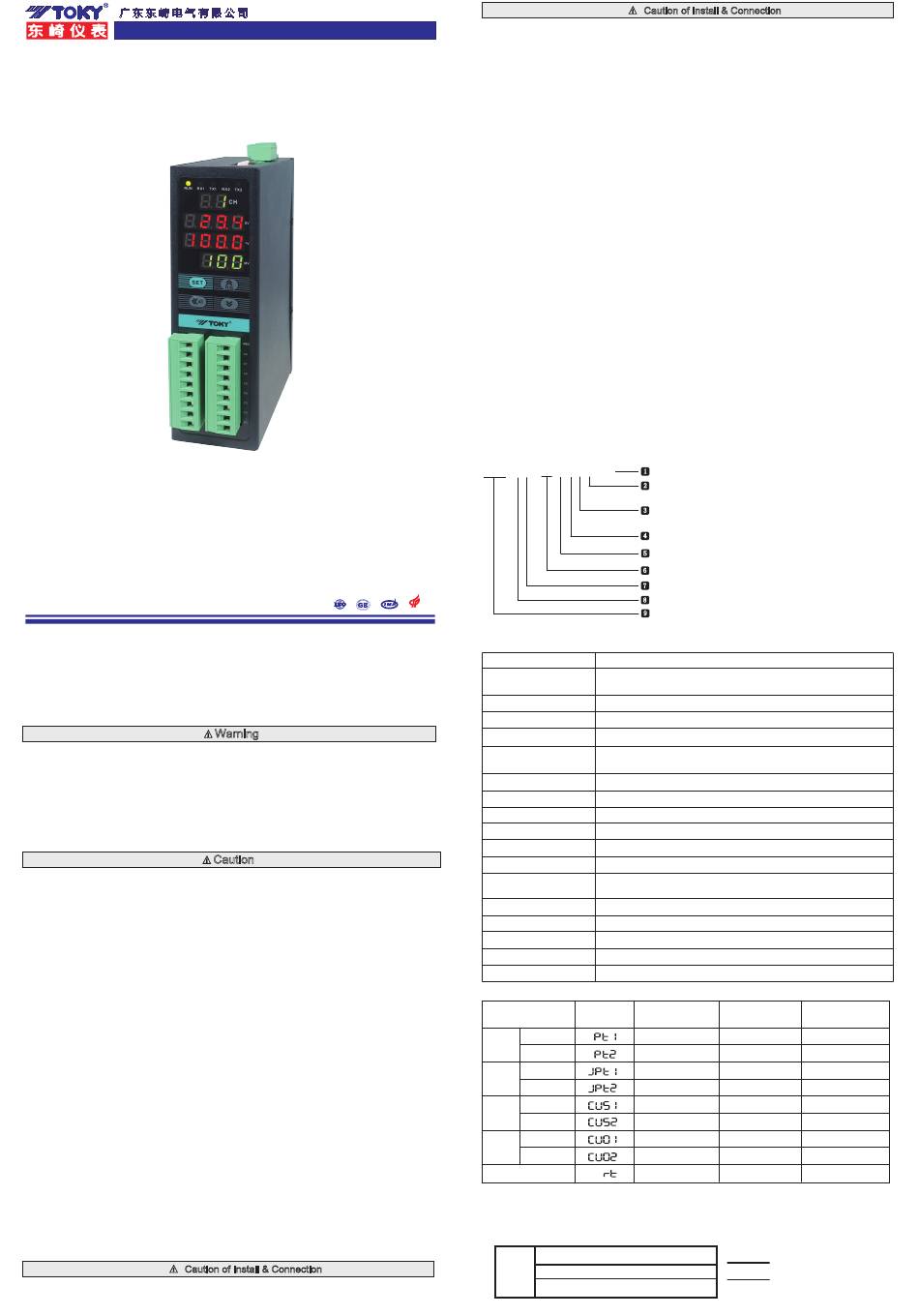

Toky T55L User Manual

广 东 东 崎 电 气 有 限 公 司
TOKY electrical co.,ltd.
T55L Multi-channel temperature
controller user manual
(16 channel)
Features:
⊙With measurement display, control output, RS485 Communication, alarm function.
⊙Different PID arithmetic for option, and with auto-tuning function.
⊙With multi-channel control load power distribution function.
⊙This product is used in industrial machinery, machine tools, general measuring
instruments and equipment
National High-tech Enterprise/ National Standard Drafting Unit
Hotline：400-0760-168
The instruction explain instrument settings, connections,name and etc, please
read carefully before you use the temperature controller. Please keep it properly for
necessary reference.
I. Safe Caution
1）When the failure or abnormal of products lead to a system of major accidents, please set the
proper protection circuit in the external.
2）Please don`t plug in before completing all the wire.Otherwise it may lead to electric shock,
fire, fault.
3）Not allow to use outside the scope of product specification,otherwise it may lead to fire,fault.
4）Not allow to use in the place where is inflammable and explosive gas.
5）Do not touch power terminal and other high voltage part when the power on, otherwise you
may get an electric-shock.
6）Do not remove,repair and modify this product,otherwise it may lead to electric shock, fire,
fault.
1) The product should not be used in a nuclear facility and human life associated medical
equipment.
2) The product may occur radio interference when it used at home.You should take adequate
countermeasures.
3) The product get an electric shock protection through reinforced Insulation. When the product
is embedded in the devices and wiring,please subject to the specification of embedded
devices.
4) In order to prevent surge occurs,when using this product in the place of over 30m indoor
wiring and wiring in outdoor, you need to set the proper surge suppression circuitry.
5) The product is produced based on mounting on the disk.In order to avoid to touch the wire
connectors,please take the necessary measures on the product.
6) Be sure to observe the precautions in this manual, otherwise there is a risk of a major injury
or accident.
7) When wiring, please observe the local regulation.
8) To prevent to damage the machine and prevent to machine failure, the product is connected
with power lines or large capacity input and output lines and other methods please install
proper capacity fuse or other methods of protection circuit.
9) Please don't put metal and wire clastic mixed with this product,otherwise it may lead to
electric shock, fire, fault.
10) Please tighten screw torque according to the rules.If not,it may lead to electric shock and
fire.
11) In order not to interfere with this products to dissipate heat, please don't plug casing around
the cooling vent hole and equipment.
12) Please don' t connect any unused terminal.
13) Please do the cleaning after power off, and use the dry cleaning cloth to wipe away the dirt.
Please don' t use desiccant, otherwise, it may casue the deformation or discoloration of the
product.
14) Please don`t knock or rub the panel with rigid thing.
15) The readers of this manual should have basic knowledge of electrical,control, computer
and communications.
16) The illustration, example of data and screen in this manual is convenient to
understand,instead of guaranteeing the result of the operation.
17) In order to use this product with safety for long-term,regular maintenance is necessary. The
life of some parts of the equipments are by some restrictions, but the performance of some
will change for using many years.
18) Without prior notice, the contents of this manual will be change. We hope these is no any
loopholes, if you have questions or objections, please contact us.
Caution of Install & Connection
1. Installation
1) This product is used in the following environmental standards. （IEC61010-1）[Overvoltage
http://www.toky.com.cn
For T55L-A
ISO9001
Version ：KKT55L-16N-A01E-A/0-20221208
Warning
Caution
1
categoryⅡ、class of pollution 2].
2) This product is used in the following scope:environment, temperature, humidity and
environmental conditions. Temperature:0~50℃;humidity:45~85%RH; Environment
condition:Indoor warranty.The altitude is less than 2000m.
3) Please avoid using in the following places
The place will be dew for changing temperature;with corrosive gases and flammable
gas;with vibration and impact;with water, oil, chemicals, smoke and steam facilities with
Dust, salt,metal powder;and with clutter interference, static electric and magnetic fields,
noise;where has air conditioning or heating of air blowing directly to the site; where will be
version illuminated directly by sunlight; where accumulation of heat will happen caused by radiation.
4) On the occasion of the installation, please consider the following before installation.
In order to protect heat saturated, please ensure adequate ventilation space. Please consider
connections and environment,and ensure that the products below for more than 50mm
space.Please avoid to installed over the machine of the calorific value (Such as heaters,
transformer, semiconductor operations, the bulk resistance). When the surrounding is more
than 50 , please using the force fan or cooling fans.But don't let cold air blowing directly to the
product. In order to improve the anti - interference performance and security, please try to stay
away from high pressure machines, power machines to install. Don`t install on the same plate
with high pressure machine and the product.The distance should be more than 200mm between
the product and power line.
2. Cable caution
1) In order to reduce the power cables and the load power cables on the effect of this product,
please use noise filter in the place where easy to effect. You must install it on the grounding
of the disk if you use the noise filter,and make the wiring to be shortest between noise
filter output side and power connectors. Don`t install fuse and switch on the wiring of
noice filter output side,otherwise it will reduce the effect of noise filter.
2) It takes 5s from input power to output.If there is a place with interlocking actions circuit
signal,please use timer relay.
3) Please use twisted pair with a shield for analog output line, can also connect the
common-mode coil to the front-end of the signal receiving device to suppress line interference if
necessary, to ensure the reliabilty of signal.
4) Please use twisted pair with a shield for remote RS485 communication cable, and deal with
the shield on the host side earth, to ensure the reliabilty of signal.
5) This product don' t have the fuse; please set according to rated voltage 250V,rated
current 1A if you need; fuse type:relay fuse.
6) Please use suitable slotted screwdriver and wire.
Terminal screw cap size: φ3mm, distance 3.81mm
Recommended tightening torque: 0.2N.m.
Proper cables: 0.5～1.5mm single cable/multiple core cable
7) Please don`t put the Crimp terminal or bare wire part contact with adjacent connector.
II. Model Illustration
T55L - D F - 16 N S 8 8
国家高新技术企业
III. Specifications
1. Electrical parameters:
Control output type
Control output capacity
Sampling rate
Power consumption
Power consumption
Environment
Storage environment
Communication port
Insulation impedance
ESD
Pulse traip anti-interference
Surge immunity
Voltage drop & short
interruption immunity
Dielectric strength
Total weight
Shell material
Panel material
Power-off data protection
2. Measurement signal parameters:
Input type
PT100-1
PT100
PT100-2
JPT100-1
JPT100
JPT100-2
CU50-1
CU50
CU50-2
CU100-1
CU100
CU100-2
0~400 Ω
*Note: 1）The measurement range and accuracy of each input type depend on the acquisition module.
This parameter table is limited to the factory default values of the associated FL, FH, DP and other menus.
2）At present, only the acquisition module of PT100-1 measurement signal is released, and
other requirements need to be customized.
3. Isolation diagram：
Power
supply
Caution of Install & Connection
A：Version
A
1
Communication port 2：Blank: No
2
9: DC-DC isolated RS485 comm.
Communication port 1：Blank: No
3
9: DC-DC isolated RS485 comm.
Control output：S：SSR
4
Input：N: No input
5
Control & input channel：16: 16 channels
6
Power supply: F:DC 24V
7
Installation type：D: DIN rail mounting type
8
T55L series temperature controller
9
SSR
DC 24V Max 100mA@25℃（Derating ratio 8%/10℃）
Withstand voltage of each channel：100V
1 times per second per channel
DC 24V
＜3VA
Indoor use, temperature：-20～85℃ no condensation，
humidity:＜95%RH，altitude<5000m
-40～100℃, no condensation
RS485 port Modbus-RTU protocol
Input, output, power cabinet＞20MΩ
IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B
IEC/EN61000-4-4 ±2KV
IEC/EN61000-4-5 ±0.5KV
IEC/EN61000-4-29 0%～70%
Power and input/output AC1000V，1min
About 560g
Galvanized cold rolled sheet
PVC film and PEM silicone key
10 years
Symbol Measurement range
0～150.0
-200~600
-199.9~500.0
-200~500
-50.0~150.0
-50~150
-50.0～150.0
-50～150
-1999~9999
RS485 port
OUT CH9-CH16 SSR output
OUT CH1-CH8 SSR output
2
8: RS485 comm.
8: RS485 comm.
8: 8channels
perf.Criteria B
perf.Criteria B
perf.Criteria B
Accuracy Communication code
0.1℃ 8
1℃ 21
0.1℃ 9
1℃ 22
0.1℃ 10
1℃ 23
0.1℃ 11
1℃ 24
13
:Function isolation AC 1000V
:Function isolation AC 500V
