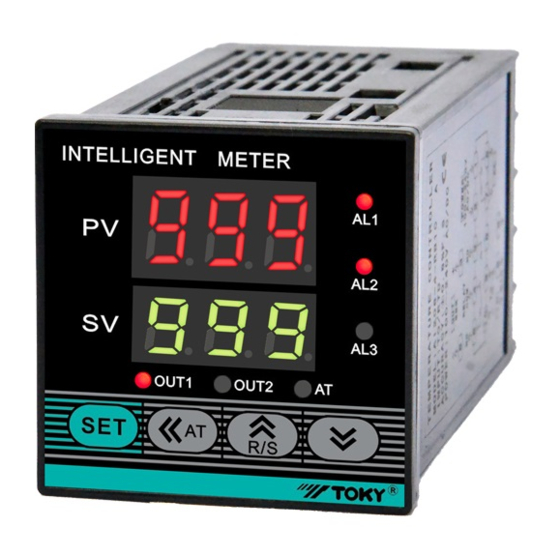

Toky AI208 Series User Manual

AI208 Series Temperature Controller User Manual
The instruction explain instrument settings, connections,name and etc,please read carefully before you use the temperature controller.
Warning
1）When the failure or abnormal of products lead to a system of major accidents,please set the proper protection circuit in the external.
2）Please don`t plug in before completing all the wire.Otherwise it may lead to electric shock, fire, fault.
3）Not allow to use outside the scope of product specification,otherwise it may lead to fire,fault.
4）Not allow to use in the place where is inflammable and explosive gas.
5）Do not toch wire connectors when the power on,otherwise you may get an electric-shock.
6）Do not remove,repair and modification this product,otherwise it may lead to electric shock, fire, fault.
Caution
1）The product should not be used in a nuclear plant and human life associated medical equipment.
2）The product may occur radio interference when it used in home.You should take adequate countermeasures.
3）The product get an electric shock protection through reinforced Insulation. when the product is embedded in the devices and wiring,please subject to the
specification of embedded devices.
4）In order to prevent surge occurs,when using this product in the place of over 30m indoor wiring and wiring in outdoor,you need to set the proper
surge suppression circuitry.
5）The product is produced based on mounting on the disk.In order to avoid to touch the wire connectors,please take the necessary measures on the product
6）Be sure to observe the precautions in this manual, otherwise there is a risk of a major injury or accident.
8）To prevent to damage the machine and prevent to machine failure, the product is connected with power lines or large capacity input and output lines
and other methods please install proper capacity fuse or other methods of protection circuit.
9）Please don't put metal and wire clastic mixed with this product,otherwise it may lead to electric shock, fire, fault.
10）Please tighten screw torque according to the rules.If not,it may lead to electric shock and fire.
11）In order not to interfere with this products to dissipate heat, please don't plug casing around the cooling vent hole and equipment.
12）Please don`t knock or rub the panel with rigid thing.
13）The readers of this manual should have basic knowledge of electrical,control, computer and communications.
14）The illustration, example of data and screen in this manual is convenient to understand,instead of guaranteeing the result of the operation.
15）In order to use this product with safety for long-term,regular maintenance is necessary. The life of some parts of the equipments are by some restrictions,
but the performance of some will change for using many years.
16）Without prior notice, the contents of this manual will be change. We hope these is no any loopholes, if you have questions or objections, please contact us.
Caution of Install & Connection：
1.Installation：
1）This product is used in the following environmental standards.
（IEC61010-1）[Overvoltage categoryⅡ、class of pollution 2]
2）This product is used in the following scope:surrounding environment, temperature, humidity and environmental conditions.
Temperature：0～50℃；Humidity：45～85%RH;Environment condition：Indoor warranty,The altitude is less than 2000m.
3）Please avoid using in the following places:
The place will be dew for changing temperature;with corrosive gases and flammable gas;with vibration and impact;with water, oil, chemicals, smoke and steam
facilities with Dust, salt, metal powder;and with clutter interference, static electric and magnetic fields, noise;where has air conditioning or heating of air blowing
directly to the site.
4）On the occasion of the installation, please consider the following before installing several.
In order to protect heat saturated, please ensure adequate ventilation space.
Please consider connections and environment,and ensure that the products below for more than 50mm space.
Please avoid to installed over the machine of the calorific value(Such as heaters, transformer, semiconductor operations, the bulk resistance).
When the surrounding is more than 50℃, please using the force fan or cooling fans.But don't let cold air blowing directly to the product.
In order to improve the anti - interference performance and security, please try to stay away from high pressure machines, power machines to install.
Don`t install on the same plate with high pressure machine and the product.
The distance should be more than 200mm between the product and power line.
Features:
⊙Optional input signal types and models
⊙With many functions of measured display,control output,alarm
output,analog output,RS485 communication,etc.
⊙Optional many types of PID arithmetic and with auto-tuning function.
⊙Using for industrial machinery, machine tools,measuring instruments.
⊙Economical and easy operation.
1/10page KKAI208C01A-A1-20140904
