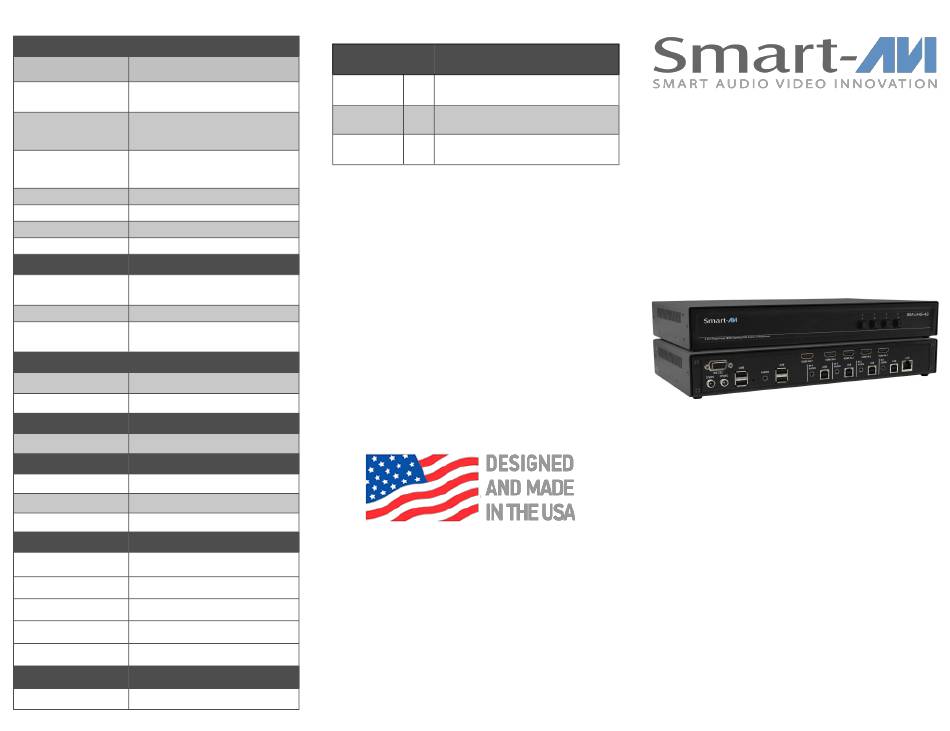

SMART-AVI SM-UHS-4S Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Format HDMI
Host Interface (4) HDMI 19-pin (female)
User Console Interface (1) HDMI 19-pin (female)
Max Resolution 3480 x 2 160 @ 60 Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 10 ft.
Output Cable Length Up to 10 ft.
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (4) USB Type B
(2) USB 1.1 Type A for KVM Devices
Output Interface
(2) USB 2.0 Type A Transparent
AUDIO
Input (4) 3.5 mm Stereo Audio / (4) HDMI2.0
Output (1) 3.5 mm Stereo Audio / (1) HDMI2.0
POWER
Power Adapter External 100-240 VAC/ 12VDC2A @ 24W
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
Mouse Mouse Roaming in Quad Mode
Web GUI Via LAN
OTHER
Emulation Keyboard, Mouse and Video
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4-port Single Head HDMI Seamless KVM
SM-UHS-4S 1
Switch with Multiviewer
12V DC, 2A power adapter with
PS12VDC2A
1
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SMART-AVI makes no war-
ranty of any kind with regard to this material, including
but not limited to, implied warranties of merchantabil-
ity and fitness for particular purpose. SMART-AVI will
not be liable for errors contained herein or for inci-
dental or consequential damages in connection with
the furnishing, performance or use of this material. No
part of this document may be photocopied, repro-
duced, or translated into another language without
prior written consent from SMART-AVI, Inc.
Toll Free: (888)-994-7427
Phone: (702) 800-0005
2917 E Alexander Rd.
North Las Vegas, NV 89032
smartavi.com
SM-UHS-4S
Advanced KVM Switch
4-Port Single-Head HDMI
Seamless KVM Switch
w/ Multiviewer
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/SM-UHS-4S/
