Summary of Contents for Crossbeats ROAD EYE DC02
- Page 1 R ADEYE DC02 U S E R M A N U A L...

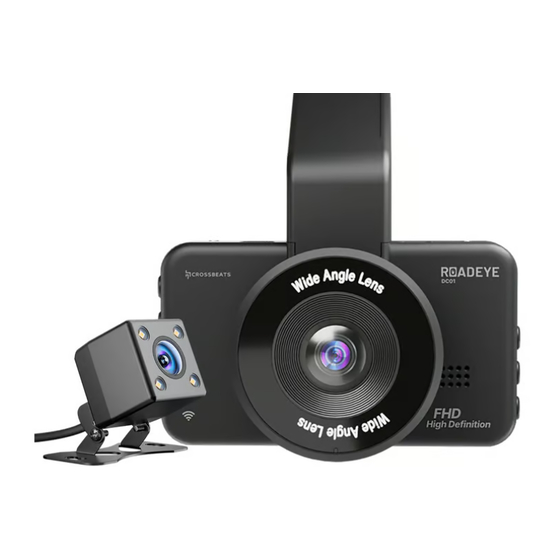

- Page 2 Overview Front Camera �� �� �� Rear Camera...
- Page 3 Overview ① Micro AV IN (Not Recommended For 5PIN VGA Rear Camera) ② USB Charging Port 1 ③ USB Charging Port 2 ④ Bracket ⑤ TF Card Slot ⑥ Up Button ⑦ Menu Button ⑧ Down Button ⑨ Screen ⑩ OK/Record Button ⑪ Mode Button ⑫ Lock Button ⑬ Power Button ⑭ Lens ⑮ Speaker ⑯ Microphone ⑰ Reset Button ⑱ Red Light: Charging Status Indicator Green Light: Working Status Indicator...
-
Page 4: Button Controls
Button Controls Button Operation and Function 1.Select function options in setup mode 2.Select previous video in playback mode Press once to enter menu setting (Disabled in recording mode) 1.Select function options in setup mode 2.Select next video in playback mode 1.In recording mode, press once to start recording, press one more time to stop recording. -
Page 5: Installing Memory Card
Installing Memory card � � 1. Insert a card with the golden contacts facing the LCD display side of the dash cam. 2. To remove the card, gently push it until it pops and pull it out of the slot. Note: 1. - Page 6 Dash Cam Installation - Front camera Ideal Mounting Area Connect to Car Charger 1. Slide the mount into the mount installation slot. 2. Turn off the car engine. 3. Stick the car mount together with the camera on your windshield. 4.
- Page 7 Dash Cam Installation - Rear camera The rear camera comes with six meter cable, that is to be connected to the front camera Follow the below steps for installation: 1. Connect the DC jack to the AV IN port of the front dashcam.
- Page 8 Using Guidelines for DC02 The camera is designed to power up and record automatical when it receives power. Then saves the video record and turns off automatically when the car shuts off. 1. Auto Power ON/OFF: 1. Plug car charger to cigarette lighter socket. 2.
- Page 9 Using Guidelines for DC02 5. Playback Mode Press to shift between Video / Photo / Lock Video playback mode. 5.1 Video Playback 1.Press to select files. 2.Press to delete selected file. 3.Press to play / pause the selected file. Press and hold to fast-forward / rewind.
- Page 10 Connection with the App Download & Install Kacam App Download & Install the Kacam App From Playstore or IOS Store...
- Page 11 Connection with the App Crossbeats_RoadEye DC02 Open the Kacam App Go to Phone's Settings > WiFi > Select WiFi of the dashcam. WiFi Name SSID: Crossbeats_RoadEye DC02_****** Default PASSWORD: 12345678...
- Page 12 Connection with the App Product name will be Check “ Real-time Video” displayed on the screen as to view live video. (dashcam model DC02 )when connected successfully. *Click on that to open the App interface.
- Page 13 Connection with the App Videos will be saved with the Download the videos or text ‘F’ and ‘R’ to indicate the pictures you want, which front and Rear and photos will be directly saved to can also be taken with the your phone directory help of this APP.
-
Page 14: Function Description
Function Description Movie Mode―FHD 30fps(Default)/HD 30fps Allow to choose the desired video resolution and fps(frames per second). Higher resolution and fps videos result in higher definition videos, but also take more storage space. Loop Recording— Off/1min/ 3mins(Default)/ 5mins Allow the dash-cam to continuously record. Please notice: the dashcam will keep deleting the oldest files automatically when memory card gets full. - Page 15 Function Description ADAS―On/ Off(Default) To use ADAS function: 1. Turn on ADAS in the menu setting, enter the ADAS mode. 2. On a straight road, gently adjust the front lens so that the two green lines coincide with the road. The cross icon is placed in the middle of the road.
- Page 16 Function Description LCD Power Save ― Off(Default)/1min/ 2mins/ 3mins Once choose a time duration and turned on this function, the dashcam will automatically show a black background after the set time, while the camera still stays ON. Please notice that this function only turns off the LCD screen, to prevent from distracting the driver.
- Page 17 Playing Video Files Using Your Computer 1. Remove the microSD card from the dashcam. 2. Insert the card into the microSD card reader and connect it to a computer 3.You should be able to see drive D or E or other name depending on the pre-installed hard drives.
- Page 18 +91 9611 293 293 +91 9611 293 293 support@crossbeats.com...
