Crossbeats ROAD EYE DC01 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

R
ADEYE
O
DC01
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROAD EYE DC01 and is the answer not in the manual?

Questions and answers

Related Manuals for Crossbeats ROAD EYE DC01

Summary of Contents for Crossbeats ROAD EYE DC01

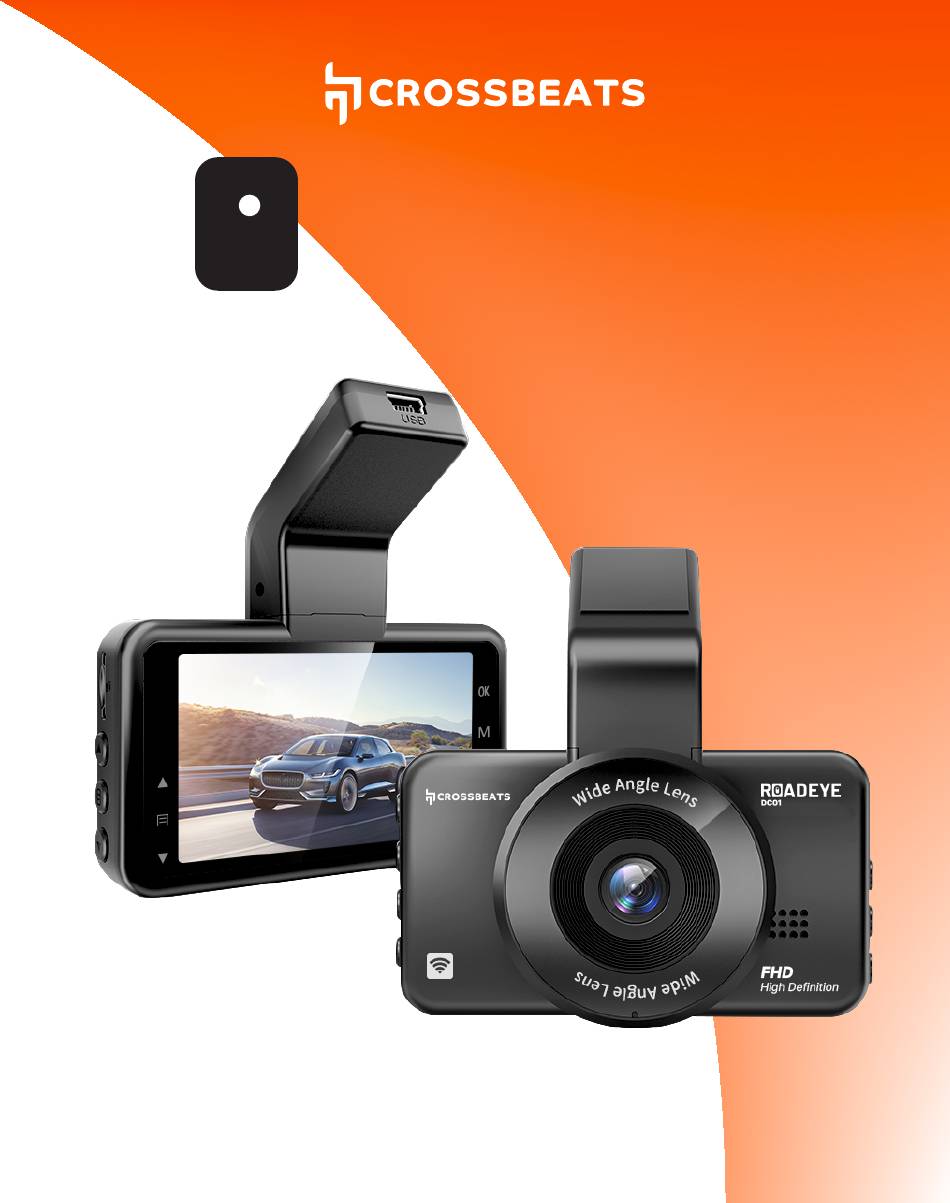

  • Page 1 ADEYE DC01 U S E R M A N U A L...
  • Page 2 Over view OK/Record Button Micro AV IN (For Rear View Mode Button Camera) Lock Button USB Charging Port 1 Power Button USB Charging Port 2 Lens Bracket Speaker TF Card Slot Microphone Up Button Reset Button Menu Button Charging/Working Down Button Indicator Screen...

  • Page 3: Operation And Function

    Button Operation and Function 1. Select function options in setup mode 2. Select previous video in playback mode Press once to enter menu setting. (Disabled in recording mode) 1. Select function options in setup mode 2. Select next video in playback mode 1.

  • Page 4: Get Started

    Get Started Install the Memory Card Note: The TF Card is not included in the package. Insert a card with the golden contacts facing the LCD display side of the dash cam. To remove the card, gently push it until it clicks and pull it out of the slot.

  • Page 5: Format The Memory Card

    Format the Memory Card. Press to enter setting interface. Press to locate Micro SD card set up, press enter Micro SD card format. Press to locate , press to confirm formatting. Dash Cam Installation: Slide the mount into the mount installation slot. Turn off the car engine.
  • Page 6 Adjust the dash cam to keep the lens level with the ground. Start the engine to check if the dash cam works properly. Note: Only use the supplied Car Charger, otherwise the camera may frequently reboot or flicker LCD due to insufficient power. Make sure to remove the Plastic Lens Screen Protector from the lens before recording videos.
  • Page 7 2. Manual Power ON/OFF To Manually Turn ON: Press the power button once. To Manually Turn OFF: Press and hold the power button for at least 2 seconds. 3. Menu Setting Press to enter Menu Setting. Press to locate the item you want to set. Press to confirm your setting.
  • Page 8 4.2 Photo Playback Press to select files. Press to delete selected file. Press to view the selected file. Press one more time to exit photo playback. 4.3 Lock Video Playback Press to select files. Press to play/pause the selected file. Press and hold to fast-forward/rewind.
  • Page 9 Scan the QR code to download the KACAM app from the AppStore or Google PlayStore. Download and install the app Now go to your phone’s WiFi Setting > then select the “Crossbeats_RoadEye DC01_******”. (WiFi Name SSID: “Crossbeats_RoadEye DC01_******”, Password: “12345678”) Now your phone is connected to dash camera via WiFi.

  • Page 10: For Iphone

    For iPhone: If you get the pop-up for you iPhone while using WiFi feature, make sure to tap on “Keep Trying WiFi”. Otherwise, the camera will get disconnected from the WiFi and then you will have to reset the device and pair again for it to work. Function Description Movie Mode –...
  • Page 11 Video Time Lapse – Off (Default)/On On: The Dash cam can sustain longer operational period while reducing video file size. Video files will be played at high-speed when playback. ADAS – On / Off (Default) To use ADAS function: Turn on ADAS in the Menu Setting, enter the ADAS mode. On a straight road, gently adjust the front lens so that the two green lines coincide with the road.
  • Page 12 Once G-sensor has triggered due to physical or gravitational impact force on the camera, the current video file will be locked as an emergency file so it won’t be deleted by loop cycle function. Parking Monitoring The Parking monitoring should be work with KACAM 3-wires hardware kit, after the hardwire kit is connected, there are 3 options: Time Lapse Parking Mode...
  • Page 13 LCD Power Save – Off (Default) / 1 min / 2 mins / 3 mins Once chose a time duration and turn on this function, the dash cam will automatically show a black background after the set time, while the camera still stays ON. Please notice that this function only turns Off the LCD screen, to prevent from distracting the driver.
  • Page 14 card, if too much emergency lock file to use loop recording function. Format SD Card – Ok / Cancel Allow to format the inserted memory card, all data will be deleted. Reset setup Allow to restore all settings to factory default settings. Firmware Version To check the current firmware in the dashcam.
  • Page 15 +91 8050056565 +91 8050056565 support@crossbeats.com...
