Error Code Recall
To aid in troubleshooting problems, this operator includes an
error code memory that stores the last 10 error events. These codes
are stored with or without power. The last error code detected is
also displayed on the LCD until the stop button or key is pressed or
the operator stops at the down limit.
The error code memory stores the last 10 error codes in sequence.
Once 10 codes are stored, the oldest code is erased to make room
for the newest code. These codes are displayed in calibration mode.
The display will flash the number of the error code and the 2-digit
error code followed by a description of the error code. Fig. 6C.

Error Codes

The following Table is a listing of Error Codes.
Condition
DISPLAY
Code
CODES DISPLAY
REV > OPEN BUTTON
40
REV > ONE BUTTON
41
REV > RADIO
42
REV > AUX OPEN
43
REV > OPEN KEY
44
REV > N-O SAFETY
45
REV > ODC STB
46
REV > N-C SAFETY
47
REV > MON. EDGE
48
REV > DOOR FORCE
49
REV > LOSS OF C/C
4A
REV > MAX RUN TMR
4B
4F REV > EXP MOD FAIL
STOP > HOT MOTOR
50
STOP > OPEN MRT
51
STOP > CLOSE MRT
52
STOP > OPEN INTLK
57
STOP > WRONG GDO
58
STOP > DOOR FORCE
59
STOP > WRONG LIMIT
5A
STALL > DOWN LIMIT
5C
STALL > UP LIMIT
5D
60 CHECK STOP BTN
61 TCM DISABLED
NO RADIO >> C/C
62
63 CHECK AUX OPEN
64 CHECK STOP KEY
65 CHECK N-O SAFETY
66 CHECK ODC STB
67 CHECK N-C SAFETY
Error Codes continued on next page.
68 CHECK MON. EDGE
69 OVERHEATED MOTOR
T M I R E L C O E S M O D U E L
NO RUN > DOWN LIM
6C
NO RUN > UP LIMIT
6D
Condition Code Description
DESCRIPTION
GDO REVERSED BECAUSE THE OPEN BUTTON WAS ACTIVATED
GDO REVERSED BECAUSE THE 1 BUTTON WAS ACTIVATED
GDO REVERSED BECAUSE THE RADIO INPUT WAS ACTIVATED
GDO REVERSED BECAUSE THE AUXILIARY OPEN INPUT WAS ACTIVATED
GDO REVERSED BECAUSE THE KEYPAD OPEN KEY WAS ACTIVATED
GDO REVERSED BECAUSE THE N-O REVERSING INPUT WAS ACTIVATED
GDO REVERSED BECAUSE THE ODC STB WAS BLOCKED
GDO REVERSED BECAUSE THE N-C REVERSING INPUT WAS ACTIVATED
GDO REVERSED BECAUSE THE MONITORED EDGE SENSOR WAS ACTIVATED
GDO REVERSED BECAUSE THE FORCE REQUIRED TO CLOSE THE DOOR WAS TOO HIGH
GDO REVERSED BECAUSE CONSTANT CONTACT ON THE CONTROL WAS REMOVED BEFORE REACHING THE DOWN LIMIT
GDO REVERSED BECAUSE THE CLUTCH SLIPPED OR SOME OTHER FAULT OCCURRED THAT ALLOWED THE GDO TO RUN TOO LONG
GDO REVERSED BECAUSE AN EXPANSION MODULE WAS NOT WORKING PROPERLY
GDO STOPPED BECAUSE THE MOTOR WAS OVERHEATED
GDO STOPPED BECAUSE THE CLUTCH SLIPPED OR SOME OTHER FAULT OCCURRED THAT ALLOWED THE GDO TO RUN OPEN TOO LONG
GDO STOPPED BECAUSE THE CLUTCH SLIPPED OR SOME OTHER FAULT OCCURRED THAT ALLOWED THE GDO TO RUN DOWN TOO LONG
GDO STOPPED BECAUSE THE HOIST INTERLOCK OR EXTERNAL INTERLOCK IS OPEN
GDO STOPPED BECAUSE THE BOARD IS SET FOR JACKSHAFT MODE, BUT INSTALLED IN A TROLLEY OPERATOR
GDO STOPPED BECAUSE THE FORCE REQUIRED TO OPEN THE DOOR WAS TOO HIGH
GDO STOPPED BECAUSE THE UP LIMIT ACTIVATED WHEN CLOSING OR THE DOWN LIMIT ACTIVATED WHEN OPENING
GDO STOPPED BECAUSE IT COULDN'T LEAVE THE DOWN LIMIT DUE TO A SLIPPING CLUTCH OR OTHER PROBLEM
GDO STOPPED BECAUSE IT COULDN'T LEAVE THE UP LIMIT DUE TO A SLIPPING CLUTCH OR OTHER PROBLEM
GDO WON'T RUN BECAUSE THE STOP BUTTON IS ACTIVE
TIMER CLOSE WON'T WORK BECAUSE NO SAFETIES ARE ENABLED
RADIO INPUT WON'T WORK WITH OPEN OR CLOSE FUNCTION IN CONSTANT CONTACT MODE
GDO WON'T CLOSE BECAUSE AUXILIARY OPEN INPUT IS ACTIVE
GDO WON'T RUN BECAUSE THE KEYPAD STOP KEY IS ACTIVE
GDO WON'T CLOSE BECAUSE THE N-O REVERSING IS ACTIVE
GDO WON'T CLOSE BECAUSE THE ODC STB IS BLOCKED
GDO WON'T CLOSE BECAUSE THE N-C REVERSING INPUT IS ACTIVE
GDO WON'T CLOSE BECAUSE THE MONITORED EDGE SENSOR IS ACTIVE
GDO WON'T RUN BECAUSE THE MOTOR IS OVERHEATED
w w . w v o r e e h d a o d
GDO WON'T CLOSE BECAUSE ITS ALREADY AT THE DOWN LIMIT
GDO WON'T OPEN BECAUSE ITS ALREADY AT THE UP LIMIT

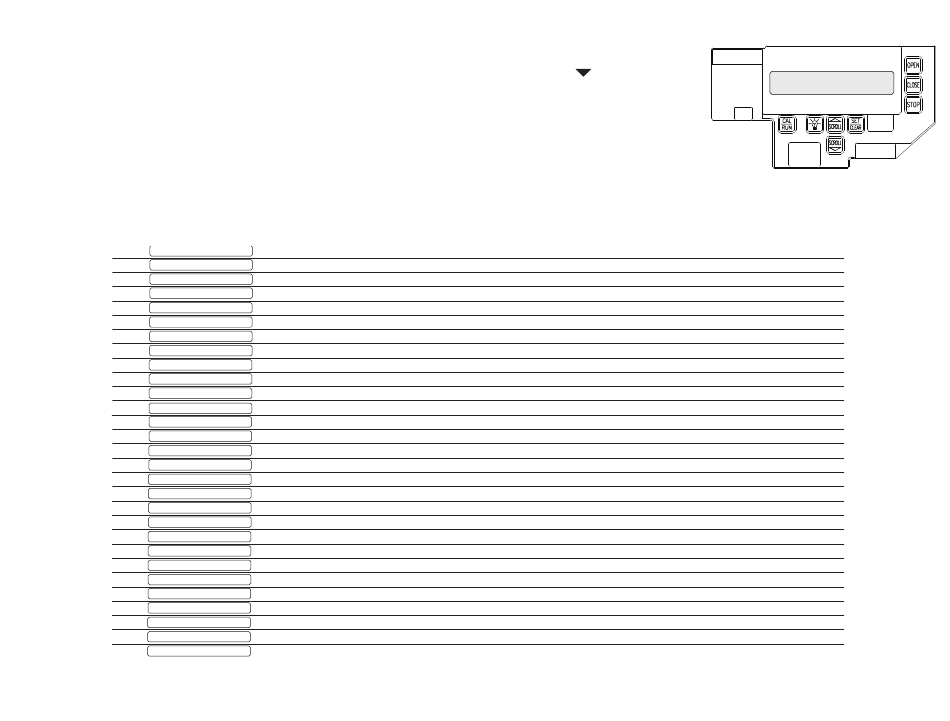

To Display Error Codes
1. Press the CAL/RUN key to enter the Cal Mode
(Fig. 6C).
• Press the SCROLL key to select
ERROR CODE 1 > "CODE."
• Press the SET/CLEAR key to flip
through the codes currently stored
in memory.
. r o o c m
ERROR CODE 1 > 41
Fig. 6C
