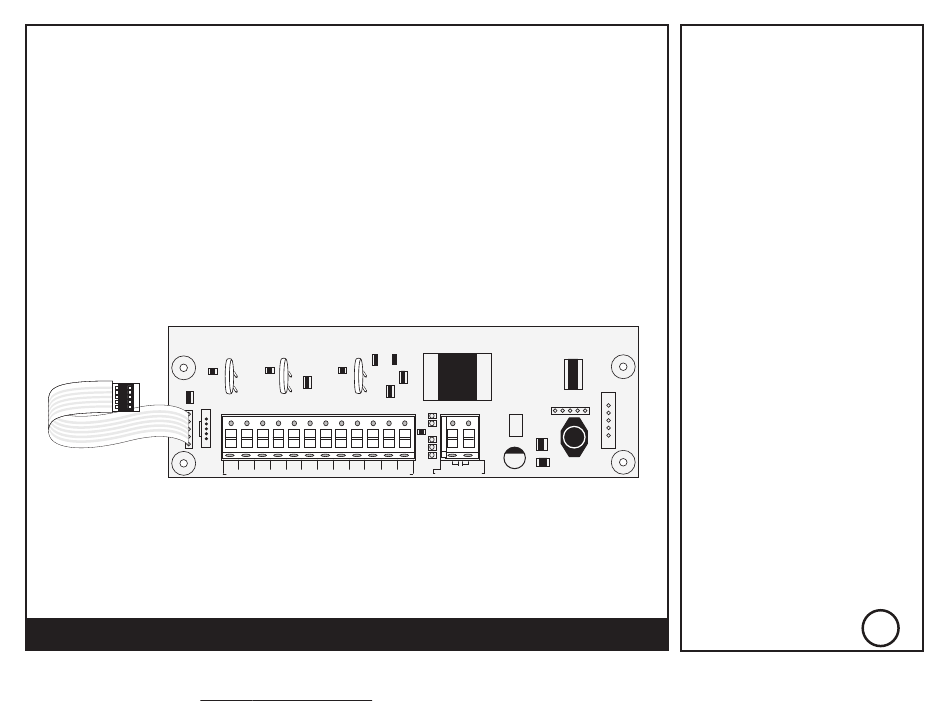

This Installation Manual provides the information required to install, troubleshoot and maintain the

TIMER CLOSE MODULE for commercial/industrial door operators.
