Mission:
Piper Make Beam Break
SIDE A
Assembly
INVENTORY
1 Large Base
2 IR Beam Sensors
2 Side Pieces
1 Track Spacer
1 Ramp
1 Track Connector
2 Arm Pieces
2 Plastic Track
1 Small Base
8 1/2" Pan-Head Screws
1 Small Slope
4 1/4" Pan-Head Screws
1 Large Slope
2 Flat-Head Screws
2 Protractors
8 Hex Nuts
4 Gummy Foot
1
2

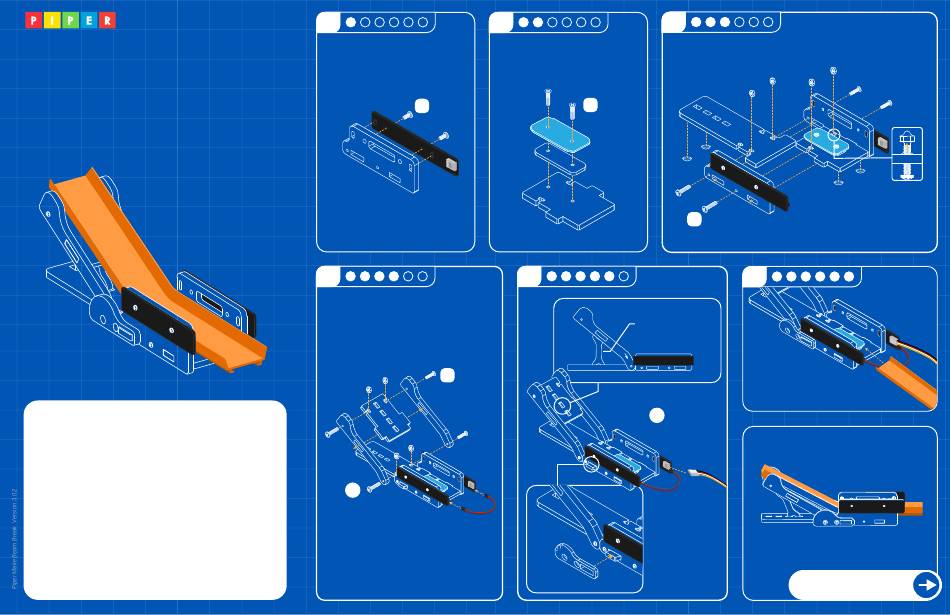

Attach sensors to both side
pieces with Pan-head Screws
A
4
Connect both Arm pieces to the
Ramp piece with Screws and Nuts
Then attatch Arms to the
Large Base piece
C
!
Do not
overtighten
the screws
Insert Pin Cable to connect
IR Beam Sensor
3
Attach Track Connector,
Track Spacer and Small
Base with Flat-head Screws
B
5
Insert Slope
into the Slots of
Ramp and Base
!
See wiring
instructions in
Piper Make
tutorials
Slide the
Protractors
onto the
Small Base
Attach Gummy Feet to
corners of Large and
Small Base pieces
C
Attach Side pieces and Base
pieces with Screws and Nuts
6
Slide Plastic Track onto
the Track Connector
ASSEMBLY
COMPLETE!
Head to Piper Make to
continue your mission
make.playpiper.com
