Mission:
Piper Make Robotic Walker
SIDE A

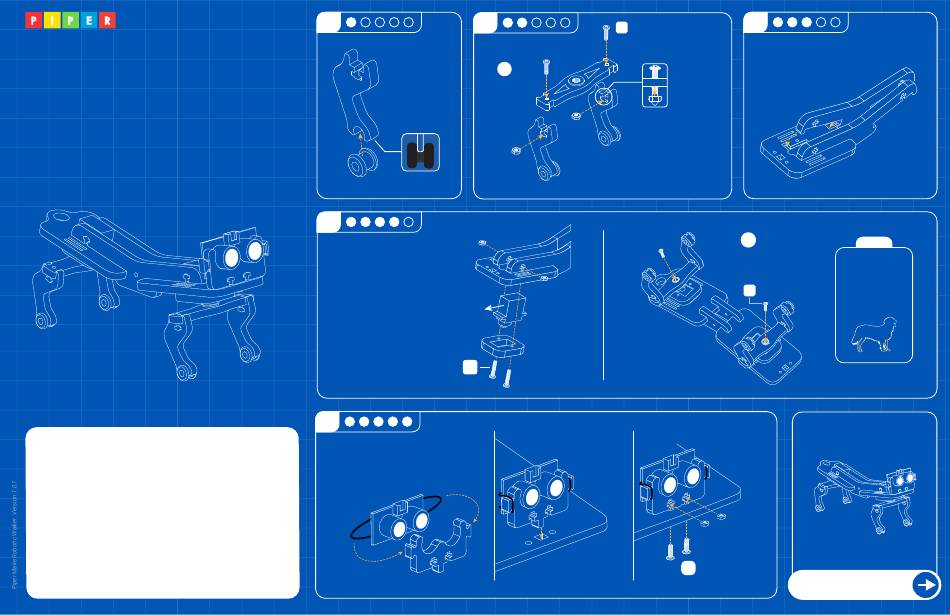

Assembly
INVENTORY
1 Torso
1 O-Ring
1 Trunk
2 FS90 Servo Motor
4 Legs
6 #4-40 Screws (A)
4 Grommet
2 Small Screws (B)
2 Servo Horn
4 #4-40 Screws (C)
2 Servo Holder
10 Hex Nuts
2 Spine
1 Ultrasonic Range Finder
1
2
Repeat 4×
to install
!
Grommets
onto each
Make sure
the arrows
Leg
are facing
upwards
4
Install Torso and Trunk
Servos so motors are
facing OUTWARDS.
C
5
Use O-Ring to attach
Range Finder to Holder
A
Attach Legs to
Servo Horn with
Screws and Nuts
Repeat 2× with all
four legs
Do not overtighten
the screws
Insert Holder
into Rover Base
A
3
Install the Spines on both
the Torso and Trunk
!
NOTE
The "knees"
should face
towards the
B
tail of Walker,
like a dog.
ASSEMBLY
COMPLETE!
Head to Piper Make
to continue your mission
make.playpiper.com
