Assa Abloy NORTON RIXSON 5700 Series Operator's Manual

5700 Series Power Operator Conversion
PUSH to PULL and PULL to PUSH Application
Patents: 5,881,497; 7,316,096; 7,484,333
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm.
For more information go to: www.P65warnings.ca.gov.

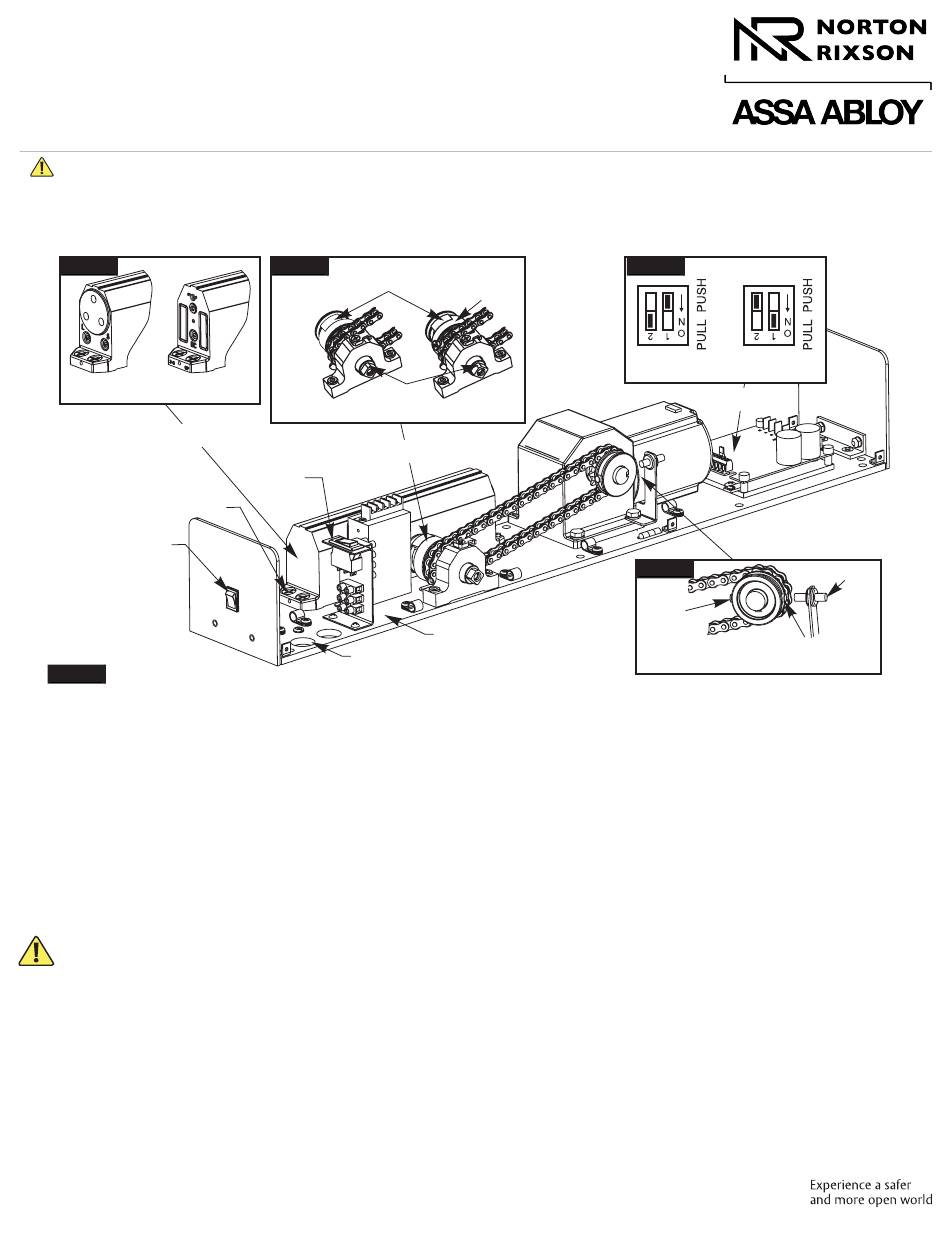

Figure 2
Push Side Pu11 Side
Closer Body
Screws
On/Off
Switch
Wiring not shown
Figure 1
Changing Operator From Push Side Unit to Pull Side Unit
1. Verify unit is configured for a push side application:
y Latch and Sweep valves are toward conduit holes.
(Figure 2)
y Cam driver of clutch mechanism is toward conduit
holes. (Figure 3)
2. Turn off power to unit at On/Off switch and flip circuit
breaker to OFF position. (Figure 1)
3. Using a Phillips head screwdriver, remove four (4) closer
body screws and slide closer body away from clutch
assembly. (Figure 1)
NOTE: DO NOT remove pinion extension when removing
closer body. (Figure 3)
4. Orient closer body with BC valve toward conduit holes
and slide onto backplate so that pinion shaft of closer is
inserted into pinion extension of clutch assembly.
(Figure 2)
NOTE: Some rotational adjustment of pinion extension
may be required to allow reassembly of closer pinion shaft
and pinion extension. Pinion flat should remain opposite
of backplate for proper reassembly. (Figure 3)
Copyright © 2010, 2014, 2019, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9357-0140-020 Rev 4 11/23
Pinion
Figure 3
Extension
Cam
Driver
Pinion Flat
Push Side
Clutch Assembly
Circuit
Breaker
Conduit
Holes
Approved 2023-11-13
Pour la version francaise voir NortonRixson.com.
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Cam
Driver
Pu11 Side
Backplate
5. Replace and tighten closer body screws.
6. Slide dip switch 1 on inverter from PUSH to PULL
position. Slide dip switch 2 from ON to OFF position.
(Figure 4)
NOTE: Inverter Details located on page 3.
7. Turn on power to unit at On/Off switch and flip circuit
breaker to RESET position.
8. Immediately after activating unit, watch cam driver as
it rotates around. As soon as cam driver contacts pinion
extension, flip circuit breaker to OFF position. (Figure 3)
9. With door closed:
y Slide closed position magnet so it aligns with reed
switch. (Figure 5)
y Slide open position magnet so it is 180° from reed
switch. Slide magnet as needed to get proper door
opening. (Figure 5)
10. Flip circuit breaker to RESET position.
Figure 4
Push Side Pu11 Side
Inverter
Reed Switch
Figure 5
Open
Position
Magnet
Closed Position
Magnet
