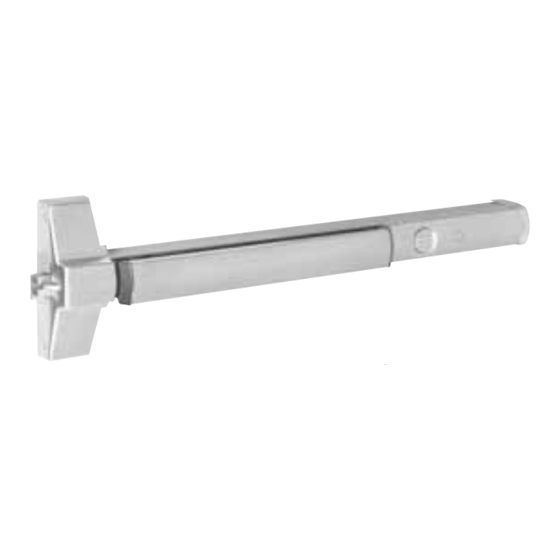

Assa Abloy Corbin Russwin ED5602 Series Installation Instructions

Installation Instructions
ED5602(A) Series
Double Cylinder
Mortise Exit Device
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65warnings.ca.gov.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
Copyright © 2003, 2018, 2019, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
(2) Cylinder Screws
10-24 x 3/4" (19mm)
(2) Cover Screws
10-32 x 3/4" (6mm)
Cylinder Housing
Active Head Cover
Cylinder
IMPORTANT
For use in conjunction with
Corbin Russwin 955 Series trim.
Cylinder Collar
Tailpiece
FM220 11/19
