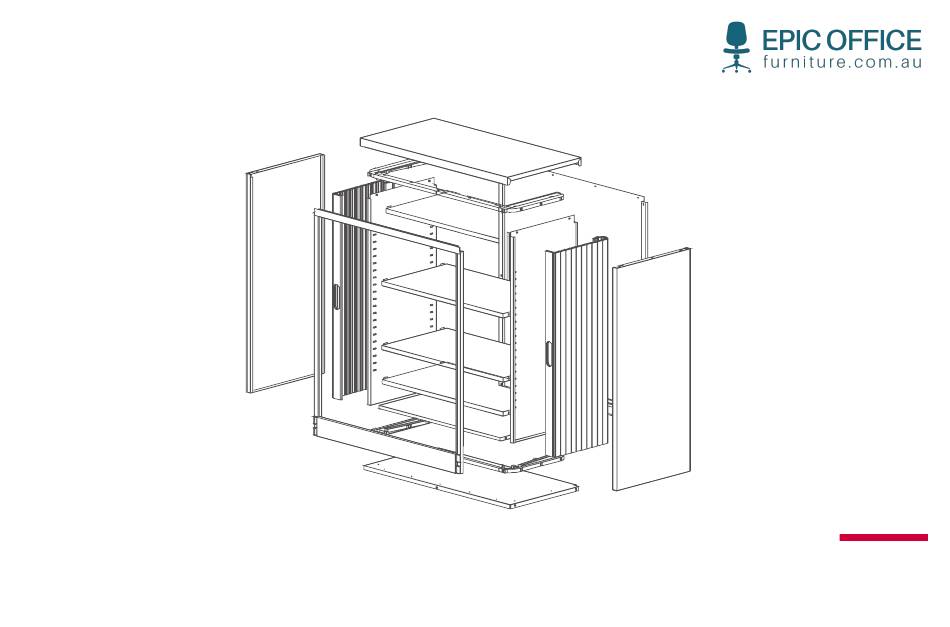

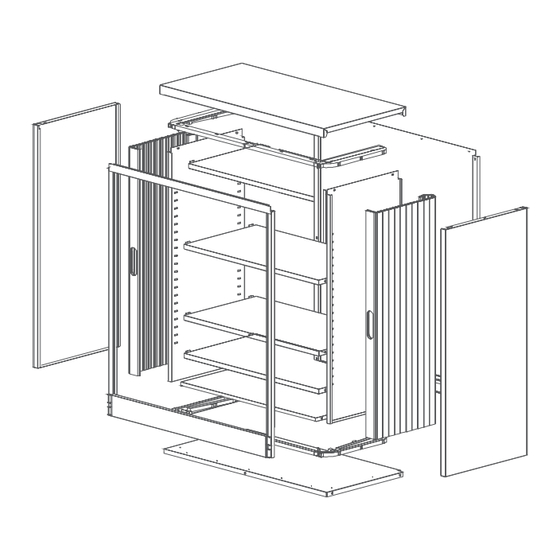

- Page 1 Agile Metal Tambour Assembly Instructions...
-
Page 2: Components List
L x 20 K x 39 M x 1 Left x 1 Right x 1 Shelf Holder Small G = Tambour H = Dam board I x 1 = Bottom 2 J x 5 = Shelf Agile Metal Tambour Assembly Instructions... - Page 3 Agile Metal Tambour Assembly Instructions STEP 1 & 2: Link A1 & A2 with B and fixed by 6 screws. Install C in the body. Agile Metal Tambour Assembly Instructions...
- Page 4 Agile Metal Tambour Assembly Instructions STEP 3 & 4: Install D in the body. Fix E in the body with 6 screws Agile Metal Tambour Assembly Instructions...
- Page 5 Agile Metal Tambour Assembly Instructions STEP 5 & 6: Fix F1 in the body with 8 screws. Install G in the body along the ralls. Agile Metal Tambour Assembly Instructions...
- Page 6 Agile Metal Tambour Assembly Instructions STEP 7 & 8: Fix F2 on D with 8 screws and fix F3 onto F2 with Fix H in the body with 4 screws 2 screws and 1 small screw Agile Metal Tambour Assembly Instructions...
- Page 7 Agile Metal Tambour Assembly Instructions STEP 9 & 10: Install I in the body. Install L in H’s hole. Agile Metal Tambour Assembly Instructions...
- Page 8 Agile Metal Tambour Assembly Instructions STEP 11 & 12: Put down the cabinet and fix D & C Put 2 shelves on L. with 1 screw. Agile Metal Tambour Assembly Instructions...
