Summary of Contents for Epic Office Furniture Axis AXLOC1

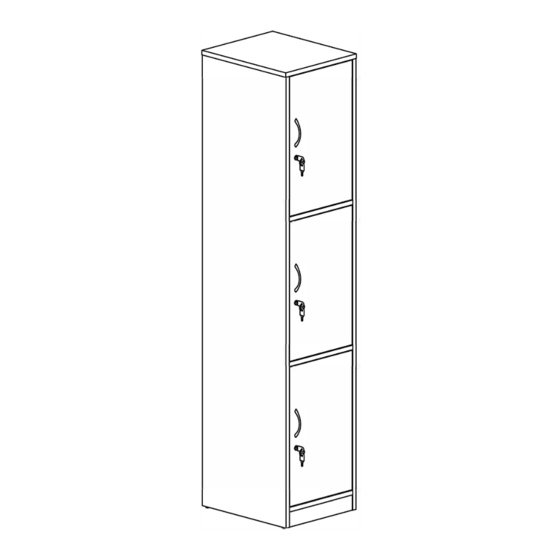

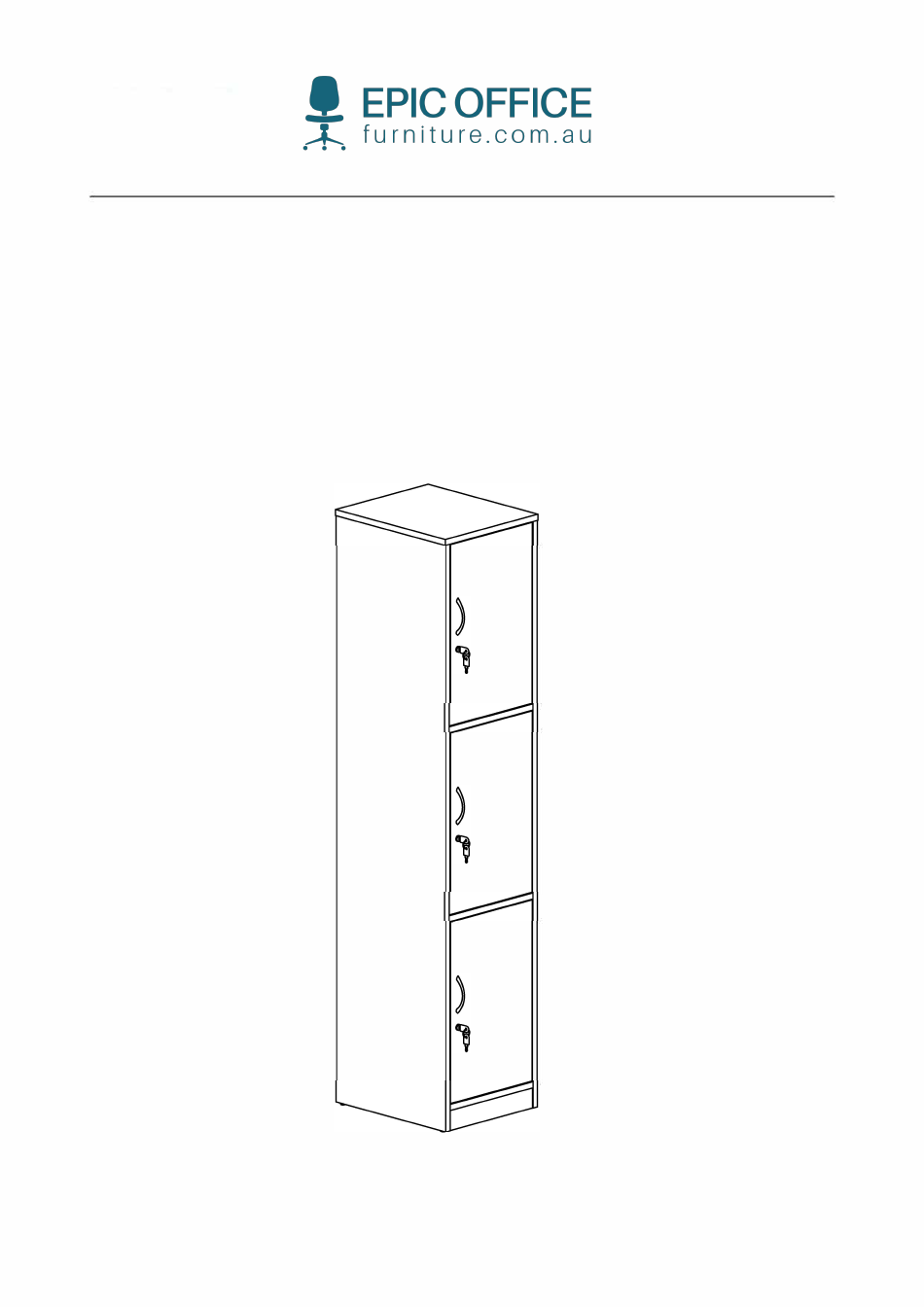

- Page 1 ASSEMBLY INSTRUCTION Axis Locker Single ITEM No.:AXLOC1 PAGE...
- Page 2 Incorrect Correct The arrow direction front The turning direction of attaching PAGE...
-
Page 3: Parts List
PARTS LIST ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. 6*35 Cam Bolt Top panel Left side panel 8*30 Dowel pin Right side panel (%") Cam Cover Back panel ® 4*16 Screw Bottom panel ® Immovable panel 3.5*20 Screw Batten Lock Catch �... - Page 4 � © 6*35 Cam Bal t-29 8*30 Dowel Pin-28 @ (% ) Cam Cover-29 4*16 Screw-30 <Q;> � @ 3.5*20 Screw-12 Lock Catch-3 Lock-3 Handle-3 � � @ Hinge Stand-6 � Hinge Body-6 @ 4*22 Bolt-6 Pre-installed parts PAGE...
- Page 5 STEP 1 Preparation for Top panel A,Bottom panel G,Left side panel X,Right side panel Z,Door panel V 1, Insert cams bolts@ and dowel pins@) into panels A,G,X,and Z as illustrated above. 2, Fix hinge stands @ to panels X,Z with screws@as illustrated above. 3, Fix hinge bodies�...
- Page 6 STEP 2 Bottom panel G, Back panel Batten O assembly. 1 � Insert cam bolts€]) on panel G into cams on panel O and tighten in a clockwise direction as illustrated above. Left side panel X and Right side panel Z assembly. 1 �...
- Page 7 STEP 2 Z . . Top panel A assembly. 1, Insert cam bolts(§]) and dowel pins@ on panel A into cams on panel X,Z and D and tighten in a clockwise direction as illustrated above. 2, Cover the cam covers@ on the top of cams. PAGE...
- Page 8 STEP 5 � r ��:f �� 1: LOOSEN ® SCREWS 2: ADJUST Dc:foR VERTICAL ® �PTH 3: TIGHTEN SCREWS AGAIN 3: TIGHTEN SCREW ®AGAIN Door panel V1 ,V2 assembly. PAGE 8...
