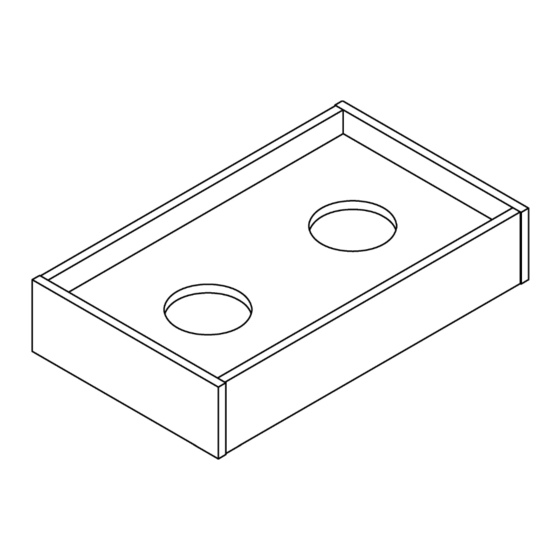

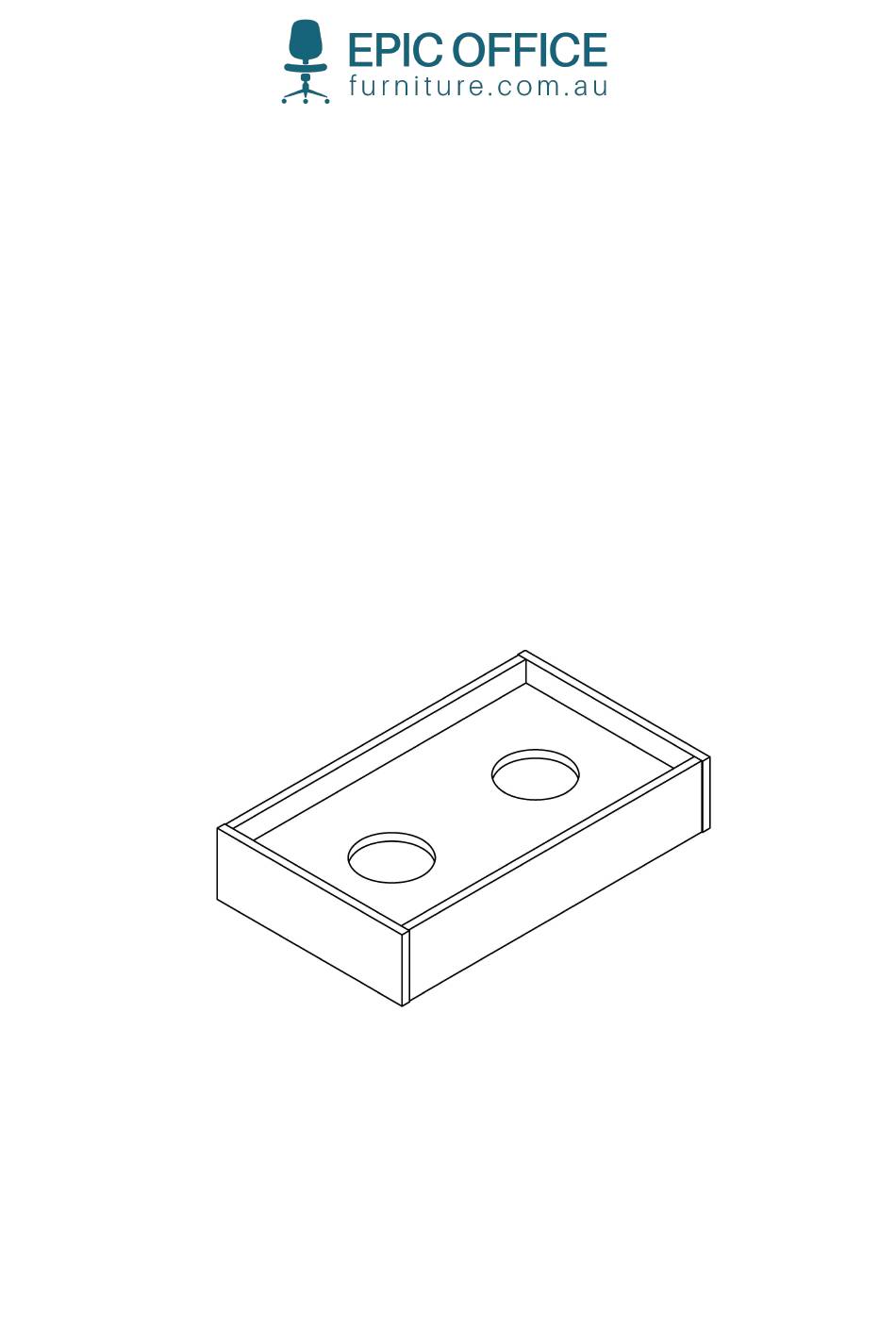

- Page 1 ASSEMBLY INSTRUCTION AXIS Planter for Tambour Cabinet 750W ITEM No.:AXPBOX200 PAGE...
- Page 2 Incorrect Correct The arrow direction front The turning direction of attaching PAGE...
-
Page 3: Parts List
PARTS LIST ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. Side panel 6*35 Cam Bolt © Side panel 8*30 Dowel pin (%") Cam Cover Bottom panel 6*35 Cam Bolt-16 � 8*30 Dowel Pin-12 @ (%") Cam Cover-16 Pre-installed parts @cam PAGE... - Page 4 STEP 1 Preparation for Bottom panel G, side panel 0,01 1 � Insert cam bolts@) and dowel pins@ into panels G,O and 01 as illustrated above. PAGE...
- Page 5 STEP 2 Bottom panel G, side panel O assembly. 1, Insert cam bolts@ and dowel pins@]) on panel O into cams on panel G and tighten in a clockwise direction as illustrated above. STEP 3 Side panel 0,01 assembly. 1, Insert cam bolts@ and dowel pins@ on panel 01 into cams on panel G and tighten in a clockwise direction as illustrated above.
- Page 6 STEP 4 6 PCS Transparant plastic sticker I PAGE...
- Page 7 You have now successfully completed the assembly on item: AXIS Planter for Tambour Cabinet 750W ITEM No.:AXPBOX200 Remove all QC and panel labels and wipe clean using a damp cloth and general household cleaner. PAGE...
