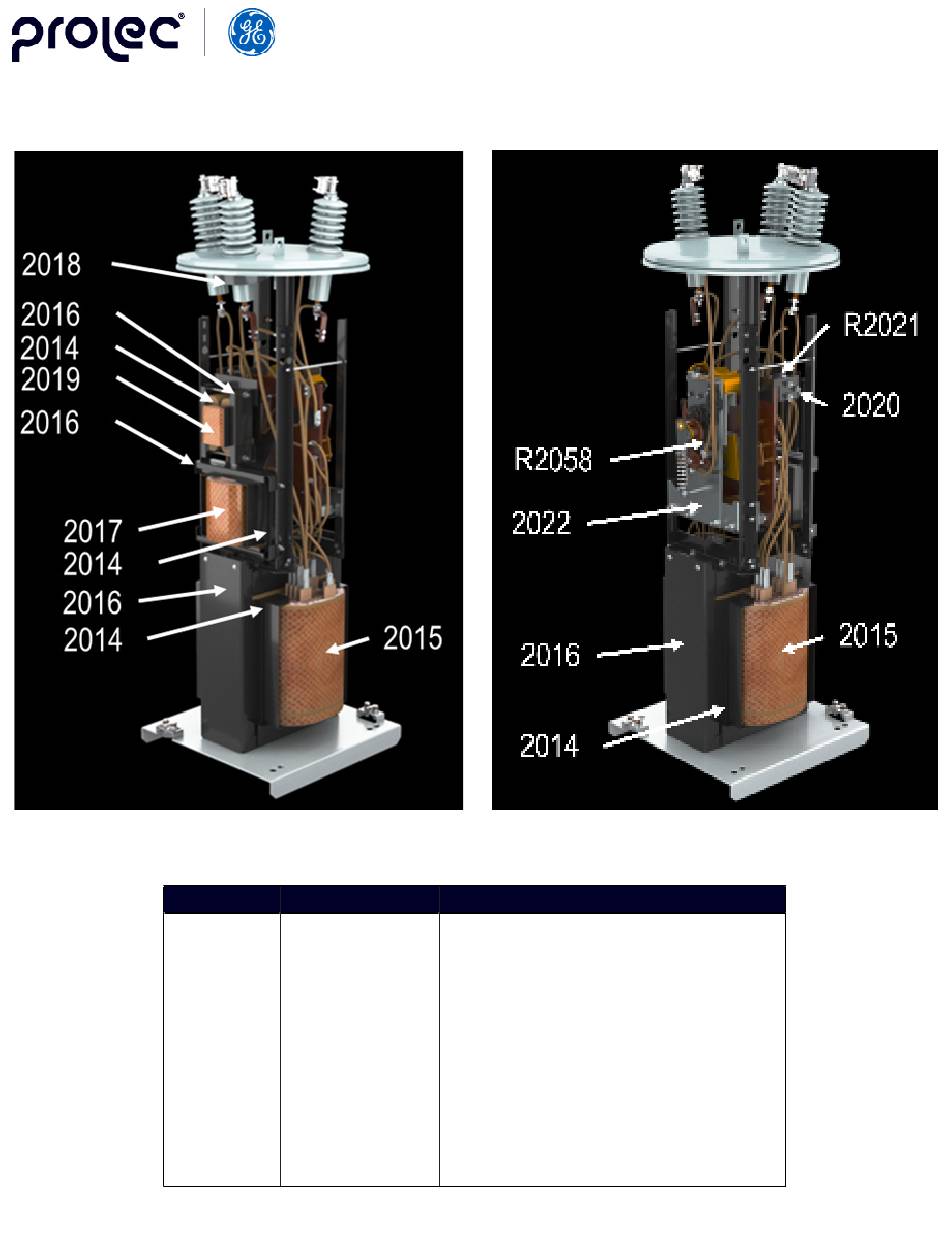

Figure 23. Type VR-1, Reactor Side
Figure No.
prolec.energy/prolecge
Reference No.
23, 24 2014
23, 24 2015
23, 24 2016
23 2017
23 2018
23 2019
24 2020
24 R2021
24 2022
24 R2058
GEH-7299A: Installation, Operation and Maintenance Manual
for Type VR1™ Single-Phase, Step Type Regulators
Figure 24. Type VR-1, Mechanism Side with
Control Cabinet Removed
Description
Core
Coil
Clamps
Reactor
Current Transformer
Potential Transformer
XENOX Surge Bypass Protector Assembly
XENOX Disks
Switch Mechanism
Fexible Shaft
