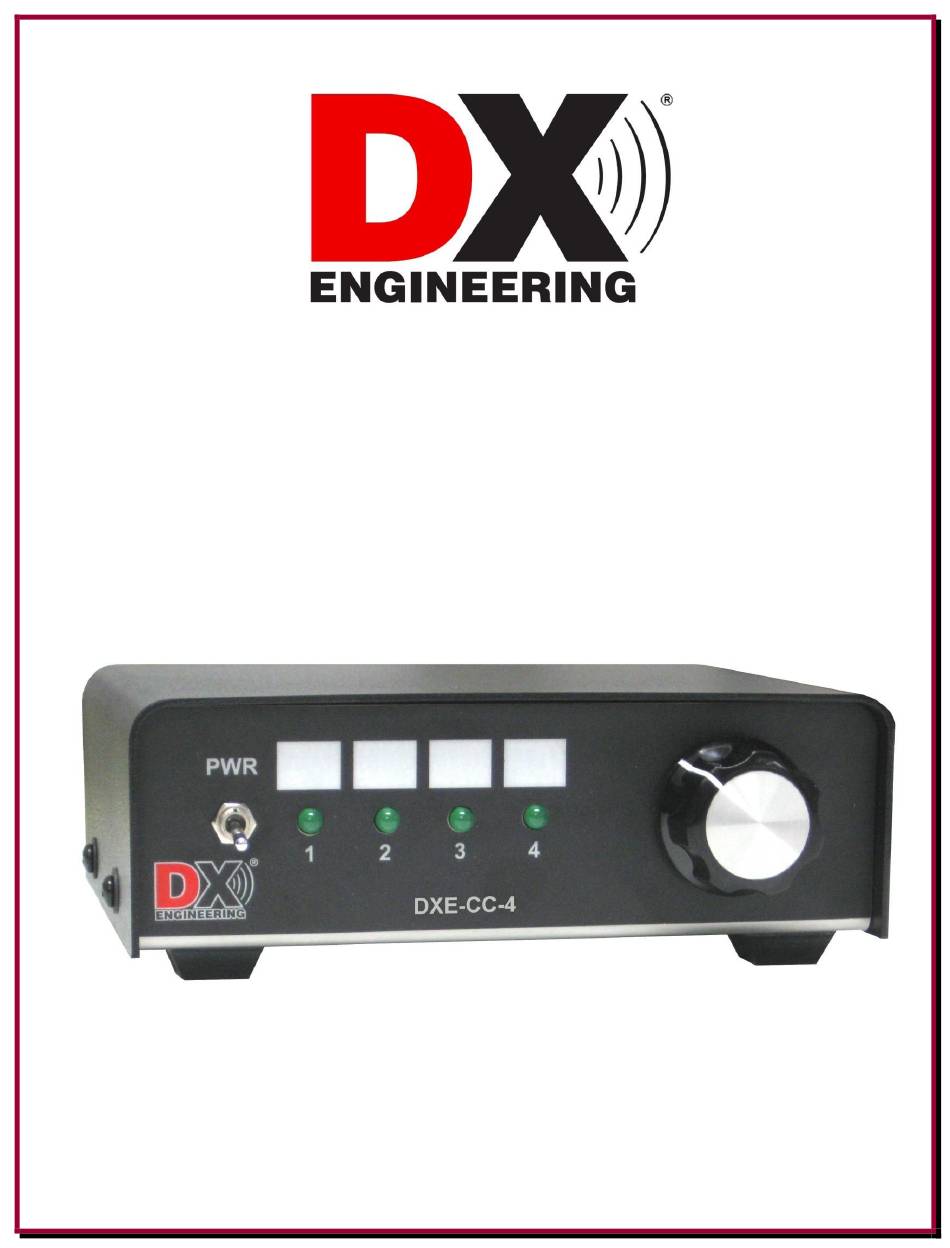

- Page 1 Four Position Control Console DXE-CC-4 DXE-CC-4-INS-Revision 0 © DX Engineering 2024 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 Technical Support and International: (330) 572-3200 E-mail: DXEngineering@DXEngineering.com - 1 -...

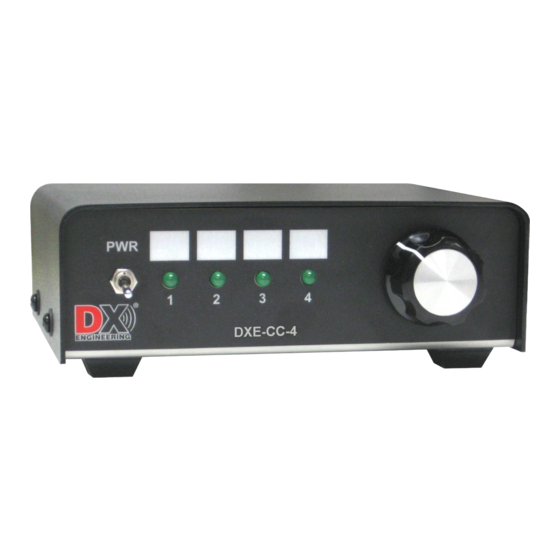

- Page 2 Introduction The DXE-CC-4 is a flexible, Four Position Control Console used to control products requiring 3 control lines and a ground. This control console is compatible with the WIMO Remote Polarization Switches WMO-18080/18081/18082 and 18083 and the Unified Microsystems UMS-RAS-4 Receive Antenna Switch.
- Page 3 Interior Connections 1. Open the unit by removing the four (two per side) Phillips head screws to remove the cover. 2. Push the end of the cable through the control wire feed through on the rear of the unit. 3. Connections for the wire are made on the green header.
- Page 4 Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
