Summary of Contents for DX Engineering RR8B-HP

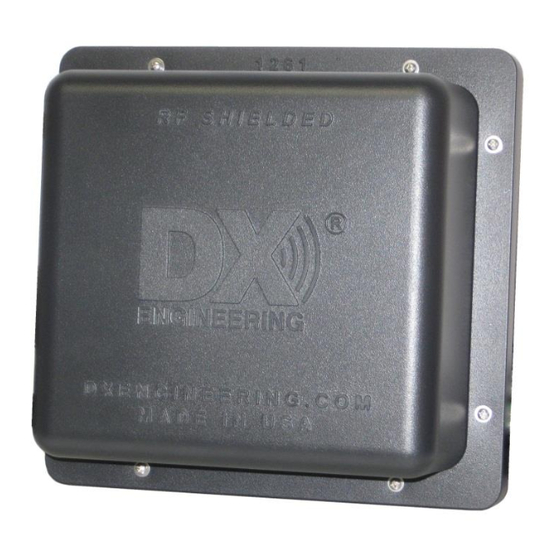

- Page 1 RR8B-HP 8-Port Remote Antenna Switch DXE-RR8B-HP-INS-Revision 2c DX Engineering 2017 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 Technical Support and International: (330) 572-3200 Fax: (330) 572-3279 E-mail: DXEngineering@DXEngineering.com - 1 -...
-
Page 2: Specifications
This allows the RR8B-HP to be used in complex antenna phasing and stacking systems as well as traditional switching arrangements. The RR8B-HP also uses a removable screw terminal control cable plug. The removable plug greatly simplifies installation by eliminating the need for soldering. -
Page 3: Theory Of Operation
Theory of Operation The RR8B-HP uses a star arrangement of 16 relays to select one or more of eight output ports when voltage is applied from an 8-wire control line. The 16 relays provide greatly improved power handling and SWR over conventional switches and allows port-to-port connections between any of the eight output ports. -
Page 4: Optional Item
Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
