- Page 1 INSTALLATION OPERATING AND MAINTANCE INSTRUCTIONS...

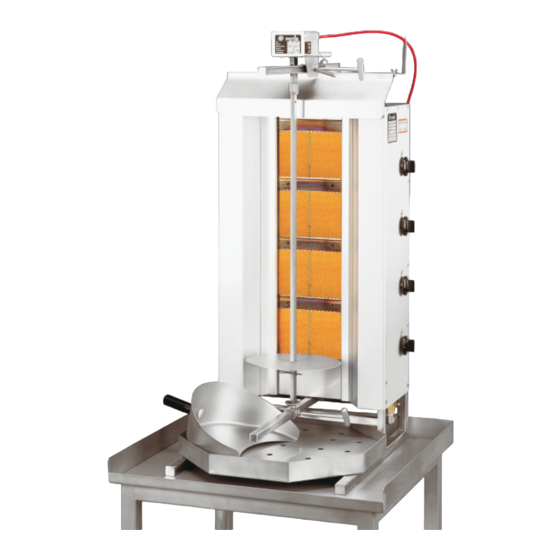

- Page 2 Dear users, We are convinced that you will readily discover that your newly purchased appliance is safe to operate, reliable and cost-efficient, and produces amazing grilling results. 1.1 How to use the installation-, operating- and maintenance instructions Dear customer, we kindly ask you to carefully read this manual in order to avoid improper handling and damages.
- Page 3 Set up of the device The appliance must be placed on sturdy, secure and level surface made of stainless steel. This steel surface must have smooth bevelled edges and be welded in such a way as to prevent grease leakage. The grill may not be set up next to wooden or plastic surfaces.
- Page 4 2.3 Technical specifications Dimensions Model Appliance width 455mm Appliance depth 550mm Appliance height w/o motor 740 1065 mm Appliance height w motor 1115 mm 620mm Ma x. height of meat Ma x. weight of meat 15 kg 30 kg 50 kg Burner surface (HxW) 370x135 500x135 620x135 mm...
- Page 5 Heat capacity Type � Qn Consumption Consumption 5,25 kW(Hi) 0,41 kg/h 0,54m 7,00 kW(Hi) 0,55 kg/h 0,72m 8,75 kW(Hi) 0,70 kg/h 0,90m 2,80 kW(Hi) 0,22 kg/h 0,30m 5,60 kW(Hi) 0,44 kg/h 0,60m 8,40 kW(Hi) 0,66 kg/h 0,90m 11,2 kW(Hi) 0,88 kg/h 1,20m 14,0 kW(Hi) 1,10 kg/h...
- Page 6 Valid as from 01.05.2002 Nozzle table for gas grills of the series G1 /G2 /G3 capacity per burner 1, 75 kW LPG category 3 8 /P 50 mbar 50/67 mbar main nozzle 0,59 reduction nozzle 0,48 LPG category 3 8 /P...
- Page 7 Valid as from 01.05.2002 Nozzle table for gas grills of the series GD1 -S / GD2-S / GD 3 -S / GD4-S / GD5-S capacity per burner 3,5 kW LPG category 3 B / P 50 mbar 50/67 mbar main nozzle 0,81 reduction nozzle 0,65 LPG category...
- Page 8 Valid as from 0 1.0 5.20 0 2 Nozzle table for gas grills of the series GD1/GD2/GD 3 /GD4/GD5 capacity per burner 2,8 kW L P G category 3 B / P 50 mbar 50/67 mbar main nozzle 0,75 reduction nozzle 0,65 L P G category 3 B / P 3 0 mbar...
- Page 9 D i--- - --- � -.1., � 11-- -- ,._-- •-----lm D-- Oi---...
- Page 10 2.4 Electrical motor Synchronised-drive motor 230 V / 50 Hz/ 3,5 W / 1 rpm Upon request : 2 rpm Special voltage ratings e.g. 12 V DC. 2.5 Gas connection diagram Capital setting reduction nozzle pressure test nipple 1 /2" gas connection 2.6 Accessories / spare parts Motor Head Shield...
- Page 11 Operating and maintenance instructions 3.1 Set up/short description Our grill consists of a stainless steel housing (Cr.Ni 1.4301) supported by a tubular frame. The bottom guide arm (stainless, Cr.Ni1 .4301) supporting the gyros skewer is welded to the tubular frame. The top guide arm which also serves as the motor mount, is permanently connected to a heat shield.
- Page 12 3.4 Start up By opening the shut-off valve to the gas line or gas bottle, the grill is ready for use. Always ignite the top burner first: Turn the top knob to the highest setting (see diagram page 6) and press down. lgnite the gas as it exits the grating of the top burner.
- Page 13 lnsert the shock-proof plug into nearest available socket and set switch to position 1. Using the rocker switch on the motor housing, the rotation direction can be set: - left hand rotation (press up on rocker switch) - off position (rocker switch in middle position) - right hand position (press down on rocker switch).
-
Page 14: Maintenance
3. 7 Cleaning The appliance should be cleaned after daily use. For cleaning purposes, we recommend commercially available grill cleaning products. Caution: The burner plates must notget in contact with the cleanser. 3.8 Maintenance The appliance must be checked for proper function, depending on the number of operating hours, at least once a year. - Page 15 EEC Declaration of Conformity according to EEC-directives no. 73/23/EEC modified by 93/68/EEC Manufacturer / EEC Representative POTIS GmbH & Co . KG August-Spindler-Str. 4 D - 37079 Göttingen Germany phone: +49 (0)551-506 89-0 declares herewith that the grilling appliance: Description of the product...
