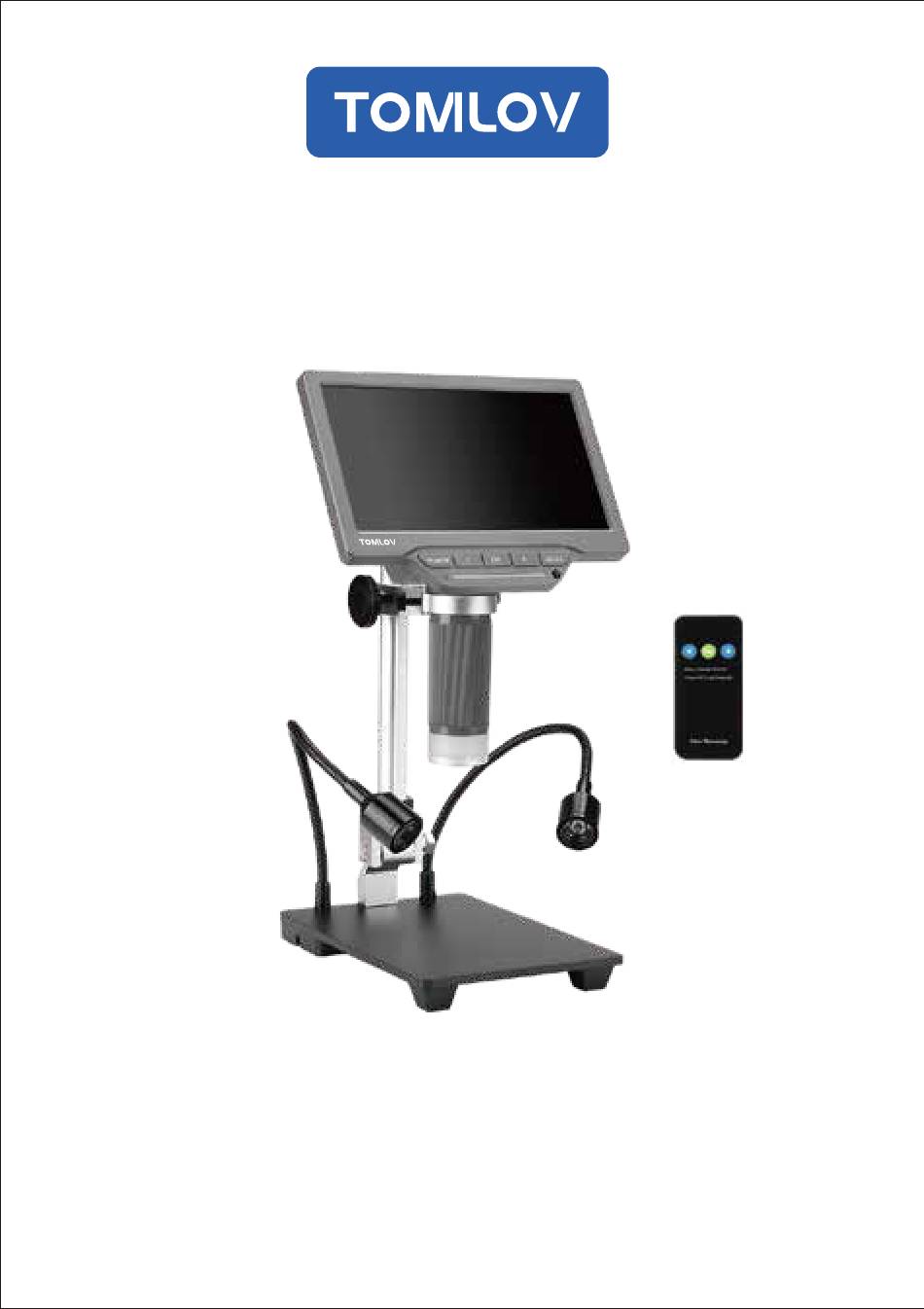

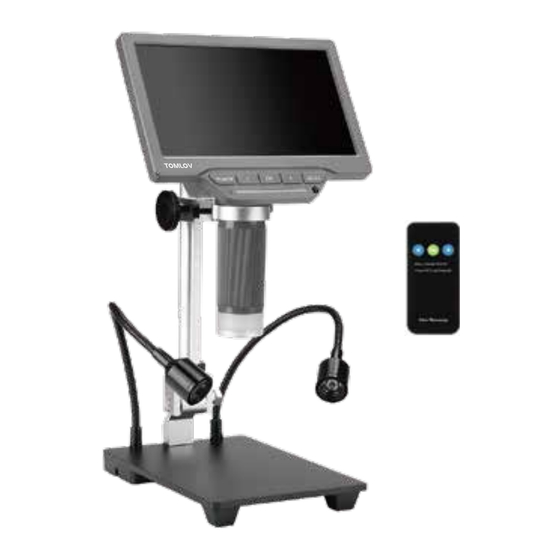

LCD Digital Microscope
Model: DM201 SE
User Manual
Please read this user manual carefully and keep it for future reference.
Should you encounter any problem, please contact us by following e-mail.
Most technical questions can be answered through our knowledge base.
Customer service: support@tomlov.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TOMLOV DM201 SE
Summary of Contents for TOMLOV DM201 SE
- Page 1 LCD Digital Microscope Model: DM201 SE User Manual Please read this user manual carefully and keep it for future reference. Should you encounter any problem, please contact us by following e-mail. Most technical questions can be answered through our knowledge base.
-
Page 2: Table Of Contents
Read Me First Packing List Installation Quick Start Parts Description Detailed Operation 1. Charge the Microscope Correctly 2. Install Anti-reflective Hood 3. How to Make the LED Lights Work 4. Save Photos/Videos with Micro SD Card 5. Switch Different Mode 6. -
Page 3: Read Me First
Do not press the monitor when adjusting angle. 4. TOMLOV offers one year manufacture warranty and life-long technical support for digital microscope. Please feel free to get in touch with us if you need any help. -
Page 4: Packing List
Microscope Base Plate Bracket Remote Control Lens Cleaning Cloth USB Cable Light Barrier Micro SD Card Charger User Manual Please n o te: Accessories maybe updated without prior notice, please refer to the actual receipt of the items. E-mail: support@tomlov.com... -
Page 5: Installation
1. Position A It has been adjusted properly upon delivery. If not, please adjust it by the wrench. 2. Position B Step 1: Rotate the black ring clockwise one or two turns. Step 2: Screw the rod clockwise. E-mail: support@tomlov.com... - Page 6 Step 3: Screw the black ring clockwise to fix the bracket tightly. 3. Position C Insert the monitor and tighten the two little screws. 4. Position D Adjust the monitor up and down, then tighten this screw. E-mail: support@tomlov.com...
-
Page 7: Quick Start
Quick Start E-mail: support@tomlov.com... -
Page 8: Parts Description
Parts Description Monitor Power I n d i c a t o r LED Brightness Indicator Height Adjusting Screw IR Receiver Lens Holder Lens F ocusing Knob Side Light Lens Cover Aluminum Base E-mail: support@tomlov.com... - Page 9 R i g h t B u t t o n t u r n o ff t h e m i c r o s c o p e . ( T he unit can't be turned on by remote control) E-mail: support@tomlov.com...
-
Page 10: Detailed Operation
(1) There is one rechargeable battery inside the monitor. (2) It takes 2-3 hours to charge the microscope.The power indicator is during charging and is off after charged fully. (3) Short press Power button, current battery level is displayed at the right corner of monitor. E-mail: support@tomlov.com... -
Page 11: Install Anti-Reflective Hood
Take off the lens protector, then screw the hood on the lens. 3. How to make LED lights work There are main LED lights (around the camera) and 2 side LED lights ( on the base ),they are powered and controlled separately. Main LED Lights Two Side Lights E-mail: support@tomlov.com... - Page 12 Press the Left button on the monitor or remote control during Photo/ Video mode to dim the brightness of the main LED light. Press the Right button on the monitor or remote control during Photo/ Video mode to increase the brightness of the main LED light. -10- E-mail: support@tomlov.com...
- Page 13 -11- E-mail: support@tomlov.com...
-
Page 14: Save Photos/Videos With Micro Sd Card
4. Save Photos/Videos with Micro SD Card You can save pictures and videos on a Micro SD card to review later. Insert the Micro SD card into slot on back of the monitor. -12- E-mail: support@tomlov.com... -
Page 15: Switch Different Mode
6. Capture Pictures Long Press Menu button switch to photo mode. Press OK button on the monitor or remote control to capture an image, The photo icon on the screen turns yellow when the image is captured. -13- E-mail: support@tomlov.com... -
Page 16: Record Videos
Duration of the recording time is displayed at the top right corner. 00:00:02 8. Photos/Videos Playback & Files Management Photo/Video Playback Press MENU button to playback mode. Press Left and Right button to view photo. press OK button to view video. 00：00：13 OK:▶ ▶:■ -14- E-mail: support@tomlov.com... -
Page 17: How To Reset The Microscope
(Please note the locked filed still can be deleted when deleting files in computer.) 9. How to Reset the Microscope Use a ballpoint pen or similar to push the reset hold on the back of the microscope,keep pressing for 1-2 seconds to reset the device. -15- E-mail: support@tomlov.com... -
Page 18: Connect To Pc
(2) Turn on the microscope and the screen shows Mass storage, PC Camera and REC_mode (Note: The REC_mode enables microscope to charge only). Press OK button to choose PC Camera to enter PC mode. Mass Storage PC Camera REC_mode -16- E-mail: support@tomlov.com... -
Page 19: Work With Windows
(1) Connect the microscope with computer by the USB cable and turn on the microscope. (2) Press OK button to switch UVC mode. (3) Run “Windows Camera”, it shows the image as below, camera 1.Record Videos 2.Capture Photos 3.Playback. -17- E-mail: support@tomlov.com... -
Page 20: Work With Mac/Imac
1.Left button/Right/Menu button on the monitor and remote control can’t work when the microscope connected with computer. 2.The photos/videos only can be saved in computer (can’t not be saved in the Micros SD card in the microscope) when connected with computer. -18- E-mail: support@tomlov.com... -
Page 21: Menu Settings
Menu Settings Capture Mode Resolution Continuous shooting Quality Sharpness Color Exposure -19- E-mail: support@tomlov.com... -
Page 22: Video Settings
Resolution Cyclic Record High Dynamic Range Exprosure Date Stamp -20- E-mail: support@tomlov.com... -
Page 23: System Settings
Auxiliary to the line Fill light LCD Brightness Auto Power Off Frequency Language Date/Time Format -21- E-mail: support@tomlov.com... - Page 24 -22- E-mail: support@tomlov.com...
-
Page 25: Specifications
Specifications -23- E-mail: support@tomlov.com... -
Page 26: Faq
Enter menu, then choose “SET T ING”, find “F ORMAT ”, then choose “OK”and press the OK button to confirm the formatting. If it still can’t work ,please connect the microscope with computer and format the Micro SD card in computer. -24- E-mail: support@tomlov.com... - Page 27 7. Wh y are th e 2 sid e lig h ts can ’t wo rk ? T he 2 side lights and the main LED light are controlled separately, Please refer to page 11 and charge the battery of side lights fully before use. -25- E-mail: support@tomlov.com...
-
Page 28: Get Support
However, content of this manual and/or product specifications are subject to change without prior notice and with no direct or indirect liability on tomlov Electronics’ part concerning such change.Copyright and registered trademark tomlov, tomlov are registered trademarks. - Page 29 More Than A Microscope...
