ASIA CULTIVATOR
OPERATING MANUAL
& PARTS LIST
AMC-600M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMC-600M and is the answer not in the manual?

Questions and answers

Related Manuals for ASIA TECHNOLOGY AMC-600M

Summary of Contents for ASIA TECHNOLOGY AMC-600M

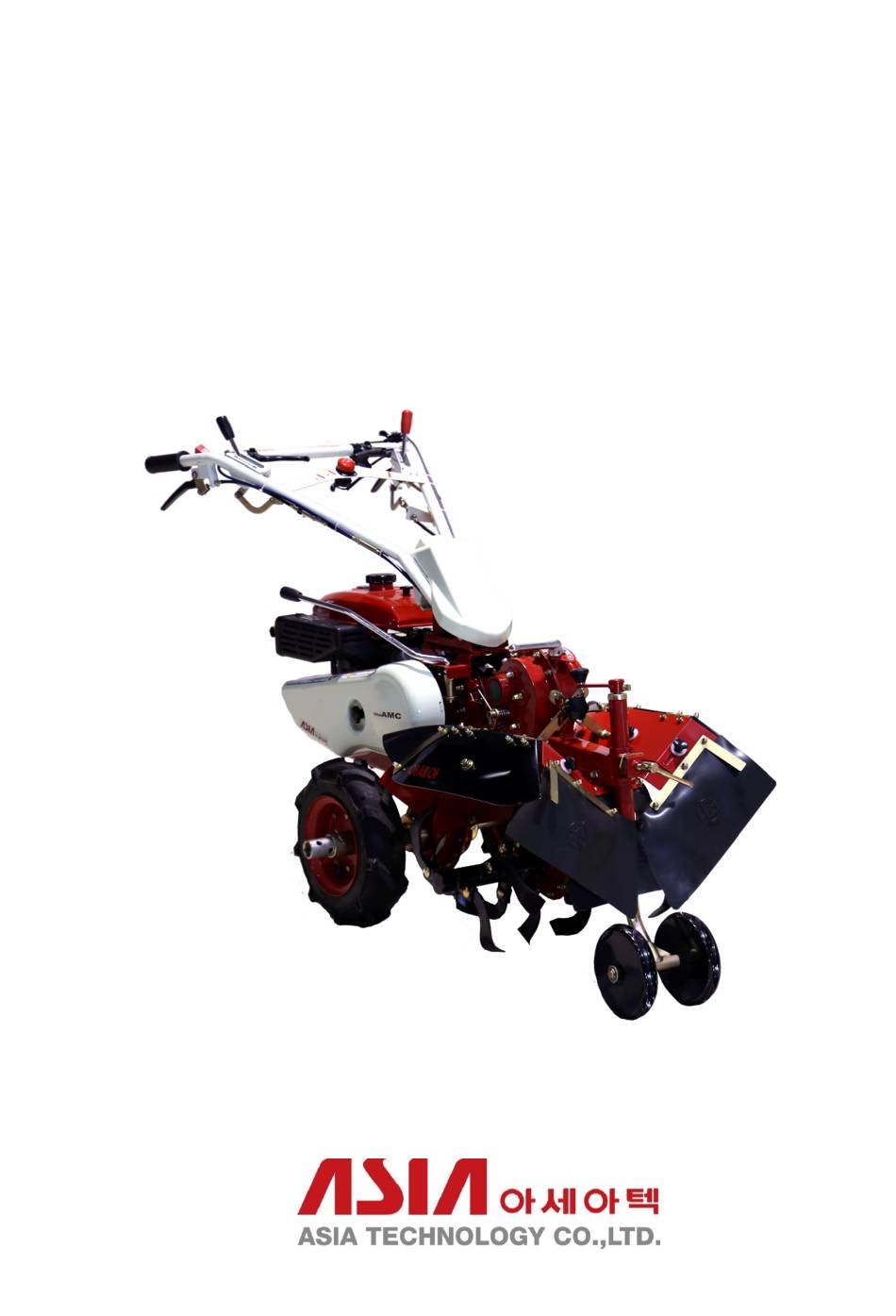

  • Page 1 ASIA CULTIVATOR OPERATING MANUAL & PARTS LIST AMC-600M...

  • Page 3: Table Of Contents

    9. Machine Care and Storage ------ 41 10. Machine Transport ------------43 Basic User’s Manual of Work Machines --------44 1. How To Use Work Machine - - 45 2. Rotary (SCR-500) ------- 47 3. Ditching Rotor (SDR-200N) ------- 49 4. Hiller (SRD-3) -------- 51 AMC-600M...

  • Page 5: For Safety

    This sign Indicates important Failure to observe this may cause precautions regarding the use, a potentially dangerous situation maintenance, inspection, storage resulting in death or serious injury. and disposal of the machine. Prohibit night work for safe use of the machine. AMC-600M...
  • Page 6 For Safety 3. Warning Sign Plates and Attaching Positions 3. TANK CAP PLATE (AA019-03681) 1. CAUTION PLATE C (AA119-06681) 4. BELT COVER CAUTION PLATE (AA019-03661) 2. REAR CAUTION PLATE (AA019-07561) AMC-600M...
  • Page 7 ■ Keep warning sign plates clean all the time to prevent damage. Replace the damaged or lost sign plate with a new one from your dealer. ■ Be sure to also change the label. When replacing a parts that has a label. AMC-600M...
  • Page 8 Wear a helmet, safety boots, goggles and gloves when deemed necessary. CAUTION When Lending Machine Explain how to handle the machine, and have the borrower read the User’s Manual before using it. AMC-600M...
  • Page 9 CAUTION Exhaust Gas Do not drive the machine in a closed space (house, garage). When driving in a closed space for a long time, the exhaust gas may cause carbon monoxide poisoning. AMC-600M...
  • Page 10 If you drive at high speed on sloped, uneven, or stubble-prone area, the machine may face a danger due to rollover. So, be sure to drive at low speed. AMC-600M...
  • Page 11 CAUTION When Stopping Machine, Place the machine in a flat and safe place and stop the engine. When standing on a slope unavoidably, stop the engine, shift the gear, and set the main clutch lever to “Connected”. AMC-600M...
  • Page 12 CAUTION When Performing Maintenance or Inspection When performing maintenance, inspection. detachment or attachment of parts. park the cultivator in a flat and safe place, stop the engine, and work after the high temperature has cooled down. AMC-600M...
  • Page 13 CAUTION When Storing When servicing an engine or transmission, it may affect performance or safety. Consult with the place of purchase, dealer, dealer, or the customer service department of our company. AMC-600M...

  • Page 14: Specifications

    Specifications 2. Specifications Type AMC-600M Length (mm) 1560 Cultivator Width (mm) Dimension s and Height (mm) Maximum1100 (Minimum 875) Weight Weight (kg) 121 (Cultivator + Rotary) Type Name GB181LN Air-cooled 4-Stroke OHV Single Cylinder Type Gasoline Cylinder Diameter x 68 x 50...

  • Page 15: Part Names

    Part Names 3. Part Names The terms used in this manual such as front, rear, left, right, left turn, and right turn are as shown below: Rear Left Left turn (Counterclockwise) Right Forward Right turn (Clockwise) AMC-600M...
  • Page 16 Steering Clutch Lever Quick Hitch Lever Connecting Chain Case Speed Lever Rotary Cover Driving Shift Lever Cultivator Wheel Recoil Start Handle Fuel Tank Engine Stop Switch Handle Cover Fuel Cock Air Cleaner Choke Lever Engine Cover Drain Lever Belt Cover AMC-600M...
  • Page 17 4. Up/Down Shift Lever Up/Doun Handle Shift Lever Used to adjust the vertical height of the handle according to the physique or operating conditions. Hold the lever and adjust the height to the desired height. Release the lever to lock the handle. AMC-600M...
  • Page 18 ※ Refer to pages 27~28. Attach 7. Speed Control Lever Used to increase or decrease the engine Speed speed. Control Lover High Start 8. Driving Shift Lever It consists of 4 steps including ‘Forward 1’, consists of four stages Driving Shift Lever AMC-600M...
  • Page 19 It is used to disconnect the fuel supply to the engine. When the engine is running, it should always be in the “Open” position. close close Return the machine to the “CLOSED” position when not in use for a long time. open Fuel Cock AMC-600M...
  • Page 20 Tailwheel so that the blade of the rotary is not TailWheel touching the ground. 15. Tailwheel Adjustment Handle TailWheel Adjustment Handel It is used to adjust the height of the Tailwheel a little. Turn the Tailwheel clockwise to raise it and counterclockwise to lower it. AMC-600M...
  • Page 21 Use when turning the cultivator to the left and to the right. Steering Clutch Lever 19. Connecting Chain Case A) “Coarsely”: Slower rotation of the rotary crushes soil coarsely. b) “Finely”: Faster rotation of the rotary crushes soil finely. AMC-600M...
  • Page 22 Oil Gauge oil, but do not overfill. 2. Transmission Oil Open the oil filler cap of the transmission, to check the amount of oil. If it is not sufficient, supplement the oil through the oil filler. Oil Hole (Mission Oil) AMC-600M...
  • Page 23 ■ When the fuel spilled on the machine, wipe it cleanly. CAUTION ■ Do not allow water or foreign objects to enter the fuel tank. 5. Tire Check for air leaks or damage. AMC-600M...
  • Page 24 In particular, operate the main clutch lever to check whether the “Connected” “Disconnected” of the power is secure. 7. Others Check the parts for damage and bolts and nuts for loosening. If they are loose, be sure to tighten them. AMC-600M...

  • Page 25: Driving And Operation

    Driving Shift Lever Plowing Shift Lever Set the plowing shift lever to “Neutral (N)”. Rotary Clutch Lever Pull the rotary clutch lever to Disconnect “Disconnected”. Connect Adjust Nut Set the fuel cock to “On”. close close open Fuel Cock AMC-600M...
  • Page 26 ■ Make sure there are no combustible materials around the muffler. ■ An engine equipped with Miracle Start can easily start up even with low power, which can cause malfunction when operated with too much force. AMC-600M...
  • Page 27 There is a risk of burns. IMPORTANT ■ After stopping the engine, slowly pull the recoil start handle and place it at the point where compression is applied. Otherwise, dust will enter the valve or cylinder of the engine, which may cause malfunction. AMC-600M...
  • Page 28 Push the rotary clutch lever to Rotary Clutch Lever “Connected”. Disconnect Connect Push the main clutch lever slowly to Adjust Nut “Connected”. Main Clutch Lever Disconnect Connect Adjust Nut Adjust the speed with the speed control lever. Speed Control Lover High Start AMC-600M...
  • Page 29 ■ When working, prohibit approaching to the machine or its surroundings to persons other than the operator. IMPORTANT ■ To extend the life of the machine, avoid excessive work during the initial 2∼3 hours to allow 'taming time” to the machine. AMC-600M...

  • Page 30: Quick Hitch And Unplowed Land Remover

    (Prevent loss of wire connection links and Clutch Lever pins.) 3) Disassemble the retaining pin on the “support” connected between the transmission case and the rotary case. Support Plate 4) Remove the connecting chain case. Chain Case(connecting) AMC-600M...
  • Page 31 Connecting plate ※ Make sure that the fixing rod (lower) is fully Connecting seated in the quick link and firmly attached to Part the connecting plate. Lower fixing rod Quick Link AMC-600M...
  • Page 32 4) Assemble the connecting chain case to “finely” or “coarsely” according to desired requirements. Chain Case(connecting) 5) Combine the “support” connected between the transmission case and the rotary case. Support Plate 6) Assemble the “clutch wire” in the reverse order of the previous disassembly. AMC-600M...
  • Page 33 CAUTION ■ Unplowed land remover blades are extremely sharp, so special handling is required. Failure to observe this may result in injury. AMC-600M...

  • Page 34: Maintenance, Inspection And Adjustment

    Amount of 0.6ℓ cancer. ■ If the engine is running low on engine oil, it may cause a serious malfunction of the engine. ■ Do not overfill. It may cause malfunction. AMC-600M...
  • Page 35 Gear oil #90 Minimum: After 20 hours of Drain Bolt Change cycle 1~2 times a year Amount of 1.3ℓ IMPORTANT ■ If used for a longer period than the oil change cycle, machine abrasion gets severe and may cause malfunction. AMC-600M...
  • Page 36 Oil used Gear oil #90 Minimum: After 20 hours of Change cycle 1~2 times a year Amount of 0.4ℓ IMPORTANT ■ If used for a longer period than the oil change cycle, machine abrasion gets severe and may cause malfunction. AMC-600M...
  • Page 37 If the element is torn or punctured, replace it with a new one. IMPORTANT ■. If there is too much oil in the oil cup, the oil may be drawn into the carburetor, which may affect engine starting. Be sure to put the stipulated amount. AMC-600M...
  • Page 38 Axle ▶ When attaching iron wheels, wheel tubes, etc. to the cultivator axle, and attaching the medium-long rotary, ditching rotary, etc. to the rotary axle, apply a thin layer of grease to the cultivator axle and the rotary axle. AMC-600M...
  • Page 39 Tailwheels, and the rotating part of the handle. AMC-600M...
  • Page 40 IMPORTANT ■ When adjusting the tension of the belt, align the end of the engine pulley with the end of the transmission pulley. Otherwise, the belt may wear too severely or the power may not be delivered properly. AMC-600M...
  • Page 41 After adjustment, secure the lock nut securely. Adjust Nut IMPORTANT ■ Do not move the handle to the left or right with the handle left/right lever while holding the steering clutch lever. Faulty steering system may occur. AMC-600M...

  • Page 42: List Of Lubrication

    Grease or engine oil Plowing drive shaft Grease Up/Down adjustment pin Appropriate amount Main shift lever Plowing shift lever Engine oil, gear oil О After 20 hours of use Handle rotation section Tension pulley arm Engine oil Wires and Levers AMC-600M...

  • Page 43: Machine Care And Storage

    If there are any dirt such as grass, vinyl or string on the rotary blade axle, disassemble the blade and remove it. When reassembling, apply grease or oil to Aix(Rotary Blade) the rotary axle to disassemble it easily at the next disassembly. AMC-600M...
  • Page 44 Apply oil or grease to areas that are easily rusted on the outside or where they will work. e) Keep the machine indoor if possible. f) For other matters, follow the instructions in “When storing temporarily”. AMC-600M...

  • Page 45: Machine Transport

    ■ When loading or unloading the cultivator, be sure not to operate the main clutch lever and shift select lever. ■ When loading it on a truck, set the gear to “Forward”, and when unloading it, set the gear to “Backward”. AMC-600M...
  • Page 46 2. Rotary (SCR-500) ------- 47 3. Ditching Rotor------------ 49 4. Hiller (SRD-3) -------- 51 5. Vinyl Mulcher (ASM-120) Refer to the Exclusive Manual (Provided When Purchasing Mulcher) 6. Ridger (AFR-250) Refer to the Exclusive Manual (Provided When Purchasing Ridger) AMC-600M...

  • Page 47: How To Use Work Machine

    Tailwheel. 3. Rotary Cover Adjustment Adjust the rotary cover properly to suit the working conditions. 1) Work Width Adjust Adjust the width of the rotary cover by Knon-bolt loosening the adjustment knob to suit the working width. AMC-600M...
  • Page 48 Spline groove CAUTION ■ If the set screw is not installed in the groove of the rotary spline shaft or it is loosely installed, it may cause the blades fall off during operation, resulting in injury. AMC-600M...

  • Page 49: Rotary (Scr-500)

    ① Field rotary work (Rotary Blade) Separate the medium-long rotary and look at the medium-long weeder from the engine side, and assemble as shown in the picture by separating left and right sides. Rotary Blaed( L ) Rotary Blaed( R ) AMC-600M...
  • Page 50 ③ Leveling by reverse 1 , after rotary work. IMPORTANT ■ When adjusting the angle of opening of the rotary cover, be careful that the soil does not fly to the engine side. It may cause engine failure and affect engine life. AMC-600M...

  • Page 51: Ditching Rotor (Sdr-200N)

    1) Wide iron wheel (minimum width of about 25 cm) 2) Wide iron wheel (minimum width of about 20 cm) 3)Coated wheel (minimum width of about 20 ※ Refer to Parts Specification AMC-600M...
  • Page 52 It may cause engine failure and affect engine life. 5. Driving Speed and Rotary Speed Turn the handle to the engine and change the driving speed and rotary speed to suit the working conditions. AMC-600M...

  • Page 53: Hiller (Srd-3)

    Y-type handle. Otherwise, you can get injured while working. 1. Hiller Assembly 1. Disassemble the unplowed land remover blade. Remove Blade 2. Disassemble the Tailwheel and assemble Hiller the hiller. 3. Turn handle direction to the rotary side. AMC-600M...
  • Page 54 “Auxiliary Hilling Plate”. 3. Adjust the slope of the hiller with the “'Inclination Adjustment Lever” according to the hilling state. 3. Hiller Work For hiller work, turn the handle to the rotary side and drive the rotary to rotate forward. AMC-600M...
  • Page 55 THE ASIA PARTS LIST Never use other than GENUINE ASIA PARTS they are standardized, tested and proved. Using genuine parts saves your time and money above all. Ensures that your machine will always be ready for immediate work. AMC-600M...
  • Page 56 AMC-600M...
  • Page 57 AA300-G0604 Group. Control Wire ※ AA300-G0701 Group. Wheel ※ ※ AA300-G0702 Group. Steel Wheel(wide) 25cm, Option ※ ※ AA300-G0703 Group. Steel Wheel 20cm, Option ※ AA300-G0704 Group. Rubber coated Wheel 20cm, Option AA300-G0801 Group .Electric System AA300-G0901 Group .Label AMC-600M...
  • Page 58 (G) MAGNETO GROUP E130A (H) AIR CLEANER GROUP E140A (I) CARBURETOR GROUP E150A (J) CONTROL PANEL GROUP E160A (K) FAN COVER GROUP E170A (M) TANK GROUP E180A (N) COCK GROUP E190A (R) RECOIL STARTER GROUP E200A (S) MUFFLER GROUP AMC-600M...
  • Page 59 AMC-600M...
  • Page 60 G0101 AMC-600M...
  • Page 61 AA300 ASIA PARTS LIST G0101 Group.Transmission Case 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-01210-01 Mission Case(L) Ass'y Mission Case Ass'y(R) AA300-01310-01 Packing, Mission AA300-01221 t1.0 Bracket(A), Fork shaft AA300-01162 Support plate Ass`y AA300-01151 DT-0117 M8xP1.25-25L, 7T BOLT GT-0120 M10xP1.25-8L...
  • Page 62 G0101 AMC-600M...
  • Page 63 AA300 ASIA PARTS LIST G0101 Group.Transmission Case 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty GT-0640 d8.2Xd13xt0.2 PACKING AMC-600M...
  • Page 64 G0102 AMC-600M...
  • Page 65 AA300 ASIA PARTS LIST G0102 Group A. Transmission Gear 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-01021 Shaft, Main Gear, Forward AA300-01022 24T, 32T Gear, Reverse AA300-01023 19T, 17T Collar(B) AA300-01061 Φ27.2xt3.9 Shaft, Forward AA300-01024-01 Φ18 AA300-01037-01 30T, 21T, 32T, 24T Gear, Foward shaft AA300-01026-01 Φ21.7xt4.7...
  • Page 66 G0103 AMC-600M...
  • Page 67 AA300 ASIA PARTS LIST G0103 Group B. Transmission Gear 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-01031 Shaft, Reduction Gear, Reduction AA300-01132-01 Collar, Reduction Shaft AA300-01033 Φ27.2xt3.9 Shaft, Idle AA300-01034 Idle gear 40 AA300-01035-01 AA300-01036 K202413 Needle Bearing DT-0223 d16.2xD24xt0.2...
  • Page 68 G0104 AMC-600M...
  • Page 69 AA300 ASIA PARTS LIST G0104 Group C. Transmission Gear 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-01040-01 Axle Gear Axle Shaft AA300-01041-01 Idle shaft, Axle AA300-01042-01 Side clutch AA300-01043-01 Thrust Washer AA300-01044 t4.5 AA300-01047 Φ18 Clutch Spring...
  • Page 70 G0105 AMC-600M...
  • Page 71 AA300 ASIA PARTS LIST G0105 Group. Transmission Fork 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-01051-01 Fork shaft, Forward change AA300-01052-01 Fork shaft, Reverse change AA300-01053 Fork, Forward change GT-0114 HOOK AA010-01241 GUIDE. Foward GT-0125 GUIDE. Rear...
  • Page 72 G0201 AMC-600M...
  • Page 73 AA300 ASIA PARTS LIST G0201 Group. Rotary Case 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-02110-01 Rotary Case Ass'y(L) AA300-02130-01 Rotary Case Ass'y(R) AA300-02141 t1.0 Gasket, Rotary Case GT-0636 TENSION ROLLER AA010-01851 Air Breather AA010-06421 Lever, Rotary change...
  • Page 74 G0202 AMC-600M...
  • Page 75 AA300 ASIA PARTS LIST G0202 Group. Rotary Gear, Chain 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-02211 Shaft, Rotary drive AA300-02212-01 Gear, Rotary Shift AA300-02710 Seal cap AA300-01061 Φ27.2xt3.9 Collar(B) AA300-02221 Shaft, Idle AA300-02223 Gear, Idle shaft AA300-02222 Φ27.2xt2.9...
  • Page 76 G0203 AMC-600M...
  • Page 77 AA300 ASIA PARTS LIST G0203 Group. Rotary Fork 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-02213 Φ13 Fork Shift, Rotary chain AA010-06392 Fork, Rotary chain AA080-01211 Φ1.4 SHAFT SPRING GT-0640 d8.2xD13xt0.2 PACKING A7715-01605 5/16" STEEL BALL A5511-53220...
  • Page 78 G0204 AMC-600M...
  • Page 79 AA300 ASIA PARTS LIST G0204 Group. Rotary Clutch 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-02510 Lever, Rotary Clutch shaft AA132-06833 Φ13 Pork shaft, Rotary Clutch AA132-06873 CAM BOSS 2 AA132-06851 d10xD15xt2.0 Washer AA132-06843 Fork, Clutch AA132-06882 Φ2.3...
  • Page 80 G0205 AMC-600M...
  • Page 81 AA300 ASIA PARTS LIST G0205 Group. Remove uncultivated land 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-02305 Support Ass`y AA300-02321-01 Removal knife DT-0117 BOLT A2763-50080 M8xP1.25 FLANGE NUT A4014-50100 M10 11x21x2 PLAIN WASHER A4512-50080 SPRING WASHER A5132-51022...
  • Page 82 G0206 AMC-600M...
  • Page 83 AA300 ASIA PARTS LIST G0206 Goup. Flattening uncultivated land 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-02060 Flattening Plate Ass'y AA300-02335 Scraper AA210-04101 Spring, Steering Clutch Wire A1155-50860 M8xP1.25x60(7T) BOLT A4013-50080 PLAIN WASHER A2112-50080 M8xP1.25 A5122-50820 D8x20...
  • Page 84 G0301 AMC-600M...
  • Page 85 AA300 ASIA PARTS LIST G0301 Group. Connecting Chain Case 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA010-06462-01 Chain Case(in) GT-0647 Chain Case(out) GT-0648 RS50, 42Link Connected Chain DT-0605 RS50 x 12T SPROCKET DT-0606 RS50 x 14T SPROCKET...
  • Page 86 G0401 AMC-600M...
  • Page 87 AA300 ASIA PARTS LIST G0401 Group. Engine Frame 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-04110 Frame(R), Engine AA300-04120 Frame(L), Engine AA300-04211 Φ15.9xt2.6 Collar(A), Base AA300-04220-01 Spacing bracket AA300-04410-01 Stand Frame AA300-04310-01 Stand DT-0170 KNOCK PIN AA01003480 Φ1.8, R...
  • Page 88 G0402 AMC-600M...
  • Page 89 AA300 ASIA PARTS LIST G0402 Group. Engine 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-01001 GB181LN Engine Miracle Start AA300-04330 Bracket, Engine Cover AA300-04335 Fuel tank cover RP-2459 M6xP1.0 Knob A1153-50845 M8xP1.25-45L, 7T BOLT S7-1158 WASHER A4512-50080...
  • Page 90 G0403 AMC-600M...
  • Page 91 AA300 ASIA PARTS LIST G0403 Group. Belt Cover and Pully 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-04200-01 Belt cover, Inner AA300-04240 Fixing bracket, Belt cover AA300-04021 Main pulley AA300-04025 Collar AA300-04230 Belt guide AA300-04217 Belt guide B...
  • Page 92 G0404 AMC-600M...
  • Page 93 AA300 ASIA PARTS LIST G0404 Group. Hitching Ass`y 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-04421-01 Hitching Frame AA300-04431-01 Safety pin AA300-04444-01 Φ1 Spring AA300-04443 Quick link AA300-04441-01 Pin, Quick link AA300-04445 Φ1.4 Spring, Quick hitch 236 840.0 d13XD22Xt1.0...
  • Page 94 G0501 AMC-600M...
  • Page 95 AA300 ASIA PARTS LIST G0501 Group. Rotary frame 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-05100 Rotary Frame Ass'y AA300-05150-01 Hitching frame, Rotary AA300-05120 Center Cover AA300-05180 Support AA210-07080 Wheel Support Holder GT-0709 Φ3 FIXED SPRING DT-0684 Lever.
  • Page 96 G0502 AMC-600M...
  • Page 97 AA300 ASIA PARTS LIST G0502 Group. Rotary Cover R 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-05200-01 Rotary Cover A(R) AA300-05231-01 Rotary cover B(R) AA300-05251-01 t1.6 Side Cover(R) AA300-05240 Cover Braket AA300-05252 Φ8 AA300-05253 t2.3 Plate A AA300-05254 t1.6...
  • Page 98 G0502 AMC-600M...
  • Page 99 AA300 ASIA PARTS LIST G0502 Group. Rotary Cover R 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty A60 0332A WASHER AMC-600M...
  • Page 100 G0503 AMC-600M...
  • Page 101 AA300 ASIA PARTS LIST G0503 Group. Rotary Cover R 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-05300-01 Rotary Cover A(L) AA300-05331-01 Rotary cover B(L) AA300-05351-01 t1.6 Side Cover(L) AA300-05240 Cover Braket AA300-05252 Φ8 AA300-05253 t2.3 Plate A AA300-05254 t1.6...
  • Page 102 G0503 AMC-600M...
  • Page 103 AA300 ASIA PARTS LIST G0503 Group. Rotary Cover R 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty A60 0332A WASHER AMC-600M...
  • Page 104 G0504 AMC-600M...
  • Page 105 AA300 ASIA PARTS LIST G0504 Group. Tail Wheel 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA010-07141 t1.0 SAFETY CAP AA300-05402 Tail wheel Ass'y 3 ~ 5 AA300-05403 Support, Tail wheel GT-0712 Tailwheel Adjust Screw GT-0713 Tail Wheel Rod...
  • Page 106 G0601-1 AMC-600M...
  • Page 107 AA300 ASIA PARTS LIST G0601-1 Group. Handle 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-06021-01 Handle Ass'y AA300-06041-01 Steering lever A60 0355A Governor lever DT-0468A Rubber DT-0479A t1.6 Holder Plate GT-0551A Lever Ass`y (L) GT-0556A Lever Ass`y (R) A60 0337A Φ17.3xt3.7...
  • Page 108 G0601-2 AMC-600M...
  • Page 109 AA300 ASIA PARTS LIST G0601-2 Group. Handle 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA115-04691 Lever. Clutch DT-0115 HANDLE AA115-04543 Lever. Safe GT-0455 HANDLE(B) AA115-03812 Φ1.6 Spring. Safety Lever AA115-04592-02 t1.6 Cover, Main clutch GT-0456 t4.5 Joint. Connectting Wire A1026-50614 M6xP1.0-14L...
  • Page 110 G0601-3 AMC-600M...
  • Page 111 AA300 ASIA PARTS LIST G0601-3 Group. Handle 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-06050 Handle Cover Ass'y AA132-04492 MAIN LEVER RP-1118 Handle AB390-12072-01 t1.6 Clutch Lever Cover AB390-12092 t4.5 WIRE RINK AA10003381 Grip, Handle A1026-50614 M6xP1.0-14L...
  • Page 112 G0602 AMC-600M...
  • Page 113 AA300 ASIA PARTS LIST G0602 Group. Handle Support 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-06001 Handle Support AA300-06044 t2.0 Washer AA300-06201-01 Bracket, Handle support AA010-04441 BRACKET A8511-06030 60x65x30 BUSH A4612-00600 SNAP RING A1136-51025 M8xP1.25-25L Bolt. sw+pw A1130-51020 M8xP1.25-20L...
  • Page 114 G0603 AMC-600M...
  • Page 115 AA300 ASIA PARTS LIST G0603 Group. Shift Lever 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-06222 t1.6 Plate, Shift Guide AA300-06211 Shift Arm Ass'y AA130-04252 Lever Ass`y. shift GT-0428 LEVER SUPPORT GT-0436 t1.6 WASHER GT-0437 Φ1.6 SPRING GT-0438 t1.6...
  • Page 116 G0604 AMC-600M...
  • Page 117 AA300 ASIA PARTS LIST G0604 Group. Control Wire 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty 밸트텐션 AA300-06301 Wire. Main Clutch 로타리클러치축 AA300-06302 Wire. Rotary Clutch 밋션조인트레버 AA300-06303 Wire. Steering 힛치 AA300-06307 Wire. Hitching 엔진 AA110-03481 1300L Wire. Governor 핸들지지대...
  • Page 118 G0701 AMC-600M...
  • Page 119 AA300 ASIA PARTS LIST G0701 Group. Wheel 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-07101 Tire Ass`y(R) 1-1 ~ 1-8 1-1 AA300-07111 1-2 DT-0503 t2.3 Disc Wheel 1-3 DT-0504 t2.3 DISC WHEEL(OUT) 1-4 A60 0533A 3.50-7, 2PR...
  • Page 120 G0702 AMC-600M...
  • Page 121 AA300 ASIA PARTS LIST G0702 Group. Steel Wheel(wide) 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-07201 Steel Wheel(wide) Min 25cm DR-0120 Wheel Tube DT-0507A SHAFT PIN(B) A5525-51400 SNAP PIN ※ This part is not a basic product, so purchase it if necessary. (This must be purchased additionally)
  • Page 122 G0703 AMC-600M...
  • Page 123 AA300 ASIA PARTS LIST G0703 Group. Steel Wheel 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-07301 Steel Wheel Min 20cm DR-0120 Wheel Tube DT-0507A SHAFT PIN(B) A5525-51400 SNAP PIN ※ This part is not a basic product, so purchase it if necessary. (This must be purchased additionally)
  • Page 124 G0704 AMC-600M...
  • Page 125 AA300 ASIA PARTS LIST G0704 Group. Rubber coated Wheel 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-74001-01 Rubber Wheel L Min 20cm AA300-74006-01 Rubber Wheel R DR-0120 Wheel Tube DT-0507A SHAFT PIN(B) A5525-51400 SNAP PIN ※ This part is not a basic product, so purchase it if necessary. (This must be purchased additionally)
  • Page 126 G0801 AMC-600M...
  • Page 127 AA300 ASIA PARTS LIST G0801 Group .Electric System 2021.04. AMC-600M No. Parts No.. Size Parts Name Remarks Q’ty AA300-08110 Lead wire Ass`y AA300-08120 On-Off Switch AMC-600M...
  • Page 128 G0901 AMC-600M...
  • Page 129 No. Parts No.. Size Parts Name Remarks Q’ty AA300-09011-01 Label, Manufacturing AA300-09031 Label, Belt cover(ASIA) AA300-09041 Label, Belt cover(AMC-600M) AA300-09071 Label, Handle cover ENG AA300-09081 Label, Handle cover KOR AA300-09099 Label, Shift guide AA300-09119 Label, On-Off Switch AA300-09129 Label, Safety Pin Importance...
  • Page 130 SCR-500 AMC-600M...
  • Page 131 Parts Name Remarks Q’ty AB326-01000-01 Rotary Ass'y(L) AB326-01100-01 Tube Ass'y(L), Rotary VR-0332 Blade B(R) VR-0331 Blade B(L) 502 511.0 M10x25xP1.5 Cup Head Square Neck Bolt A4512-50100 SPRING WASHER A2056-50100 M10xP1.5 DT-0708 Bolt A2012-50100 AB326-02000-01 Rotary Ass'y(R) AB326-02100-01 Tube Ass'y(R), Rotary AMC-600M...
  • Page 132 SDR-200N AMC-600M...

  • Page 133: Ditching Rotor (Option)

    (L1, R1) A2012-50100 M10x1.5P (L1, R1) AA110-08161 M10x1.25Px32L BOLT (L6, R6) A4512-50100 SPRING WASHER (L6, R6) AB330-03610 M10x1.25P Nylon Nut (L6, R6) AB440-01022 Ditching Blade Ass'y(R) (22~25cm) AA110-08163 Blade Holder Ass'y(R) AB360-08031 Blade R. Nomal AB360-01041 Blade R. Special AMC-600M...
  • Page 134 SDR-180 AMC-600M...

  • Page 135: Ditching Rotor (Option)

    Blade, Spacial (L) DT-0720 BOLT, BLADE SETTING A4512-50100 SPRING WASHER DT-0721 DT-0773A Bolt. Lock A2012-50100 M10x1.5P AB332-01021-01 Ditching Blade Ass'y(R) 10~16 AB332-01041-01 Ditching Rotor(R)(18cm) AB331-01041 Blade, Spacial (R) DT-0720 BOLT, BLADE SETTING A4512-50100 SPRING WASHER DT-0721 DT-0773A Bolt. Lock A2012-50100 M10x1.5P AMC-600M...
  • Page 136 SDR-300 AMC-600M...
  • Page 137 DT-0720 BOLT, BLADE SETTING A4512-50100 SPRING WASHER DT-0721 DT-0708 Bolt A2012-50100 M10x1.5P AB333-01021-01 Ditching Blade Ass'y(R) 11~18 AB333-01042-01 Ditching Rotor(R) AA110-08031 Blade (R) AB331-01041 Blade, Spacial (R) DT-0720 BOLT, BLADE SETTING A4512-50100 SPRING WASHER DT-0721 DT-0708 Bolt A2012-50100 M10x1.5P AMC-600M...
  • Page 138 SDR-400 AMC-600M...
  • Page 139 AB338-01000-01 Ditching Ass'y(L) AB338-01100-01 Holder Ass'y(L), Blade AA110-08021 Blade (L) AB331-01031 Blade, Spacial (L) DT-0720 BOLT, BLADE SETTING A4512-50100 SPRING WASHER DT-0721 DT-0708 Bolt A2012-50100 AB338-02000-01 Ditching Ass'y(R) AB338-02100-01 Holder Ass'y(R), Blade AA110-08031 Blade (R) AB331-01041 Blade, Spacial (R) AMC-600M...

  • Page 140: Sdr-250H

    SDR-250H AMC-600M...
  • Page 141 SPRING WASHER A4512-50100 Ditching Blade Ass'y(R)(H) 11~18 AB360-00361 Ditching Rotor(R)(25cm)(H) AB360-00304 (25cm) Blade R. Nomal AB360-08031 t6.0 Blade R. Special AB360-01041 t6.0 Bolt DT-0708 M10×P1.5 A2012-50100 M10xP1.5(4T) Round head square neck bolt 502 511.0 A2056-50100 M10xP1.5 (6T) SPRING WASHER A4512-50100 AMC-600M...
  • Page 142 SRD-3 AMC-600M...
  • Page 143 Plate (R). Ridging Z5120-06085 Φ6x85 A5515-50600 Φ6 Snap Pin A60 1025A Adjustment Handle. Angle A5122-50640 A60 1026A Sub Plate (L). Ridging A60 1027A Sub Plate (R). Ridging A60 1028A Plate L. Support A60 1029A Plate R. Support A60 1030A Bolt AMC-600M...
  • Page 144 SRD-3 AMC-600M...
  • Page 145 Ridger (OPTION) 2021.04. SRD-3 No. Parts No.. Size Parts Name Remarks Q’ty A4014-50080 d9xD17x1.6t PLAIN WASHER A2814-50080 M8x1.25P A60 1031A Plate A60 1032A Lever. Fix A60 1036A Support A60 0919A Wheel. Tail A60 0920A Bush A1173-51060 M10x1.25Px60L Bolt A2116-50100 M10x1.25P AMC-600M...
  • Page 146 E010A AMC-600M...

  • Page 147: Bolt,Spring,Cover

    ENGINE ASIA PARTS LIST BOLT,SPRING,COVER 2021.04. E010A No. Parts No.. Size Parts Name Remarks Q’ty 9396006 B155B08X020 BOLT,STUD 9397146 KG34050AB SPRING,GOV 9397220 FR64255J TUBE,FUEL AMC-600M...
  • Page 148 E020A AMC-600M...

  • Page 149: Lead Wire, Plug, Cap

    ENGINE ASIA PARTS LIST LEAD WIRE, PLUG, CAP 2021.04. E020A No. Parts No.. Size Parts Name Remarks Q’ty 9397225 KE90069BA WIRE,LEAD 9350224 BP6HS KE41022AD PLUG,SPARK AMC-600M...
  • Page 150 E030A AMC-600M...

  • Page 151: Label,Fuel Hose

    ENGINE ASIA PARTS LIST LABEL,FUEL HOSE 2021.04. E030A No. Parts No.. Size Parts Name Remarks Q’ty 9397237 KW56276BA LABEL,CHOKE 9350218 KW52386CA LABEL,NAME 9350226 KF70058AA HOSE,FUEL 9397239 P051Y08X420 HOSE,FUEL AMC-600M...
  • Page 152 E040A AMC-600M...

  • Page 153: Tool Set

    ENGINE ASIA PARTS LIST TOOL SET 2021.04. E040A No. Parts No.. Size Parts Name Remarks Q’ty 9397180 KN12007AA SPANNER,BOX 9396375 KN13001AA DRIVER,SCREW 9396611 W405B05X035 KEY,SUNK 9396000 B080A08X016 BOLT & WASHER 9396610 W207H08 WASHER AMC-600M...
  • Page 154 E050A AMC-600M...

  • Page 155: Gasket Set

    ASIA PARTS LIST GASKET SET 2021.04. E050A No. Parts No.. Size Parts Name Remarks Q’ty 9350217 INCL.NO.2-7 KW39110DB GASKET SET 9397121 KC66016AA GASKET,HEAD 9397210 KW33017AA GASKET,HEAD COVER 9350214 KW34029CA GASKET,CARBURETOR 9350215 KW34077BA GASKET,CARBURETOR 9350216 KW34083BA GASKET,AIR CLEANER 9396364 KM70031AB GASKET,MUFFLER AMC-600M...
  • Page 156 E060A AMC-600M...

  • Page 157: (A) Cylinder Block Group

    ENGINE ASIA PARTS LIST (A) CYLINDER BLOCK GROUP 2021.04. E060A No. Parts No.. Size Parts Name Remarks Q’ty 9396041 FN11223 PLUG,DRAIN 9350219 KB44018AA CYLINDER BLOCK 9396551 KW25003AA OIL SEAL 9396602 #6205 S111X62X050 BEARING,BALL 9396617 ZZ70013A GASKET AMC-600M...
  • Page 158 E070A AMC-600M...

  • Page 159: (B) Cylinder Head Group

    INCL.NO.9-15 9350212 KV74013AB PLATE,ROCKER 9350210 KV72016AA ARM,ROCKER 9350211 KV72017AA ARM,ROCKER 9396477 KU23013AA NUT 9396531 KV73004AA SCREW,ADJUST 9396537 KV75009BA SHAFT 9396044 FR34111 CLIP,PISTON PIN 9397209 KW21023AA SEAL,VALVE STEM 9396011 B800A06X016 BOLT,FLANGE 9396019 B800B08X055 BOLT,FLANGE 9396483 KU44001AA PIN,DOWEL 9397121 KC66016AA GASKET,HEAD AMC-600M...
  • Page 160 E080A AMC-600M...

  • Page 161: (C) Head Cover Group

    ENGINE ASIA PARTS LIST (C) HEAD COVER GROUP 2021.04. E080A No. Parts No.. Size Parts Name Remarks Q’ty 9397120 KC09016AA COVER,HEAD 9396021 B805B06X012 BOLT,FLANGE 9397210 KW33017AA GASKET,HEAD COVER AMC-600M...
  • Page 162 E090A AMC-600M...

  • Page 163: (D) Case Cover Group

    KB64015BA COVER,CRANKCASE 9397141 INCL.NO.4 KG01007AA GOVERNOR GEAR ASSY 9397143 KG14006AA SLIDER,GOV 9396202 KG22004AA SHAFT,GOV 9396349 INCL.NO.7 KL21006EA GAUGE,OIL 9396550 KW23003AA O-RING 9396551 KW25003AA OIL 9396018 B800B08X030 BOLT,FLANGE 9396483 KU44001AA PIN,DOWEL 9396609 W200H06 WASHER 9396041 FN11223 PLUG,DRAIN 9396617 ZZ70013A GASKET AMC-600M...
  • Page 164 E100A AMC-600M...

  • Page 165: (E) Crankshaft Group

    No. Parts No.. Size Parts Name Remarks Q’ty 9350221 INCL.NO.2-4 KD02067CC CRANKSHAFT ASSY 9397126 KD63052AC GEAR,CRANKSHAFT 9350222 KD63062AA GEAR 9398959 KD90016AA KEY,WOODRUFF 9397197 KU39008CC SHIM 9398959 KD90016AA KEY,WOODRUFF 9397199 INCL.NO.8,9 KV01212AC CAMSHAFT ASSY 9350213 KV83009BG PIN 9396604 S500P03 SNAP RING AMC-600M...
  • Page 166 E110A AMC-600M...

  • Page 167: (F) Piston & Rod Group

    (F) PISTON & ROD GROUP 2021.04. E110A No. Parts No.. Size Parts Name Remarks Q’ty 9397123 STD INCL.NO.2 KD03032AA CONNECTING ROD ASSY 9396017 KD70001CA BOLT,FLANGE 9350197 KP16012AA PISTON 9350200 KP55009AA PIN,PISTON 9350194 KP02023AA PISTON RING SET 9396405 KP90003AA CLIP,PISTON PIN AMC-600M...
  • Page 168 E120A AMC-600M...

  • Page 169: (G) Magneto Group

    ENGINE ASIA PARTS LIST (G) MAGNETO GROUP 2021.04. E120A No. Parts No.. Size Parts Name Remarks Q’ty 9397240 INCL.NO.2 KE24022CA COIL,IGNITION 9398913 KE42024AA CAP,PLUG 9350223 KE12049AA FLYWHEEL 9396024 B805B06X025 BOLT,FLANGE 9396046 FR41231 NUT AMC-600M...
  • Page 170 E130A AMC-600M...

  • Page 171: (H) Air Cleaner Group

    E130A No. Parts No.. Size Parts Name Remarks Q’ty 9397221 INCL.NO.2-5 KA01069LA AIR CLEANER ASSY 9397222 KA01069JA002 CAP 9398952 KA01069AA003 ELEMENT,CLEANER 9396767 INCL.NO.5 KA01069AA004 OIL PAN ASSY 9350668 KA01069AA005 PACKING 9398917 ZZ70002N TUBE,BREATHER 9397219 B155B06X125 BOLT,STUD 9390225 N801A06 NUT,FLANGE AMC-600M...
  • Page 172 E140A AMC-600M...

  • Page 173: (I) Carburetor Group

    KK13019BH017 BOLT 9397161 KK12046AA022 LEVER,CHOKE 9350185 KK13061AA029 RING 9396252 KK12008AE019 SEAL 9396253 KK12008AE020 RING 9396254 KK12008AE021 RING 9350189 KK13074CA031 NOZZLE,MAIN 9350181 KK74525DC788 JET,MAIN 9350669 KK74508CC400 JET,PILOT 9350187 KK13063CA010 PLATE 9350190 KK16014AA011 SCREW 9350192 KK90094AA FILTER 9350184 INCL.NO.31-33 KK01015AA INSURATOR AMC-600M...
  • Page 174 E140A AMC-600M...
  • Page 175 ENGINE ASIA PARTS LIST (I) CARBURETOR GROUP 2021.04. E140A No. Parts No.. Size Parts Name Remarks Q’ty 9397168 KK32006AA INSULATOR 9350214 KW34029CA GASKET,CARBURETOR 9350215 KW34077BA GASKET,CARBURETOR 9397171 KK90058AA LEVER,CHOKE 9350191 KK90060BA BRACKET,CHOKE 9350216 KW34083BA GASKET,AIR CLEANER AMC-600M...
  • Page 176 E150A AMC-600M...

  • Page 177: (J) Control Panel Group

    KG35010BA SPRING,RETURN 9397144 KG22020AA SHAFT,GOV 9350228 INCL.NO.12,13 KG31036AA LEVER,GOV 9396016 B800B06X020 BOLT,FLANGE 9350206 KU23019CA NUT 9397147 KG41030AA ROD,GOV 9397148 KG42035AA SPRING,ROD 9396226 KG90015AA WASHER 9396227 KG90016AA SEAL,DUST 9350183 KH40154AA COVER,TOP 9396489 KU70006AA CLIP 9396021 B805B06X012 BOLT,FLANGE 9396022 B805B06X016 BOLT,FLANGE AMC-600M...
  • Page 178 E160A AMC-600M...

  • Page 179: (K) Fan Cover Group

    ENGINE ASIA PARTS LIST (K) FAN COVER GROUP 2021.04. E160A No. Parts No.. Size Parts Name Remarks Q’ty 9350182 KH27042DA COVER,FAN 9397152 L=60 KH90092CA RUBBER CUSHION 9397153 L=70 KH90092DA RUBBER CUSHION 9396021 B805B06X012 BOLT,FLANGE AMC-600M...
  • Page 180 E170A AMC-600M...

  • Page 181: (M) Tank Group

    ASIA PARTS LIST (M) TANK GROUP 2021.04. E170A No. Parts No.. Size Parts Name Remarks Q’ty 9397241 INCL.NO.2-4 KF04127AA FUEL TANK ASSY 9396178 KF05037CA TANK CAP ASSY 9398965 KF40024BA FILTER,FUEL 9398967 KF90080AA GAUGE,OIL 9396022 B805B06X016 BOLT,FLANGE 9396058 FR67419 CLIP AMC-600M...
  • Page 182 E180A AMC-600M...

  • Page 183: (N) Cock Group

    ENGINE ASIA PARTS LIST (N) COCK GROUP 2021.04. E180A No. Parts No.. Size Parts Name Remarks Q’ty 9350225 INCL.NO.2-4 KF31047AA COCK,FUEL 9396184 KF31018AA003 FILTER,FUEL 9396181 KF31010AA002 CUP 9396182 KF31010AA004 PACKING 9396010 B800A06X012 BOLT,FLANGE 9396054 FR53226 CLIP 9396058 FR67419 CLIP AMC-600M...
  • Page 184 E190A AMC-600M...

  • Page 185: (R) Recoil Starter Group

    KS20155AA003 CAM 9350673 KS20112AD004 SPRING,SPIRAL 9350674 KS20112AD006 SCREW 9350675 KS20147AA106 ROPE,STARTER 9350676 KS20195AD210 KNOB,STARTER 9350677 KS20106AA310 CAP 9350678 INCL.NO.10-12 KS30062AA PULLEY,STARTER 9350679 KS30061AA002 RATCHET 9350680 KS30062AA003 SPRING,RETURN 9350681 KS30061AA004 RETAINER 9350682 KS90109AA SPACER 9398944 B800A06X045 BOLT,FLANGE 9396011 B800A06X016 BOLT,FLANGE AMC-600M...
  • Page 186 E200A AMC-600M...

  • Page 187: (S) Muffler Group

    ASIA PARTS LIST (S) MUFFLER GROUP 2021.04. E200A No. Parts No.. Size Parts Name Remarks Q’ty 9350193 KM27019EA COVER,MUFFLER 9397265 FA28221 PIPE,TAIL 9396607 W006D04X006K SCREW 9398979 KM17025AA MUFFLER 9396009 B800A06X008K BOLT,FLANGE 9398935 B800A08X016 BOLT,FLANGE 9396618 ZZ70028C NUT,CONICAL SPG 9396364 KM70031AB GASKET,MUFFLER AMC-600M...
  • Page 188 ASIA CULTIVATOR AMC-600M Mailing Add. : 11, 96-Gil, Biseul-Ro, Yuga-Eup, Dalsung-Gun, Daegu, S.KOREA 43020 http://www.asiakor.com TEL : 82-53-580-7726 FAX : 82-53-580-7700 NO.2103...

Table of Contents
