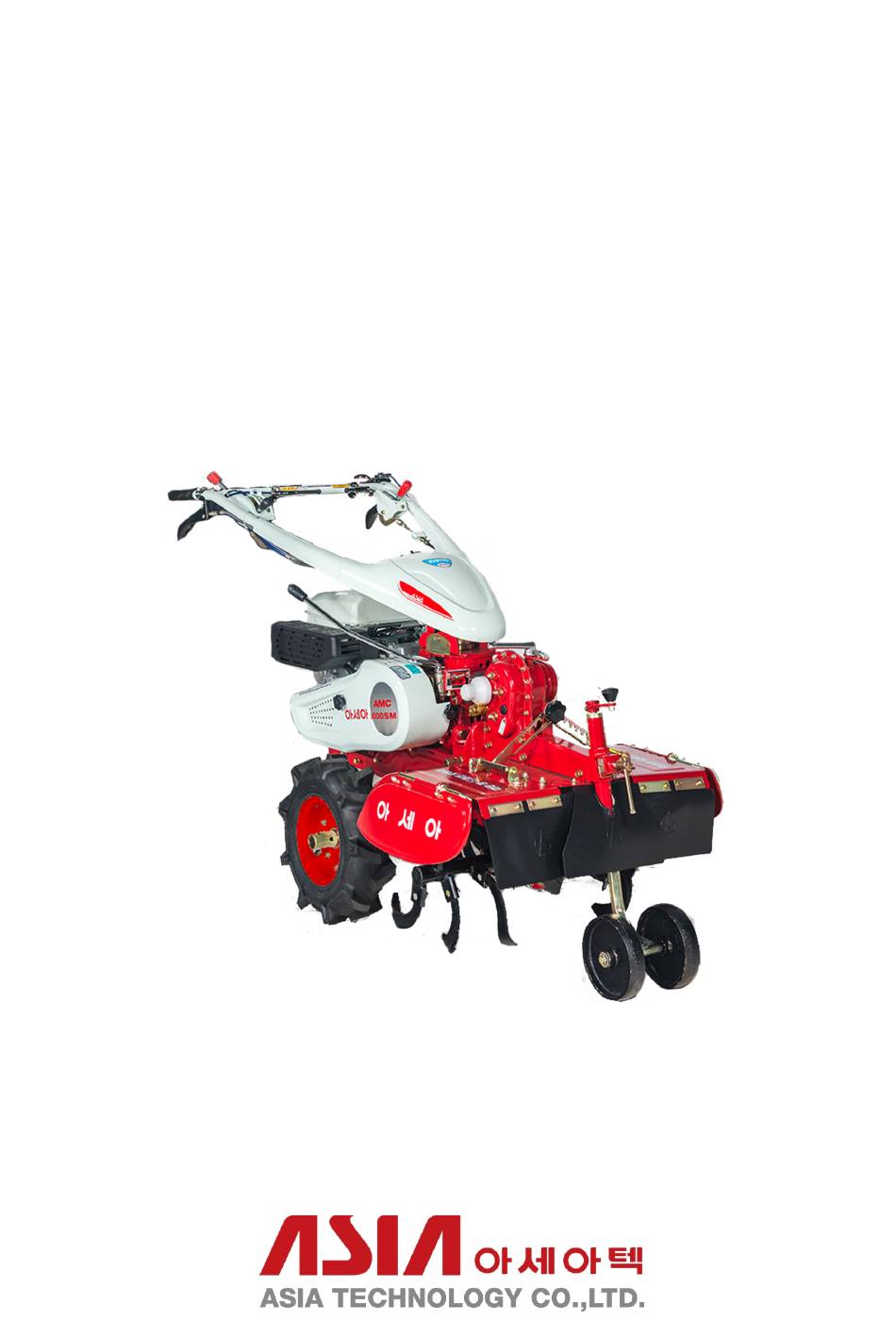

ASIA CULTIVATOR
OPERATOR'S MANUAL & PARTS LIST
AMC-1000 / 1000SM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMC-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for ASIA TECHNOLOGY AMC-1000

Summary of Contents for ASIA TECHNOLOGY AMC-1000

  • Page 1 ASIA CULTIVATOR OPERATOR’S MANUAL & PARTS LIST AMC-1000 / 1000SM...

  • Page 2: Table Of Contents

    7. Storage of machine ---------------------- 37 8. Transportation of machine ------------- 38 9. Attachment and using of basic implement 1. Rotary Tiller ---------------------------- 39 2. Tilling Rotor ---------------------------- 40 3. Ditching Rotor ------------------------- 43 4. Ridger ----------------------------------- 46 10. Lubrication chart ------------------------- 48 AMC-1000/1000SM...

  • Page 4: For Safety

    위 Warning Important This indicates important This indicates the potentially dangerous situation which could cause directions about machine use, maintenance, inspection, storage and death or serious injury if not observed. disuse. AMC-1000/1000SM...
  • Page 5 For Safety ①Label, Caution Caution label attachment position (Parts No : AA133-06689) ① ② Fig.1-3 ②Label, Warning (Parts No : AA133-06689) Fig.1-1 Fig.1-4 ③Label, Warning (Parts No : AA019-07561) ③ Fig.1-2 Fig.1-5 AMC-1000/1000SM...
  • Page 6 ■ Please clean the caution plate always not to be spoiled and replace it with a new one through dealer if damaged or lost. ■ Please replace the label, too when replacing a part with plate attached by a new one. AMC-1000/1000SM...
  • Page 7 Wear helmet, safety footwear, eye shield, and gloves, etc. if needed. Fig.1-11 Caution For lending the machine Explain treatment of the machine well and Make sure to have them read this operating manual before using. Fig.1-12 AMC-1000/1000SM...
  • Page 8 Check and remove if there is any person (especially child) or obstacle around. Warning Exhaust Caution Do not drive in the enclosed space (house and garage, etc.). If drive in such a place, driver can possibly be poisoned of carbon monoxide due to exhaust. Fig.1-15 AMC-1000/1000SM...
  • Page 9 Fig.1-18 danger. If driving at high-speed on slope, uneven, or stump land, the machine can get overturned, so drive at low speed. AMC-1000/1000SM...
  • Page 10 Fig.1-20 Caution When stopping the machine Park at flat and safety place and stop the engine for sure.When parking at the slope inevitably, shift gear after stopping the engine, and put the main clutch lever in engaged. Fig.1-21 AMC-1000/1000SM...
  • Page 11 Fig.1-24 Caution When maintaining and inspecting When maintaining, inspecting, attaching and detaching parts, park the machine at flat and safe place, and turn it off, and work after parts with high temperature are cooled down. Fig.1-25 AMC-1000/1000SM...
  • Page 12 Fig.1-27 Caution Maintenance When maintaining the engine or the transmission, consult with professional, place of purchase, agency, business office, or the customer service department since it can affect efficiency or safety. AMC-1000/1000SM...

  • Page 13: Main Specifications

    Main specifications 2. Main specifications AMC-1000 AMC-1000SM Description Overall length (mm) 1490~1700 Overall width (mm) 680~850 Overall height (mm) 820~1140 Weight (kg) 163 (Rotary included) 171 (Rotary included) Model GB300LN GB300LE Type Slope type, Air cooling type , OHV 4cycle Gasoline Engine Cylinder bore ×...

  • Page 14: Name Of Each Part Of The Machine

    3. Name of each part of the machine The Terms like front, rear, left, right, and turning left, turning right, etc. used in this instruction manual, are presented as follows. Rear Left Turn left (counter clock-wise rotation) Right Front Turn right (clock-wise rotation) Fig.3-1 AMC-1000/1000SM...
  • Page 15 Name of each part of the machine ① ⑧ ② ⑦ ③ ⑥ ④ ⑤ Fig.3-2 Description Item. Handle cover Wheel adjusting lever Wheel fixing screw Wheel Rotary cover Belt cover Shift lever Fuel tank AMC-1000/1000SM...
  • Page 16 ⑫ Fig.3-3 Item. Description Main clutch lever Safety lever Handle up-down control lever Handle left- right control lever Rotary clutch lever Throttle lever Steering clutch lever Recoil starter grip Choke lever Air cleaner Connecting chain case Cultivating shift lever AMC-1000/1000SM...
  • Page 17 Fig.3-5 4. Throttle lever Throttle lever Use it when rising or lowering engine [High] rpm speed. [High] – Engine rpm gets faster [Low] [Start] [Low] – Engine rpm gets slower Fig.3-6 AMC-1000/1000SM...
  • Page 18 Use it when starting the engine. Fig.3-9 9. Fuel cock lever Fuel cock Use it when supplying or shut off the fuel in engine from fuel tank. [ON] (Opened) --- supply the fuel [OFF] (Closed) --- shut off the fuel Fig.3-10 AMC-1000/1000SM...
  • Page 19 ■ Loosen fixed screw when use the counter rotation. Redo the fixed screw again after using it certainly or, accident could occur by operating mistake. ■ When operating the cultivating shift lever, disengage the rotary clutch lever after cutting main clutch lever certainly. AMC-1000/1000SM...
  • Page 20 Connecting chain case 16. Connecting chain case Thickly→ (Thickly) : Soil is broken thickly slow rotational frequency of rotary. b (Finely) : Soil is broken finely due Finely→ to the fast rotational frequency of rotary. Fig.3-14 AMC-1000/1000SM...

  • Page 21: Checking Before Working

    2. Check of the engine oil level Check the oil level after parking the [Max] machine in the flat ground and pull out [Min] the oil gauge. When being insufficient, refill genuine oil through filling port. Fig.4-1 AMC-1000/1000SM...
  • Page 22 Check the operation of each cable is smooth. Fig.4-3 7. Check of the other part ▶ Check the damage of each part Belt and loosen bolt, nut, existence and missing. ▶ Check the tension and abrasion Tension arm condition etc. of the belt. Fig.4-4 AMC-1000/1000SM...

  • Page 23: Driving And Working

    Shift lever Fig.5-2 Cultivating shift lever 3) Set the cultivating shift lever as [neutral(N)]. Fig.5-3 4) Pull the rotary clutch lever to [Disengage] [disengaged ]. [Engage] Rotary clutch lever Fig.5-4 5) Set the fuel cock as [opened](ON). Fuel cock Fig.5-5 AMC-1000/1000SM...
  • Page 24 9) After pulling the recoil start rope lightly until when feeling a compression, pull it mightily after returning the rope. If repeat it over 3 times, the starting will be difficult by the excessive fuel suctions, start with choke lever as [being opened]. Fig.5-9 AMC-1000/1000SM...
  • Page 25 Close Caution Fig.5-12 ■ When starting and warming up, confirm the existence of combustibles around then remove it. Important ■ If starting is accomplished, work after warming up for 2~3 minutes to make the smooth lubrication of each part. AMC-1000/1000SM...
  • Page 26 ■ After engine stopping, pull the recoil start slowly and set it as the point where the compression is caught. If it stop in the point of no compression, the dust come into the valve or inside so it becomes the cause of breakdown. AMC-1000/1000SM...
  • Page 27 ■ When working, do not approach around the machine except the worker. Important ■ For the life extension of the machine, drive in safety for the beginning as 2~3 hours which avoids the excess working. AMC-1000/1000SM...
  • Page 28 [hitch pin] with moving a handle up and down, and detach the rotary. When assembling plow, push the Disassembling position hitch of plow to the [fixing hitch (up), Rotary shaft Axle shaft (down)]in this condition, then fix with the Fig.5-15 [hitch pin]. AMC-1000/1000SM...
  • Page 29 4) Assemble the connecting chain case with the condition of [finely]. 5) Detach the [wire connection link], insert the [clutch wire] to the [clutch lever] slot, then attach the [wire connection link]. AMC-1000/1000SM...

  • Page 30: Maintenance, Checking & Adjustment

    Fig.6-2 within specific range. If the engine is warm, oil drain easily. Change SAE #30, Summer Initial From 2nd 20W-40 After SAE #10, Every 50 Winter 10W-30 Hours Hous Model AMC-1000 / 1000SM Engine oil 1.2 ℓ AMC-1000/1000SM...
  • Page 31 And change it 1~2 times in Drain plug a year. Fig.6-4 Transmission oil capacity 2.3 ℓ Important ■ If use the machine for long time without change the oil, it's effect on the durability machine, keep provided change period. AMC-1000/1000SM...
  • Page 32 10~20 hours and change it 1~2 times in a year. Drain port Fig.6-6 Rotary case oil capacity 1.3 ℓ Important ■ If use the machine for long time without change the oil, it's effect on the durability machine, keep provided change period. AMC-1000/1000SM...
  • Page 33 6. Axle and rotary axle grease ▶ When assembling steel wheel, wheel tube etc. in axle, or attachment of the mid tilling rotor, ridge rotor on the rotary axle, put the grease on the axle and rotary axle thinly. AMC-1000/1000SM...
  • Page 34 (space) as 0.6~0.7mm with sand paper. ▶ When the ignition plug is damaged seriously or polluted, replace with ignition Fig.6-9 plug of list below. Maker DENSO CHAMPION Type BP5ES W16EP N11YC AMC-1000/1000SM...
  • Page 35 3) Fix new battery with changing, connect (+) terminal at first, then connect (-) terminal, and fix the terminal certainly. At the time, be careful the polarity of battery isn’t switched. 4) Put the grease or anticorrosive agent around terminal. AMC-1000/1000SM...
  • Page 36 When belt is driven, there is danger of accident. Important ■ When adjusting a tension of belt, conform with engine pulley and end of mission pulley. Unless, the abrasion of belt is serious or the power couldn’t be delivered well. AMC-1000/1000SM...
  • Page 37 Free play 1~2 mm Fig.6-12 Important ■ Do not move the handle in left and right way with handle left right control lever in the condition of holding a steering clutch lever. The faulty could be occurred in the steering system. AMC-1000/1000SM...

  • Page 38: Storage Of Machine

    ⑧ Keep it with putting on cover at the Fig.7-2 dry indoor. Caution ■ Because of danger of fire, put on the cover after the heat of engine is getting cold enough. AMC-1000/1000SM...

  • Page 39: Transportation Of Machine

    Caution ■ Use the loading board as strong with sliding prevention. ■ Do not operate main clutch lever and shift lever when the machine is loading and unloading certainly. ■ When loading on truck as [forward], unloading as [reverse]. AMC-1000/1000SM...

  • Page 40: Attachment And Using Of Basic

    [Fig.9-1]. 4) The working point of rotary tiller Fig.9-1 ① Working at rotary, please prevent the approaching of the person in front of machine. ② After work at rotary, the leveling works in [Reverse 1st] AMC-1000/1000SM...

  • Page 41: Tilling Rotor

    [Fig.9-2]. ② Wet paddy tilling rotor(option) Remove the wheel(rubber), and exchange the steel wheel like [Fig.9-3]. Disassemble the tail wheel adjust handle and assemble revolving tail wheel ass’y as shown in [Fig.9-4]. Fig.9-4 AMC-1000/1000SM...
  • Page 42 Important ■ As the rotary working, lift the handle when the wheel of machine is slipped and press the handle when the machine goes to forward lightly, following to the soil condition and working depth. AMC-1000/1000SM...
  • Page 43 2) Steel wheel 2) Turn to reverse the handle, work above. tilling to tilling rotor in the same way. rotor (Turn to reverse 3) Rotary work in wet paddy, refer work 3) Revolving tail the handle) to [Fig.6]. wheel set AMC-1000/1000SM...

  • Page 44: Ditching Rotor

    ⑦ Sowing of barley guarantees the improvement of quality and ⑧ Burying the vines of winter grapes prevents off-year. ⑨ Burying cabbage and radish for winter ⑥ Prevention of damages by replanting is storage available. ⑩ Composting into mulberry field, etc. AMC-1000/1000SM...
  • Page 45 (Rubber wheels are available in damp ground and in the first use.) Fig.9-9 ㆍ There is no distinction in the 25, 30, 48cm of steel wheels. When operating the 30cm, rotate to assemble the steel wheel. When operating the 48cm,there is another wheel tube. AMC-1000/1000SM...
  • Page 46 ■ Work as 25cm for ridge working after rotary work because if you work the ridge depth for above 15cm of depth, excessive force will be caught in the machine, more over the both sides width of axle is wider than ridge width. AMC-1000/1000SM...

  • Page 47: Ridger

    4) Assembly (Fix) ① Disassemble the Tail Wheel Tail Wheel ㆍRemove the fixing nut and bolt of Ass’y adjusting handle ass'y and separate the handle ass'y. ㆍPull out the tail wheel ass'y by loosen Fig.9-11 and turning the fixing lever. AMC-1000/1000SM...
  • Page 48 - Fix the supporter by using 2 fixing Lever. ㆍFor a wide ridge, attach the Tilling Fig.9-12 Rotor to the rotary shaft. ㆍFor a narrow ridge, attach the Ditching Rotor for 25cm. ㆍUse the rubber wheel for ridging and cage wheel for weeding & soil heaping. AMC-1000/1000SM...

  • Page 49: Lubrication Chart

    Grease, Engine Oil Rotary Drive Shaft Grease Adjust Pin Parts Regular Main Shift Lever Rotary Change Lever Engine Oil, Gear Oil □ After every 20 hour use Part of Handle Tension Pulley Arm Part Engine Oil Wires and Levers AMC-1000/1000SM...
  • Page 50 Using genuine parts saves your time and money above all. Ensures that your machine will always be ready for immediate work. Specifications and price are subject to change without prior notice for improvement of performance. AMC-1000 / 1000SM...
  • Page 51 AMC-1000 / 1000SM...
  • Page 52 AB070 Rotary Tiller (RT-60) Implement OPTION AB020 Ditching Rotor (DR-25) Implement OPTION AB030 Ditching Rotor (DR-30) Implement OPTION AB040 Ditching Rotor (DR-48) Implement OPTION AB050 Ridger (RD-3) Implement OPTION G500A-1 Engine Group 1 G500A-2 Engine Group 2 AMC-1000 / 1000SM...

  • Page 53: G010A

    G010A AMC-1000 / 1000SM...
  • Page 54 Gasket, Transmission case DT-0117 Bolt, Transmission case DT-0103 Plug, Drain AA010-01241 Guide, Forward change GT-0125 Guide, Reverse change GT-0128 Φ8 Guide pin GT-0129 Bracket, Attaching GT-0126 t1.0 Packing AA010-01851 Air Breather A4811-00090 Type1 A P9 O-Ring AMC-1000 / 1000SM...
  • Page 55 G010A AMC-1000 / 1000SM...
  • Page 56 A4724-00080 M8 8.2x14x1 Packing A7715-01605 D5/16 inch Ball, Steel A1150-50822 M8xP1.25x22(4T) Bolt A1222-50635 M6xP1x35(4T) Bolt A4014-50060 M6 6.6x12.5x1.6 Washer, Plain A1050-50622 M6xP1x22(4T) Bolt A4512-50060 Washer, Spring A1025-50616 M6xP1x16(7T) Bolt, S/washer A2761-50060 M6xP1.0 Nut, Flange Z4710-00100 t1.0 Packing AMC-1000 / 1000SM...

  • Page 57: G020A

    G020A AMC-1000 / 1000SM...
  • Page 58 Φ27.2 x t3.9 Collar(A) GT-0219 Washer GT-0239B t3.0 Washer AA010-02321 Shaft, Final drive AA010-02201 Gear, Axle GT-0225 Ring ass;y, Clutch (27~29) GT-0226 Φ76.3 x t6.0 Clutch ring GT-0227 Roller GT-0228A Φ42.7 x t3.5 Collar GT-0221 Axle ass’y (31~38) AMC-1000 / 1000SM...
  • Page 59 G020A AMC-1000 / 1000SM...
  • Page 60 A8101-06204 #6204 Bearing, Ball A4611-00470 Hole C type D47 Cir-Clip, Internal A2783-50100 M10xP1.25 Nut, Flange A1120-50820 M8X1.25x20(4T) Bolt, S/washer A4811-00160 Type1A P16 O-ring A4611-00620 Hole C type D62 Cir-Clip, Internal A4612-00220 Shaft C type D22 Cir-Clip, External AMC-1000 / 1000SM...
  • Page 61 G030A AMC-1000 / 1000SM...

  • Page 62: Engine & Frame Group

    17-1 AA080-03231 Arm(B), Tension 17-2 AC-0261 Pulley ass’y(B), Tension 17-3 A4612-00150 Shaft C type D15 Cir-Clip, External AA230-03081 Pulley, E/G AA130-03092-01 Support, Belt AA010-03241 Support(B), Belt DT-0170 Φ14 Pin, Lock AA130-03112-02 Belt cover(Inner) GT-0325 LB40 V-Belt GT-0315 Spacer AMC-1000 / 1000SM...
  • Page 63 G030A AMC-1000 / 1000SM...
  • Page 64 Weight(A), Balance A1126-50825 M8xP1.25x25(4T) Bolt, S/washer Z1173-10065 M10xP1.25x65Z(7T) Bolt A4512-50100 Washer, Spring A2783-50100 M10xP1.25 Nut, Flange A5911-07056 7x7x56 Key, Straight Z1030-14040 Bolt, S/washer A1126-50820 M8xP1.25x20(4T) Bolt, S/washer A1136-51025 Bolt, Washers A8511-01620 16x18x20 Bush A1120-50816 M8X1.25x16(4T) Bolt, S/washer AMC-1000 / 1000SM...
  • Page 65 G040A-1 AMC-1000 / 1000SM...
  • Page 66 Lever ass'y(R), Side clutch AA230-04091 Wire, Side clutch GT-0415 Holder cap, Side clutch GT-0411B Holder, Side clutch wire AA210-04101 Φ1.2 Spring, Side clutch wire AA010-04124 Flange, Side clutch GT-0551A Lever ass'y(L), Adjust GT-0556A Lever ass'y(R), Adjust AA010-05603 Wire, Up-down adjust AMC-1000 / 1000SM...
  • Page 67 G040A-2 AMC-1000 / 1000SM...
  • Page 68 Wire(Lo), Main clutch AA230-04061 Wire(Hi), Main clutch AA010-04571-01 Cover, Main clutch GT-0494 t1.2 Plate, Safety A1026-50614 M6xP1x14(4T) Bolt, Washers A1050-50612 M6xP1x12(4T) Bolt A4512-50060 Washer, Spring GT-0453 D1.6 Spring, Return AA010-04541 Lever, Safety GT-0455 Grip(B) DT-0419A Φ2.8 Spring, Tension AMC-1000 / 1000SM...
  • Page 69 G040A-3 AMC-1000 / 1000SM...
  • Page 70 Link, Wire connected A5525-50600 JASO A type D6 Pin, Snap A4014-50060 M6 6.6x12.5x1.6 Washer, Plain AA132-04825 Wire, Clutch AB390-12072-01 t1.6 Cover, Clutch lever A3004-50616 M6xP1x16 (+)Screw, S/washer A1026-50614 M6xP1x14(4T) Bolt, Washers DT-0458 Cable tie A1026-50616 M6xP1x16(4T) Bolt, S/washer AMC-1000 / 1000SM...
  • Page 71 G040A-4 AMC-1000 / 1000SM...
  • Page 72 Spring, Shift lever A4012-50120 M12 13x21x2.6 Washer, Plain A5511-52525 D2.5x25 Pin, Split A4512-50100 Washer, Spring AA130-04211 Bolt, Support A1130-51020 M8xP1x20(4T) Bolt, S/washer GT-0423 Rod, Side clutch A2114-50080 M8xP1.25 (4T) GT-0424 Joint, Connected AA010-01111 A4014-50060 M6 6.6x12.5x1.6 Washer, Plain AMC-1000 / 1000SM...
  • Page 73 G040A-4 AMC-1000 / 1000SM...

  • Page 74: G040A-4

    ASIA PARTS LIST G040A-4 Handle & Chassis Group 2021.04. AMC-1000/1000SM No. Part No.. Spec. Part Name Q’ty Remarks A5525-50600 JASO A type D6 Pin, Snap AA132-06962 Holder, Wire A1053-50618 M6xP1x18(7T) Bolt A4512-50060 Washer, Spring AMC-1000 / 1000SM...
  • Page 75 G050A AMC-1000 / 1000SM...

  • Page 76: G050A Tire Group

    DT-0502 Tube ass’y DT-0503 t2.3 Disk wheel(Inner) DT-0504 t2.3 Disk wheel(Outer) DT-0505B GT-0503 Tube, Axle DT-0507A Pin(B), Axle A1120-50816 M8X1.25x16(4T) Bolt, S/washer A1120-50820 M8X1.25x20(4T) Bolt, S/washer A2763-50080 M8xP1.25 Nut, Flange A5525-51400 JASO A type D14 Pin, Snap AMC-1000 / 1000SM...
  • Page 77 G060A AMC-1000 / 1000SM...
  • Page 78 Packing, Drain GT-0637 Support(A) DT-0668A t3.2 Plate, Support DT-0117 Bolt, Transmission case AA010-06381 Φ 12 Shaft, Rotary shift fork AA010-06392 Fork, Rotary shift GT-0640 t0.2 Packing AA080-01211 Φ1.4 Spring GT-0641 Shaft, Rotary shift AA010-06421 Lever, Rotary shift AMC-1000 / 1000SM...
  • Page 79 G060A AMC-1000 / 1000SM...
  • Page 80 A4512-50100 Washer, Spring A2731-50100 M10xP1.25 Nut, Cap A4612-00220 Shaft C type D22 Cir-Clip, External A8101-06206 #6206 Bearing, Ball A4611-00620 Hole C type D62 Cir-Clip, Internal A5511-51616 D1.6x15 Pin, Split A3014-50608 M6xP1x8 (+) Screw A1125-50818 M8xP1.25x18(7T) Bolt, S/washer AMC-1000 / 1000SM...
  • Page 81 G060A AMC-1000 / 1000SM...
  • Page 82 O-Ring A5411-00425 D4x25 Pin, Spring A4014-50060 M6 6.6x12.5x1.6 Washer, Plain A4512-50060 Washer, Spring A4612-00100 Shaft C type D10 Cir-Clip, External 양쪽C D4x18 A5411-00418 Pin, Spring 양쪽C D2.5x25 A5411-02525 Pin, Spring A4612-00200 Shaft C type D20 Cir-Clip, External AMC-1000 / 1000SM...
  • Page 83 G060A-2 AMC-1000 / 1000SM...
  • Page 84 Sprocket GT-0649 Support, Sprocket DT-0609A Handle, Fixing DT-0614 Washer, Seal GT-0671 Φ13.8 x t3.0 Collar GT-0651 Label, Operaing A4611-00180 Hole C type D18 Cir-Clip, Internal A4512-50080 Washer, Spriing A4014-50080 M8 9x17x1.6 Washer, Plain A2731-50080 M8xP1.25 Nut, Cap AMC-1000 / 1000SM...

  • Page 85: G070A

    G070A AMC-1000 / 1000SM...
  • Page 86 236 829.0 D40xd8.5xT3.0 Washer, Plain AA120-06643 Arm(R), Adjusting AA120-06651 t3.2 Plate, Support GT-0706 Plate, Support(B) GT-0707 t1.2 Fender DT-0671A Rubber plate(Center) AA120-06722 t2.5 Rubber plate(A) DT-0690A Plate(B), Rubber Fixing DT-0684 Fixing lever, Tail wheel AA210-07080 Support, Tail wheel AMC-1000 / 1000SM...
  • Page 87 G070A AMC-1000 / 1000SM...
  • Page 88 M8xP1.25x16(4T) Bolt A4014-50080 M8 9x17x1.6 Washer, Plain A4512-50080 Washer, Spring A2731-50080 M8xP1.25 Nut, Cap A1022-50614 M6xP1x14(4T) Bolt, S/washer A1020-50614 M6xP1x14(4T) Bolt, S/washer A4014-50060 M6 6.6x12.5x1.6 Washer, Plain A4512-50060 Washer, Spring A2731-50060 M6xP1.0 Nut, Cap A5411-02510 D2.5x10 Pin, Spring AMC-1000 / 1000SM...
  • Page 89 G070A AMC-1000 / 1000SM...
  • Page 90 ASIA PARTS LIST G070A Rotary Frame & Cover Group 2021.04. AMC-1000/1000SM No. Part No.. Spec. Part Name Q’ty Remarks A2014-50060 M6xP1.0(4T) A2763-50080 M8xP1.25 Nut, Flange AMC-1000 / 1000SM...

  • Page 91: G080A

    G080A AMC-1000 / 1000SM...
  • Page 92 Cable, Battery(-) 1000SM 12V9AH AA210-08061 Battery AA135-08072 Battery box ass’y 1000SM M6P1.0×14 1000SM A564-6×14Z Bolt, Washers 1000SM GT-0825 Hose, Battery 1000SM AA135-08362 Bracket, Fuel tank 1000SM GT-0822 Lead wire, Motor B01 0707A Washer 1000SM 1000SM AA135-08502 Switch, Safety AMC-1000 / 1000SM...
  • Page 93 G100E AMC-1000 / 1000SM...
  • Page 94 Label, Importance-Move-Caution AA133-91011 Label, Rear handle cover 1000 AA134-91019 Label, Rear handle cover 1000SM GT-0651E Label, Operating method AA238-24030-01 Label, Company name AA019-06691 Label, Rotary caution AA219-07261 Label, Air-Cleanner AA019-06431 Label, Rotary shift guide AA230-03789 Label(Oil), Importance AMC-1000 / 1000SM...
  • Page 95 G100E AMC-1000 / 1000SM...

  • Page 96: G100E Label Group

    ASIA PARTS LIST G100E Label Group 2021.04. AMC-1000/1000SM No. Part No.. Spec. Part Name Q’ty Remarks AA210-08611 Label, Battery importance 1000SM AMC-1000 / 1000SM...
  • Page 97 TR-60 AMC-1000 / 1000SM...

  • Page 98: Tilling Rotor

    A2012-50100 DT-0720 Bolt, Blade A4512-50100 Washer, Spring DT-0721 TR-1009 Wheel ass’y(L), Steel TR-1010 Wheel ass’y(R), Steel DT-0507A Pin, Axle A5525-51400 Φ14 Pin, Snap TR-1016 Support, Tail wheel DT-0682B Tail wheel TR-1018 Bolt, Tail wheel support M12xP1.25 A2174-50120 AMC-1000 / 1000SM...
  • Page 99 RT-60 AMC-1000 / 1000SM...

  • Page 100: Ab070 Rotary Tiller

    Spec. Part Name Q’ty Remarks TR-1001 Blade(L), Rotary TR-1002 Blade(R), Rotary TR-1003 Blade(L), Rotary special TR-1004 Blade(R), Rotary special AB010-10051-01 Tube(L), Rotary AB010-10061-01 Tube(R), Rotary DT-0708 Bolt, Setting M10xP1.5 A2012-50100 DT-0720 Bolt, Blade A4512-50100 Washer, Spring DT-0721 AMC-1000 / 1000SM...
  • Page 101 DR-25 AMC-1000 / 1000SM...
  • Page 102 Single ridging type DR-0108 Blade(L) Single ridging type DR-0110 Special blade(L) DT-0773A Bolt, Setting Single ridging type Single ridging type A2012-50100 M10xP1.5 Single ridging type DT-0720 Bolt, Blade Single ridging type A4512-50100 Washer, Spring Single ridging type DT-0721 AMC-1000 / 1000SM...
  • Page 103 DR-30 AMC-1000 / 1000SM...
  • Page 104 Single ridging type DR-0108 Blade(L) Single ridging type DR-0110 Special blade(L) Single ridging type DT-0773A Bolt, Setting M10xP1.5 Single ridging type A2012-50100 DT-0720 Bolt, Blade Single ridging type Single ridging type A4512-50100 Washer, Spring Single ridging type DT-0721 AMC-1000 / 1000SM...
  • Page 105 DR-48 AMC-1000 / 1000SM...
  • Page 106 Pin, Axle AA5525-51400 Pin, Snap DT-0750 Cover, Extension(L) DT-0752 Plate, Rubber DT-0751 Cover, Extension(R) DT-0756 Plate, Rubber DT-0757 Plate A1126-50816 Bolt, Washers A2763-50080 Nut, Flange A4512-50060 Washer, Spring A2961-50060 Nut, Flange A1026-50614 Bolt, Washers A1026-50616 Bolt, Washers AMC-1000 / 1000SM...
  • Page 107 DR-48 AMC-1000 / 1000SM...
  • Page 108 Single ridging type DR-0108 Blade(L) Single ridging type DR-0110 Special blade(L) DT-0773A Bolt, Setting Single ridging type M10xP1.5 Single ridging type A2012-50100 Single ridging type DT-0720 Bolt, Blade Single ridging type A4512-50100 Washer, Spring Single ridging type DT-0721 AMC-1000 / 1000SM...
  • Page 109 RD-3 AMC-1000 / 1000SM...
  • Page 110 Plate B(L), Extended RD-0121 Plate B(R), Extended RD-0122 Plate C(L), Extended RD-0123 Plate C(R), Extended RD-0124 Washer A2814-50080 RD-0125 Support ass’y, Tail wheel DT-0682B Tail wheel ass’y Z1171-10065 Bolt A4014-50120 Washer, Plain A4512-50120 Washer, Spring A2174-50120 AB050-01172 Collar AMC-1000 / 1000SM...
  • Page 111 ENGINE 31 32 28 29 AMC-1000 / 1000SM...
  • Page 112 Cotter 9396549 Seal, Valve Stem 9396020 Bolt, Flange 9396102 Gasket, Head 9396098 Cover, Head 9396021 Bolt, Flange 9396559 Gasket, Head Cover 9396038 Oil Seal 9350580 Cover, Crankcase 9397550 Governor Gear Assy 9397522 Slider, GOV 9396202 Shaft, GOV AMC-1000 / 1000SM...
  • Page 113 ENGINE 31 32 28 29 AMC-1000 / 1000SM...
  • Page 114 9396110 Connecting Rod Assy 9396136 Bolt 9397551 Piston 9396402 Pin, Piston 9396385 Piston Ring Set 9398839 Panel, Control 9396605 Snap Ring 9398842 Spring, Return 9398930 Bolt, CRS 9397186 Stopper 9396007 Bolt, CRS 9398931 Spring 9396203 Shaft, GOV AMC-1000 / 1000SM...
  • Page 115 ENGINE 31 32 28 29 AMC-1000 / 1000SM...
  • Page 116 Bearing, Ball 9398933 Fuel Tank Assy 9396178 Tank Cap Assy 9396187 Filter, Fuel 9396192 Gauge, Oil 9396189 Bracket, Tank 9396190 Bracket, Tank 9396484 Bush 9396485 Spacer 9390225 Nut, Flange 9396021 Bolt, Flange 9396058 Clip 9398918 Bolt, Stud AMC-1000 / 1000SM...
  • Page 117 ENGINE 16(17~45) 17 18 50(51~61) AMC-1000 / 1000SM...
  • Page 118 Gasket, Carburetor 9340052 Carburetor(F) 9396316 Valve, Throttle 9396322 Screw 9340050 Valve, Choke 9396323 Screw 9397162 Spring 9397914 Adjuster 9340054 Jet, Pilot 9397919 Shaft, Throttle 9396249 Packing 9396250 Seal 9396305 Packing 9396306 Float 9340051 Nozzle, Main 9350581 Jet, Main AMC-1000 / 1000SM...
  • Page 119 ENGINE 16(17~45) 17 18 50(51~61) AMC-1000 / 1000SM...
  • Page 120 Bolt, Flange 9396233 Cover, Cylinder 9396021 Bolt, Flange 9396414 Recoil Starter Assy 9396443 Reel 9396444 Spring, Spiral 9396445 Ratchet 9396446 Guide 9396447 Spring, Friction 9396438 Spring, Return 9396439 Screw 9396442 Rope, Starter 9396448 Knob, Starter 9396460 Pulley, Starter AMC-1000 / 1000SM...
  • Page 121 ENGINE 16(17~45) 17 18 50(51~61) AMC-1000 / 1000SM...
  • Page 122 Cover, Muffler 9397265 Pipe, Tail 9396607 Screw 9397563 Bolt, Flange 9398935 Bolt, Flange 9396618 Nut, Conical SPG 9396365 Gasket, Muffler 9396158 Wire, Lead 9396052 Plug, Spark 9398913 Cap, Plug 9397556 Wire, Lead 9397564 Gasket 9397559 Sensor, Oil AMC-1000 / 1000SM...
  • Page 123 ENGINE 16(17~45) 17 18 50(51~61) AMC-1000 / 1000SM...
  • Page 124 Engine ASIA PARTS LIST Engine Group-2 2021.04. AMC-1000/1000SM No. Part No.. Spec. Part Name Q’ty Remarks 9397555 Clamp 9396021 Bolt, Flange 9396618 Nut, Conical SPG 9397560 Unit 9340048 Bracket, Unit 9397554 Bolt & Washer AMC-1000 / 1000SM...
  • Page 125 ASIA CULTIVATOR AMC-1000 / 1000SM Mailing Add. : 11, 96-Gil, Biseul-Ro, Yuga-Eup, Dalsung-Gun, Daegu, S.Korea, 43020 http://www.asiakor.com E-Mail : eddiekim@asiakor.com TEL : 82 – 053 – 580 - 7725 FAX : 82 – 053 – 580 - 7700 NO.2104 Printed in Korea...
