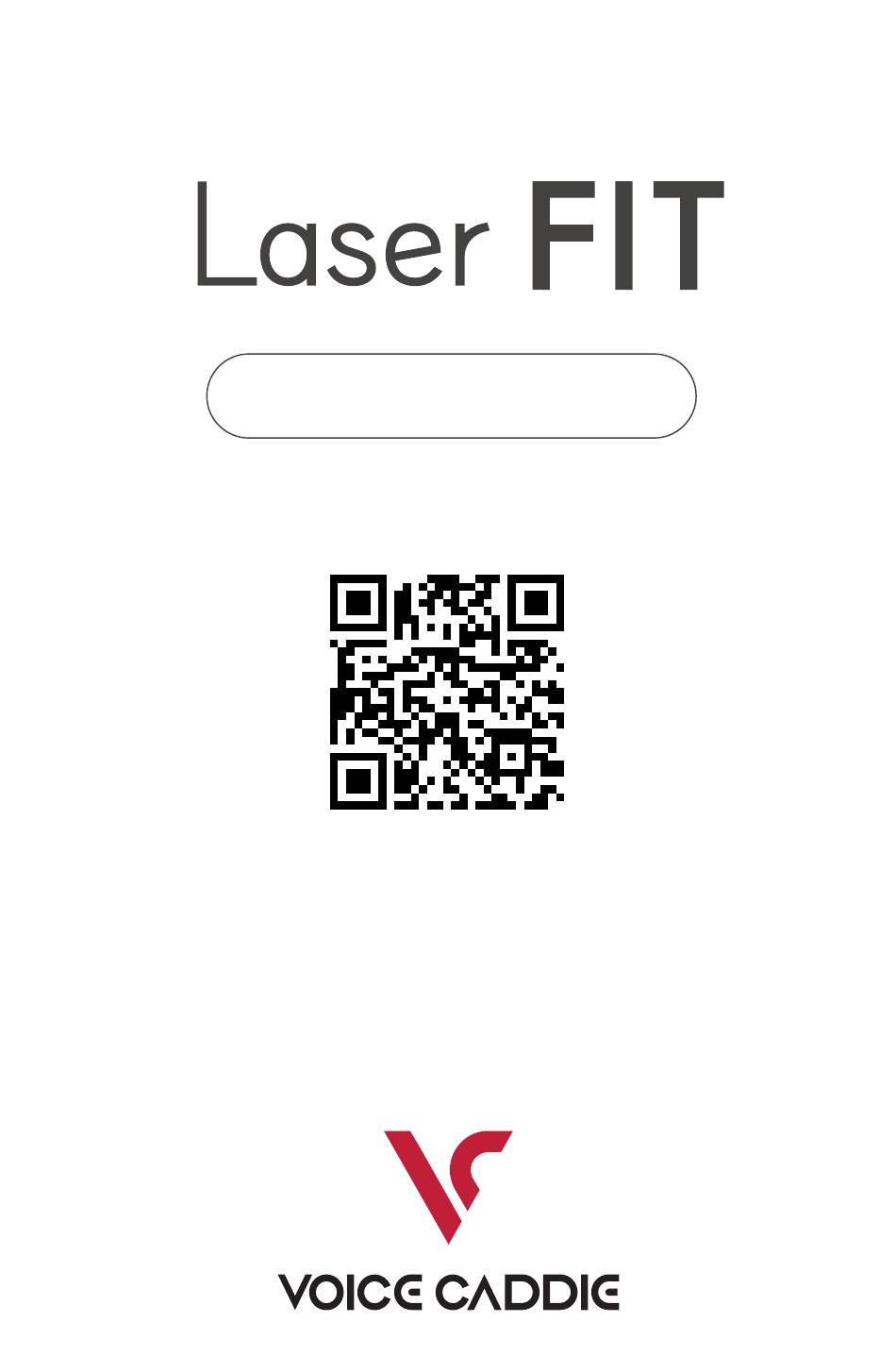

- Page 1 User Manual You can find a comprehensive product description on the VOICE CADDIE website. www.voicecaddie.com...
-

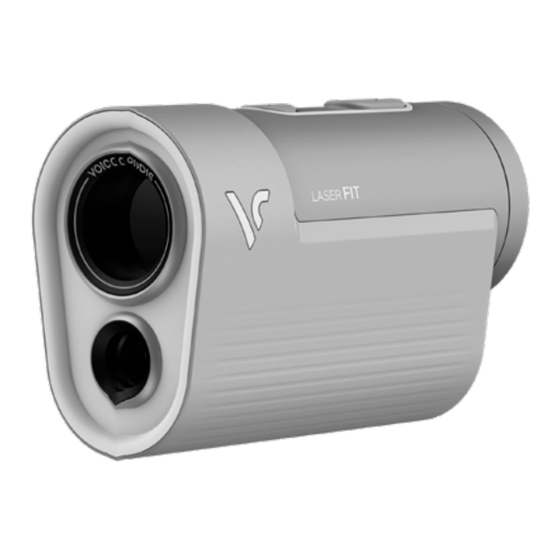

Page 2: Product Parts
Product Parts ① ③ ④ ⑤ ⑥ ② ⑦ ① Laser Receiver / Object Lens ⑤ Eyepiece and Focus Control Unit ② Laser Diode ⑥ LED Charging Indicator ③ M Button (Charging: Red flashing, Fully charged: Green) ④ Power / Measure Button ⑦... - Page 3 Description of Laser LCD Screen Ball To Pin Mode Height Display Displayed only when Slope is ON Battery Level Indicator Lights up when Unit of Measurement the battery is low Measured Distance Calibrated distance when Slope is ON, linear distance when Slope is OFF Laser Indicator LCD Brightness Icon...
-
Page 4: Focus Adjustment
Power ON After charging the battery, press the Power/Measurement button( to turn on the screen. With the power ON Standing by to measure Focus Adjustment Turn the focus knob on the eyepiece left or right to sharpen the image on the LCD screen. Battery - When the ( ) icon is displayed on the screen, charge the battery. -
Page 5: Lcd Brightness Control
LCD Brightness Control With the power on, the brightness level is adjusted each time you press the M button( Ⓜ ) while holding down the Power/Measurement button( - Brightness Level : Manual three levels Brightness Level 0 Brightness Level 1 Brightness Level 2 (Manual) (Manual) - Page 6 Slope ON/OFF With the power on, press and hold the M button( Ⓜ ) for 5 seconds to change Slope ON/OFF. - When Slope is ON, it shows the calibrated distance to which the V-Algorithm is applied. - When Slope is OFF, it shows the straight-line distance. Slope OFF Slope ON...
-
Page 7: Distance Measurement
Distance Measurement Spot Measurement - With the power on, press the Power/Measurement button( briefly to measure. - Quickly measure various targets such as fairways, bunkers, and hazards to show the distance. Aim at the target Measurement completed Pin Tracer Measurement - With the power on, press and hold the Power/Measurement button( and scan around the pin (up to 3 seconds) - When scanning the surroundings of the pin, it will recognize the closest... - Page 8 Distance Measurement What is Ball To Pin Measurement? - Helps you select the right club with the luxury of measuring the distance from the ball to the pin effortlessly from your cart. How to enter the Ball To Pin Measurement Mode Short press the M button( Ⓜ...
-
Page 9: Precautions For Using The Product
Precautions for Using the Product 1. This device may be affected by the weather, such as rain and clouds, and the surrounding environment. 2. Depending on your environment and how you use it, battery consumption may increase. 3. Do not use this device for any other purpose, such as children' s toys. 4. - Page 10 Precautions for Using the Product Safety Precautions for Using the Laser 1. The laser emitted from this product is invisible. It is safe to operate by your intention according to the contents of this manual. 2. Warning : It is dangerous to look at the laser with other optical instrument, please do not look at the laser through the telescope.
-
Page 11: Warranty Conditions
This device complies with Par 15 of the FCC Rules. Operation is subject to The following two conditions: (1)This device may not cause harmful Interference, and (2) this device must accept any interference recieved, Including interference that may cause undesired opertaion. Product Name VOICE CADDIE Laser FIT Serial No. Purchase Date Dealer Dealer Contact... - Page 12 Specifications and After-Sales Service Product VOICE CADDIE Laser FIT 6x Magnification, Dual Display, Pin Tracer™, Key Features V-Algorithm™, Ball To Pin, Slope & Non-Slope Size/Weight 86.2mm X 37.6mm X 56.2mm / 116g (width) (Height) (Length) Measuring Range 5 to 800 yards (1 yard = 0.91m)
