- Page 1 User Manual Detailed description of this product is available on the website of Voice Caddie. www.voicecaddie.com...
-

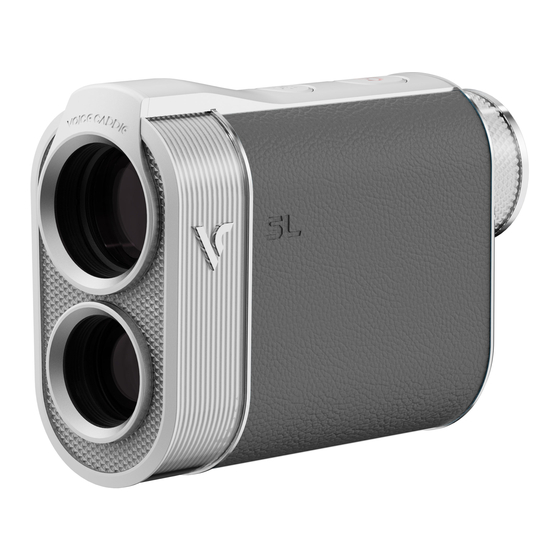

Page 2: Product Parts
What’ s In the Package Body, Pouch, USB Cable, User Manual, Cleaner Product Parts ③ ④ ➈ ① ⑥ ② ⑧ ⑦ ⑤ ⑤ Slope OFF (Tournament Mode) Display Light ① Laser Receiver / Object Lens ⑥ USB Recharging Port ②... -
Page 3: Turning On The Power
Turning on the Power Press Power/Measurement Button to activate the laser function and turn on Touch LCD Screen. ※ GPS will be activated only at entering Golf Mode. OLED Screen Measurement Standby After the power is ON Touch LCD Screen After the power is ON Recharging Battery... - Page 4 Explanation of OLED Screen GPS Reception Icon Displayed when using Golf Mode after setting Slope ON Measurement Distance High and Low Icon Calibrated distance when Slope is ON Displayed only Straight line distance when when Slope is ON Slope is OFF Pin Icon Measurement Unit Displayed only...
-
Page 5: Focus Adjustment
Discription of the LCD Touch Screen LCD Touch Screen Golf Mode Icon Setting Icon Touch to connect to Touch to enter the the GPS for automatic Settings hole recognition Exit the LCD touch screen · Exit the touch screen by sliding down the screen from the Menu screen ·... -
Page 6: Unit Change
Unit Change Unit change is only available on the LCD touch screen. How to change the unit (of measure) · Changing the unit on the Menu Screen. - Touch the ( ) on Menu Screen > Golf Option > Unit Change. ·... - Page 7 OLED viewfinder Brightness Adjustment Changing the brightness of the OLED by adjustment button only. OLED viewfinder Brightness · 6 levels OLED viewfinder Brightness Adjustment Method · Pressing the brightness adjustment button ( ) shortly, the brightness level will be adjusted. OLED viewfinder when Adjustment Brightness...
- Page 8 Slope Function ON/OFF Turning on/off the Slope Function is only available on the LCD touch screen. Turning on/off the Slope Function from the menu screen · Slope ON/OFF on Menu Screen - Touch the ( ) > Golf Option > Slope > ON ·...
-
Page 9: Distance Measurement
Distance Measurement Spot Measurement · Press Power/Measurement Button ( ) briefly to measure. · Quickly measure various targets such as fairways, bunkers, and hazards to show the distance. Measurement completed Aim at the target Pin Tracer™ Measurement · After power on, press and hold the Power/Measurement button ( and scan around the pin (up to 3 seconds) ·... - Page 10 How to use Touch LCD Entering the Golf Mode · Touching the Golf Mode Icon to recognize holes automatically after GPS reception. (Please activate GPS in the space without obstacles of roof and tree.) End of the Golf Mode · Slide the screen down from above during the Golf Mode to end the mode. Slide down from above...
- Page 11 How to use Touch LCD Screen at entering the Golf Mode · The course view screen will be displayed when initially entering the Golf Mode · Touch the slide left and right to change the Guide Screen. Green View Course View Putt View Yardage View ※...
- Page 12 How to use Touch LCD Course Preview · Touch the ( ) icon in Tee Box to replay the Course Preview. Return to the Golf Mode after the end of replay. * Touch the screen during the replay to return to the Golf Mode immediately. Displays IP / Driver Display the distance Distance / Bunker &...
- Page 13 How to use Touch LCD Green Undulation · Divide the contour of the green to 11 stages to provide more precise green undulation. Green Zoom (2 stages) · Touching the ( ) icon to enlarge the green. (Support the pin reload function) - Touching the icon one time (1st stage) / 2 times (2nd stage) Touch the Icon Green undulation...
- Page 14 How to use Touch LCD Putt View · Guide high and low, distance to a pin from a ball. ① ➃ ➂ ② ① The distance from the ball to the pin ② The elevation from the ball to the pin ➂...
- Page 15 How to use Touch LCD GPS Pin Assist · GPS coordinates are used to block the area behind the green so that objects (such as trees) measured against the background of the green is not recognized as pins. · How to use Available only when entering Golf Mode (GPS enabled), GPS pin assist function must be set to ON.
- Page 16 How to use Touch LCD How to ON/OFF the GPS Pin Assist · When turning on/off GPS Pin Assist from the Menu screen - Touch the ( ) icon on Menu Screen> Golf Option > GPS Pin Assist · When turning on/off GPS Pin Assist in the Golf Mode ·...
- Page 17 How to use Touch LCD Manual measurement of driving distance · After entering the Golf Mode, touching the ( ) icon in Course View/Green View/Yardage View to provide thedriving distance of a previous shot. How to measure the driving distance manually ·...
-
Page 18: Precautions For Using The Product
Precautions for Using the Product Precautions for Using the Product 1. This device may be affected by the weather such as rain and clouds, and the surrounding environment. 2. Depending on your environment and how you use it, battery consumption may increase. - Page 19 Caution This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 20 Caution 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio / TV technician for help. 5.
- Page 21 Trademark Registration 1. Bluetooth is the trademark of Bluetooth SIG, Inc. 2. Other trademarks and copyrights are the assets of correponding business company. Warranty as follows 1. This device was produced through strict quality control and thorough inspection, and may be exchanged or reimbursed in accordance with the Fair Trade Commission Notice Consumer Dispute Resolution Criteria.
-
Page 22: Warranty Conditions
Warranty Conditions Product Name VOICE CADDIE SL3 Serial No. Purchase Date Dealer Dealer Contact Buyer's Name and Contact Name / Phone For one year after the purchase Free Warranty Period of the product (6months for components) Exchange and Refund Period... - Page 23 Specifications and After-Sales Service Product VOICE CADDIE SL3 6X Magnification, 2 Color OLED, Pin Tracer, V-Algorithm, Slope & Non-Slope, Course Preview, Key Features Green Undulation, Putt View Size/Weight 41.1mm X 77.7mm X 109mm / 220g (width) (Height) (Length) Measuring Range 5 to 1,000 yards (1 yard = 0.91m)
- Page 24 www.voicecaddie.com...
