Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
ECS LIVA Q3 Plus Ryzen R1505G / 4GB / 64GB
(95-677-MZ6A05)
o cerca il tuo prodotto tra le
migliori offerte di PC Desktop e Workstation
3 Plus
Ryzen Embedded
Elitegroup Computer Systems Co., LTD.
No. 239, Sec. 2, Tiding Blvd., Neihu District, Taipei City, Taiwan (11493)
Tel: 02-21621177
Advertisement
Related Manuals for Elitegroup Computer Systems LIVA Q3 Plus
Summary of Contents for Elitegroup Computer Systems LIVA Q3 Plus

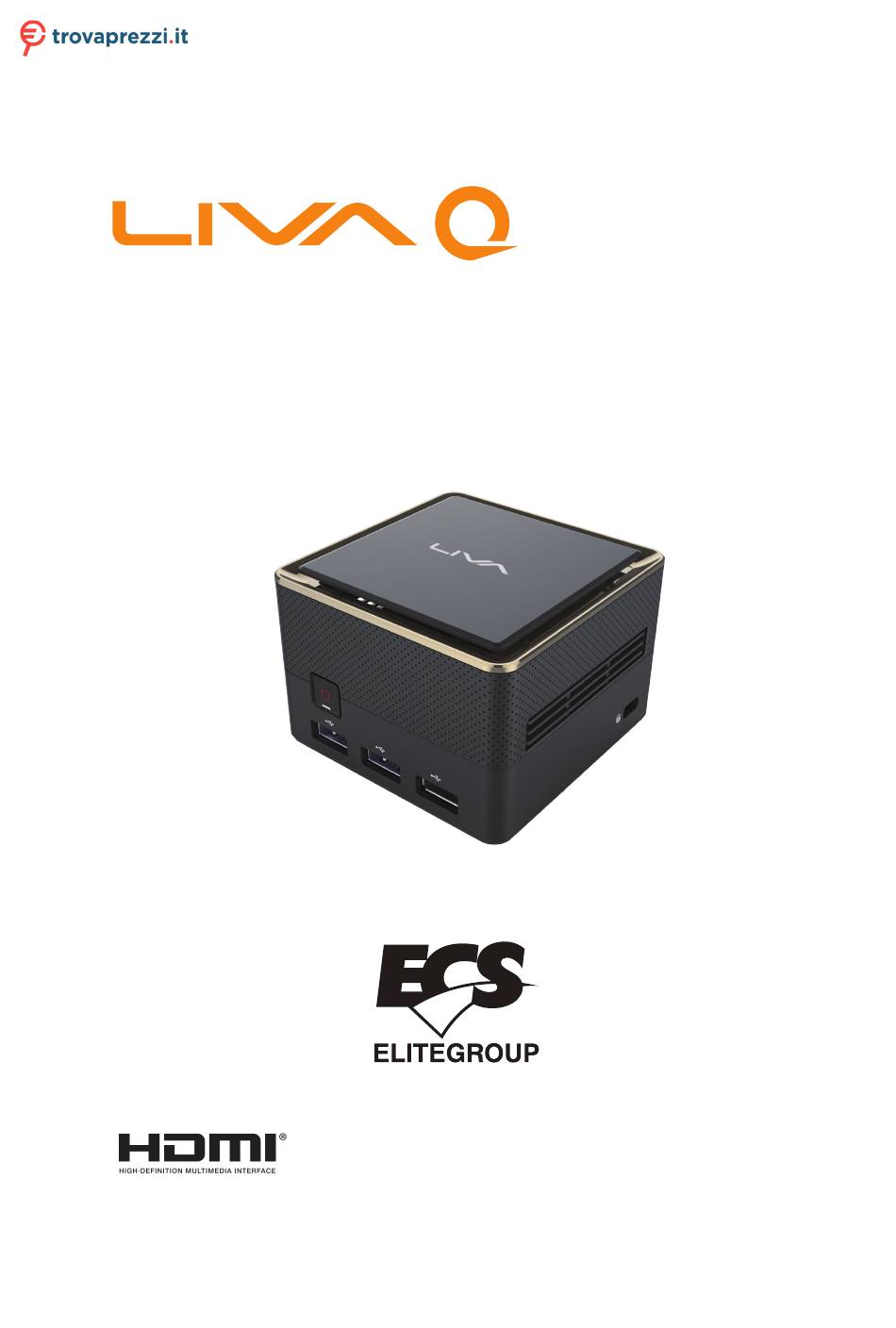

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per ECS LIVA Q3 Plus Ryzen R1505G / 4GB / 64GB (95-677-MZ6A05) o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation 3 Plus Ryzen Embedded Elitegroup Computer Systems Co., LTD.
-
Page 2: Trademark Recognition
Trademark Recognition Windows® 11 are registered trademarks of Microsoft Corp. Other product names used in this manual are the properties of their respective owners and are acknowledged. LIVA Q3 Plus MINI PC USER MANUAL... -
Page 3: Federal Communications Commission (Fcc)
RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. LIVA Q3 Plus MINI PC USER MANUAL... -
Page 4: Declaration Of Conformity
- L i m i t s a n d m e t h o d s o f measurement EN 60950 Safety for information technology equipment including electrical business equipment EN 62368 Safety for information technology equipment including electrical business equipment CE marking LIVA Q3 Plus MINI PC USER MANUAL... -
Page 5: Safety Instructions
0°C and 40°C. • If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating. LIVA Q3 Plus MINI PC USER MANUAL... - Page 6 The system does not function properly even if you follow the operating instructions. • The system was dropped or the cabinet is damaged. • The system performance changes The warranty does not apply to products that have been disassembled by users LIVA Q3 Plus MINI PC USER MANUAL...
-
Page 7: Safety Cautions And Warnings
3. Do not expose this product to high levels of direct sunlight, highhumidity or wet conditions. 4. Do not block the air vents to this product or impede the airflow in any way. LIVA Q3 Plus MINI PC USER MANUAL... -
Page 8: Canadian Department Of Communications
5150 MHz to 5350 MHz of frequency range. Manufacturer: Elitegroup Computer Systems Co., Ltd. No.239, Sec.2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan EU Single Place of Contact: Noorderhoeve 8 2993 TP Barendrecht The Netherlands(Holland) LIVA Q3 Plus MINI PC USER MANUAL... - Page 9 LIVA Q3 Plus MINI PC USER MANUAL viii...
-
Page 10: Introducing The Pc

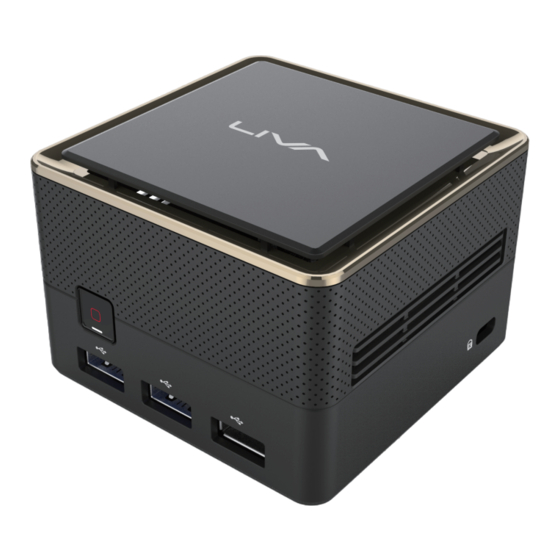

Chapter 1 Introducing the PC Introduction Thank you for choosing LIVA Q3 Plus Mini PC featuring AMD® Ryzen Embedded of great performance and with stylish and flexible design. This mini PC is based on AMD® Ryzen Embedded V1605B/R1505G/ R2314 Mobile platform. This latest Core-M processor is a multi- core system- on-a-chip (SoC) that integrates the next generation AMD®... -
Page 11: Specifications
• 1 x mDP 1.4 port • 1 x Micro SD card slot • 1 x DC port Button and LED Light • Power button • Power LED Light • 802.11 b/g/n/ac WLAN • 802.11 b/g/n/ac/ax WLAN 6E LIVA Q3 Plus MINI PC USER MANUAL... - Page 12 • Supports dual display Operation System • Windows 10/Windows 11 (base on SOC) Heatsink Design • Heatsink and cooling fan Operation Temp • 0~ + 40°C Dimension • 74mm x 74mm x 52.1mm Color • Black LIVA Q3 Plus MINI PC USER MANUAL...
-
Page 13: Front And Rear I/O
This is power state LED light. 3. USB 3.2 Gen2 Type-A Connect your USB 3.2 Gen2 Type-A Port device to this port. 4. USB 2.0 Port Connect your USB 2.0 device to this port. LIVA Q3 Plus MINI PC USER MANUAL... - Page 14 Connect the RJ-45 jack to the LAN ports for Network connecting. 7. mDP Port You can connect the display device to the mDP port. 8. 12V DC_IN Port Connect the DC_IN port to the power adapter. LIVA Q3 Plus MINI PC USER MANUAL...
- Page 15 Side I/O 9. Security Key hole This is security key hole. 10. Micro SD card slot This is Micro SD card slot. LIVA Q3 Plus MINI PC USER MANUAL...
- Page 16 Install the VESA Mount 1. Mount 4 screws on VESA bracket. 2. Fasten 2 screws under the case. LIVA Q3 Plus MINI PC USER MANUAL...
- Page 17 3. Hold the case towards the VESA bracket and insert the screws into the holes. 4. Slide the case down until it fixed. LIVA Q3 Plus MINI PC USER MANUAL...
-
Page 18: Motherboard Components
Motherboard Components Note: Find AJ1~2 and SCN4~5 on the two motherboards, insert SCN4~5 into AJ1~2 correctly after their alignment. LIVA Q3 Plus MINI PC USER MANUAL... - Page 19 10. ASHDMI HDMI connector 11. ASLAN Network connector 12. ASDP1 mDP1.4 connector 13. ASJ1 Power input port 14. ASD Micro SD card slot 15. AJ1 IO board connector 16. AJ2 IO board connector LIVA Q3 Plus MINI PC USER MANUAL...
