KENAY VITA KJT-0020BL-2 Manual

Bedside table

Download this manual

VITA MESITA

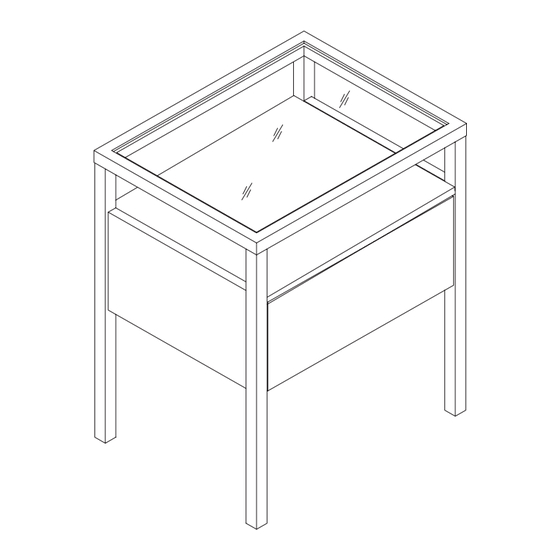

VITA BEDSIDE TABLE

KJT-0020BL-2

Need help?

Do you have a question about the VITA KJT-0020BL-2 and is the answer not in the manual?

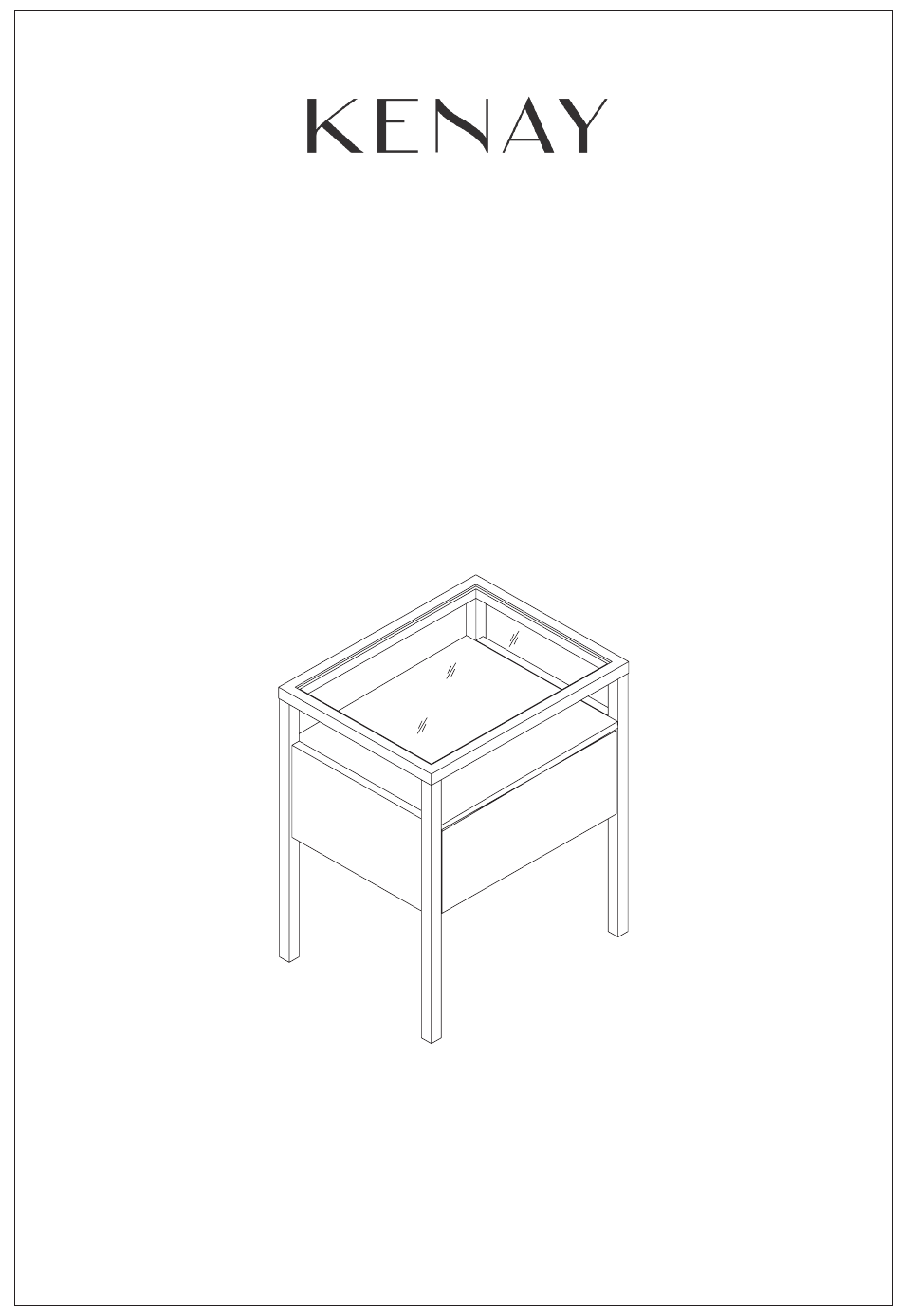

Page 1 VITA MESITA VITA BEDSIDE TABLE KJT-0020BL-2...
Page 2 PIEZAS / PIECES HERRAMIENTAS / TOOLS A x 16 B x 16 C x 8 E x 6 F x 4 35 mm Ø15 mm Ø8 x 30 mm Ø4 x 14 mm Ø3,5 x 30 mm G x 16 I x 12 J x 1 K x 1...
Page 3 PASO 1 / STEP 1 A x 10 J x 1 K x 1 E x 6 Ø4 x 14 mm E screw x 6 uds = 4 para ensamblar y 2 para reforzar (opcional) / 4 for assembly and 2 for reinforce (optional) PASO 2 / STEP 2 A x 6...
Page 4 MONTAJE DEL CAJÓN / DRAWER ASSEMBLY PASO 3 / STEP 3 PASO 3.1 / STEP 3.1 F x 4 Ø3,5 x 30 mm PASO 3.2 / STEP 3.2 B x 4 G x 4 Stickers Ø15 mm Ø20 mm PASO 4 / STEP 4 B x 2 G x 2 Stickers...
Page 5 PASO 5 / STEP 5 B x 6 G x 6 Stickers Ø15 mm Ø20 mm PASO 6 / STEP 6 L x 4 I x 4 N x 1 M8 x 15 mm 50x50x2 mm VITA MESITA VITA BEDSIDE TABLE...
Page 6 PASO 7 / STEP 7 I x 8 N x 1 M8 x 15 mm PASO 8 / STEP 8 B x 4 G x 4 Stickers Ø15 mm Ø20 mm VITA MESITA VITA BEDSIDE TABLE...
Page 7 PASO 9 / STEP 9 Regulación de guías para altura del cajón / Slide adjustment for drawer height Pasador para bloqueo de la guía / STEP 11 Guides locking pin VITA MESITA VITA BEDSIDE TABLE...
