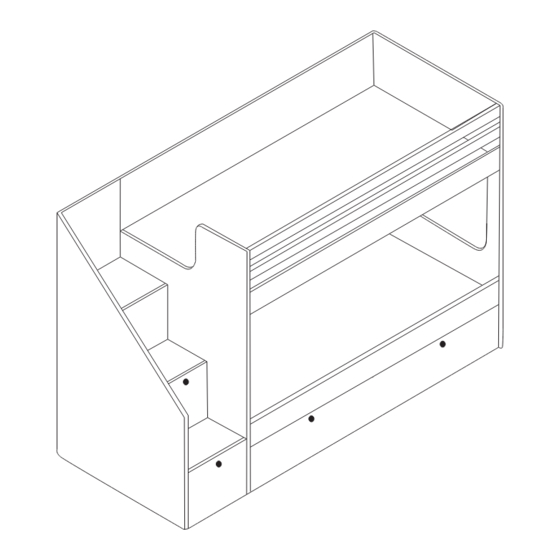

NINA LITERA NINA BUNK BED KAN-1423D / KAN-1423I...
Page 2
Es muy importante seguir las fases de montaje y utilizar todos los herrajes enviados por fábrica. Is very important to follow every assembly stage. and use all hardware shipped by factory. PIEZAS / PIECES HERRAMIENTAS / TOOLS A x 14 uds B x 14 uds C x 10 uds D x 2 uds...
Page 3
PASO 2 / STEP 2 A x 14 uds E x 2 uds K x 10 uds Pegatinas / stickers PASO 2.1 / STEP 2.1 Base superior / Top panel Base superior / Top panel 180º Base inferior / Lower panel PASO 2.2 / STEP 2.2 NINA LITERA NINA DUNK BED...
Page 4
PASO 3 / STEP 3 B x 2 uds PASO 4 / STEP 4 B x 4 uds C x 2 uds PASO 4.1 / STEP 4.1 PASO 4.2 / STEP 4.2 NINA LITERA NINA DUNK BED...
Page 5
PASO 5 / STEP 5 I x 13 uds F x 5 uds Ø4 x 20 mm Ø4,5 x 70 mm PASO 5.1 / STEP 5.1 Aflojar excéntricas para colocar las piezas / Loosen eccentrics to position the pieces PASO 5.2 / STEP 5.2 PASO 6 / STEP 6 L + I F x 13 uds...
Page 6
PASO 7 / STEP 7 D x 2 uds K x 2 uds 15 x 15 mm Pegatinas / stickers PASO 8 / STEP 8 I x 11 uds Ø4 x 20 mm Colocar bancada metálica por debajo de base superior / Place metal bench below upper base PASO 9 / STEP 9 J x 12 uds...
Page 7
PASO 10 / STEP 10 C x 4 uds H x 11 uds K x 5 uds Ø4,5 x 45 mm Pegatinas / stickers PASO 10.2/ STEP 10.2 PASO 10.1/ STEP 10.1 Vista desde abajo / View from below PASO 11 / STEP 11 G x 1 ud I x 4 uds 45 x 45 mm...
