Smart door and window contact
EN
Translation of the original Installation and Commissioning Manual
Item no. 14771002
UM E103-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14771002 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOME PILOT 14771002

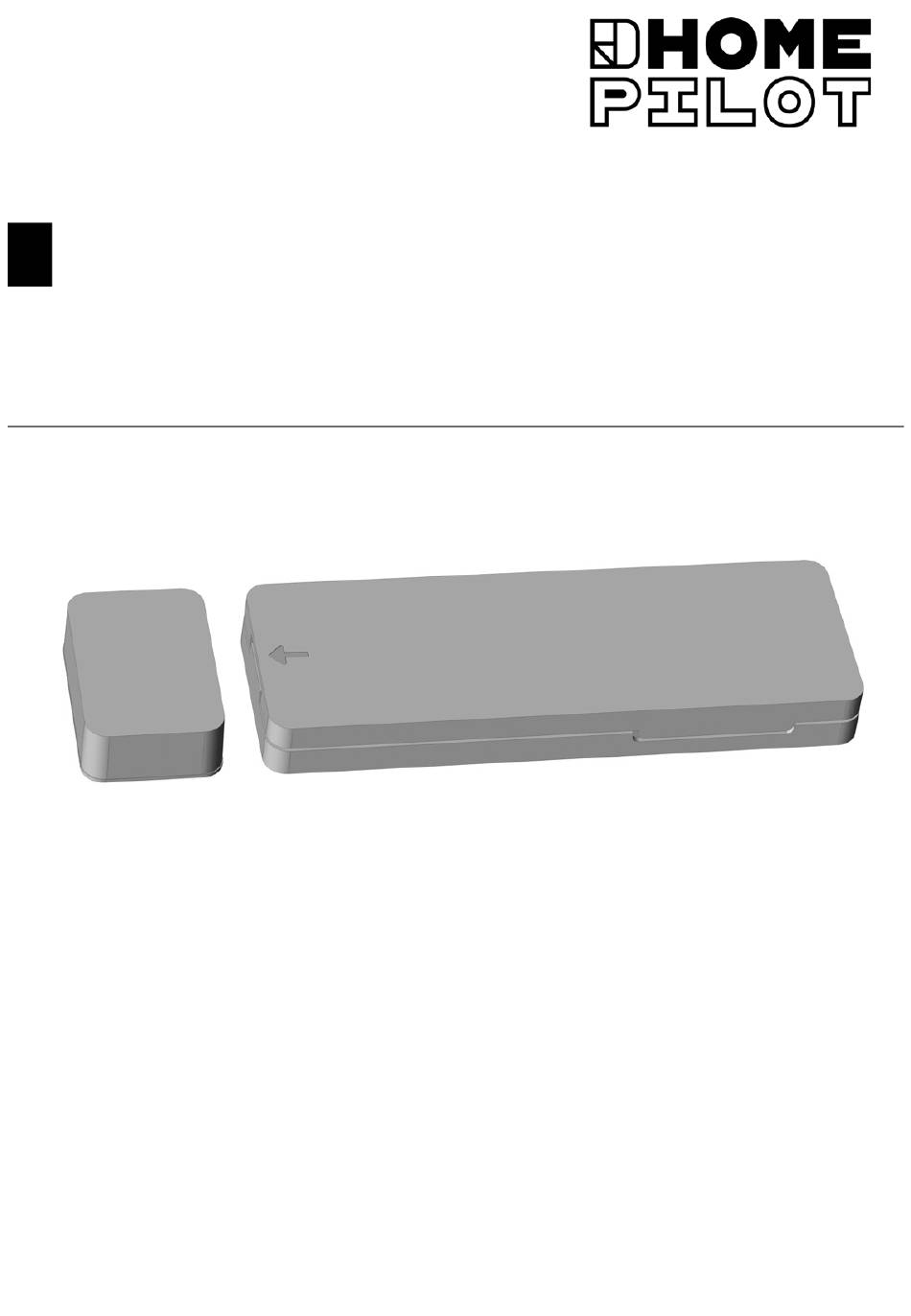

  • Page 1 Smart door and window contact Translation of the original Installation and Commissioning Manual Item no. 14771002 UM E103-2...
  • Page 2: Table Of Contents

    Contents This manual..............3 Hazard symbols .............. 4 Symbols and depictions used ........4 2.2    Glossary - definition ............4 Safety instructions ............5 Intended use ..............5 Included in delivery ............6 General view / operating elements........ 7 Product description ............8 7. ...
  • Page 3: This Manual

    1. This manual..describes how to install and commission the Smart door and window contact. How to use this manual Before you begin, please read this manual through com- ‹ pletely and follow all the safety instructions. Please also read the instruction manuals of the logged- ‹...
  • Page 4: Hazard Symbols

    2. Hazard symbols Danger area / dangerous situation 2.1 Symbols and depictions used Depiction Description Further useful information Please read the respective manual. 2.2 Glossary - definition DuoFern HOMEPILOT radio system for controlling compatible ‹ products. Premium gateway The Premium gateway is a central controller unit for ‹...
  • Page 5: Safety Instructions

    3. Safety instructions The use of defective devices and improper use can lead to property damage. Never use defective or damaged devices. ‹ Check the Smart door and window contact for damage. ‹ Consult our customer service department in the event ‹...
  • Page 6: Included In Delivery

    4. Included in delivery 1 x Sensor part (housing incl. sensor and electronics) 1 x Cover for sensor part 1 x 3 V lithium battery, type CR2032 1 x Magnet 4 x Double-sided round adhesive pads for the temporary   fixing of the sensor part and magnet 2 x Double-sided rectangular-shaped adhesive tape for  ...
  • Page 7: General View / Operating Elements

    5. General view / operating elements Sensor part Magnet Signal transducer Sensor Set button (S) Indicator light (multicoloured LED) Battery compartment Battery (3 V lithium, CR2032) DuoFern log-on button 10) DuoFern log-off button ...
  • Page 8: Product Description

    6. Product description The Smart door and window contact is designed to monitor window and door positions. It consists of a sensor part and a magnet. The sensor uses the magnet to detect the respective win- dow or door position: Open, closed and tilted For windows: For doors:...
  • Page 9: Technical Specifications

    7. Technical specifications General information 1 x 3 V (DC) lithium, Battery: type CR2032 approx. 3 years (depending on the ambi- ent temperature, number Battery life: of logged-on receivers and frequency of the status changes) Permissible ambient 5 °C to 50 °C temperature: Dimensions (L x W x D): Sensor part:...
  • Page 10: Inserting / Changing The Battery

    8. Inserting / changing the battery This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Replacement of batteries shall not be done by children. ‹...
  • Page 11 8. Inserting / changing the battery The use of incorrect batteries can damage the Smart door and window contact. Only use type CR2032 batteries. ‹ Pay attention to the correct polarity when inserting the ‹ battery, see page 12. Signals in the case of an empty battery a short audible signal when opening/ tilting ‹...
  • Page 12 8. Inserting / changing the battery Carefully open the cover on both sides by gently turning the screwdriver. Slide the battery provided into the battery compartment with the plus pole (+) pointing upwards. A flat, non-metallic object can be used to slide the old  battery out of the battery compartment when changing a battery.
  • Page 13 8. Inserting / changing the battery LED status messages after inserting a battery: LED lights up green for 1 sec.: Battery is full LED lights up blue for 1 sec.: Battery is no longer completely full* LED lights up red for 1 sec.: Battery is nearly empty LED does not light up: Battery is completely empty...
  • Page 14: Installation

    9. Installation 9.1 Installation instructions Temporary installation of the sensor part and magnet We recommend that you initially fix the elements temporarily  with the round adhesive pads in order to carry out the teach-in process and then a function test prior to the final installation. The Smart door and window contact is not suitable for use in aluminium window frames. However, if the installation is to take place, we recommend installing it on the window frame.
  • Page 15 9.1 Installation instructions The distance between the sensor (arrow on the housing) and magnet must be a maximum of 20 mm in all directions. The direction from which the magnet is led to the sensor does not matter.
  • Page 16: Installation Examples

    9.2 Installation examples Check that the sensor part and magnet fit into the window  frame. You can find the dimensions in the technical specifi- cations on page 9. Alternatively, we recommend an installation on the window frame. As a window contact in the window frame Recommendation to protect against condensation Install the sensor part in the side jamb of the window frame and never on the bottom rail as water may accumulate there from time to time.
  • Page 17 9.2  Installation examples As a window contact on the window frame If an installation in the window frame is not possible. As a door contact on As a door contact in the door the frame...
  • Page 18: Temporary Installation

    9.2  Installation examples The installation of the magnet and sensor part may be different to the illustrations.  The radio range may be reduced if the sensor part is installed on metal. 9.3 Temporary installation Select the installation position based on the above-men- tioned criteria and installation examples. Fix the sensor part and the magnet at the selected installation position with the round adhesive pads provided.
  • Page 19: Teaching In The Window Or Door Positions

    9.4 Teaching in the window or door positions The Smart door and window contact has three operating modes. The teach-in processes are carried out in the re- spective mode: Window mode (open / closed / tilted), LED flashes green ‹ Door mode (open / closed), LED flashes blue ‹ Inverted door mode (open = closed / closed = open), ‹...
  • Page 20 9.4 Teaching in the window or door positions Open the window or door. Activate the desired mode:     3 sec. = Window mode >   LED flashes green   6 sec. = Door mode >  LED flashes blue   9 sec. = Inverted door mode >  LED flashes red Then two short acoustic signals     confirm that the first position is stored. Close the window or door. After approx. 3 seconds, two short  ...
  • Page 21: Check The Taught-In Positions

    9.5 Check the taught-in positions 5 minutes You can check the stored window and     door positions for five minutes after  the teach-in process. Open, tilt and close the window or door with the fixed Smart  door and window contact. Each detected position is acknowledged by acoustic signals: = Open = Tilted = Closed The Smart door and window contact is ready for operation if the teach-in process has been fully completed.
  • Page 22: Final Installation Of The

    9.6 Final installation of the Smart door and window contact Mark the installation positions of the sensor part and mag- net, e.g. with a pencil. Detach the fixed sensor part and magnet. Remove the round adhesive pads and clean the adhesive points thoroughly with the cleaning cloth provided. Apply the double-sided adhesive strips.
  • Page 23: Duofern Devices (Logging On / Logging Off / Clearing)

    10. DuoFern devices   (logging on / logging off / clearing) In order for your Smart door and window contact to send control signals in the DuoFern network, it is necessary to log any desired DuoFern device (e.g. Smart light receiver 1-channel etc.) on to the Smart door and window contact. Please read the instruction manual for the re- spective HOMEPILOT device.
  • Page 24: Logging On Duofern Devices

    10.1 Logging on DuoFern devices Switch the respective DuoFern device to registering mode. Press the log-on button on the Smart door and window contact. 60 sec. The registering mode remains active for 60 seconds. LED signals when logging on Flashes green: during the login ‹...
  • Page 25: Logging Off Duofern Devices

    10.2 Logging off DuoFern devices Switch the respective DuoFern       device to log-off mode.   Press the log-off button on the  Smart door and window contact.  60 sec.  The log-off mode remains active for 60 seconds. LED signals when logging off Flashes red: during the log-off ‹ Lights up green for 5 seconds: after a successful log-off ‹ Lights up red: if the log-off was not successful ‹   The log-off process can be cancelled prematurely  by pressing the log-on or log-off button.
  • Page 26: Clearing The Duofern Network

    10.3 Clearing the DuoFern network A DuoFern device that is no longer available by radio can be logged off the Smart door and window contact.    Press the log-on button for five  seconds until the LED lights up green. All unavailable DuoFern devices are     logged off. LED signals during the clearing process Flashes green: when the button is pressed ‹...
  • Page 27: Logging On To The Premium Gateway

    11. Logging on to the Premium gateway The switching commands of the Smart door and window contact can be used to trigger scenes in combination with the Premium gateway. To do so, it must first be logged on to  the Premium gateway. Put your gateway premium into login mode, e.g. via the HOMEPILOT app.
  • Page 28: Deleting All Settings

    12. Deleting all settings   Press the log-off button for five      seconds; the LED flashes red during  this time. As soon as the LED lights up red continuously, all settings are deleted and the Smart door and window contact returns to its original default condition. 13. Closing the housing cover Press the cover carefully onto the sensor part after com- pleting all the settings.
  • Page 29: Cleaning / Maintenance

    14. Cleaning / maintenance Chemical solvents may damage the Smart door and window contact. Use only a soft, slightly damp cloth to clean the device. ‹ 15. Simplified EU declaration of conformity DELTA DORE RADEMACHER GmbH, hereby declares that the Smart door and window contact complies with the Directive 2014/53/EU (Radio Equipment Directive).
  • Page 30: Information About Environmental Protection

    16. Information about environmental protection Disposal Information on disposal is enclosed with the product.
  • Page 32 DELTA DORE RADEMACHER GmbH Buschkamp 7 46414 Rhede (Germany)
