- Page 1 Smart light receiver 1-channel Instruction manual for the electrical connection and for commissioning Item no. 11941001 UM D116-2...
-
Page 2: Table Of Contents
Contents This manual................3 How to use this manual ..............3 Hazard symbols ................4 Levels of danger and signal words ..........4 Symbols and depictions used ............5 Safety instructions ..............6 Intended use ..................6 Improper use ..................7 Expert knowledge required by the installer .......8 Glossary - definition ................8 Included in delivery ..............9 Overview and connections .......... -
Page 3: This Manual
1. This manual..describes how to install, connect and commission the Smart light receiver 1-channel. 1.1 How to use this manual Before you begin, please read this manual through completely ‹ and follow all the safety instructions. Please also read the instruction manuals of the accessories, ‹... -
Page 4: Hazard Symbols
2. Hazard symbols The following hazard symbols are used in this manual: Danger to life resulting from electric shock Danger area / dangerous situation 2.1 Levels of danger and signal words DANGER! This hazard will lead to serious injury or death if not avoided. WARNING! WARNING! This hazard may result in serious injury or death if not avoided. -
Page 5: Symbols And Depictions Used
2.2 Symbols and depictions used Depiction Description Procedures Itemisation ‹ 1) or a) Lists Further useful information Please read the respective manual... -
Page 6: Safety Instructions
3. Safety instructions The use of defective devices can lead to personal injury and damage to property (electric shock / short circuit). Never use defective or damaged devices. ‹ Check that the Smart light receiver 1-channel is intact. ‹ Consult our customer service department in the event that ‹... -
Page 7: Improper Use
3.1 Intended use Radio systems that transmit on the same frequency can cause interference. 3.2 Improper use Using the Smart light receiver 1-channel for any other purpose than previously mentioned is not permissible. Improper use can lead to serious injuries or property damage. -
Page 8: Expert Knowledge Required By The Installer
3.3 Expert knowledge required by the installer The electrical connection, installation and commissioning of the Smart light receiver 1-channel must only be carried out by a quali- fied electrician in accordance with the instructions in this manual. 3.4 Glossary - definition DuoFern HOMEPILOT radio technology for controlling compatible ‹... -
Page 9: Included In Delivery
4. Included in delivery Included in delivery a) 1 x Smart light receiver 1-channel incl. antenna b) 1 x instruction manual... -
Page 10: Overview And Connections

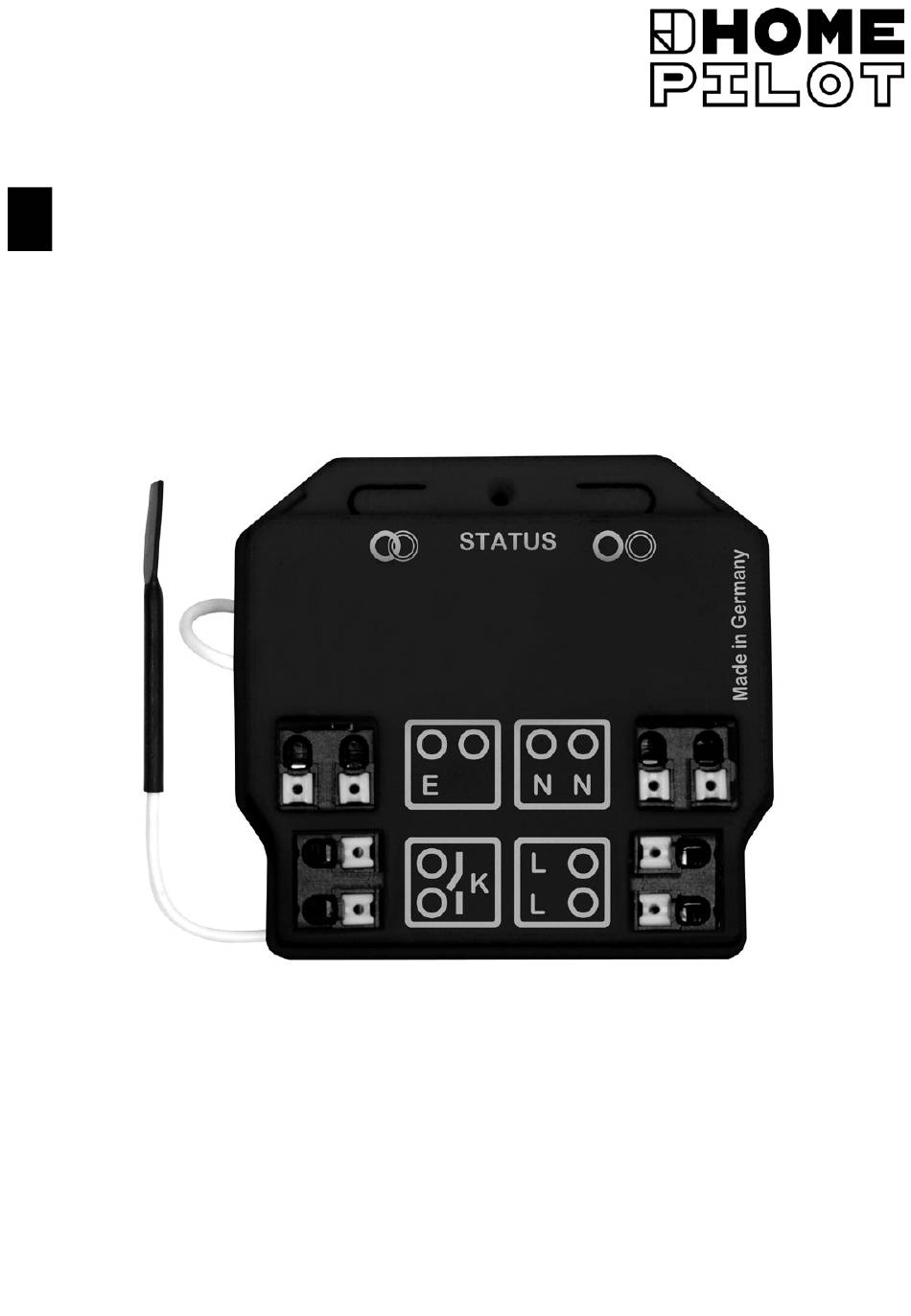

5. Overview and connections STATUS Pos. Symbol Description Control input 230 V / 50 Hz / (on / off) Connection of an external switch / button for manual control on site Relay contact [ K ] Connection of an electrical appliance Neutral conductor [ N ] Connection of the neutral conductor Supply voltage [ L ] 230 V / 50 Hz... -
Page 11: Operating Buttons And Indicator Light
5.1 Operating buttons and indicator light STATUS Pos. Symbol Description Connect button Logging on to the DuoFern radio network or a DuoFern transmitter STATUS Indicator light - status display green flashing Connection is active constantly Connection or disconnection lit up was successful brief Control command received... -
Page 12: Functional Description
6. Functional description Controlling electrical appliances With the Smart light receiver 1-channel, you can connect and control electrical appliances (e.g. lighting, etc.) with up to a max- imum of 3600 W. Use in a DuoFern network The Smart light receiver 1-channel can be integrated into a DuoFern network, for example, to use the range of functions of DuoFern sensors and DuoFern transmitters, such as the Premium gateway. -
Page 15: Description Of The Functions And Parameters
6.1 Description of the functions and parameters Light/device mode By switching between the light and the device mode, the behav- iour of the Smart light receiver 1-channel can be changed: The range of functions changes as follows: Switching commands of Device Light an external DuoFern transmitter... - Page 16 6.1 Description of the functions and parameters Stairway function (on / off) When the stairway function is active, the Smart light receiver 1-channel will switch off the controlled device again after the set "stairway time". An advanced switch-off warning for > 60 seconds and with uneven values can optionally be set.
-
Page 17: Technical Specifications
7. Technical specifications Mains connection [ L / N ] Mains supply 230 V / 50 Hz voltage: Consumption: Standby: < 0.5 W Control input [ E ] for an external manual switch / button on site Input voltage: 230 V (Ri = 200 kW) Relay output - load contact [ K ] Switching voltage: 230 V / 50 Hz... - Page 18 7. Technical specifications Relay output - load contact [ K ] Maximum switching Capacitive loads such as: capacity: electronic transformers, AC/DC transformer, e.g. for extra-low voltage lamps such as halogen lamps, LEDs, etc. 8 A / 1800 W Improper use can lead to serious injuries or property damage.
- Page 19 7. Technical specifications General information Permissible ambient -20 °C to + 55 °C temperature range: Dimensions (W x H x D): 48.7 x 45.7 x 19.8 mm Connecting terminals: Spring resistance connecting terminals (0.1 mm - 1.5 mm ) for solid conductors...
-
Page 20: Connecting The Smart Light Receiver 1-Channel
8. Connecting the Smart light receiver 1-channel Prior to the electrical connection, check that the voltage / frequen- cy on the type plate corresponds to that of the local mains supply. 8.1 Safety instructions for the electrical connection DANGER! There is a risk of fatal electric shock when touching electrical components. - Page 21 8.1 Safety instructions for the electrical connection WARNING! WARNING! There is a risk of short circuits and fire if the wrong connect- ing cable is used. Only use solid copper connecting cables with a cable ‹ cross-section of 1.5 mm for connecting the electrical appli- ance.
-
Page 22: Important Information Regarding The Electrical Connection
8.2 Important information regarding the electrical connection Connection instructions for operating with an external switch / button on site When using the control input [ E ], you must connect the ex- ‹ ternal switch / button and the Smart light receiver 1-channel to the same phase [ L ]. -
Page 23: Connecting And Installing The Smart Light Receiver 1-Channel
8.3 Connecting and installing the Smart light receiver 1-channel Ensure the mains is disconnected and check whether the mains power leads are current-free. Securely lay the connecting cables right into the flush-mounted box of the Smart light receiver 1-channel. Remove the insulation on all leads as specified above and con- nect them according to the following connection diagram. -
Page 24: Connection Diagram
8.4 Connection diagram 230 V / 50 Hz Appliance N PE External switch / button Control input [ E ] STATUS Neutral conduc- tor [ N ] Relay contact [ K ] Power supply [ L ] Required connecting cable and cable cross-section for con- necting the electrical appliance: Only use a solid copper cable with a Ø... -
Page 25: Installation Example
8.5 Installation example 230 V / 50 Hz Appliance Toggle switch STATUS 230 V / 50 Hz Control input [ E ] Relay contact [ K ] Installation with toggle switches We recommend replacing the toggle switch with several switch- es connected in parallel. -
Page 26: Logging Duofern Transmitters On / Off
9. Logging DuoFern transmitters on / off For the Smart light receiver 1-channel to be operated with a DuoFern transmitter, you must log each desired transmitter onto the Smart light receiver 1-channel. You can log on a maximum of 20 DuoFern transmitters (e.g. Smart remote control 6 groups). Switch the desired DuoFern transmitter to log-on/log-off mode (please refer to the respective instruction manual). -
Page 27: Logging On And Off Via Radio Code
9.1 Logging on and off via radio code You can control the Smart light receiver 1-channel directly using the radio code in order, for example, to be able to connect further DuoFern transmitters to the actuator after installation. You will find the radio code on the enclosed label and on the rear side of the Smart light receiver 1-channel. -
Page 28: Deleting All Settings (Reset)
10. Deleting all settings (reset) A reset can be carried out to reset the Smart light receiver 1-chan- nel to the default factory settings. Press and hold the disconnect button for approx. 5 sec. until the STATUS LED constantly lights up red. All of the settings are deleted and reset to the default factory set- tings and the logged-on DuoFern transmitters are automatically logged off. -
Page 29: Simplified Eu Declaration Of Conformity
12. Simplified EU declaration of conformity DELTA DORE RADEMACHER GmbH hereby declares that the Smart light receiver 1-channel complies with the Directive 2014/53/EU (Radio Equipment Directive). The full text of the declaration of conformity is available at the following website: www.homepilot-smarthome.com Warranty terms and conditions Information on the warranty conditions is enclosed with the... - Page 30 DELTA DORE RADEMACHER GmbH Buschkamp 7 46414 Rhede (Germany)
