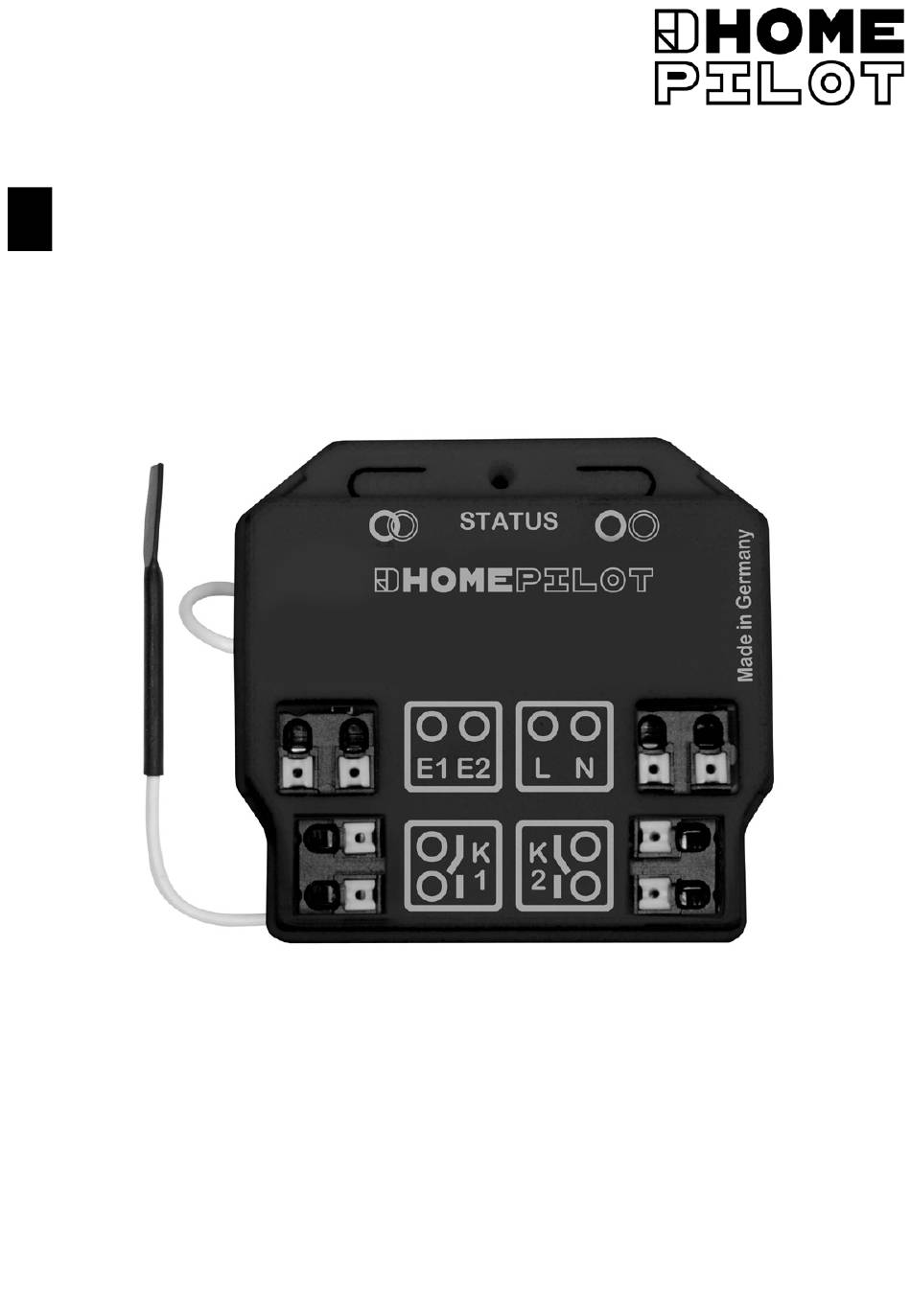

- Page 1 Smart light receiver 2-channel Instruction manual for the electrical connection and for commissioning Item no. 11941002 UM D110-2...
-
Page 2: Table Of Contents
Contents These instructions..............3 Application of this manual ..............3 Hazard symbols ................4 Levels of danger and signal words ..........4 Symbols and depictions used ............5 Safety Instructions ..............6 Intended Use ..................6 Incorrect Use ..................7 Required Expert Knowledge of the Installer ......8 Glossary - Definition ................8 Included in delivery ..............9 Overview and connections .......... -
Page 3: These Instructions
1. These instructions..describe how to install, connect and commission the Smart light receiver 2-channel. 1.1 Application of this manual Before you begin, please read this manual through comple- ‹ tely and follow all the safety instructions. Please also read the instruction manuals of the accessories, ‹... -
Page 4: Hazard Symbols
2. Hazard symbols The following hazard symbols are used in this instruction manual: Danger of fatal electric shock Danger area / dangerous situation 2.1 Levels of danger and signal words DANGER! This hazard will lead to serious injury or death if not avoided. WARNING! WARNING! This hazard may result in serious injury or death if not avoided. -
Page 5: Symbols And Depictions Used
2.2 Symbols and depictions used Depiction Description Procedures Itemisation ‹ 1) or a) Lists further useful information Please read the respective manual... -
Page 6: Safety Instructions
3. Safety Instructions The use of defective equipment can lead to personal injury and damage to property (electric shocks / short circuiting). Never use defective or damaged equipment. ‹ Check that the Smart light receiver 2-channel is intact. ‹ Consult our customer service department in the event that ‹... -
Page 7: Incorrect Use
3.1 Intended Use Radio systems which transmit on the same frequency can cause interference. 3.2 Incorrect Use Using the Smart light receiver 2-channel for any other purpose than previously mentioned is not permissible. Improper use can lead to serious injuries or property damage. -
Page 8: Required Expert Knowledge Of The Installer
3.3 Required Expert Knowledge of the Installer The electrical connection, installation and commissioning of the Smart light receiver 2-channel must only be carried out by a quali- fied electrician in accordance with the instructions in this manual. 3.4 Glossary - Definition DuoFern HOMEPILOT radio technology for controlling compatible ‹... -
Page 9: Included In Delivery
4. Included in delivery Included in delivery a) 1 x Smart light receiver 2-channel incl. antenna b) 1 x Instruction manual... -
Page 10: Overview And Connections
5. Overview and connections Pos. Symbol Description Control inputs 230 V / 50 Hz / (On / Off) Connection of an external switch / push- button for manual control on site. Relay contact [ K1 ] Connection of an electric appliance. Relay contact [ K2 ] Connection of a electric appliance. -
Page 11: Operating Buttons And Indicator Light
5.1 Operating Buttons and Indicator Light Pos. Symbol Description Connect button Registering on the DuoFern radio network or on a DuoFern transmitter. STATUS Indicator Light - Status Display green flashing Connection is active constantly Connection or disconnection lit up was successful brief flashing Control command received flashing... -
Page 12: Functional Description
6. Functional description Controlling electrical appliances With the Smart light receiver 2-channel, you can connect and control up to two electrical appliances (e.g. lighting, etc.) with up to a maximum 1500 W per appliance. Use in the DuoFern network The Smart light receiver 2-channel can be integrated into a DuoFern network to use the range of functions of e.g. -
Page 15: Description Of The Functions And Parameters
6.1 Description of the functions and parameters Light/Device mode By switching between the light and the device mode, the behaviour of the Smart light receiver 2-channel can be changed: The range of functions changes as follows: Switching commands of an Device Light external DuoFern transmitter*... - Page 16 6.1 Description of the functions and parameters Stairway function (on / off) When the stairway function is active, the Smart light receiver 2-channel will switch off the controlled device again after the set "stairway time". Optionally, a switch-off advance warning for >...
-
Page 17: Technical Specifications
7. Technical Specifications Mains supply [ L / N ] Mains supply voltage: 230 V / 50 Hz Consumption: Standby: < 0.5 W Control inputs [ E1 / E2 ] for each external, manual switch / push button on site Input voltage: 230 V (Ri = 200 kW) Relay outputs - load contacts [ K1 / K2 ]... - Page 18 7. Technical Specifications Relay outputs - load contacts [ K1 / K2 ] Maximum switching capacitive loads such as: capacity electronic transformers, AC/DC per channel: transformer, e.g. for extra-low voltage lamps such as halogen lamps, LEDs, etc. 5 A / 1150 W Improper use can lead to serious injuries or property damage.
- Page 19 7. Technical Specifications General information Permissible ambient tem- -20 °C to + 55 °C perature range: Dimensions (W x H x D): 48.7 x 45.7 x 19.8 mm Connecting terminals: Spring resistance connecting terminals (0.1 mm - 1.5 mm...
-
Page 20: Connecting The Smart Light Receiver 2-Channel
8. Connecting the Smart light receiver 2-channel Prior to the electrical connection, check that the voltage / fre- quency on the type plate corresponds to that of the local mains supply. 8.1 Safety Instructions for the Electrical Connection DANGER! There is a risk of fatal electric shocks when touching electrical components. -
Page 21: Important Information Regarding The Electrical Installation
8.1 Safety Instructions for the Electrical Connection ATTENTION! A defect antenna can lead to malfunctions or failure of the Smart light receiver 2-channel. The antenna wire must not be shortened or damaged. ‹ 8.2 Important Information regarding the Electrical Installation Connection instructions for the operation with an external switch / push button on site When using the control inputs [ E1 / E2 ], you must... - Page 22 8.2 Important Information regarding the Electrical Installation Further assembly instructions In order to ensure optimal operation, the Smart light receiver ‹ 2-channel should not be installed on a metallic base or near metal objects. The Smart light receiver 2-channel is intended for flush ‹...
-
Page 23: Connecting And Installing The Smart Light Receiver 2-Channel
8.3 Connecting and installing the Smart light receiver 2-channel Ensure the mains are current-free and check whether the inlet leads are current-free. Securely lay the connecting cables right into the flush-mounted box of the Smart light receiver 2-channel. Remove the insulation on all leads as specified above and connect them according to the following connection diagram. -
Page 24: Connection Diagrams
8.4 Connection diagrams 230 V / 50 Hz Consumer 1 + 2 N PE N PE External switch / push-button Control input [ E1 ] [ E2 ] STATUS E1 E2 Relay contact [ K1 ] [ K2 ]... -
Page 25: Installation Example
8.5 Installation example 230 V / 50 Hz Consumer 1 Changeover switch STATUS E1 E2 230 V / 50 Hz Control input [ E1 ] Relay contact [ K1 ] Installation with changeover switches We recommend replacing the cross connection with several switches connected in parallel. -
Page 26: Logging Duofern Transmitters On / Off
9. Logging DuoFern transmitters on / off For the Smart light receiver 2-channel to be operated with a DuoFern transmitter, you must register each desired transmitter to the Smart light receiver 2-channel. You can assign a maximum of 20 DuoFern transmitters (e.g. -
Page 27: Logging On And Off Via Radio Code
9.1 Logging on and off via radio code You can use the radio code to connect the Smart flush-mounted roller shutter to your Premium gateway remotely even after in- stallation.In addition, you can set the Smart flush-mounted roller shutter to remote login mode using your Premium gateway and thus connect it directly to radio transmitters (e.g. -
Page 28: Deleting All Settings (Reset)
10. Deleting all settings (Reset) A reset can be carried out to reset the Smart light receiver 2-chan- nel to the original default condition as when supplied. Press and hold the disconnect button for approx. 5 seconds until the STATUS LED constantly lights up red. All of the settings are deleted and reset to the default factory settings and the registered DuoFern transmitters are automatically logged off. -
Page 29: Simplified Eu Declaration Of Conformity
12. Simplified EU Declaration of Conformity DELTA DORE RADEMACHER GmbH hereby declares that the Smart light receiver 2-channel complies with the Directive 2014/53/EU (Radio Equipment Directive). The full text of the declaration of conformity is available at the following website: www.homepilot-smarthome.com Warranty Conditions Information on the warranty conditions is enclosed with the... - Page 30 DELTA DORE RADEMACHER GmbH Buschkamp 7 46414 Rhede (Germany)
